Basic-Line 1007 Configurator

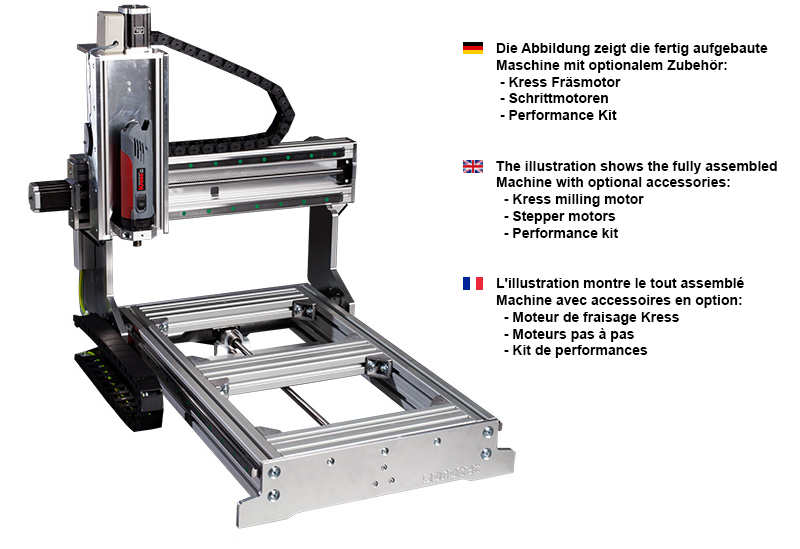

 The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state.After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this  Information sheet |
Scope of delivery
- Parts set mechanics
- Performance Kit
Options:
- Clamping plate
- Driver motors
- Electrical installation kit
- Spindle power supply
- Spindle mount
- Accessories
Properties
- Machined guide surfaces
- Compact dimensions

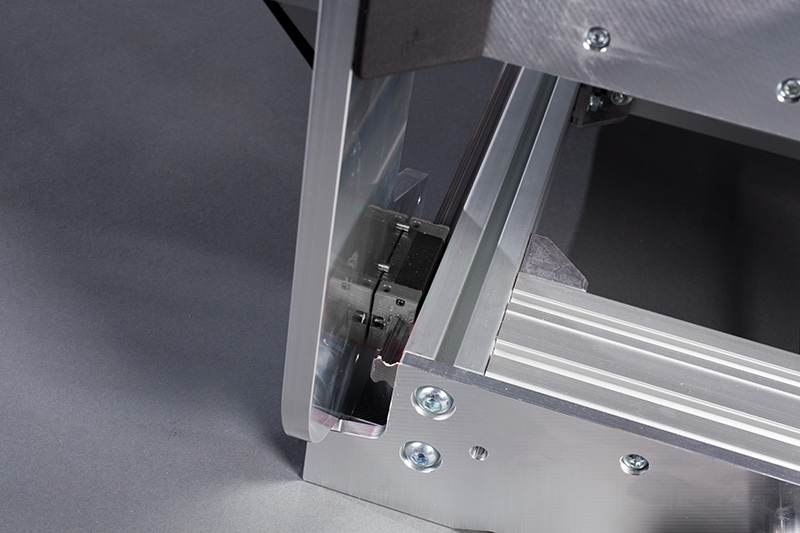

- Aluminium profiles and machined parts to build the machine
- BLUE LINE linear guides HGR20 and carriages

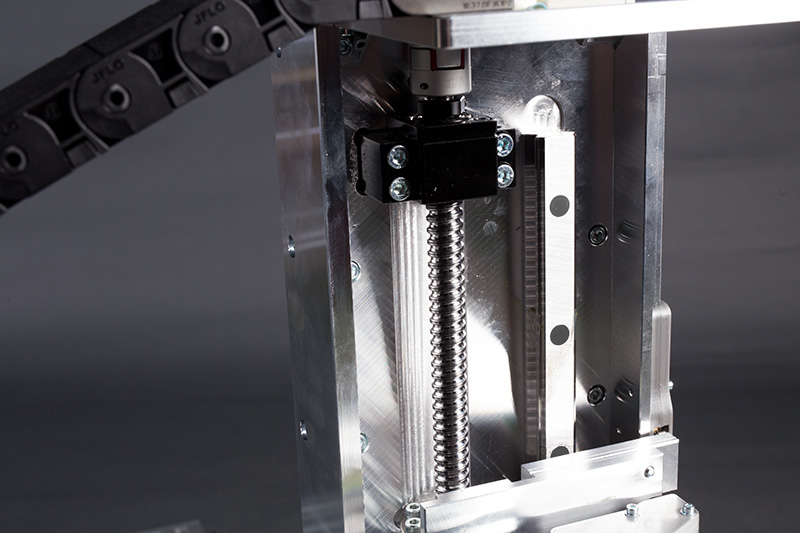

- BLUE LINE Ball screw spindles backlash-free
- Motor connection via claw coupling to the ball screw
- Mechanical reference switches for all axes
- Complete set of screws
- Assembly instructions
| Technical Data | |
|---|---|
| Travel | X: 1035 mm Y: 715 mm Z: 140 mm |
| Clearance under Portal | 180 mm |
| Clamping area | X: 1240 mm Y: 730 mm |
| Outer dimensions | L: 1350 mm B: 990 mm H: 820 mm |
| BLUE LINE Rails | Linear Guides Size 20 on all Axis |
| BLUE LINE Ball screw spindles Tolerance class T07 |
X: 16 x 10 mm Y: 16 x 10 mm Z: 16 x 5 mm |
| Gewicht ohne Zubehör | ca. 57kg |
This configurator provides an overview of an initial sensible combination of mechanical parts set, electrics and drives as well as frequently used accessories.
Available accessories
- Performance Kit
- Vacuumtable
- T-Slot plate
- Mounting Kit for Electrics
- Machine levelling feet
- Drives
- Control units
- Control software
- Spindles from several manufacturers
- Machine underframes and housings
- Cooling systems
- And much more...
You can find more information on control units and milling spindles here in the webshop.
Have we piqued your interest? Fancy more?
Contact us, we will be happy to advise you and provide you with an offer that meets your requirements.
You can reach us at
sorotec@sorotec.de+49(0)7227 994255-0
Datasheet BASIC-LineManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
