Alu-Line Heavy parts set

Alu-Line Heavy DIY

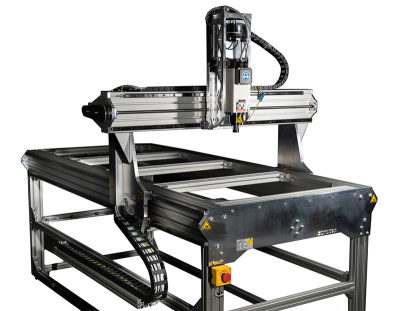

AchtungThe mechanics is supplied in individual parts for self-assembly. The pictures show the fully assembled state.

After completion, the sets of parts presented here represent what is referred to as "incomplete machines" in the Machinery Directive. For operation in accordance with the regulations, it must be completed with an enclosure and the module functional safety (operator protection).

Due to the large dimensions the profiles and ballscrews are built with higher cross sections in the Alu-Line Heavy. On the X-axis, the 90 x 90 profile is replaced through a 180 x 90 profile to reduce the deflection.
Likewise, the 16 mm ballscrew is replaced with one central 25 mm ballscrew spindle on the long axis.

All machines are also available ready built. Give us a call!

1 to 15 (from a total of 15)
