Parts set ALU-Line Heavy 1110

Due to the large dimensions, profiles and recirculating ball screws with higher cross-sections are installed in the ALU-Line Heavy.

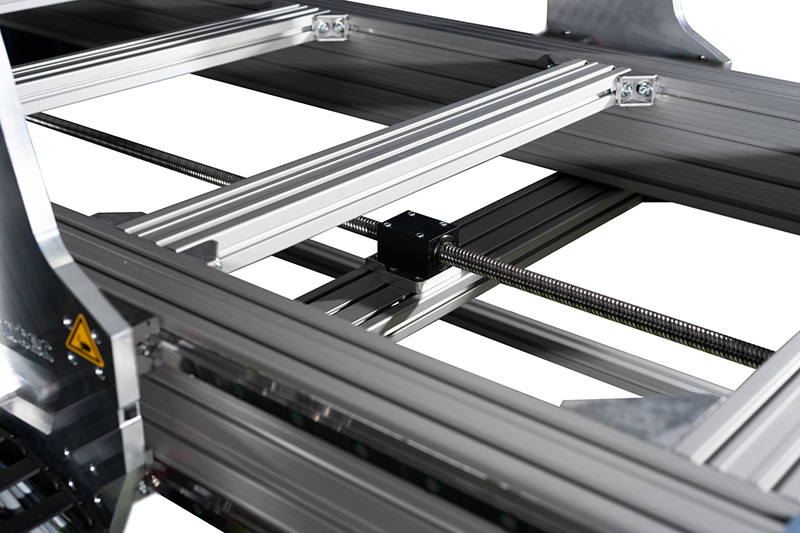

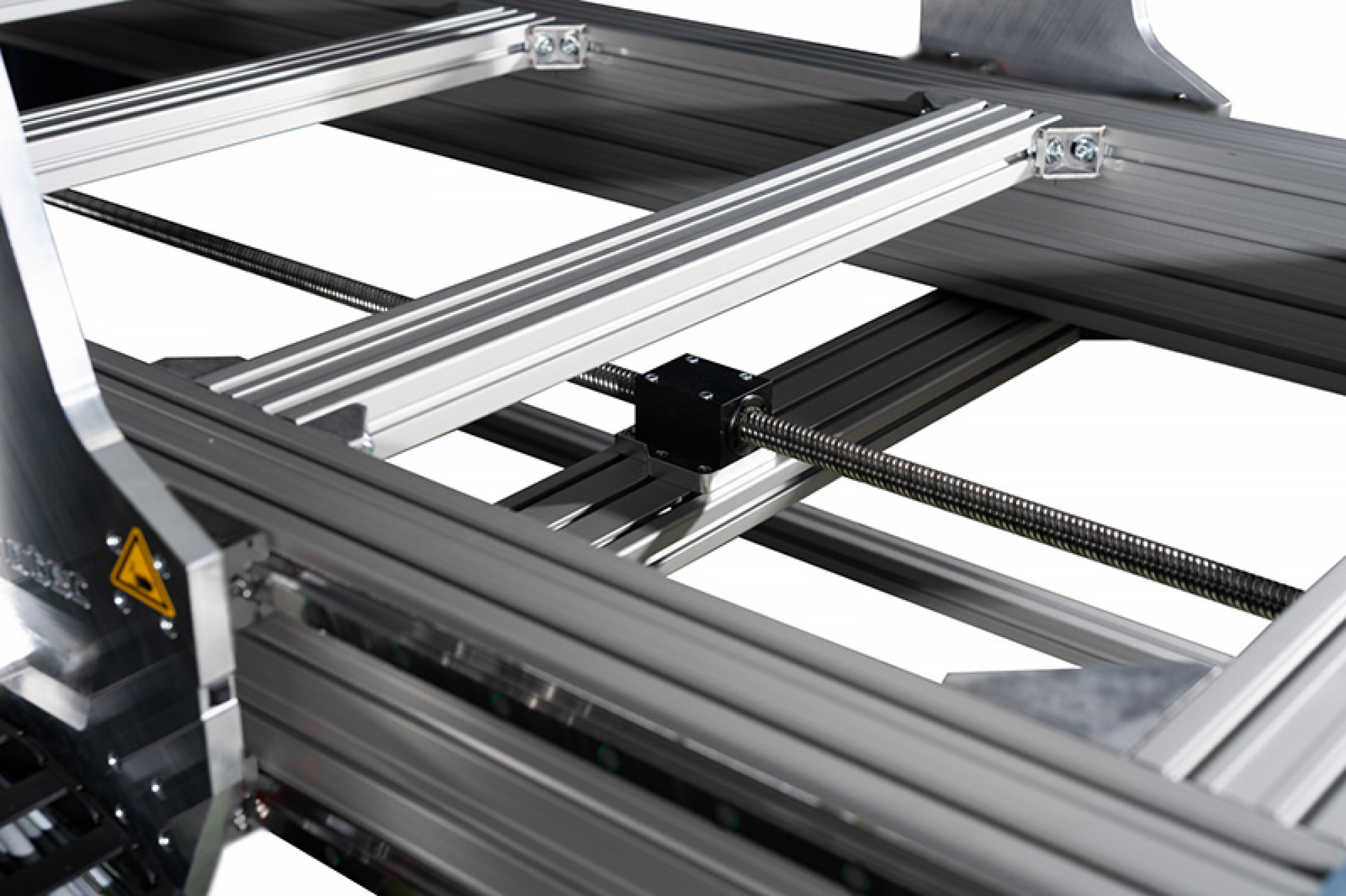

On the X axis, the 90 x 90 profile is replaced by a 180 x 90 profile to reduce deflection to a minimum. The 16 mm ball screw on the long axis is also replaced by a central 25 mm ball screw to prevent it from swinging up at high speeds. The travel speed does not have to be reduced in this way.

On the X axis (the long axis), two linear guide rails are mounted on the 180 profile on each side in order to achieve an even higher stability of the portal.

The Heavy version is supplied with a central drive spindle. If two external spindles are required, we recommend the Heavy Gantry version.

Our machines are equipped with pre-tensioned 20 mm linear guides to reduce any vibrations that may occur.

With this kit you get all the necessary parts for the mechanical construction of the portal milling machine. The drag chains and stepper motors are not included.

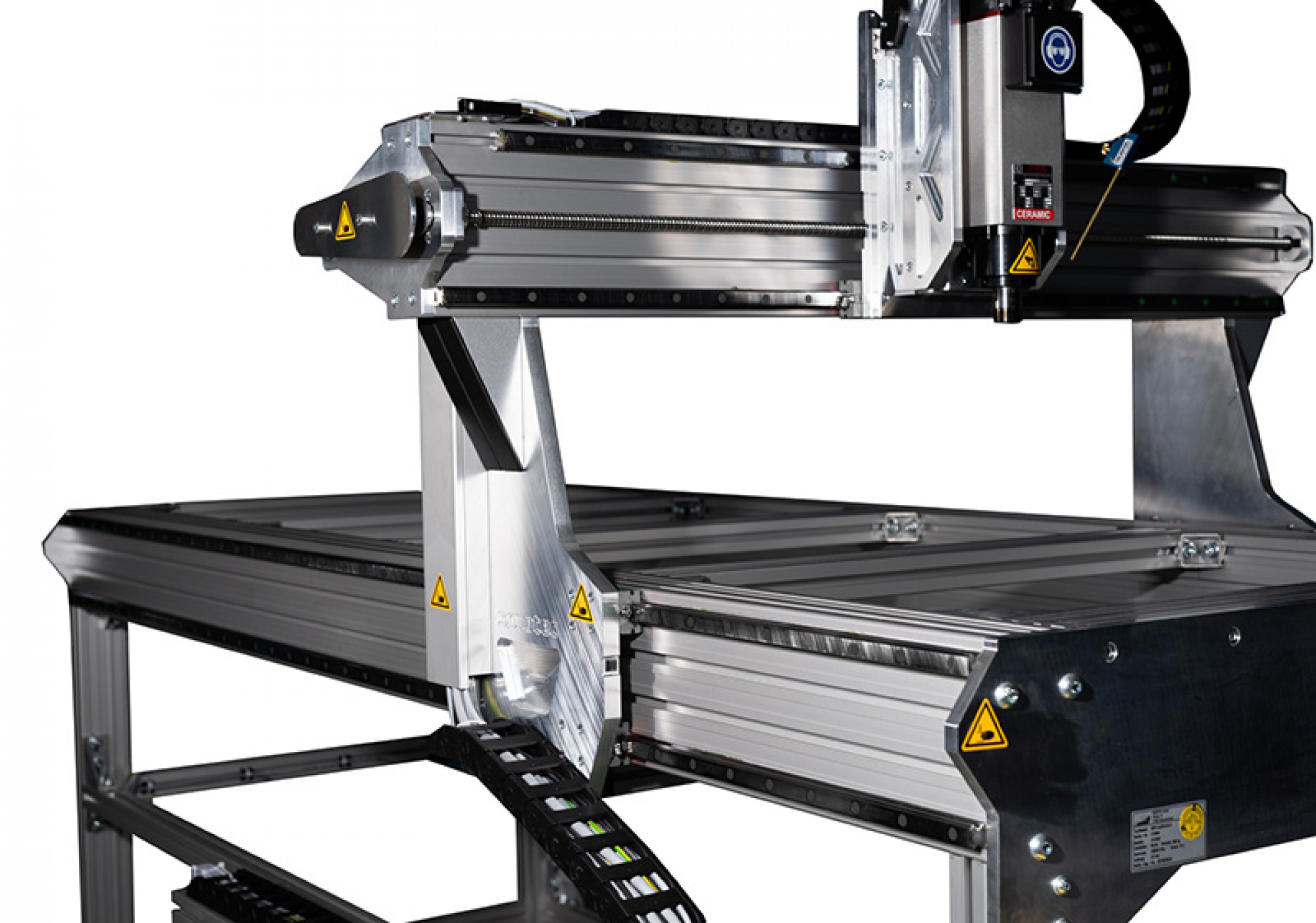

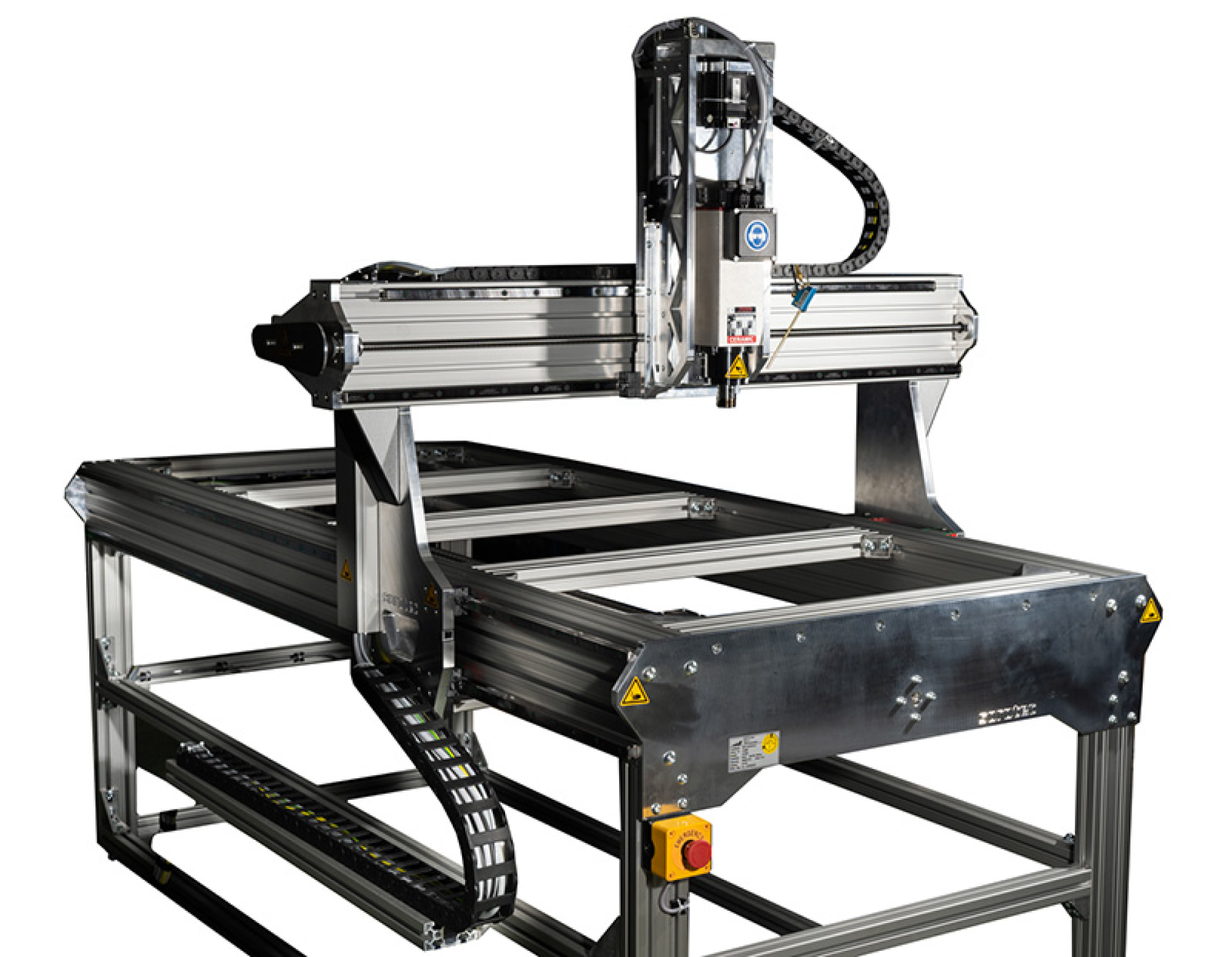

The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state. After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this Information sheet.

• 2 x linear rails each side on the X-Axis
• Aluminium profiles and machined parts to build the machine
• linear guides and carriages size 20
• Ball screw spindles
• HTD belts and pulleyes (for 8 mm shaft)
• Mechanical reference switches for all axes
• Complete set of screws
• Assembly instructions

• Mounting Kit for Electric
• Machine feet
• Stepper motors
• Controllers
• Drag chains
• Control software
• CAD/CAM Systems
• Spindles (with and without tool changer)
• Frame
• T-Slot tables
• Cooling systems
• Housing
• further accessories
