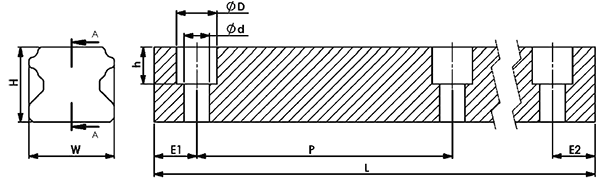

Linearschiene Zeichnung Linearschiene

Technical specifications:
Width W: 20 mm
Height H: 17.5 mm
Hole spacing P: 60 mm
Max. Length L: 4000 mm
Bore d: Ø 6 mm
Countersink D: Ø 9.5 mm
Weight: 2.21 kg / m
Datasheet

Special lengths are also available on request.
To do this, select the next larger length and enter the desired special length in the comment field of the order.

Example:
Select the desired special length: 490 mm -> 500 mm and enter the desired special length of 490 mm in the comment field.


The appropriate number of cover caps for the mounting holes is always included.
All lengths offered here are cuts from the original four meter rail.
Cuts are excluded from exchange and return.

Art.-No. Length
(mm)
Number
mnt. holes
Price
Products to cart
ZFS.NTS.HGR20.02 200 4 instead 9,75 EUR
Only7,80 EUR
immediately available, 2-3 Days
ZFS.NTS.HGR20.03 300 5 instead 14,62 EUR
Only11,69 EUR
1 Week
ZFS.NTS.HGR20.04 400 7 instead 19,49 EUR
Only15,59 EUR
1 Week
ZFS.NTS.HGR20.05 500 8 instead 24,36 EUR
Only19,49 EUR
1 Week
ZFS.NTS.HGR20.06 600 10 instead 29,24 EUR
Only23,39 EUR
immediately available, 2-3 Days
ZFS.NTS.HGR20.07 700 12 instead 34,11 EUR
Only27,29 EUR
immediately available, 2-3 Days
ZFS.NTS.HGR20.08 800 14 instead 38,98 EUR
Only31,19 EUR
immediately available, 2-3 Days
ZFS.NTS.HGR20.09 900 15 instead 43,86 EUR
Only35,08 EUR
immediately available, 2-3 Days
ZFS.NTS.HGR20.10 1000 17 instead 48,73 EUR
Only38,98 EUR
immediately available, 2-3 Days
ZFS.NTS.HGR20.11 1100 19 instead 53,59 EUR
Only42,87 EUR
immediately available, 2-3 Days
ZFS.NTS.HGR20.12 1200 20 instead 58,46 EUR
Only46,77 EUR
immediately available, 2-3 Days

Products to cart
1 to 11 (from a total of 11)
