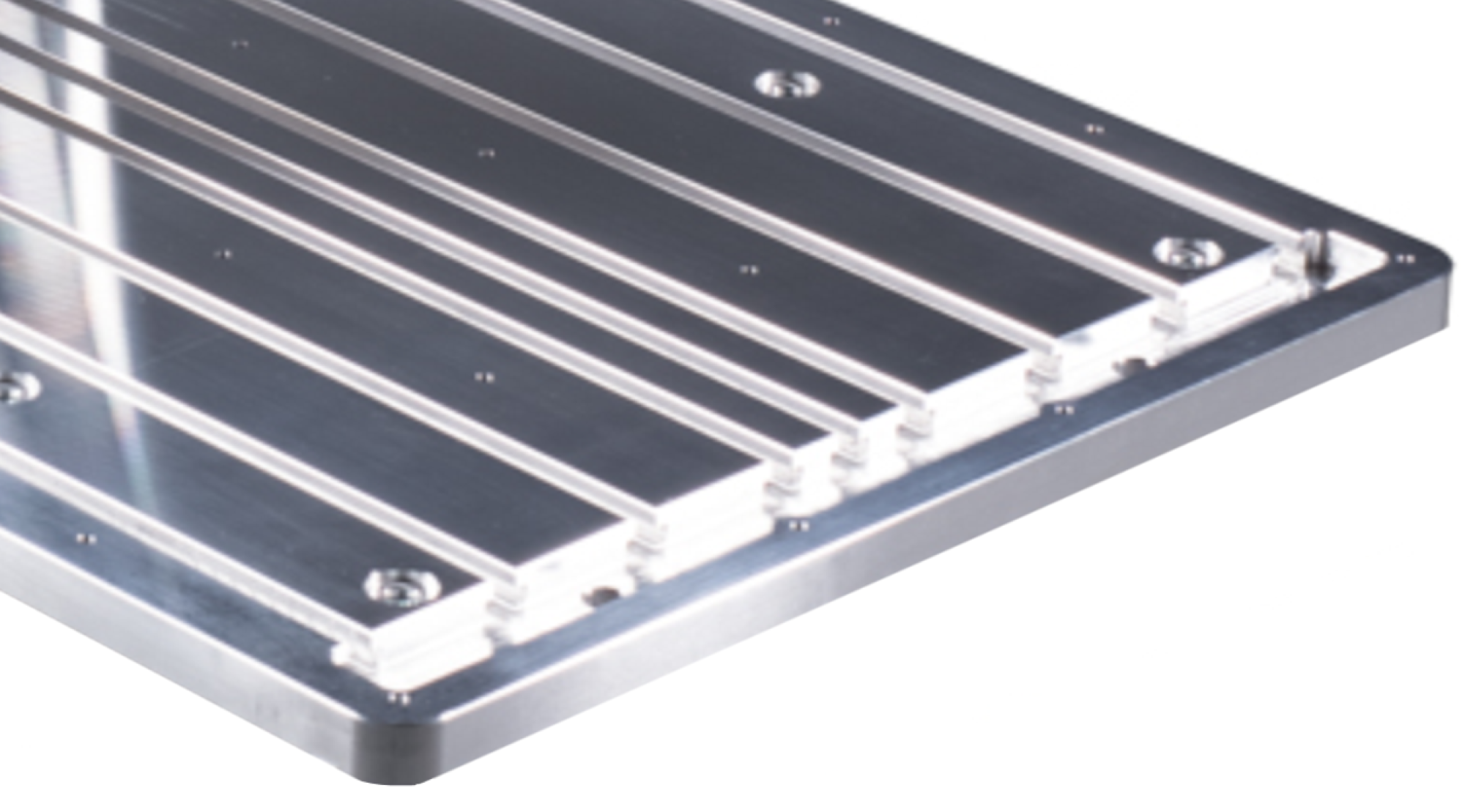

BASIC-Line 1007 - T-Slot Plate Alu 20mm
TOP
-37%

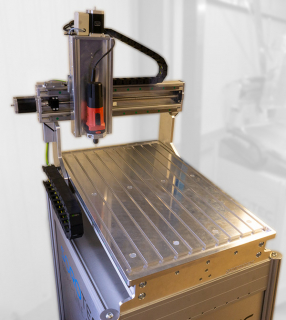

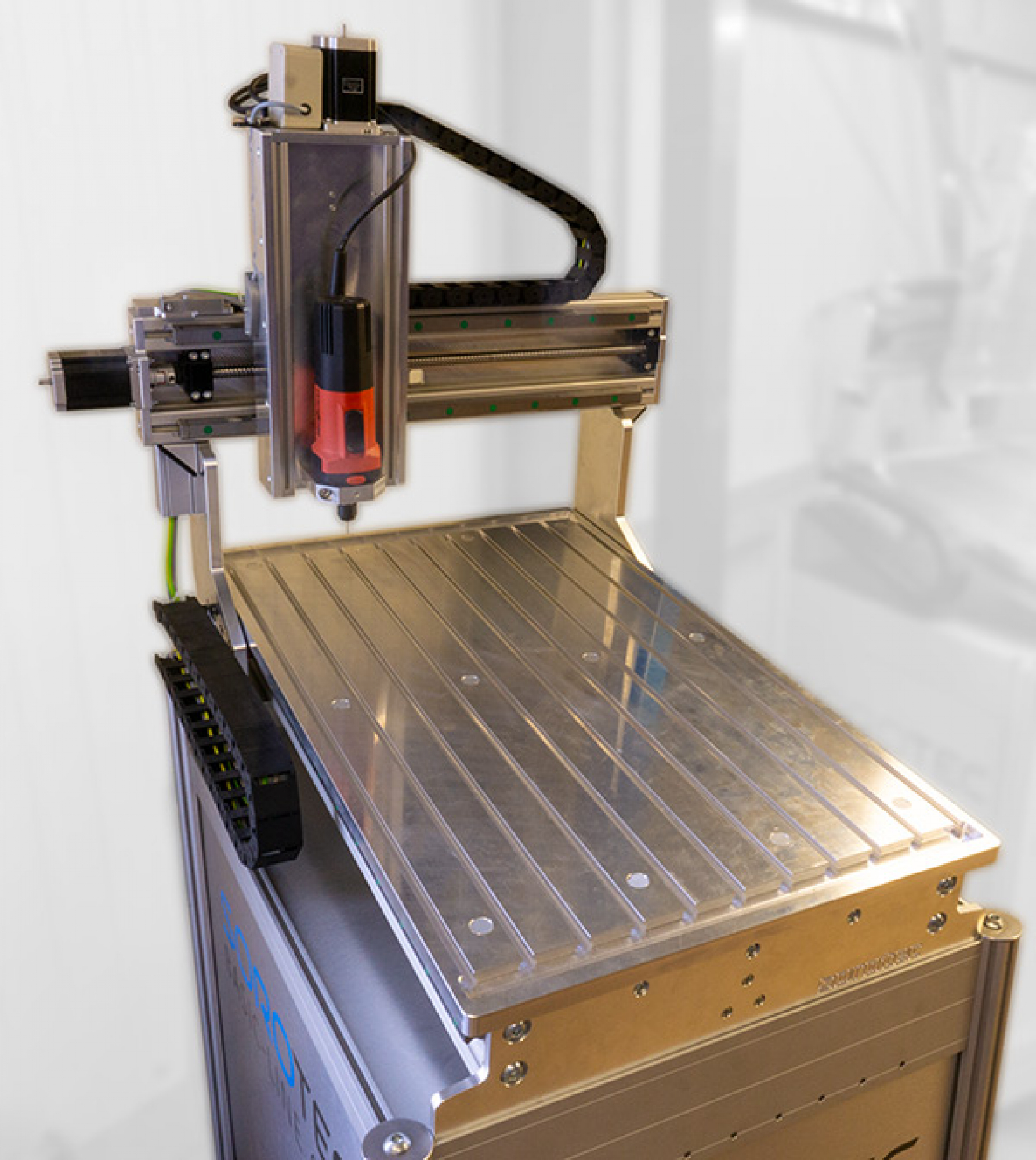

20 mm T-Slot Plate for Basic-Line 1007
This plan both sides milled T-slot was made especially for our BASIC-Line.The mounting holes are designed to fit the profile of BASIC-Line, ensure trouble-free exchange is possible.
The circumferential groove is ideal for flood cooling.

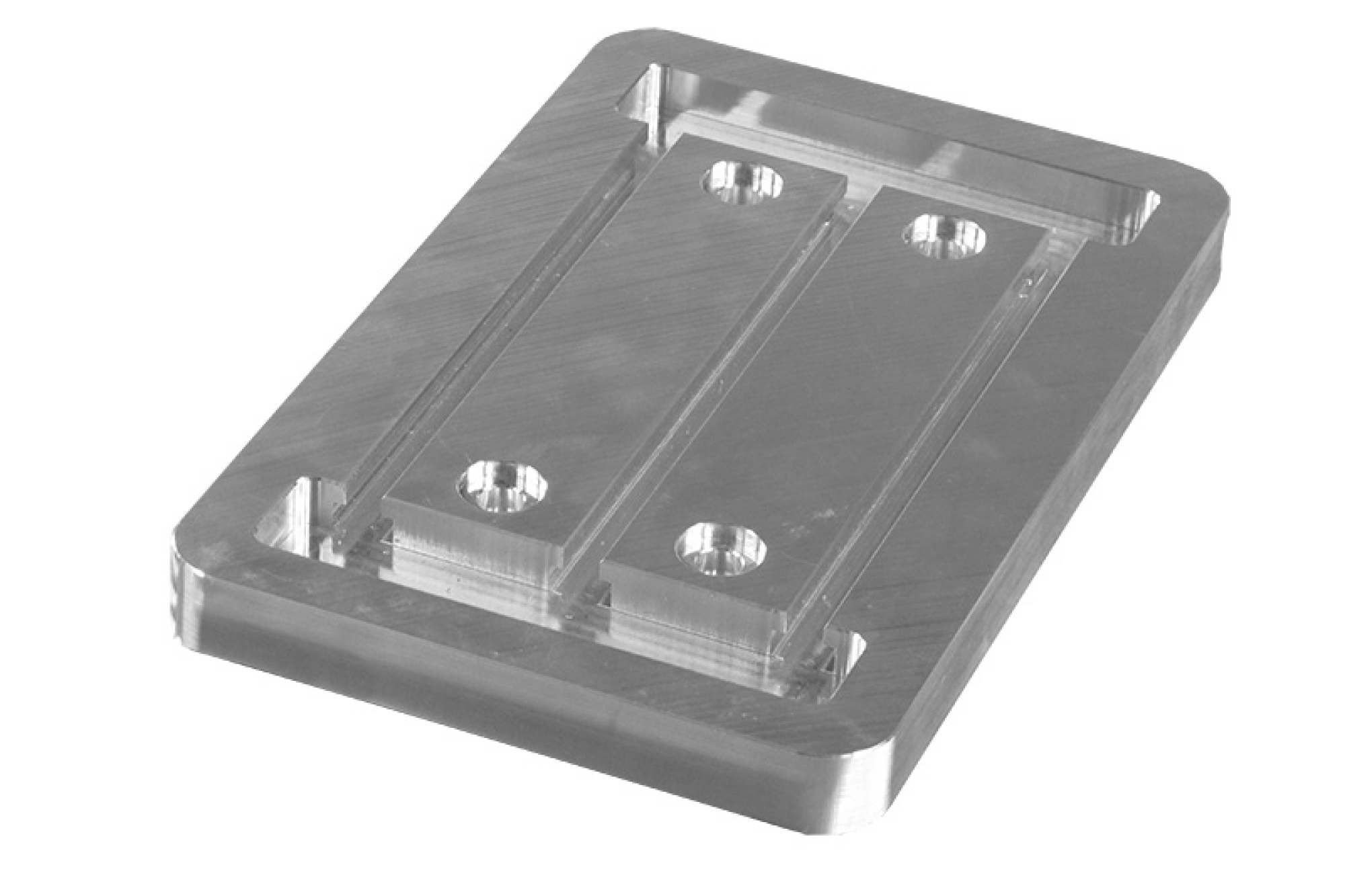

For fastening the T-slot on the BASIC-Line, we recommend our special mounting kit.
Dimensions:
- Length: 1284 mm
- Width: 738 mm
- Height: 20 mm
- Slot width: 8 mm
- Slot distance: 50 mm
