Instant Milling Kit Compact-Line Professional

The Compact-Line is exceptional: unlike usual, the design here integrates the grooved plate beyond the mere clamping of workpieces as a load-bearing, force-carrying component. The result is high rigidity with comparatively small dimensions.

With this Instant Milling Kit, you receive all the parts you need to set up a complete and ready-to-use machine, including drives, sensors, milling spindle, cables, control unit and accessories that also fulfil professional requirements!

Extensions for enclosures and functional safety (operator protection) are also available here in he shop to complete the machine in accordance with the Machinery Directive.

Included in the complete set:

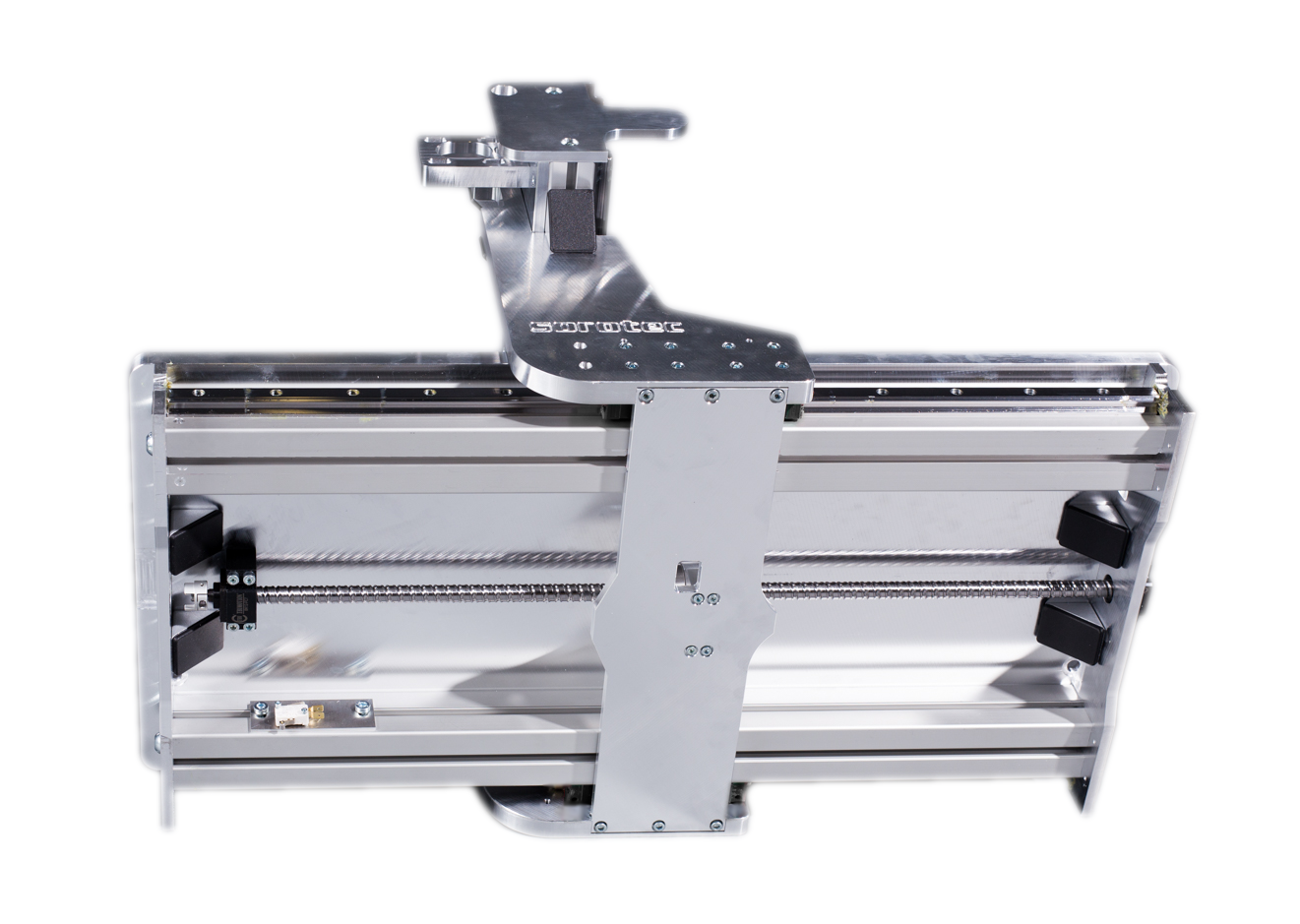

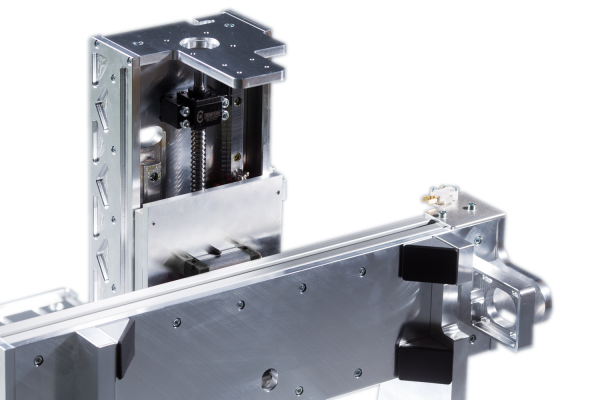

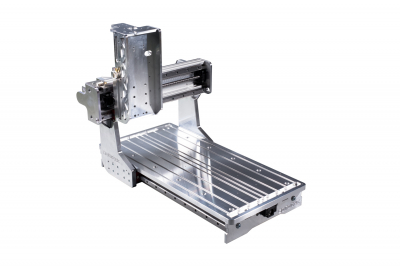

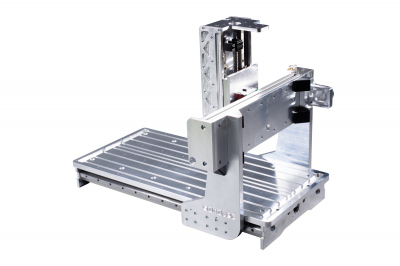

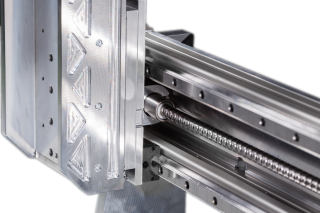

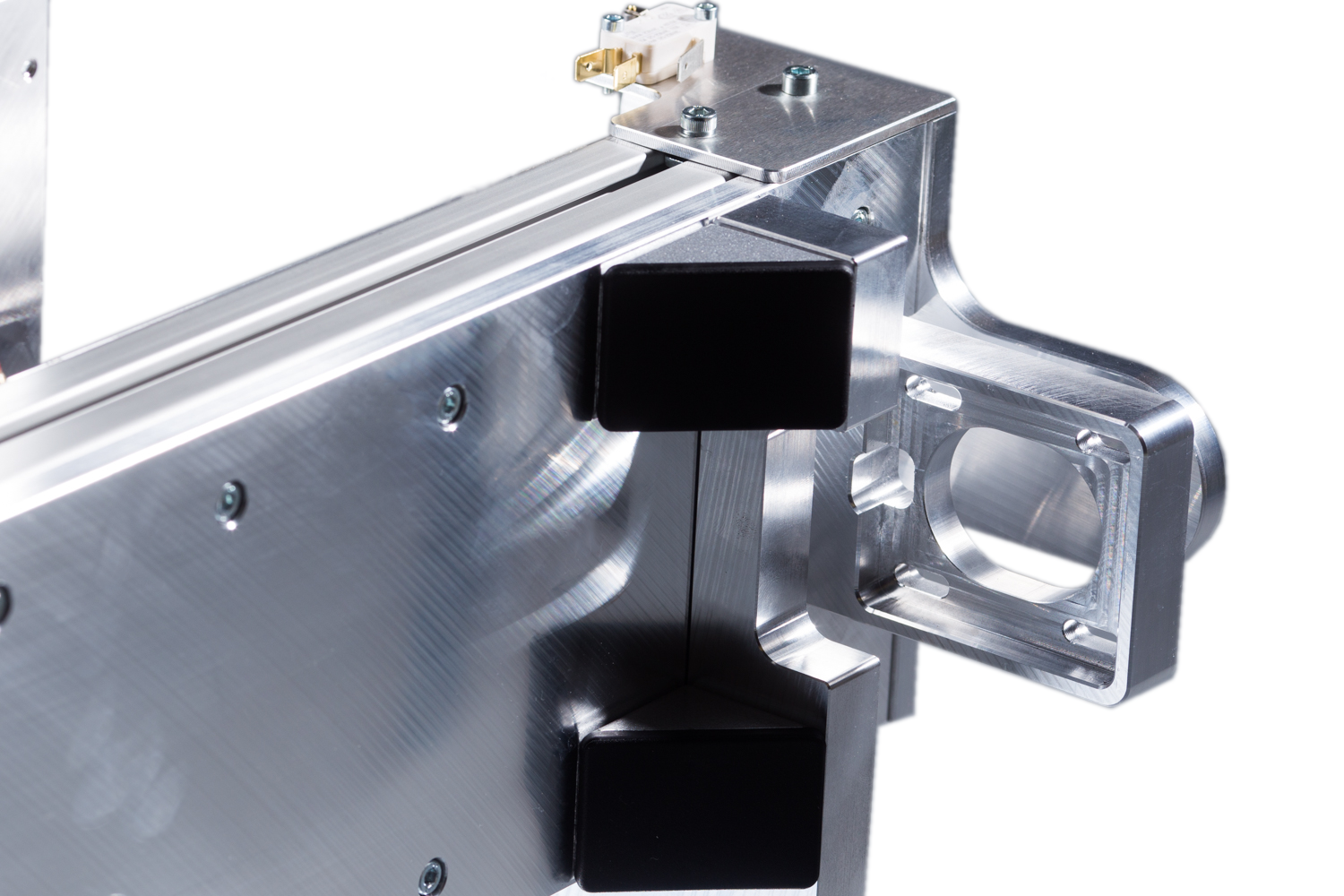

The mechanics are supplied in individual parts for self-assembly. The pictures show the fully assembled state. After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The modules offered by Sorotec or your own security measures can be used for this. Also read this Information sheet

• Compact-Line parts set mechanics
• Integradet T-Slot plate
• 2 x Stepper motor with integrated driver, NEMA24, 3 Nm including cables for X-, Y- axis
• 1 x Stepper motor with integrated driver and brake, NEMA 24, 3 Nm, for Z axes
• Parts set Control Unit series C5 with EdingCNC for Controller 720
• Hand wheel
• Tool length sensor Sorotec WLS 2 (14 mm)
• HF-Spindle Set Teknomotor 1.1 kW ER20 with electric fan
• Fully assembled FU control cabinet, parameterisation and test run of the milling spindle
• Collets set ER20, 2-13 mm in millimeter steps
• Solid carbide milling cutter set
• Steel clamping claws M6 / 58 pc.
• CADasCAM LITE Software
• HIWIN Lubrication set with multi-purpose grease + grease gun

Warning! The operation of this machine without safety devices is not permitted. Serious injuries are possible. The permitted performance characteristics depend on the scope of the protective measures. The "Standard" and "Pro" expansion levels are intended for this purpose. In the standard level, with access protection but without a protective housing, there is a limit to a permissible 2 m/min (33 mm/s) traversing speed and a maximum cutter diameter of 3.175 mm. The milling cutters used must be approved for the maximum speed of the milling spindle (usually 25,000 -1). In the Pro level, with protective housing, the maximum cutter diameter is limited to 8 mm, the traversing speed is not restricted.
