Basic-Line 1007 Instant Milling Kit

No long pondering whether something is still missing somewhere, no laborious weighing up of pros and cons: Everything you need to get started in the world of CNC milling is really included here.

With this Instant Milling Kit, you receive all the parts you need to set up a complete and ready-to-use machine, including drives, sensors, milling spindle, cables, control unit and accessories that also fulfil professional requirements!

Extensions for enclosures and functional safety (operator protection) are also available here in he shop to complete the machine in accordance with the Machinery Directive.

Included in the complete set:

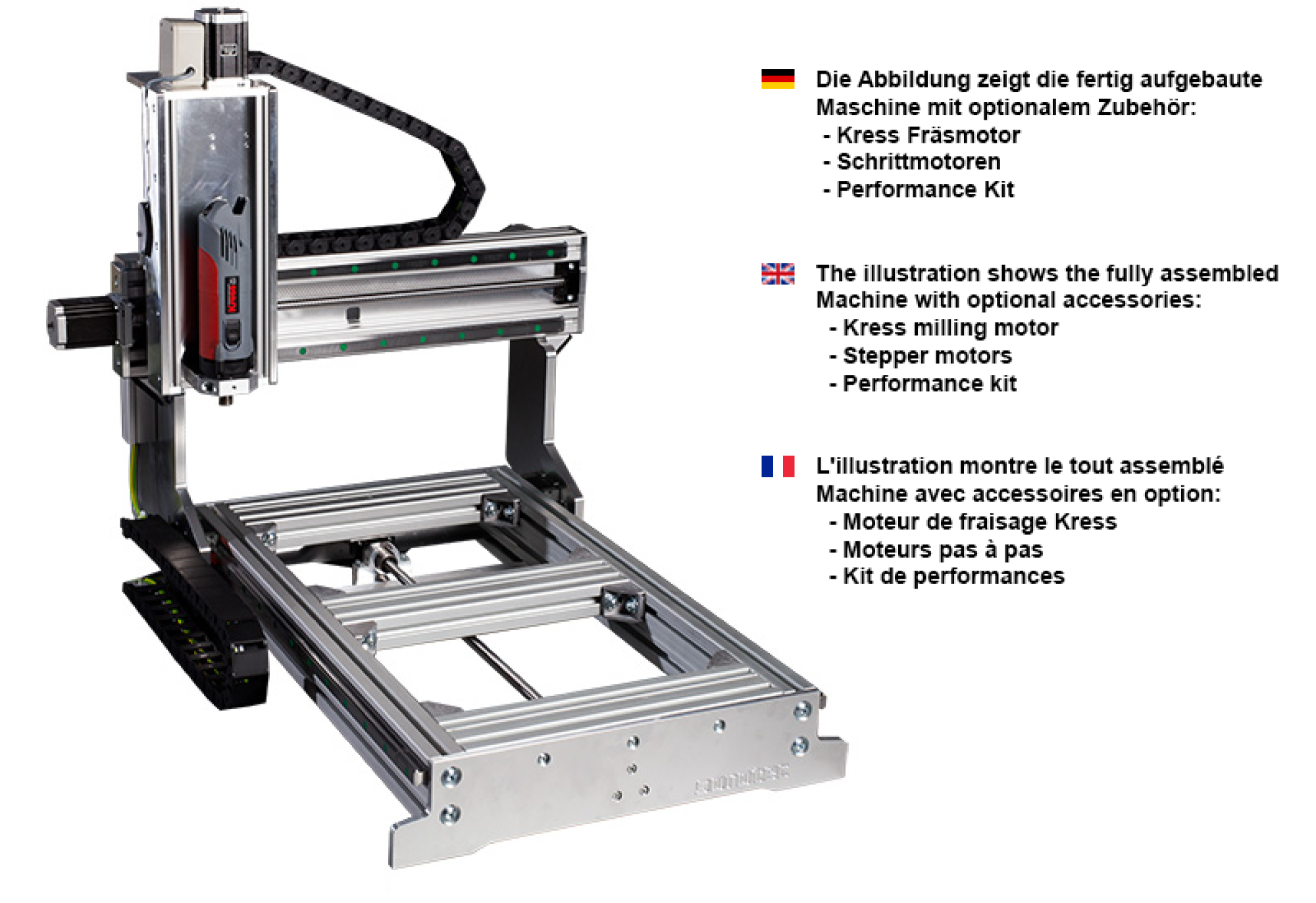

The mechanics are supplied in individual parts for self-assembly. The pictures show the fully assembled state. After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The modules offered by Sorotec or your own security measures can be used for this. Also read this Information sheet

• Basic-Line 1007 parts set mechanics
  Workspace: X 1035 mm, Y 715 mm, Z 140 mm
• Performance Kit
• Stepper motor set 3 x 3 Nm including cables
• Parts set Control Unit series C1 with Beamicon Basic
• Emergency stop with cable
• Milling motor Sorotec SFM 1000 1000 watt 230 V
• SwitchBox-Relais SK for switching the milling spindle
• Solid carbide milling cutter set
• Tool length sensor Sorotec WLS 2 (14 mm)
• Lubrication set with multi-purpose grease + grease gun

The milling motor's power cable is not suitable for drag chains. We recommend using the socket for the Z-axis or a similar power supply that is decoupled from the movement.

Warning! The operation of this machine without safety devices is not permitted. Serious injuries are possible. The permitted performance characteristics depend on the scope of the protective measures. The "Standard" and "Pro" expansion levels are intended for this purpose. In the standard level, with access protection but without a protective housing, there is a limit to a permissible 2 m/min (33 mm/s) traversing speed and a maximum cutter diameter of 3.175 mm. The milling cutters used must be approved for the maximum speed of the milling spindle (usually 25,000 -1). In the Pro level, with protective housing, the maximum cutter diameter is limited to 8 mm, the traversing speed is not restricted.
