VMS-500 MMS - Solenoid valve control
TOP

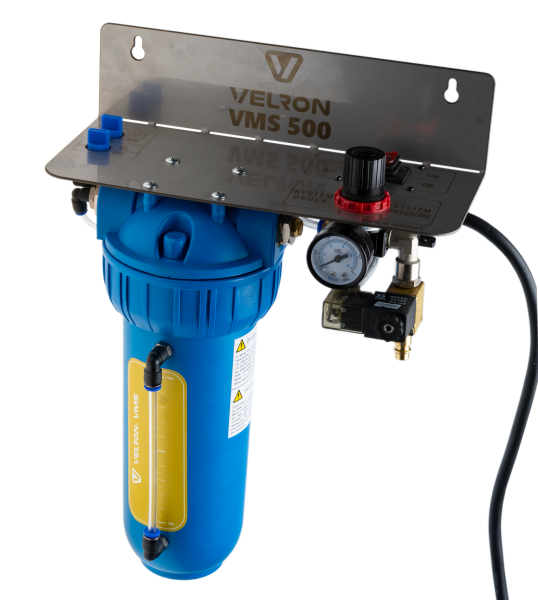

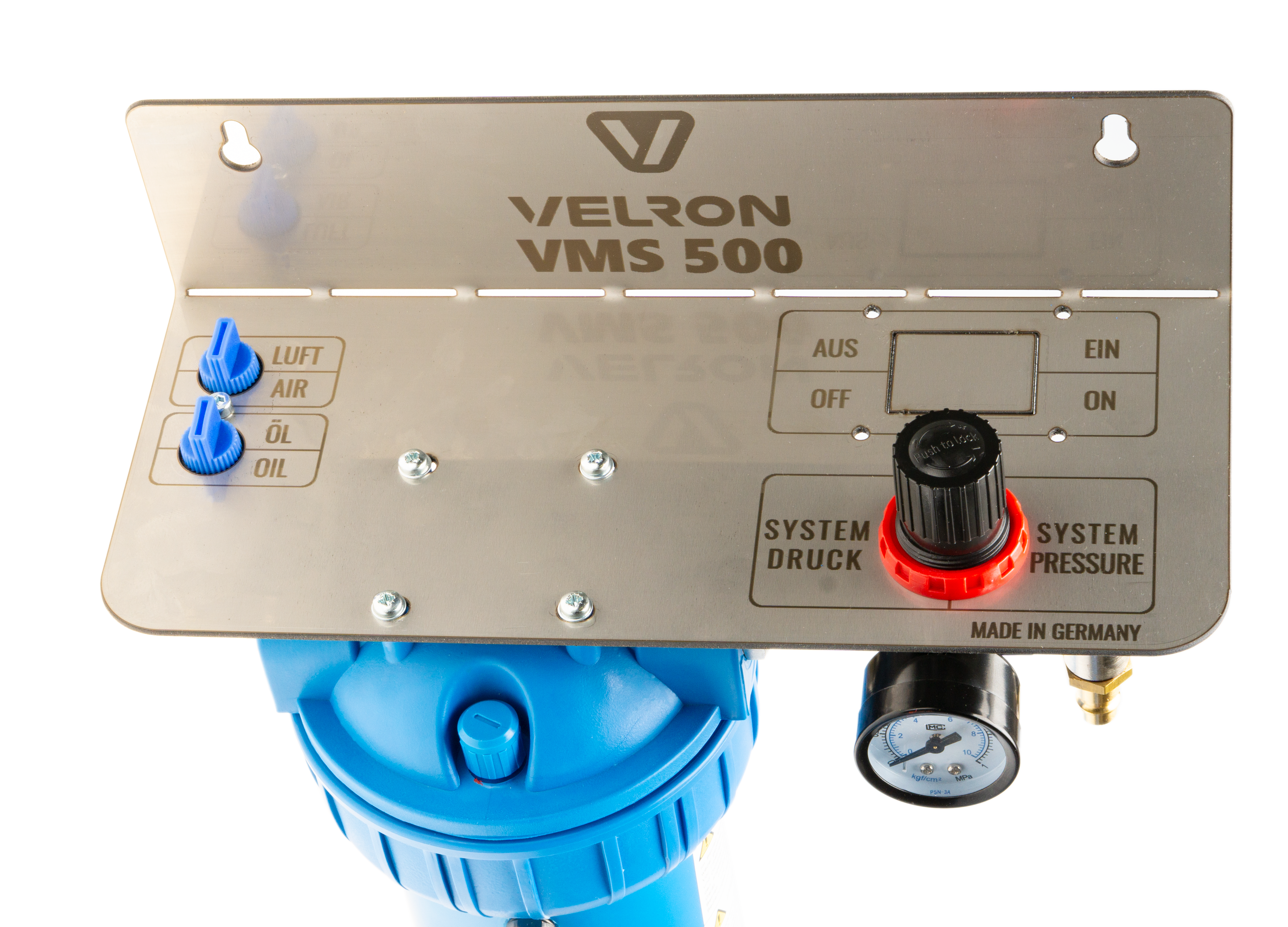

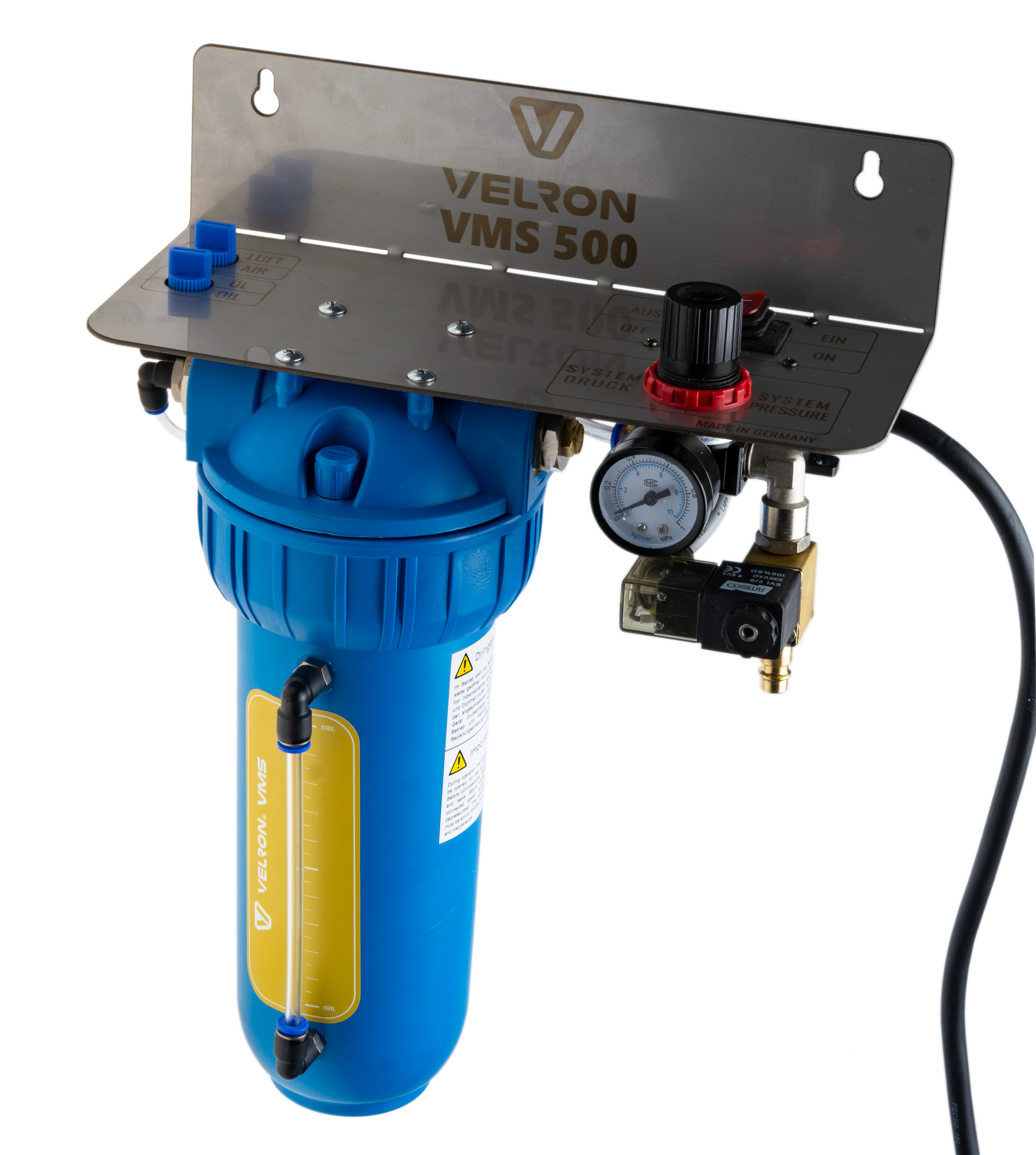

Minimal quantity lubrication VELRON VMS-500 - Solenoid valve control
The minimum quantity lubrication system VMS-500 operates according to the Venturi principle. It delivers small amounts of lubricant directly to the working tool to reduce the generation of frictional heat during machining. A cooling effect is also created by the compressed air and, when using highly volatile lubricants, by the evaporative cooling.Control screws on the noozle allow the supply to be optimally adjusted depending on the lubricant, material, and intended use. The use of minimum quantity lubrication can significantly increase tool life and significantly improve the quality of the machined surface.

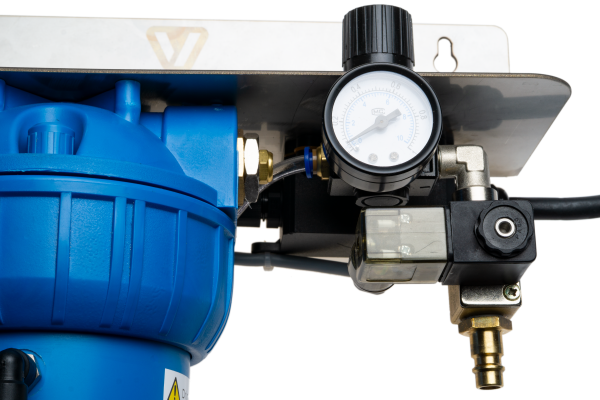

The compressed air supply can be interrupted by a controllable solenoid valve.
Scope of delivery:
- Fully assembled Minimum quantity lubrication
- VELRON MQL-300 with flexible gooseneck
- Liquid container, capacity 1 litre with level indicator
- Compressed air regulator with pressure gauge
- Check valve to prevent backflow
- Shut-off valve for compressed air supply
- PU hoses 4 mm and 6 mm
- Mounting material for mounting on aluminium profiles (groove 8)
- Control by solenoid valve 24 VDC
- Control by solenoid valve 230 VAC
Operation Manual VMS-500 (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
