Toolchange magazin for 6 Mechatron toolholders SK10 / ER16
Toolchange magazin for 6 Mechatron toolholders SK10 / ER16
Toolchange magazin for 6 Mechatron toolholders SK10 / ER16

Toolchange magazin for 6 Mechatron toolholders SK10 / ER16

Product No.:
WZW.MEC.MAG6.ER16
1 Week 1 Week  (abroad may vary)
Shipping weight:
0.2 kg per piece
48,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

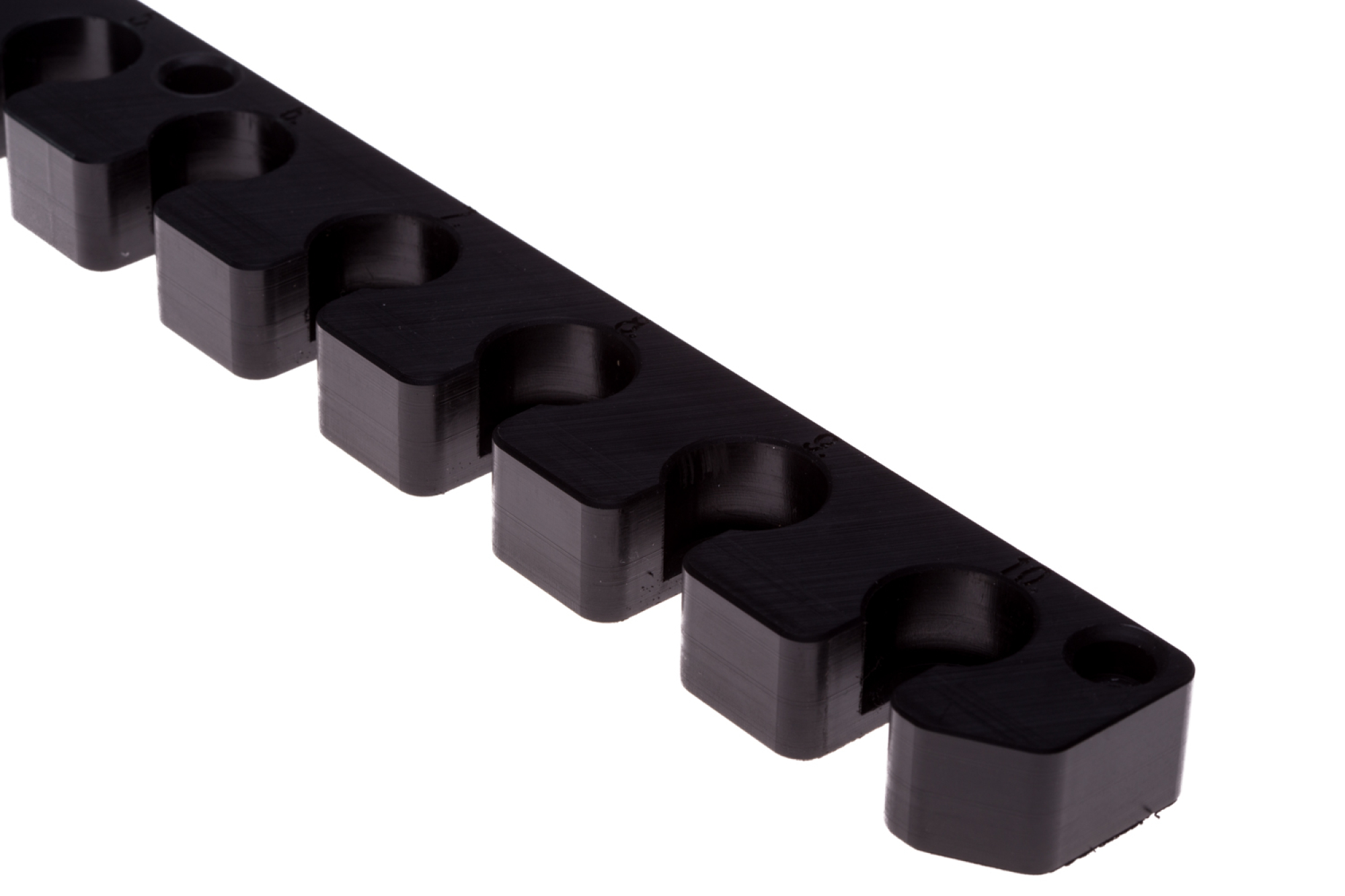

Toolchange magazin for 6 Mechatron toolholders SK10 / ER16

Plastic magazine incl. screws and feet.

Screws: M6 x 100
Feet: 80 mm
Distance mounting holes: 300 mm
Distance toolholders: 50 mm
Dimensions magazine: 320 x 38 x 20 mm
Documentation

  Technical Drawing

  Step file

  Information sheet for tool holder magazines
