Tangential creasing tool
NEW

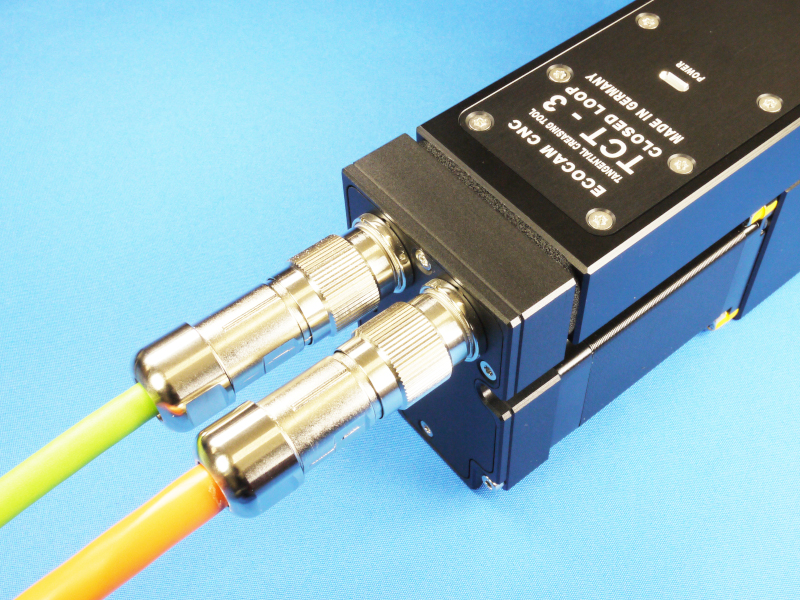

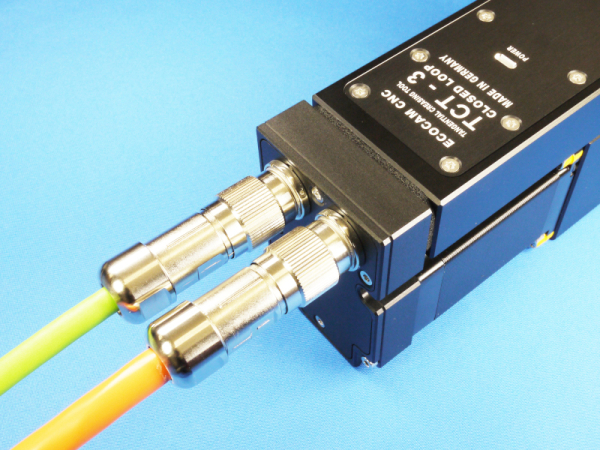

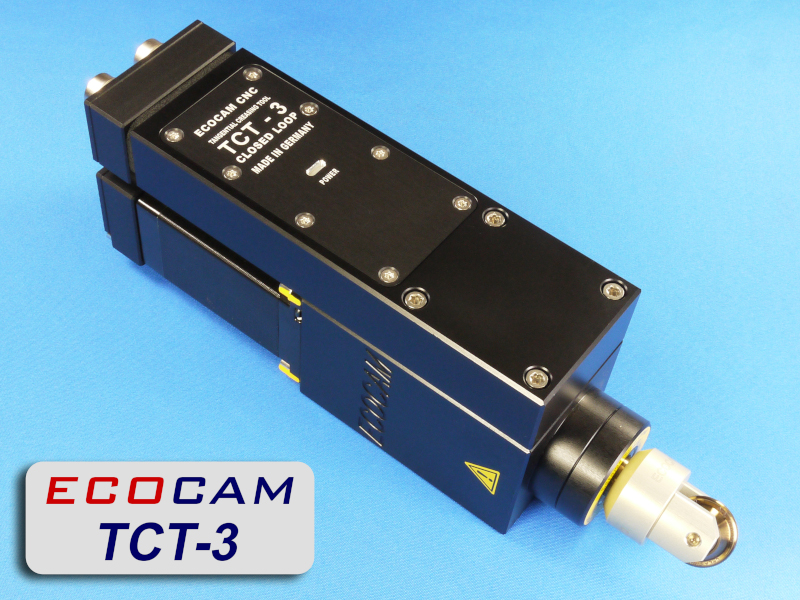

Tangential creasing tool Ecocam TCT-3
The TCT-3 is used as a processing unit on CNC machines for creasing cardboard, paperboard, corrugated board, and polypropylene materials. This further development of the well-proven modules features a closed-loop motor and offers familiar advantages such as the prevention of step losses, exceptionally smooth operation, and high torque at low speeds.Additional features:
- CNC-made, robust full metal housing
- Durable precision kinematic
- Opto-electronic, contactless detection of the blade´s reference Position
- Easy mounting via 43 mm Euro-neck or rear-facing threads (6 x M4)
- Supply voltage of control electronics: 12 V DC
- Integrated connector for quick and easy connection to different machine Systems
- Outside dimensions: approx. 86 x 58 x 243 mm
- The creasing wheels for our TCT-1 are equipped with double ball bearings and thus suitable for continuous hard use.
Datasheet Ecocam TCT-3 (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
