Handwheel encoder with cosmetic defects
Handwheel encoder with cosmetic defects

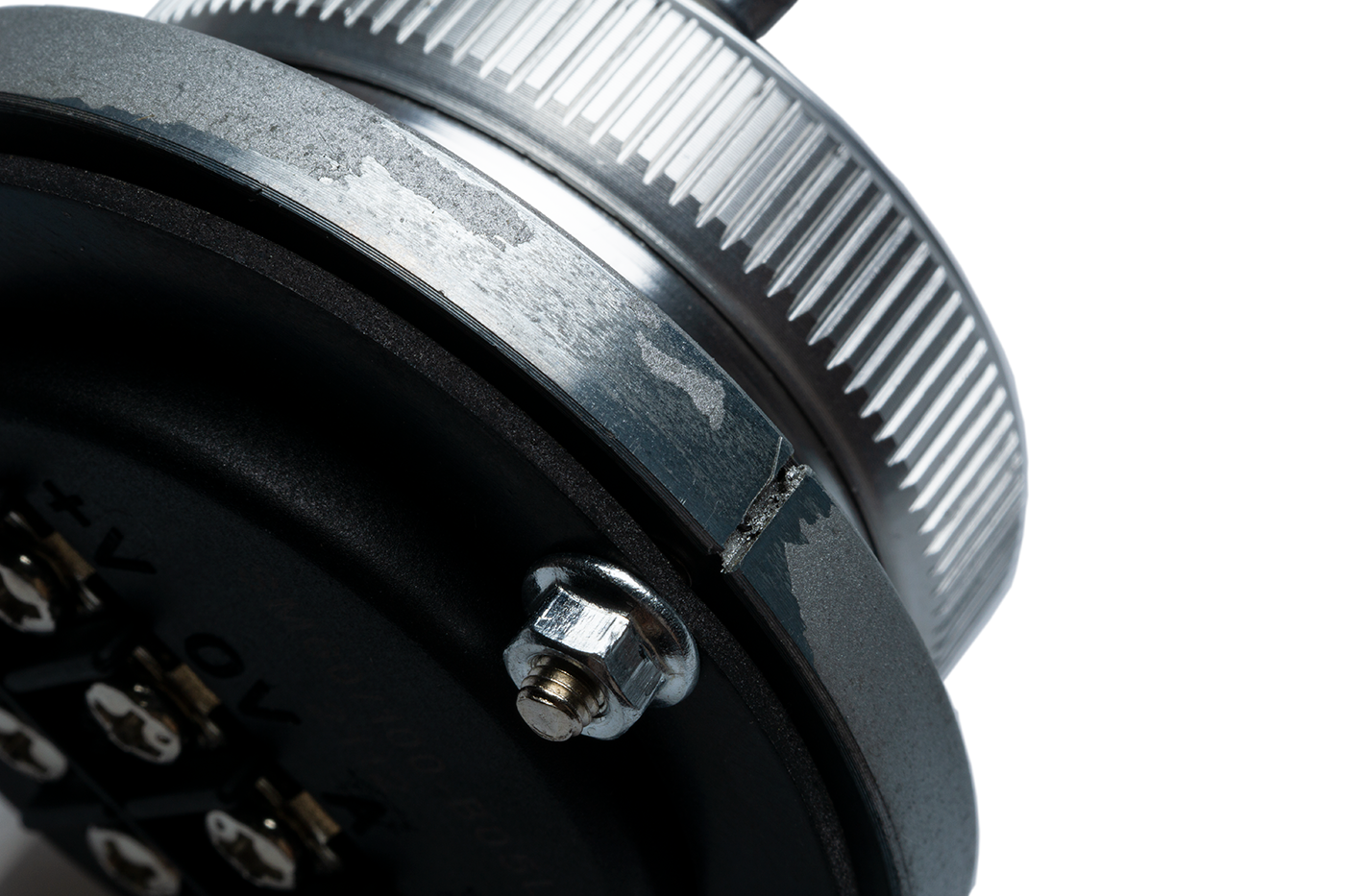

Rotary encoder for installation in a handwheel. Identical to item EZB.MPG1, but with minor paint defects along the edge (see sample photo). The paint damage does not affect functionality.
The extent and appearance of the paint defects on the unit supplied may differ from the sample photo.
Technical Specifications:
- VCC Supply: 5 VDC
- Output Voltage: > 85 % from supply voltage
- Current Requirement: < 100 mA
- Output Pulses: 100 pulses / rev
- Ø 61mm
- Height: 48 mm
- Weight: 300 g
Datasheet (german)Manufacturer: | Responsible person: |
