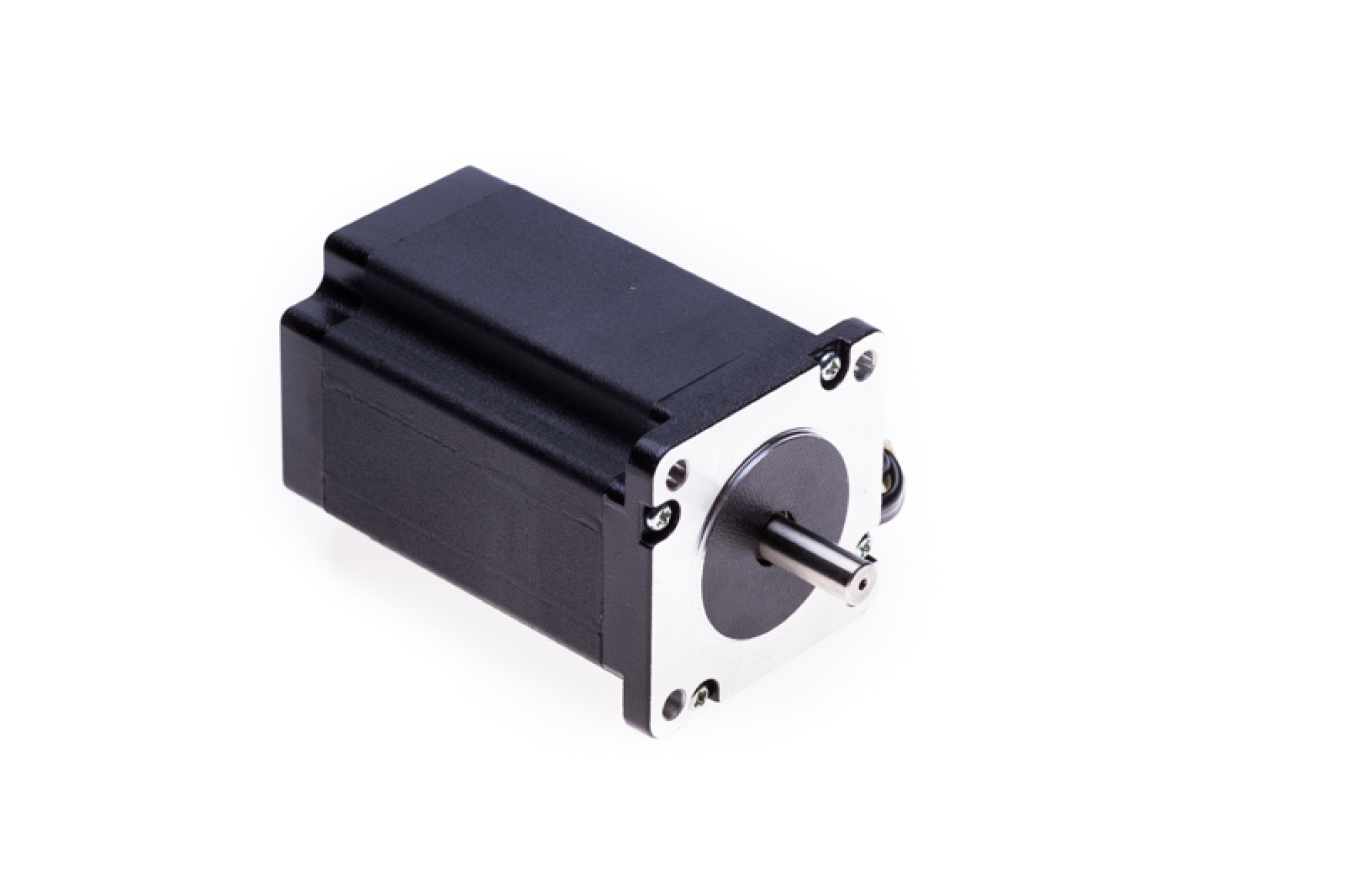

Stepping Motor 3 Nm 5 A
NEMA 23 compatible frame Hybrid Stepping Motor
with a holding torque of 3 Nm
Technical Specifications:
- Angle 1.8, 200 steps
- Size: 60.5 mm width & height, 88 mm length.
- Shaft; 8 mm
- Cable length 30 cm
- Weight: approx 1.4 kg
Data sheet germanManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
