Pull-down vice BG125
Pull-down vice BG125

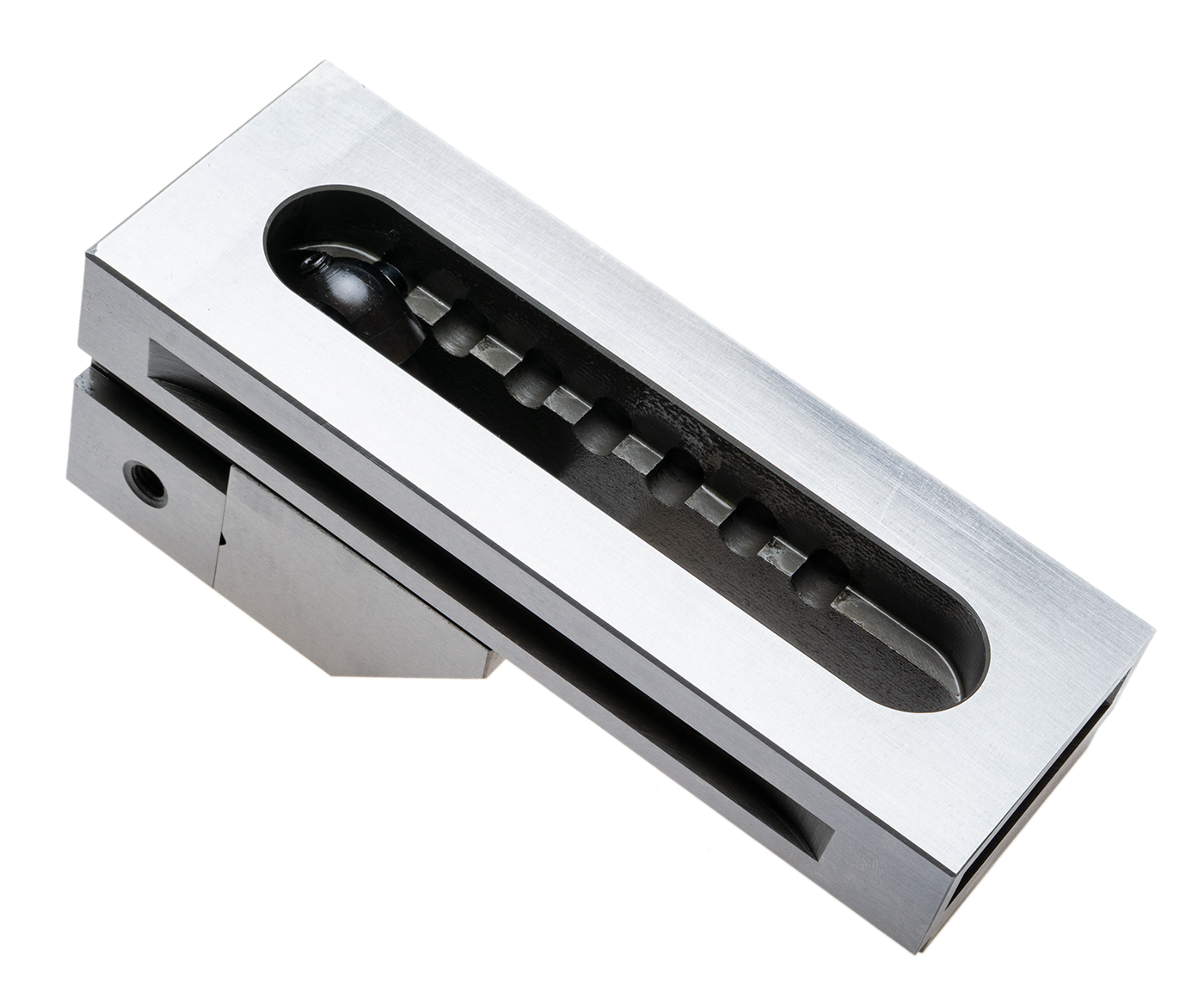

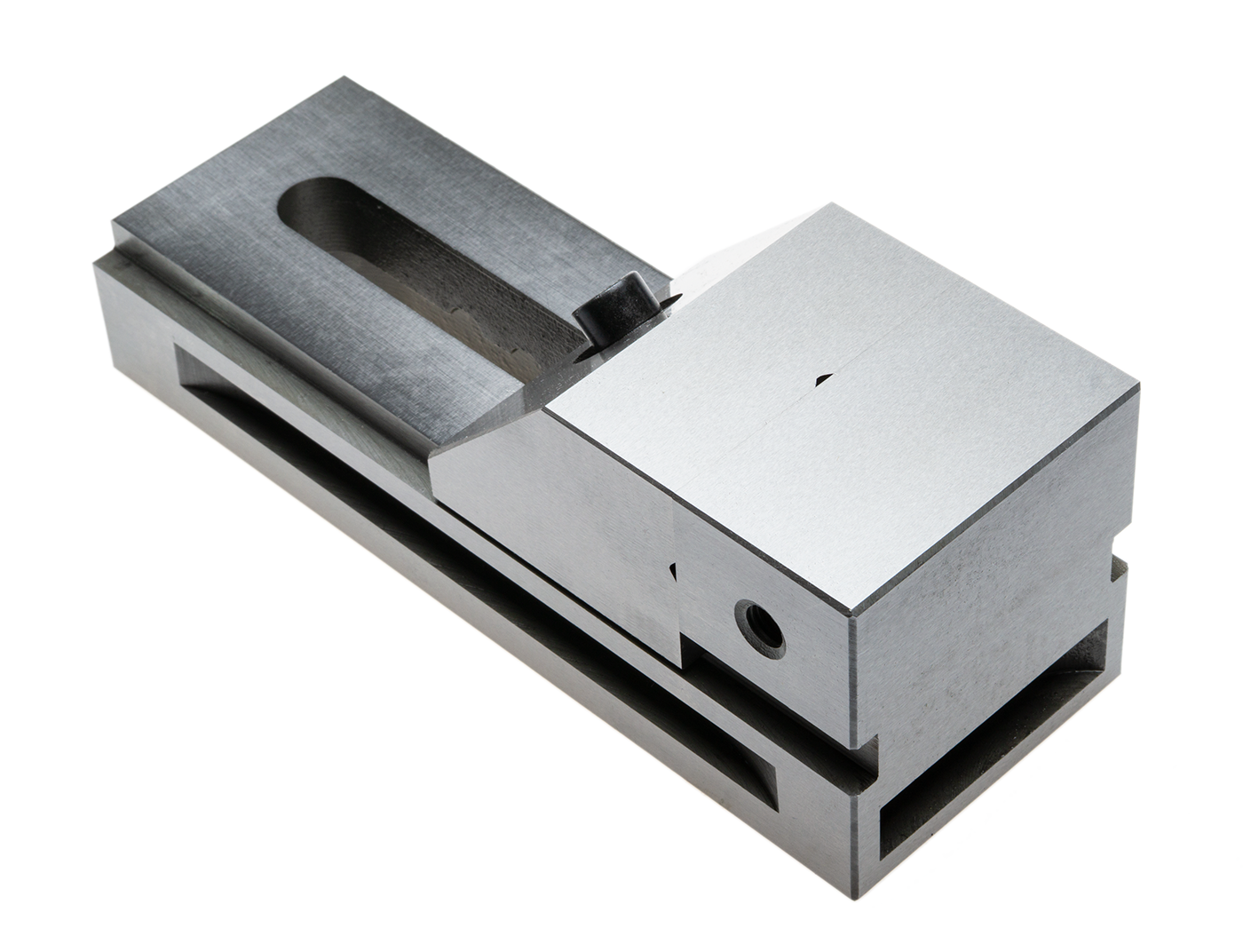

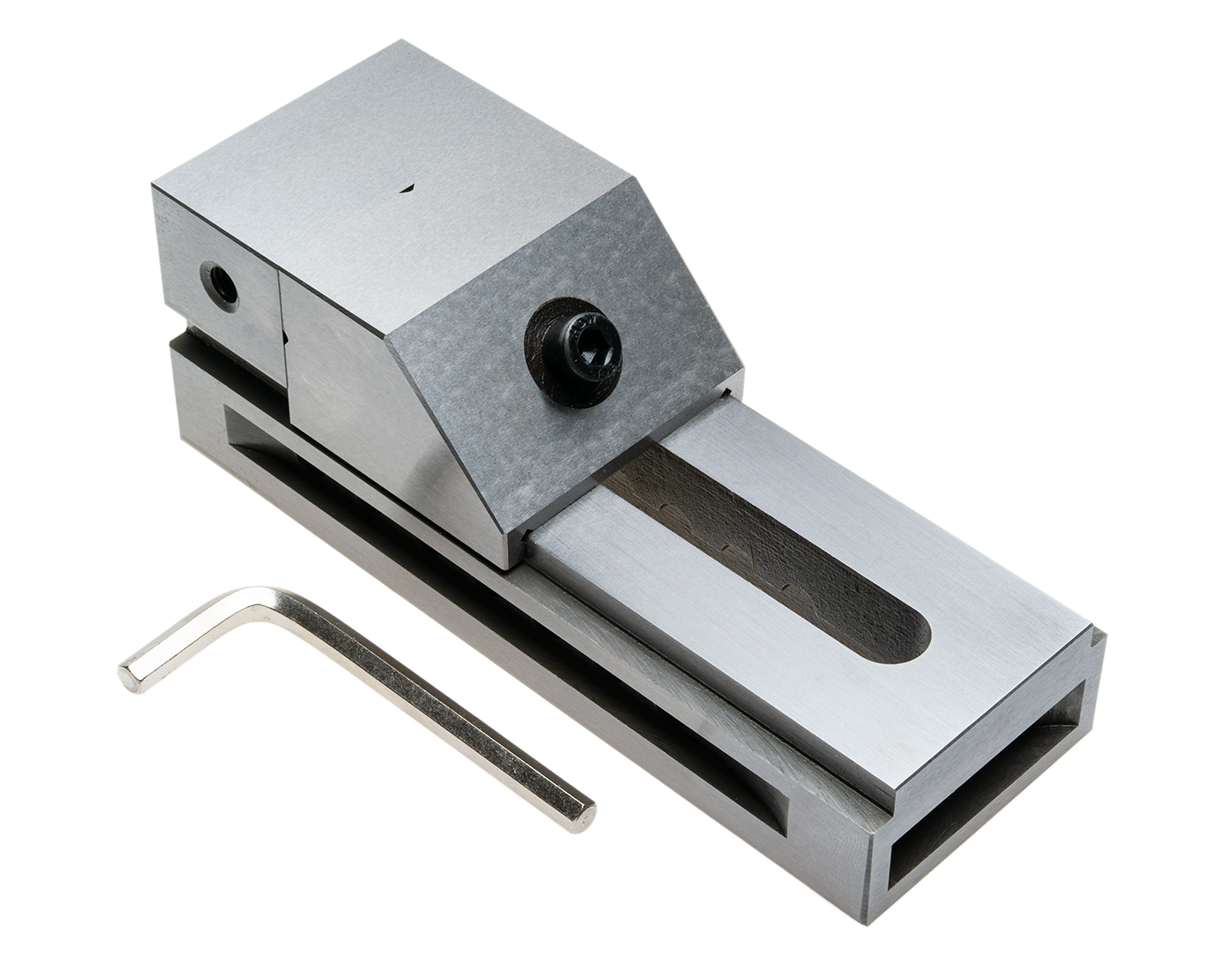

This precision pull-down vice has jaw adjustment without a spindle.The loose jaw is roughly adjusted to the workpiece using a bolt rod and then simultaneously pulled against the workpiece and downwards using a hexagon socket screw. This creates the pull-down effect and results in a strong clamping force and high precision at the same time.
Technical characteristics:
- Industryquality
- Hardened to HRC58-62
- Grinded
- Parallelism 0.005 mm / 100 mm
- Squareness 0.005 mm

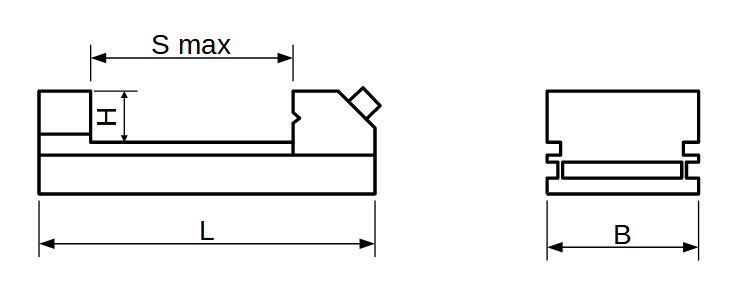

Measurements:
- Jaw width B: 125 mm
- Jaw height H: 50 mm
- Jaw span Smax: 160 mm
- Length L: 285 mm
- Hight: 100 mm
- Weight: 18 kg
