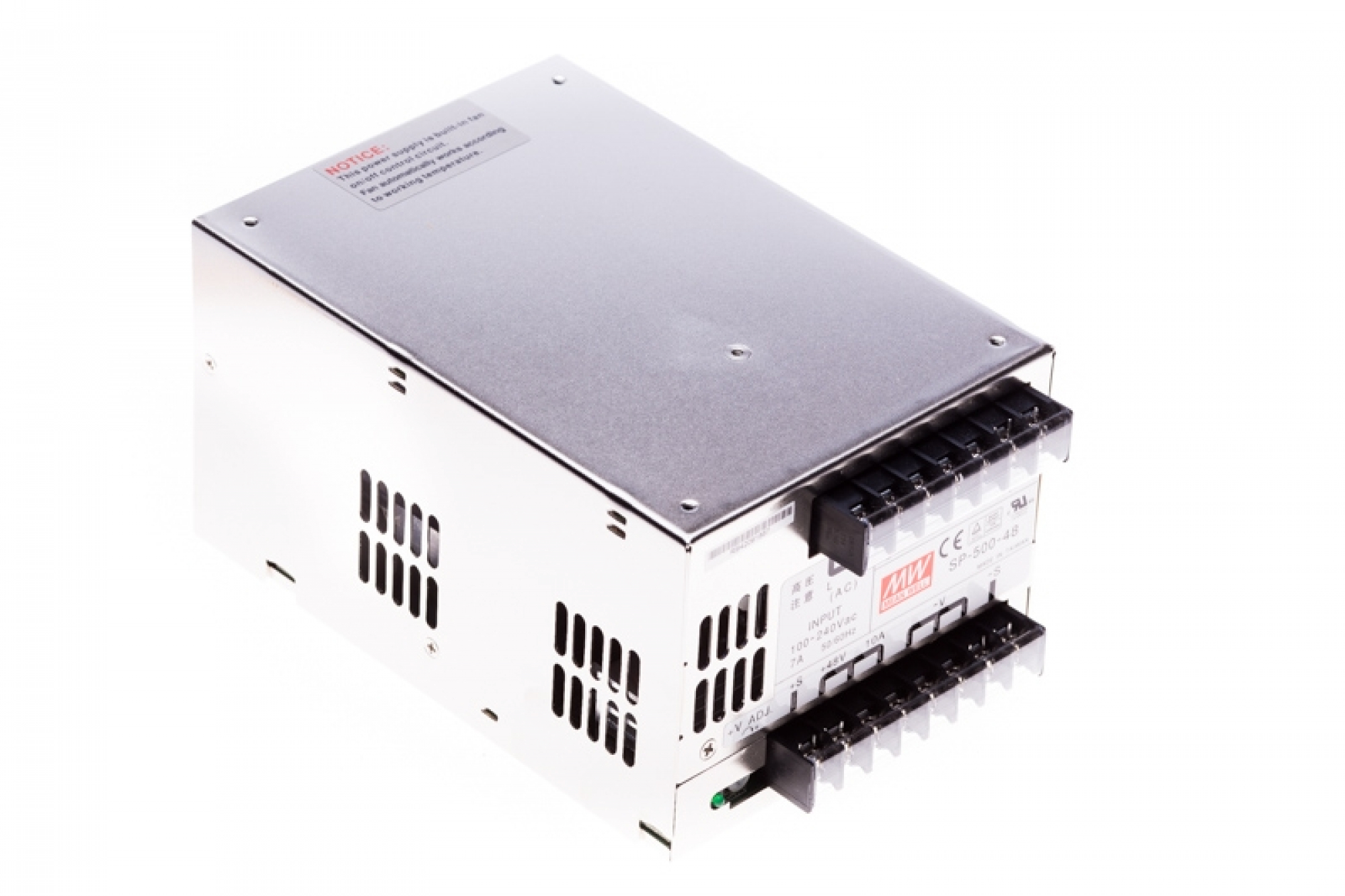

Power supply 48 V, 12.5 A, 600 W
Power supply 48 V, 12.5 A, 600 W
Technical Specifications:
- Input: 200 - 240 VAC
- Output 48 VDC
- 600 Watt / 12.5 A
- AC Input range selected by auto sensing
- Protections: Short circuit, Over load, Over Voltage, Over Temperature
- Approvals: UL / CUL / TUV / CE / CB
- Forced air cooling by built-in DC Fan
- Cooling fan ON / OFF auto control
- Fixed switching frequency at 75 kHz
- 100 % full load burn in test
- Size: 170 mm x 120 mm x 93 mm
- Weight Approx 1.8 kg
Datasheet (english)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
