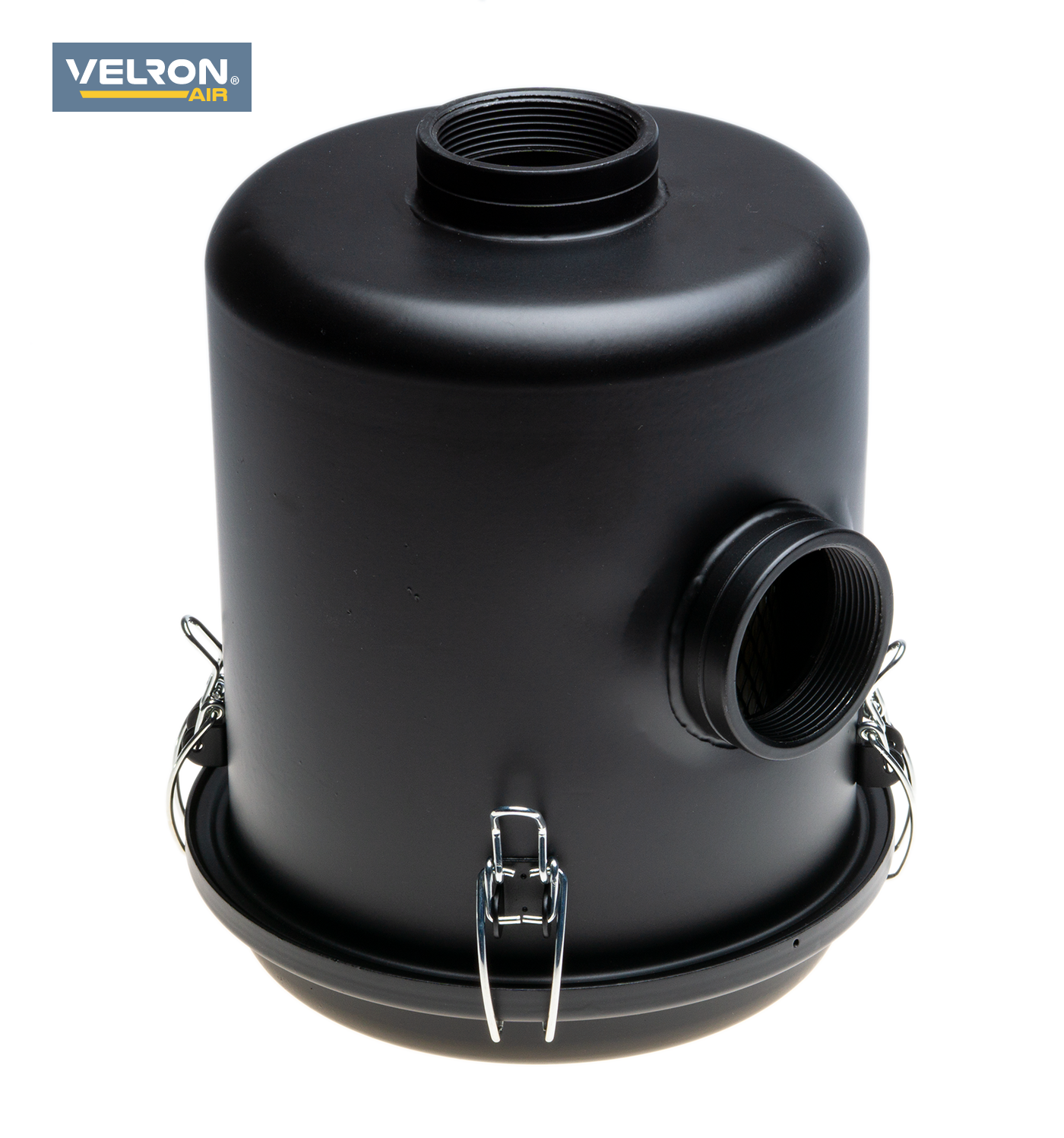

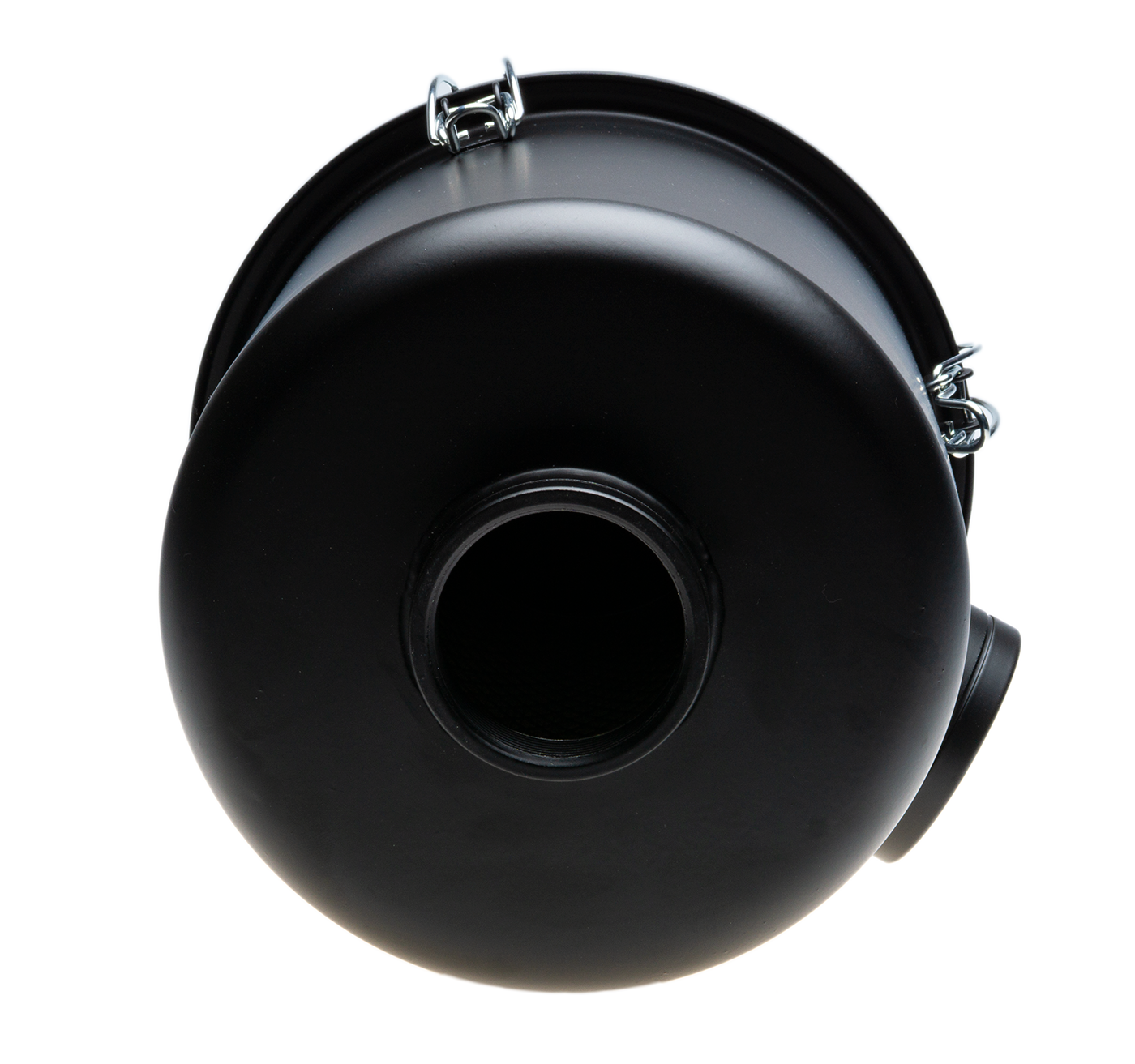

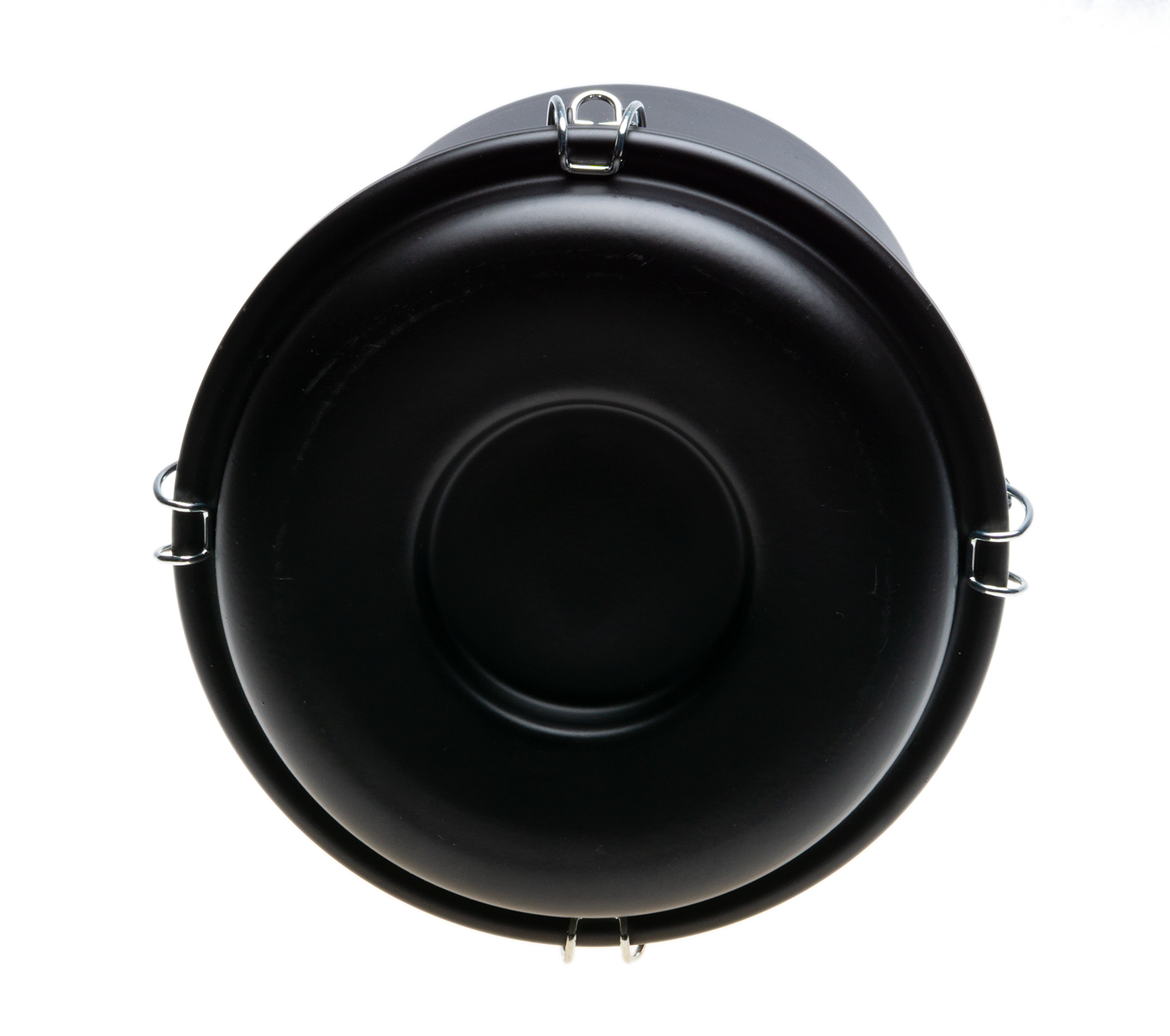

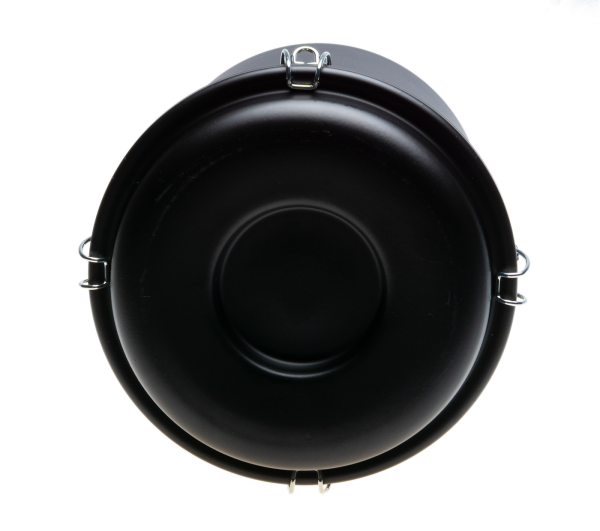

Intake air filter VELRON FLS-G20
For side channel blowers 3 kW

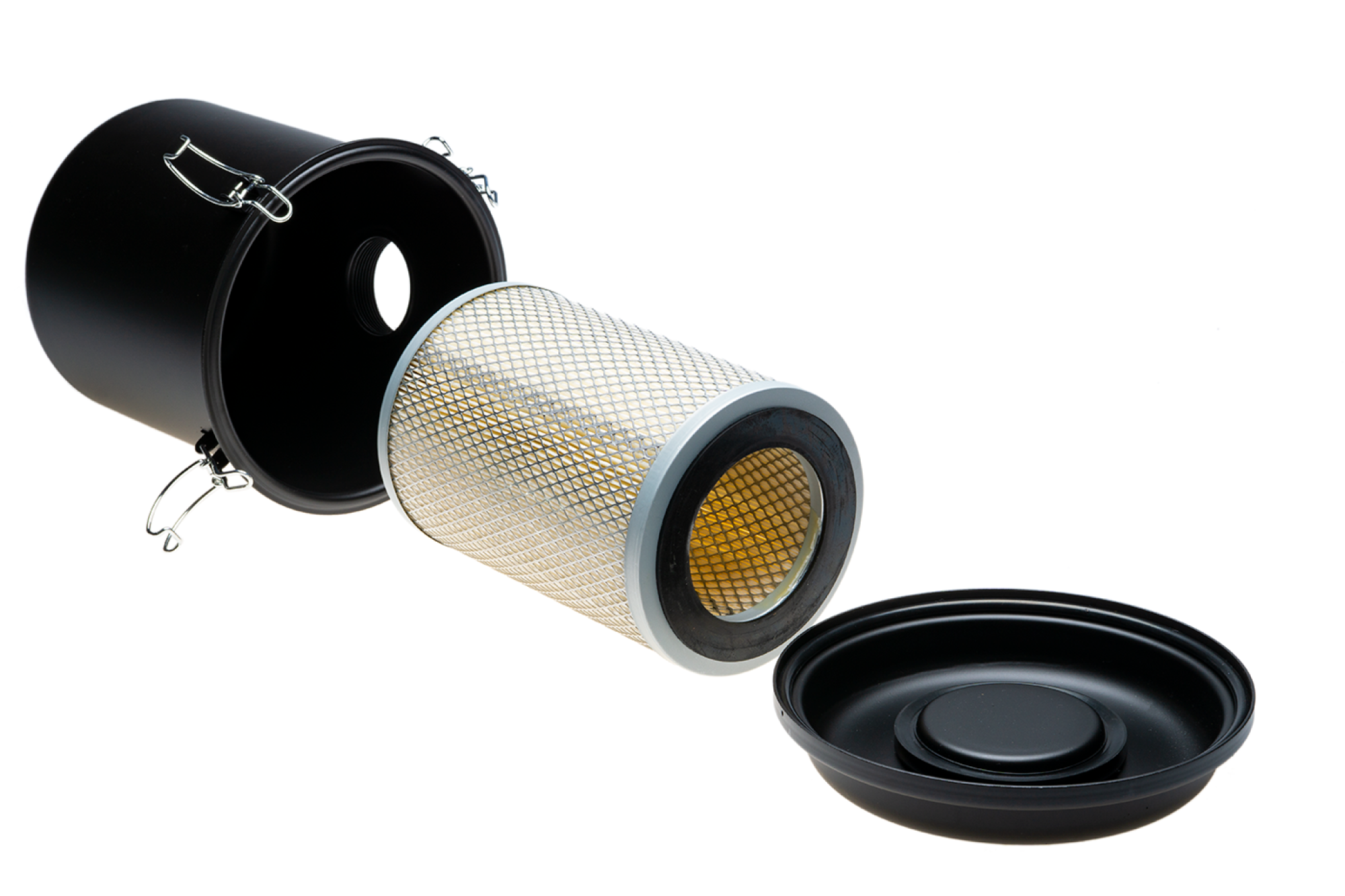

In dusty environments, side-channel compressors require an air filter to protect against excessive wear. Velron's intake air filters feature a robust steel housing. The filter element is easily removed and replaced after opening the clips and removing the cover.
Technical data
Airflow: 300 m³/h
Filtration (Mesh): 1000
Connection thread d1: G 2"
Lid diameter d4: 217 mm
Height h1: 256 mm
Weight: 4.3 kg
See datasheet for further dimensions.
Datasheet air filter FLS-12, 15, 20 (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
