Parts set COMPACT-Line 0605

The COMPACT-Line is extraordinary: Unlike usual, the construction of this machine integrates the T-slot plate beyond the mere clamping of workpieces as a load-bearing, force-carrying component. The result is high rigidity with comparatively small dimensions.

With this kit you get all the necessary parts for the mechanical construction of the portal milling machine. The drag chains and stepper motors are not included.

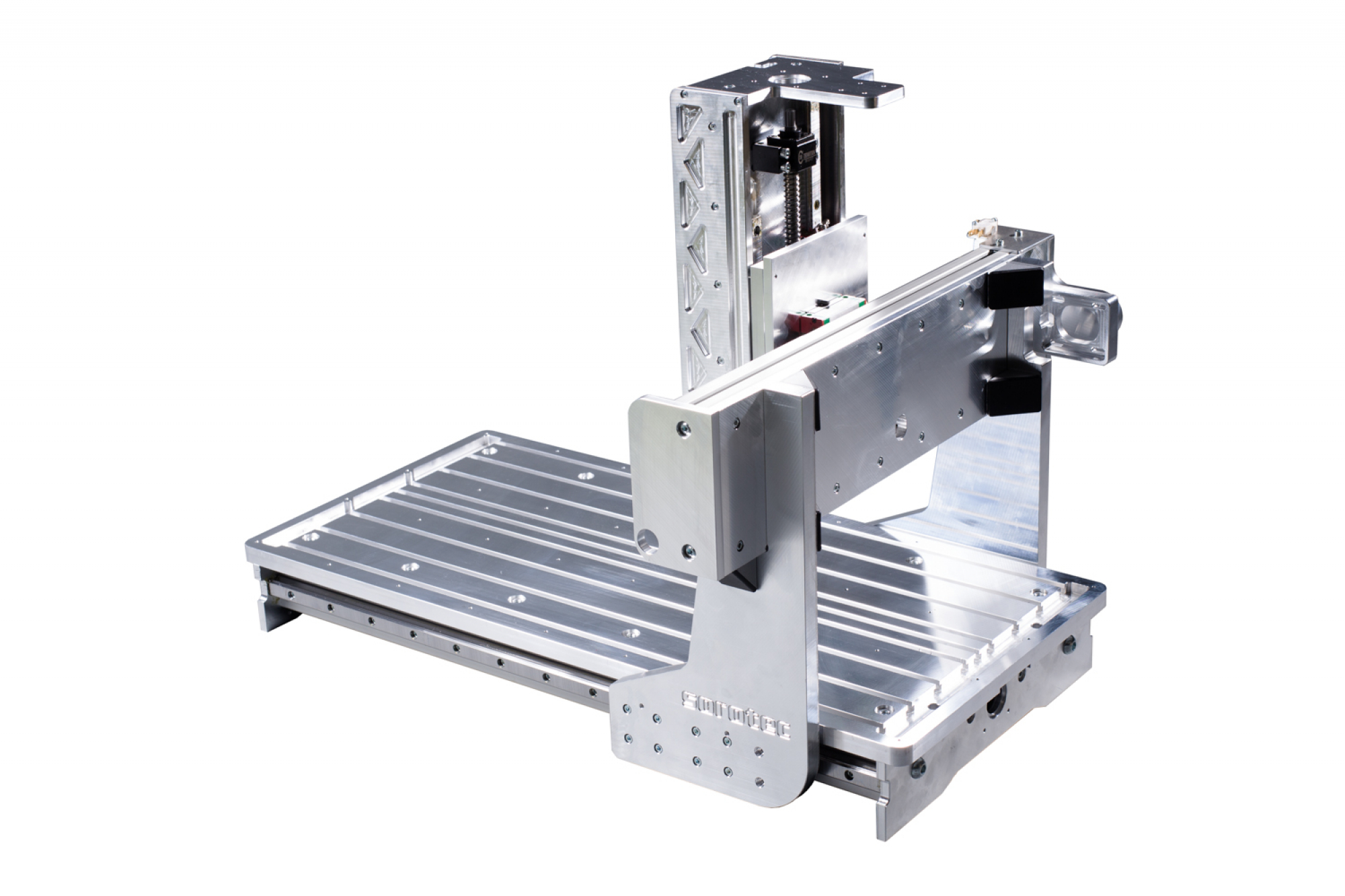

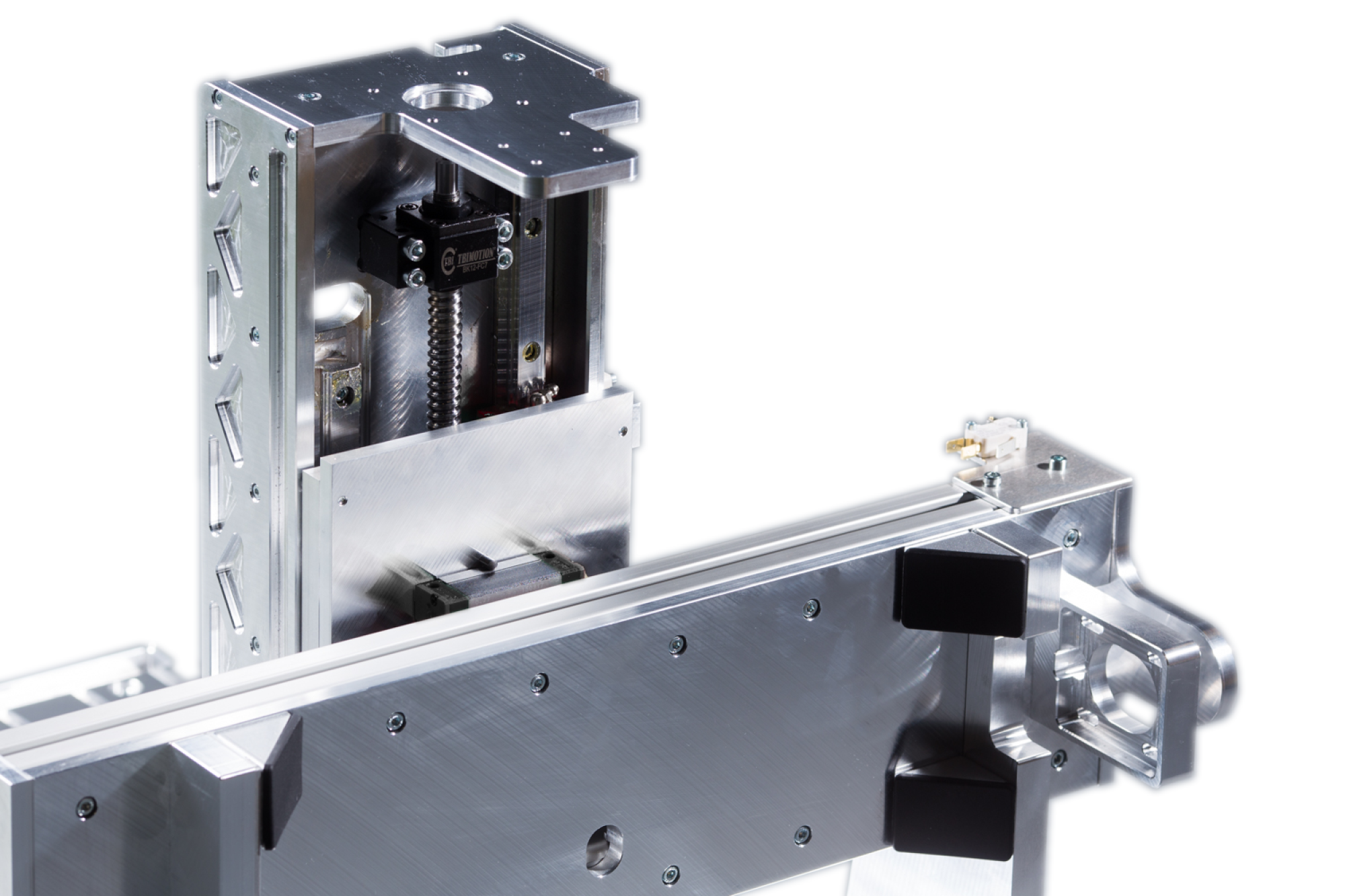

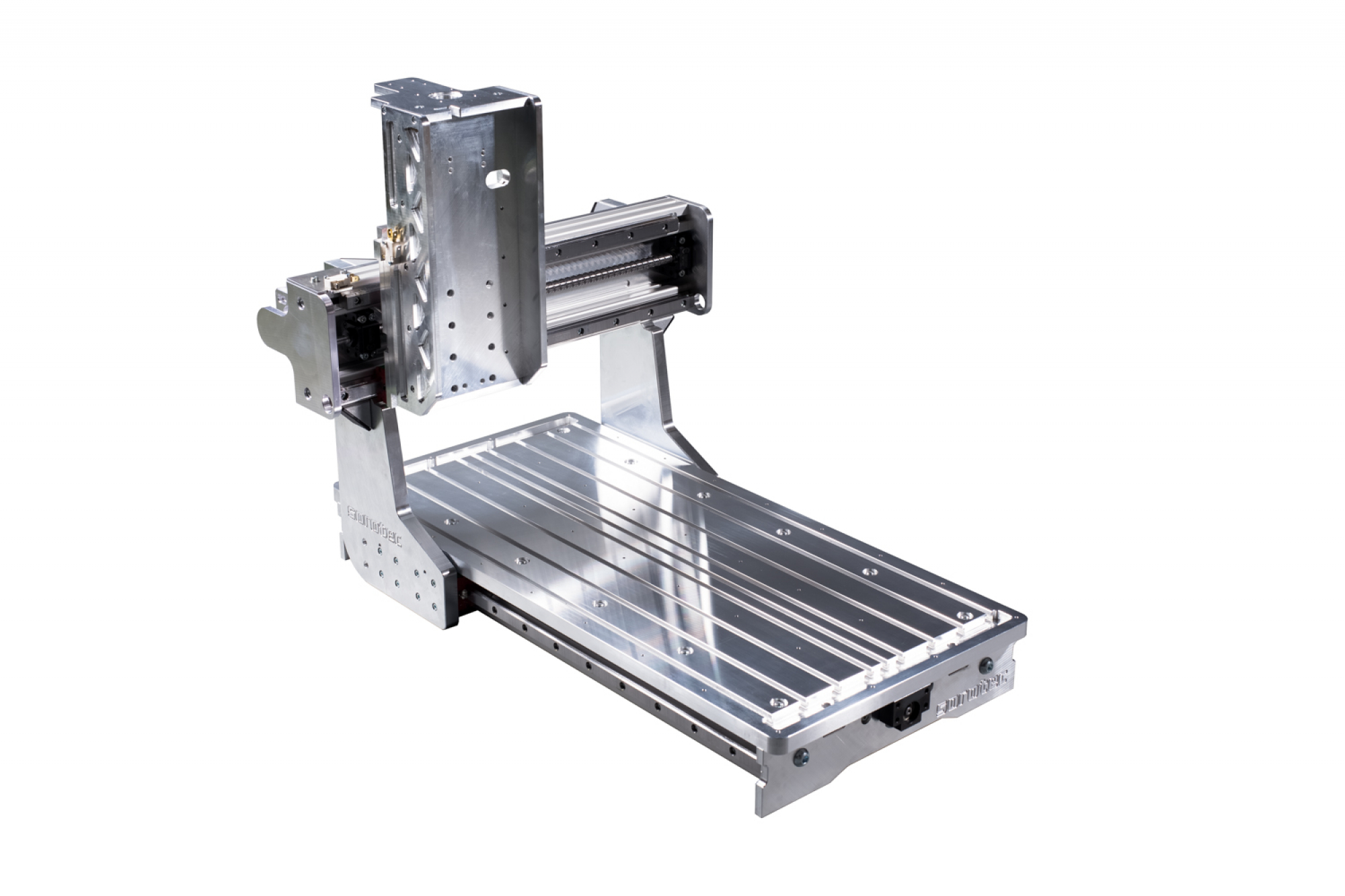

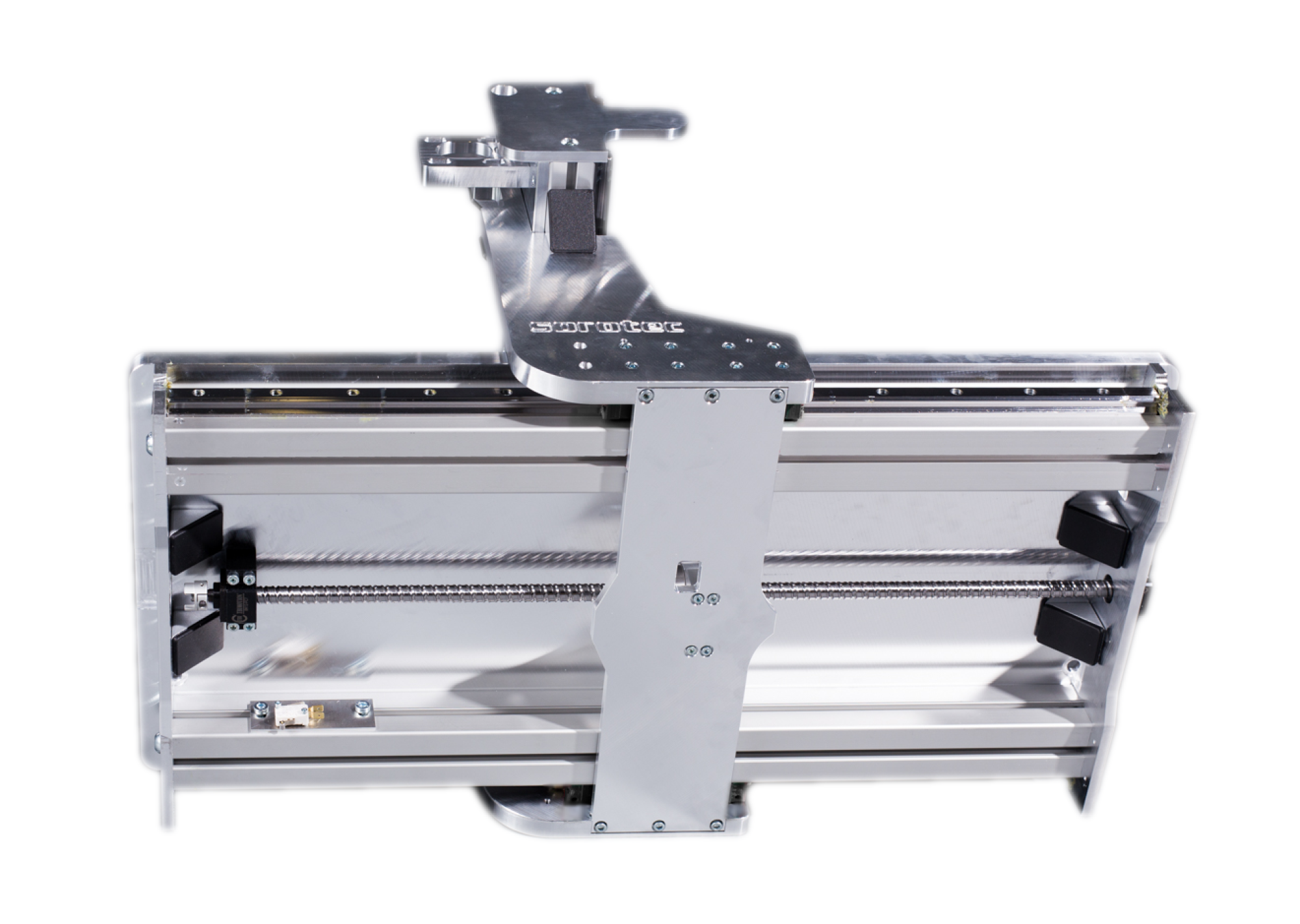

The mechanics is supplied in individual parts for self-assembly. The pictures show the fully assembled state. After completion, the sets of parts presented here represent what is referred to as "incomplete machines" in the Machinery Directive. For operation in accordance with the regulations, it must be completed with an enclosure and the module functional safety (operator protection). Also read this Information sheet

• Integrated T-nut plate
• machined guide surfaces
• Aluminium profiles and machined parts to build the machine

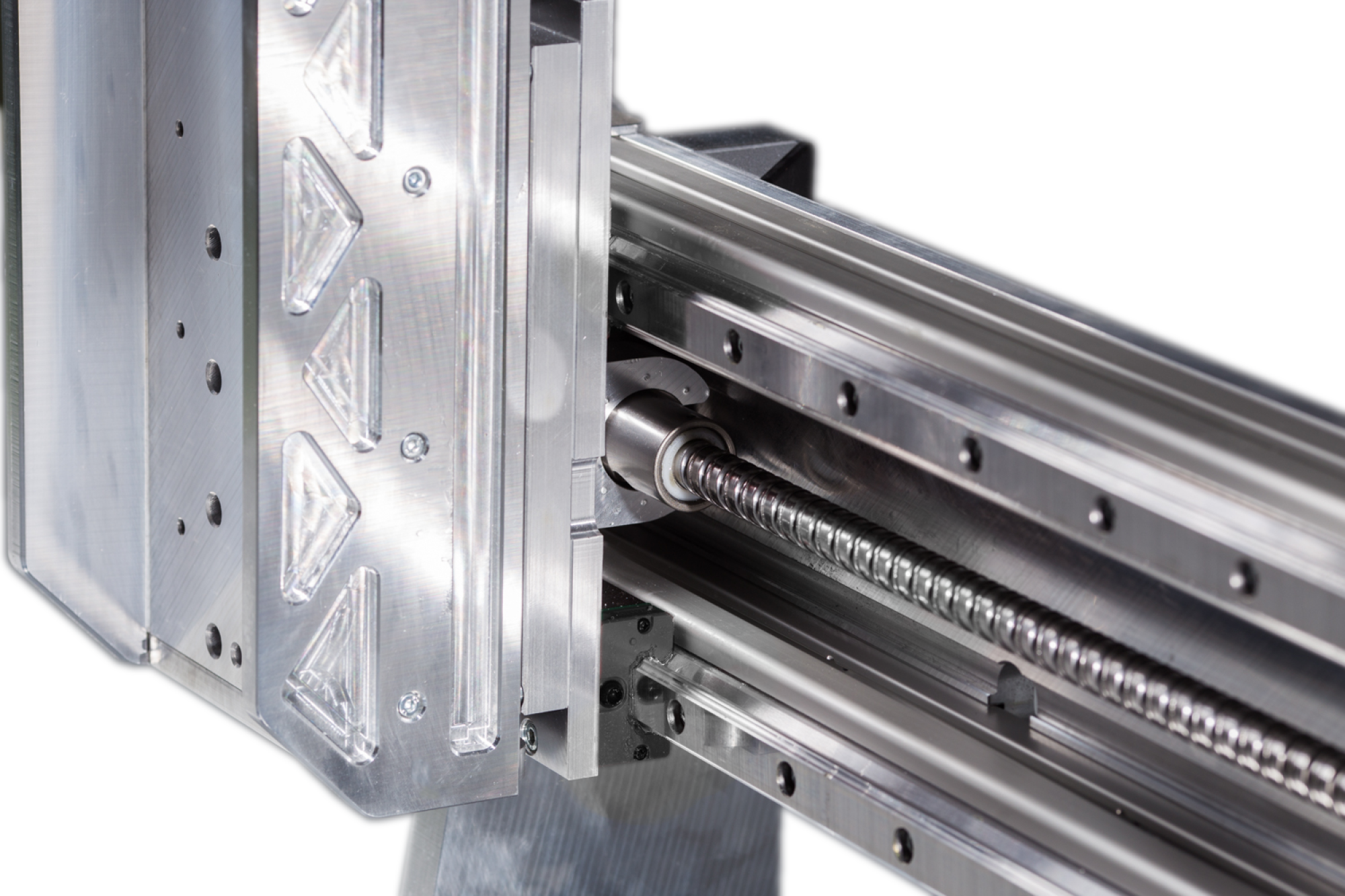

• prestressed linear guides and carriages size 20
• HIWIN Ball screw spindles
• HTD belts and pulleyes (for 8mm shaft)

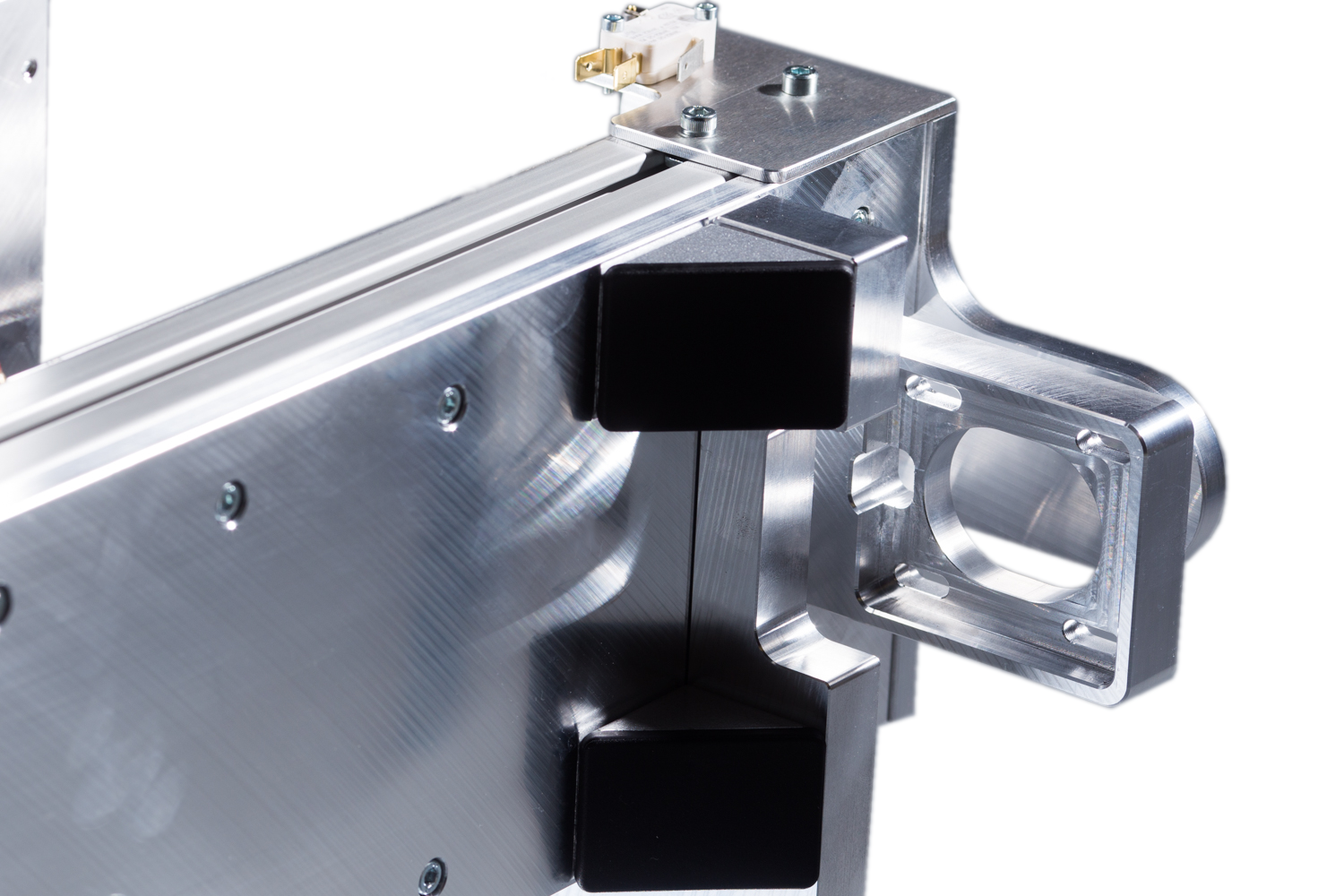

• Mechanical reference switches for all axes
• Complete set of screws
• Assembly instructions

• Vacuumtable
