Parts set COMPACT-Line 0604
The COMPACT-Line is extraordinary: Unlike usual, the construction of this machine integrates the T-slot plate beyond the mere clamping of workpieces as a load-bearing, force-carrying component. The result is high rigidity with comparatively small dimensions.
With this kit you get all the necessary parts for the mechanical construction of the portal milling machine. The drag chains and stepper motors are not included.
| Technical Data | |
|---|---|
| Travel |
X: 620 mm |
| Clearance under Portal | 170 mm |
| Clamping area | X: 850 mm Y: 406 mm |
| Outer dimensions |
L: 920 mm |
| Guides | Linear Guides Size 20 on all Axis |
| Ball screw spindles |
X: 16 x 10 mm Y: 16 x 10 mm Z: 16 x 5 mm |
| Weight | approx. 67 kg |
Delivery content:

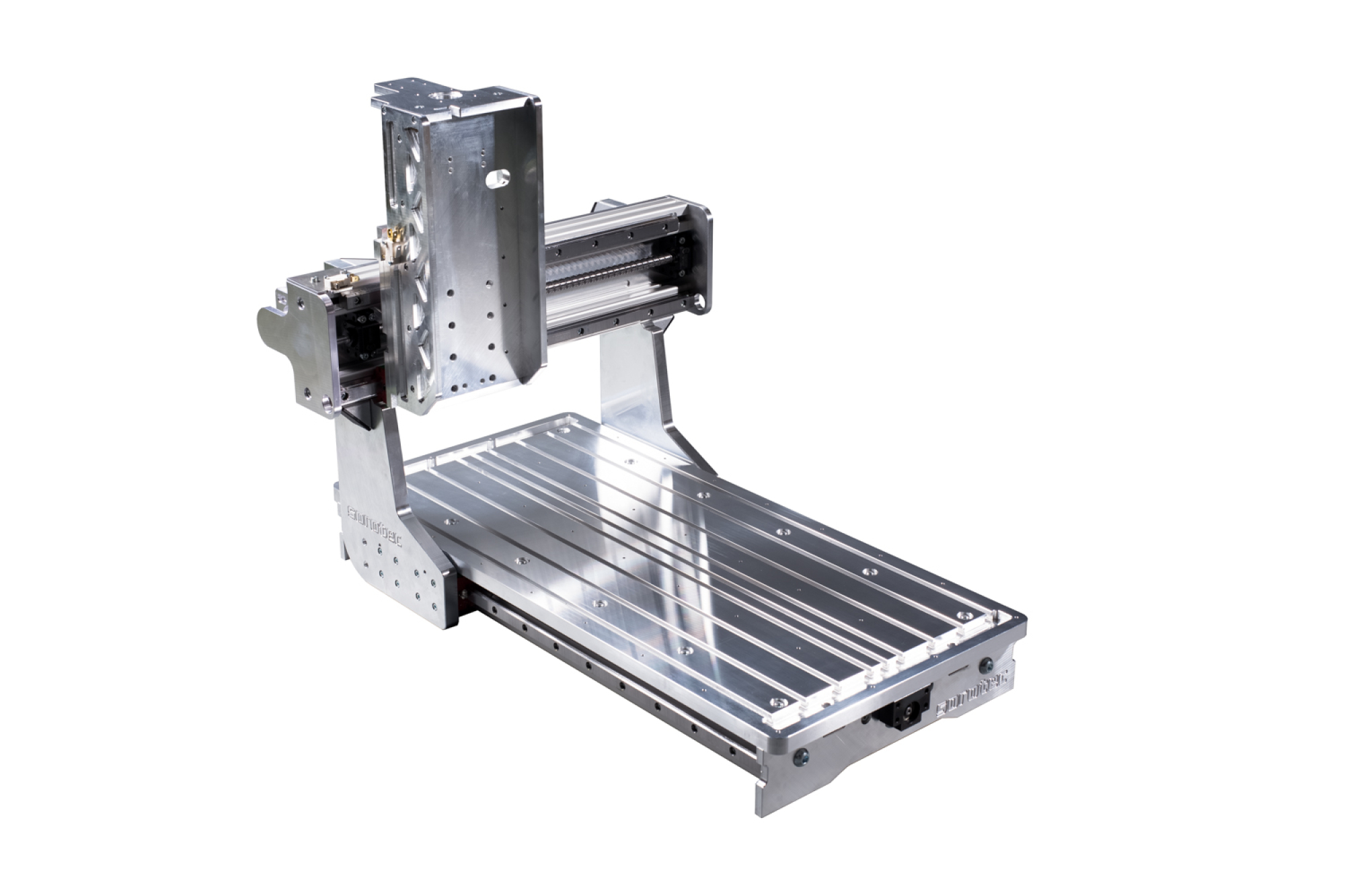

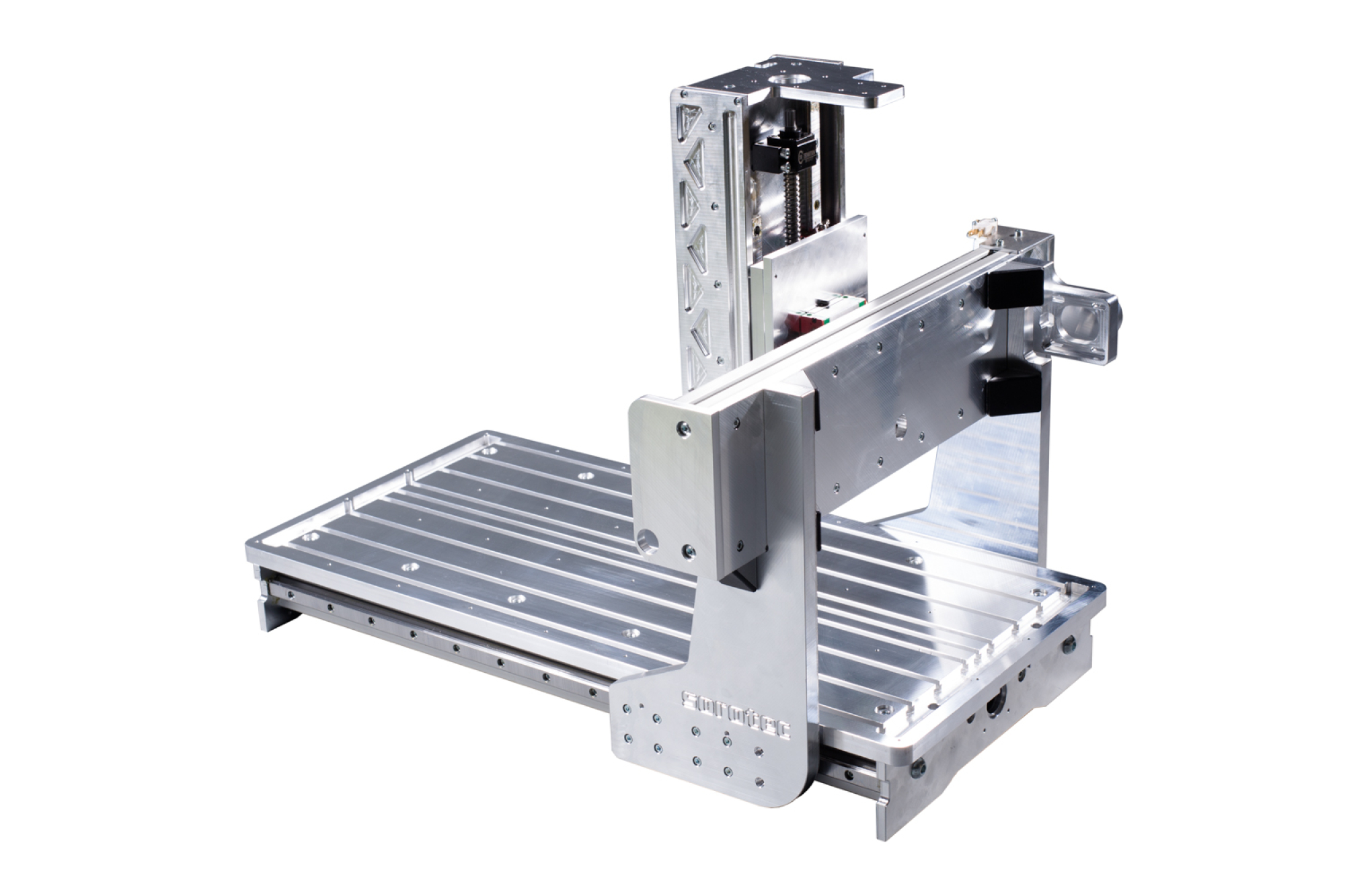

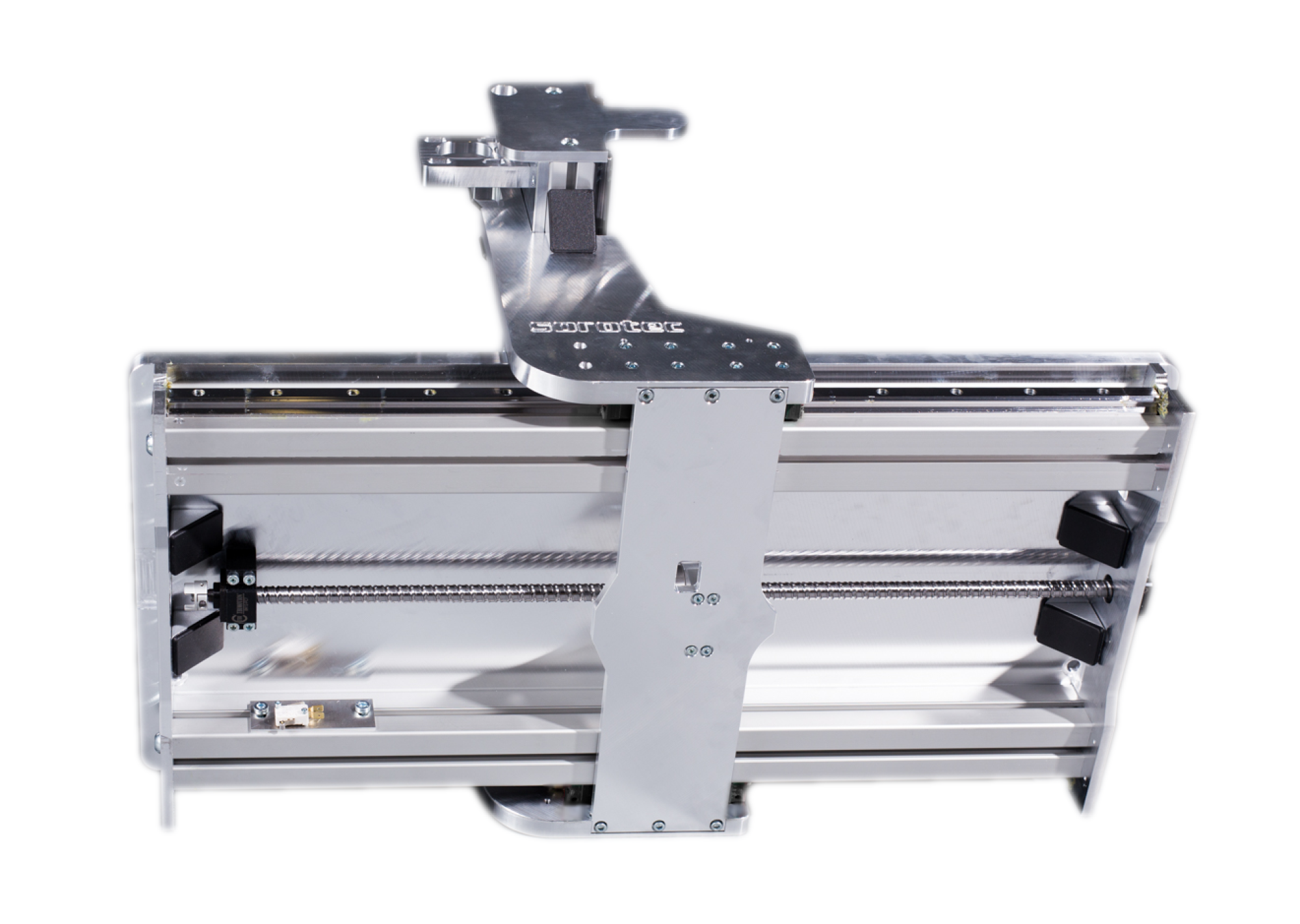

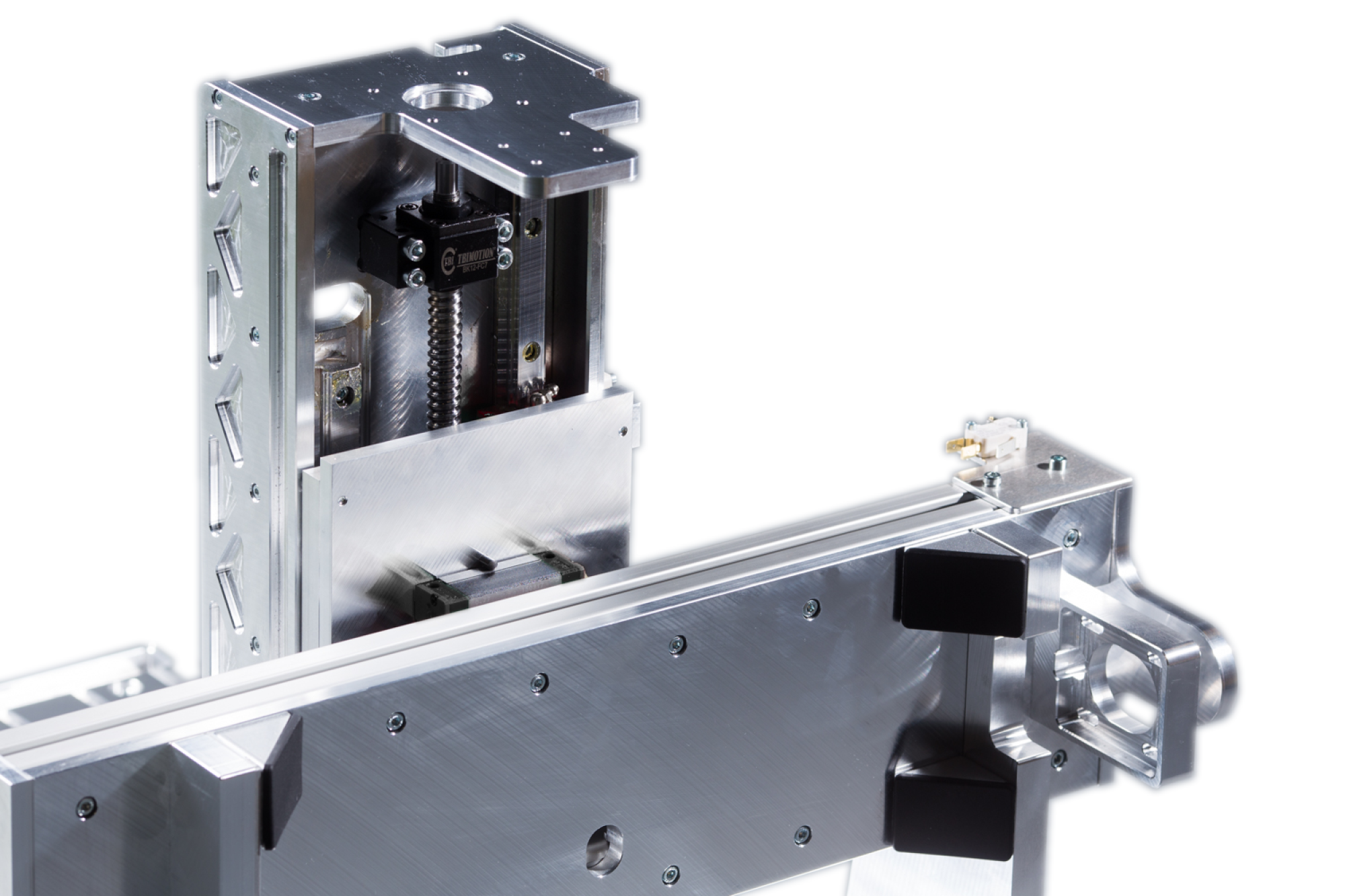

 The mechanics is supplied in individual parts for self-assembly. The pictures show the fully assembled state.After completion, the sets of parts presented here represent what is referred to as "incomplete machines" in the Machinery Directive. For operation in accordance with the regulations, it must be completed with an enclosure and the module functional safety (operator protection). Also read this  Information sheet |
- Integrated T-nut plate
- Aluminium profiles and machined parts to build the machine
- prestressedlinear guides and carriages size 20

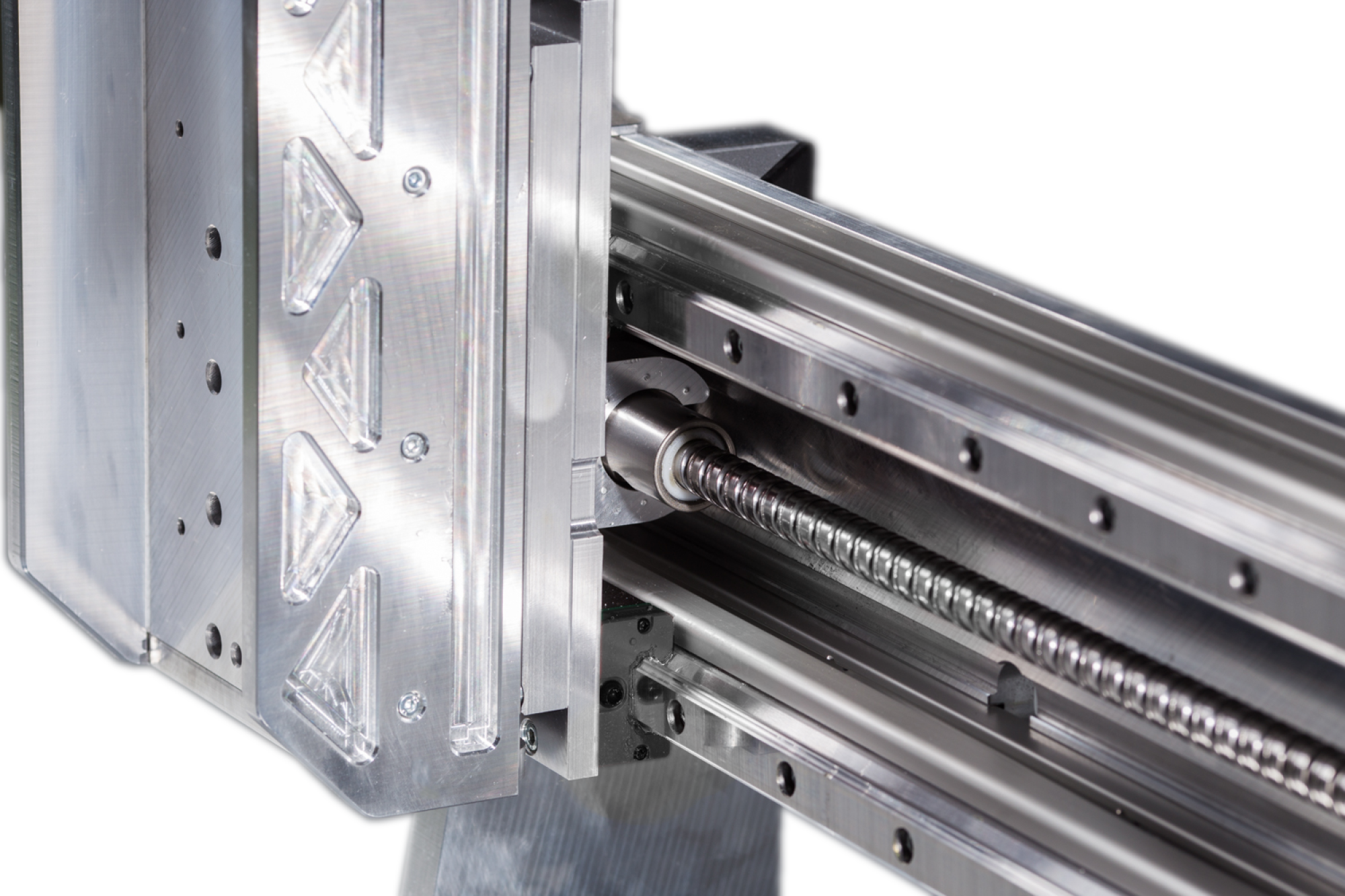

- HIWIN Ball screw spindles
- HTD belts and pulleyes (for 8mm shaft)

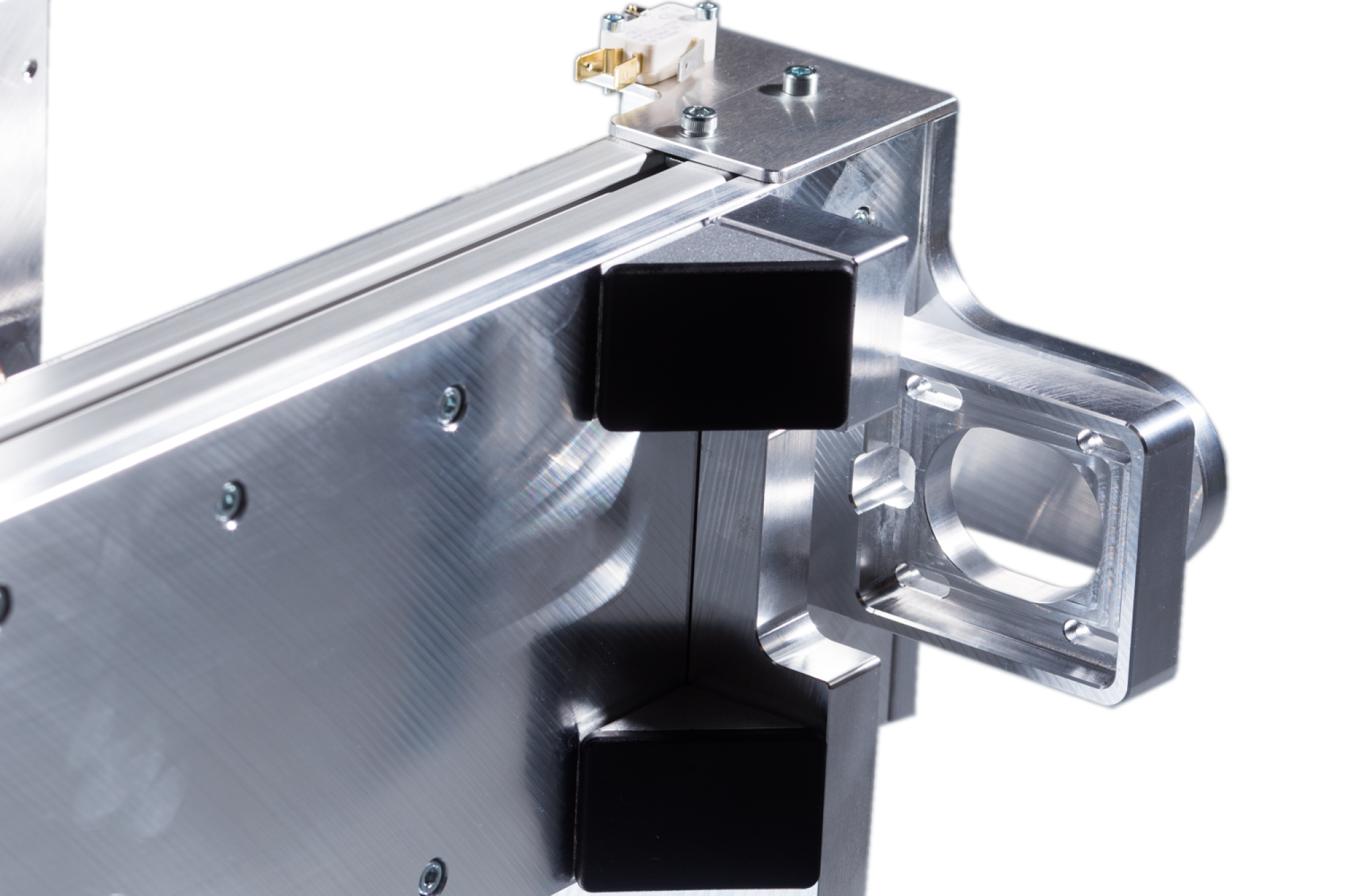

- Mechanical reference switches for all axes
- Complete set of screws
- Assembly instructions
Available accessories
- Vacuumtable
- Mounting Kit for Electric
- Machine feet
- Stepper motors
- Controllers
- Drag chains
- Control software
- CAD/CAM Systems
- Spindles (with and without tool changer)
- Frame
- Cooling systems
- Housing
- further accessories
This article can be delivered for logistical reasons only by freight carrier. Therefore, the products can not be purchased through our store. Write to us. We will send you a customized offer incl. Transport costs.
