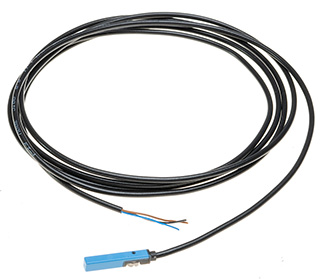

Magnetic switch for pneumatics cylinder
Magnetic switch for pneumatics cylinder
This switch can be used to detect the position of the steel piston in an aluminum pneumatic cylinder. The switch is inserted into the lateral T-slot of the cylinder, the magnetic effect of the piston closes the reed contact. The switching point is easy to adjust by moving the switch in the groove.- Reed contact
- Normally open
- For insertion in T-slot
- LED indicator
- 10 ... 30 V AC/DC
- Cable 3 core 2 m
Datasheet (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
