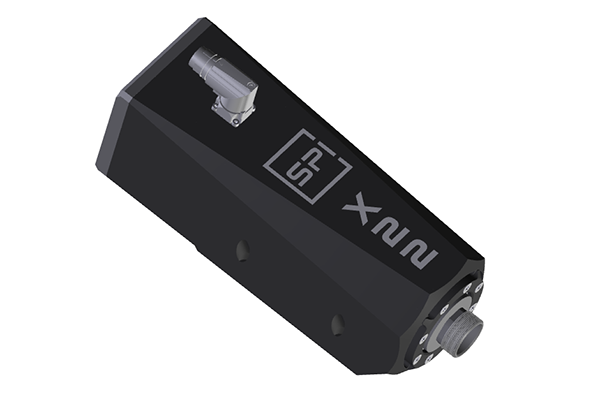

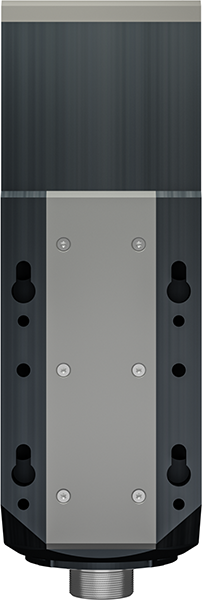

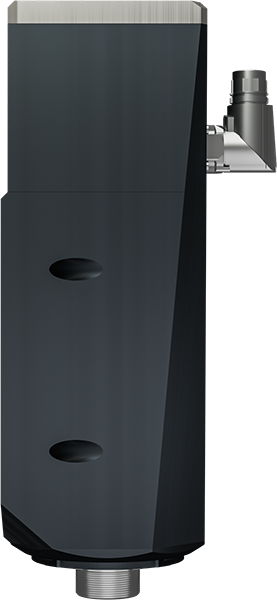

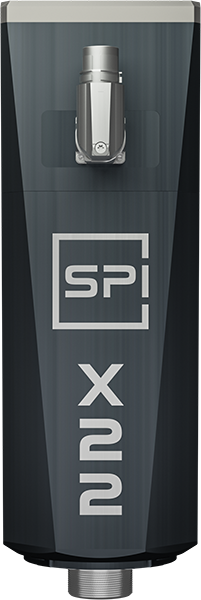

HF-Spindle Spinogy 2.2 kW 2-pole | ER20 | 30,000 U/min | 230 V
NEW
HF-Spindle Spinogy 2.2 kW 2-pole | ER20 | 30,000 U/min | 230 V
Description:- Compact and lightweight spindle solution
- Large ER20 tool interface
- Spindle holder integrated in the housing
- Innovative 5-stage labyrinth seal
- Saving of sealing air
- Intelligent assembly system
- Made in Germany and the highest quality
- Motor: 2.2 kW, 230 V, 2-pole
- Maximum torque: 0.88 Nm
- Air cooling
- Tool interface ER20
- Speed: 30,000 rpm
- High precision spindle bearing GMN
- Motor connector 9-pin angled
- Temperature monitoring of winding head
- High quality mini clamping nut
- Powerful 24 V fan
- Weight: only 4.8 kg
- Protection class: IP30
- Spindle wrench AF21
- Clamping wrench Clamping nut ER20
- Mini clamping nut ER20
- Screw kit (fastening screws & dowel pins)
- Motor control line (see option selection at right)
