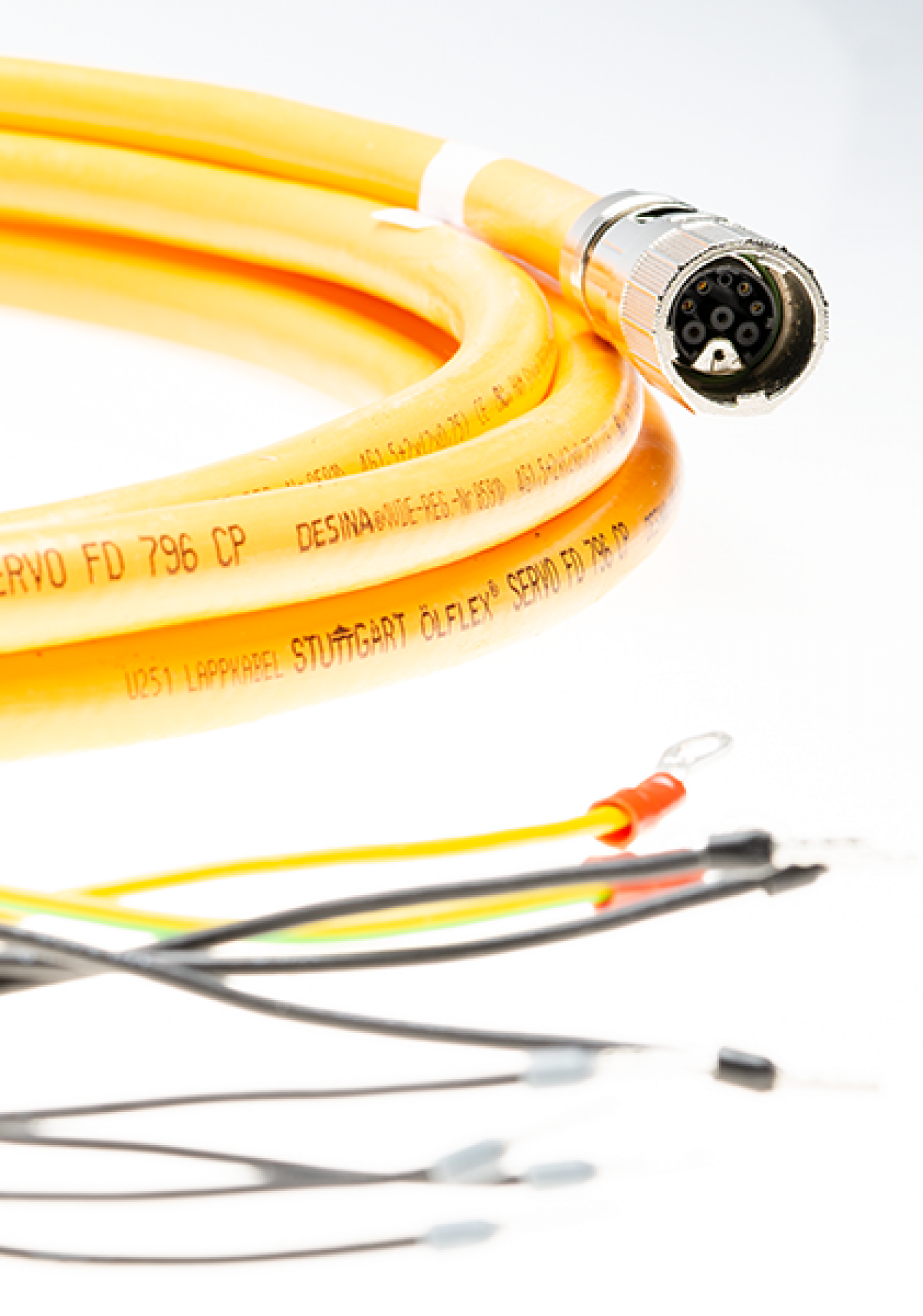

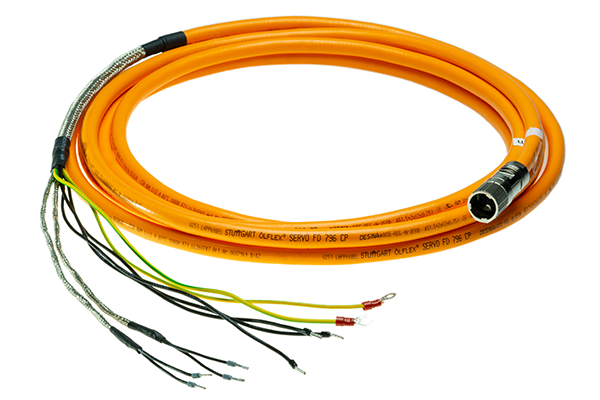

Motor connection cable for air-cooled spindles - 9 m
Motor connection cable for air-cooled Spinogy spindles
Length 9 m, pre-assembledCharacteristics:
- ÖLFLEX SERVO FD 796CP 4G1.5 + 2X (2X0.75)
- Suitable for X22-L-ER20, X22-L-ER25, X22-L-HSK25, X22-L-SK20
- Pre-assembled, shielded servo cable for highly dynamic applications in energy chains under harsh operating conditions with UL / CSA AWM and VDE.
- Number of cores and mm² per conductor: 4 G 1.5 + 2 x (2 x 0.75)
- Outside diameter: approx. 12.2 mm
- Weight: 0.31 kg / m
- Approval: CE / CSA / RU / VDE / C_RU / EAC / Fire
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
