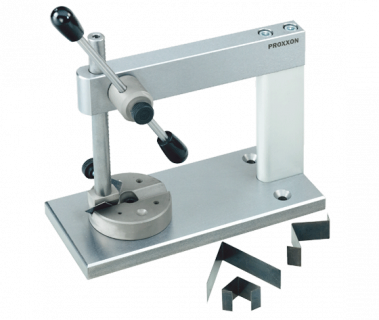

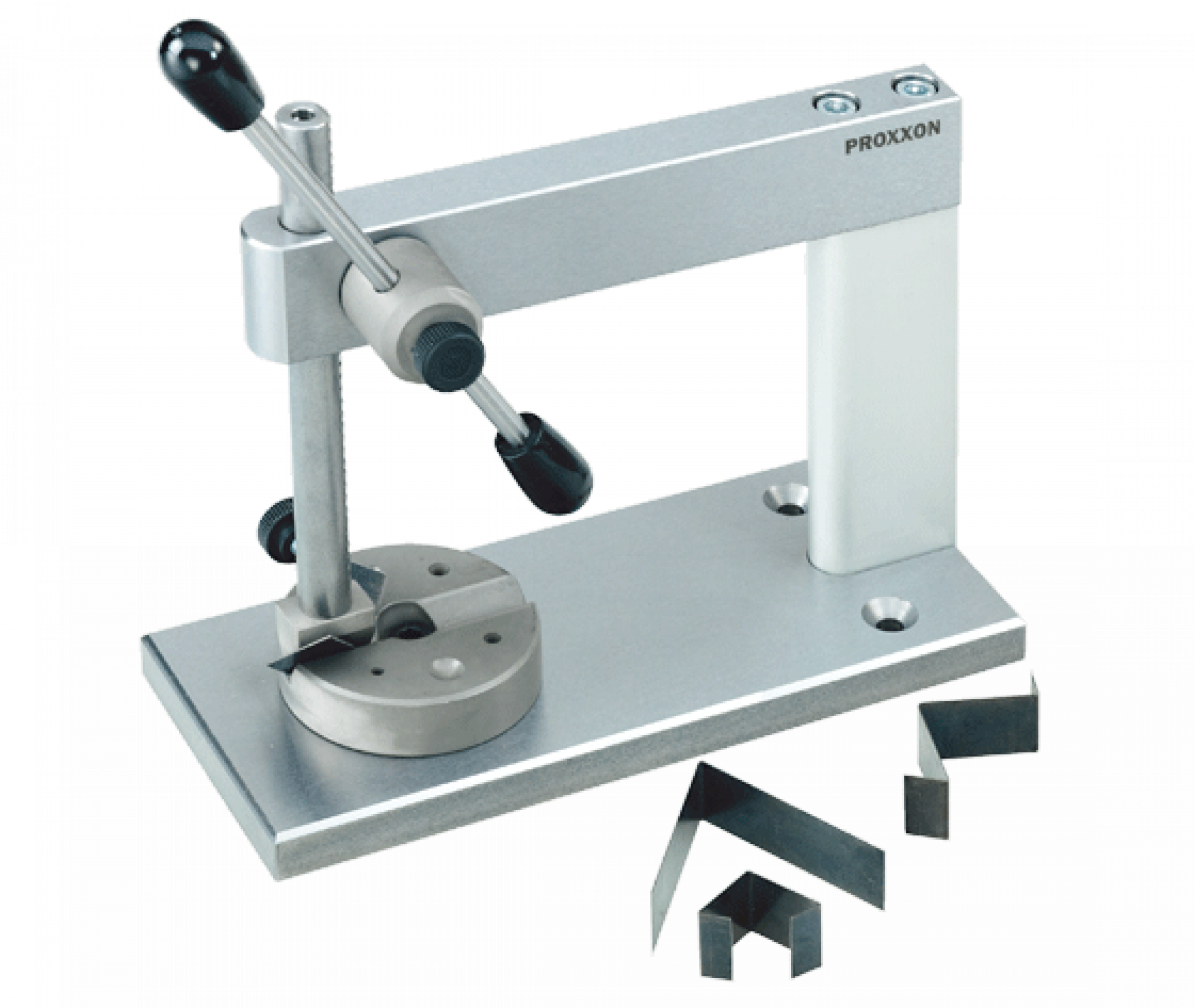

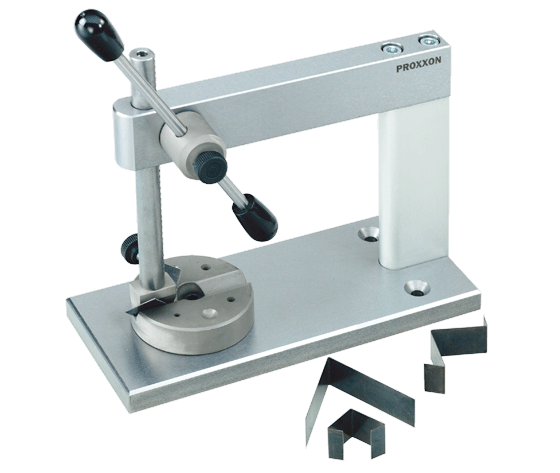

MICRO press MP 120

Pressing in, pressing out, riveting, imprinting, edging, bending of wires and sheets. Embossing, beading and crimping of easy to form materials.

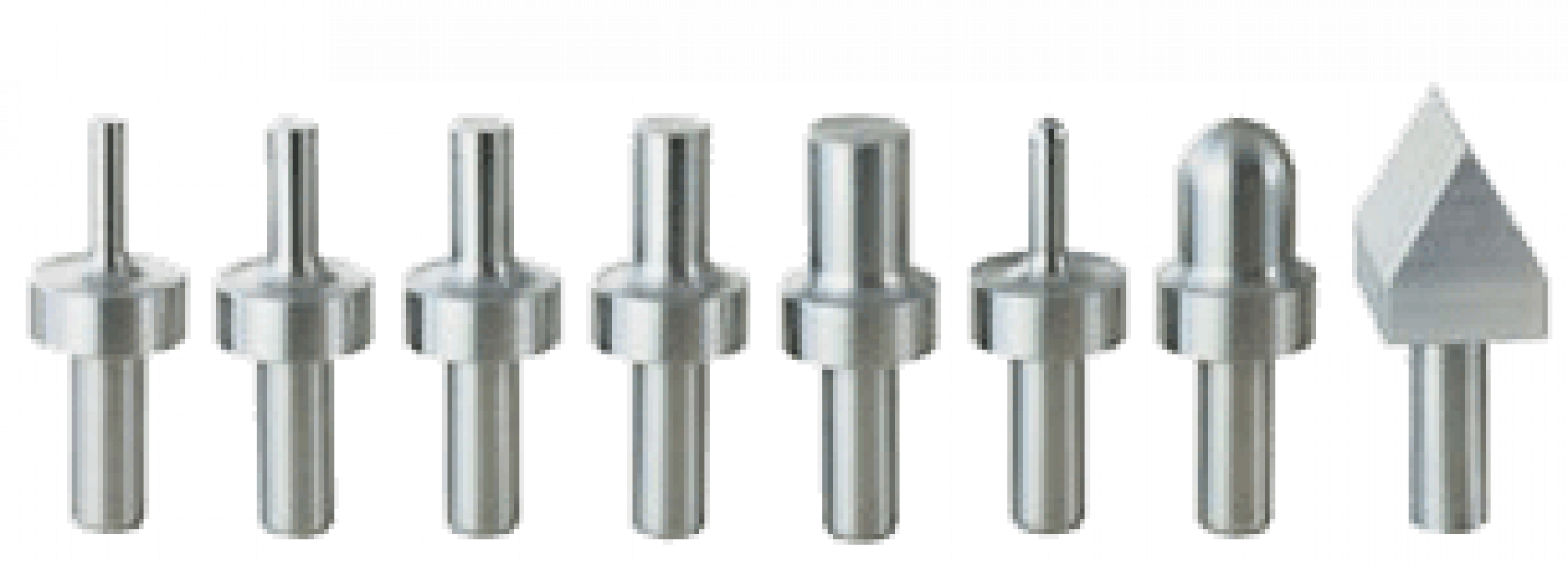

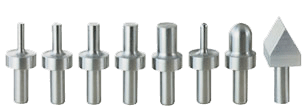

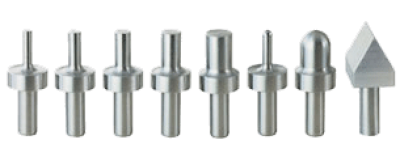

With 5 cylindrical pressing tools (surface hardened) being inserted into the toothed rack and fixed with a knurled screw: Ø 3 - 4 - 5 - 6 and 8 mm. One each semi-spherical profile Ø 3 and Ø 9 mm as well as a 60° square prism for bending sheet metal. The counterpart is an easily adjustable, hardened revolving plate with all required holes and bottom dies for the above-specified pressing tools.

Toothed rack at one front end with 6mm bore for use of the 8 bottom dies for the above-specified pressing tools. 5mm bore at the other front end for use of all commercially available riveting tools: simply wind up the toothed rack, take it out and reinsert it upside down.

Force of pressure approx. 1,000 N (100 kg). Maximum stroke of toothed rack with inserted tool 65 mm, above revolving plate 50mm. Solid steel arm with 120 mm throat. Ground base plate of steel, 80 x 190 mm with an 8 mm centre and two fastening bores. Weight approx. 2,800 g.
