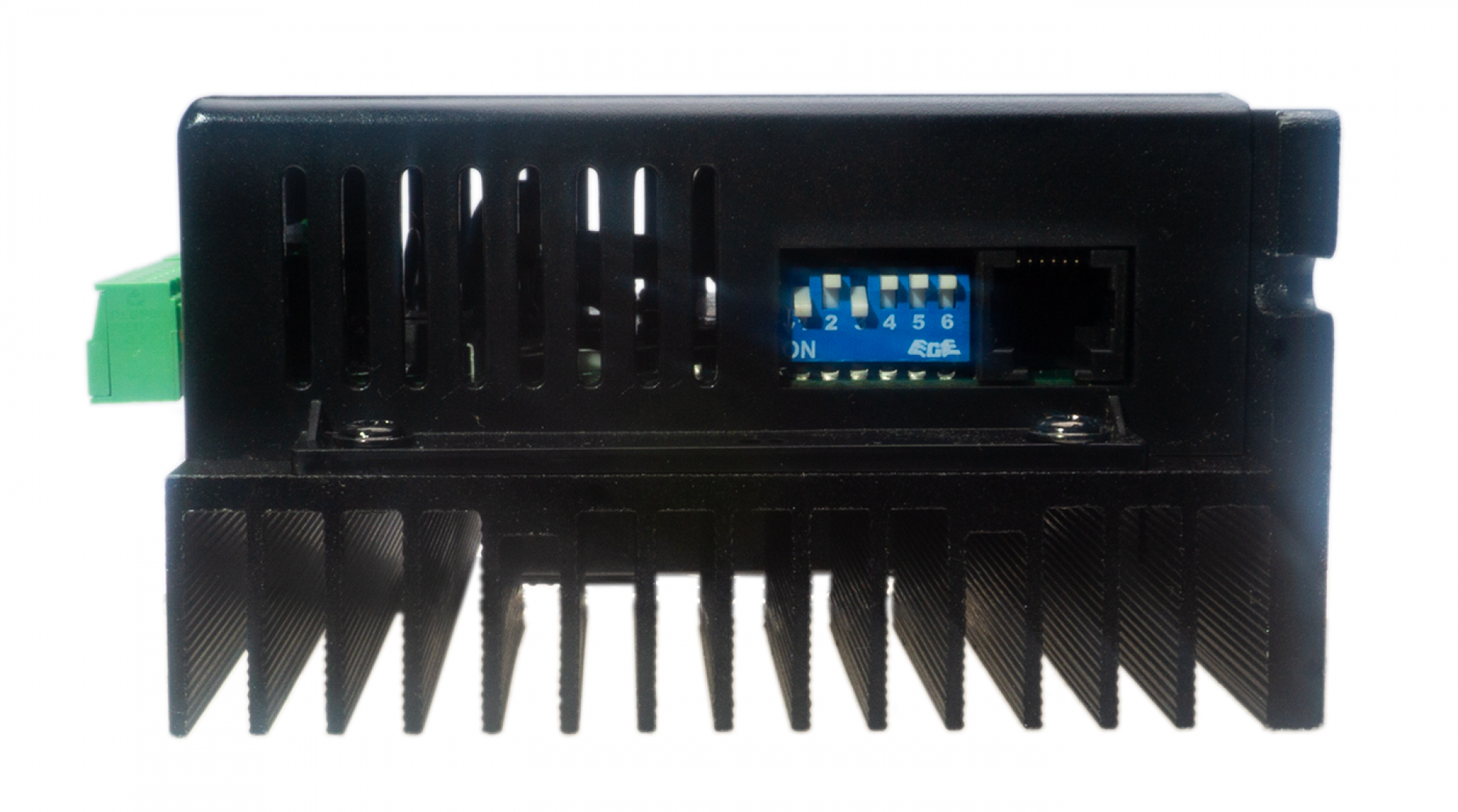

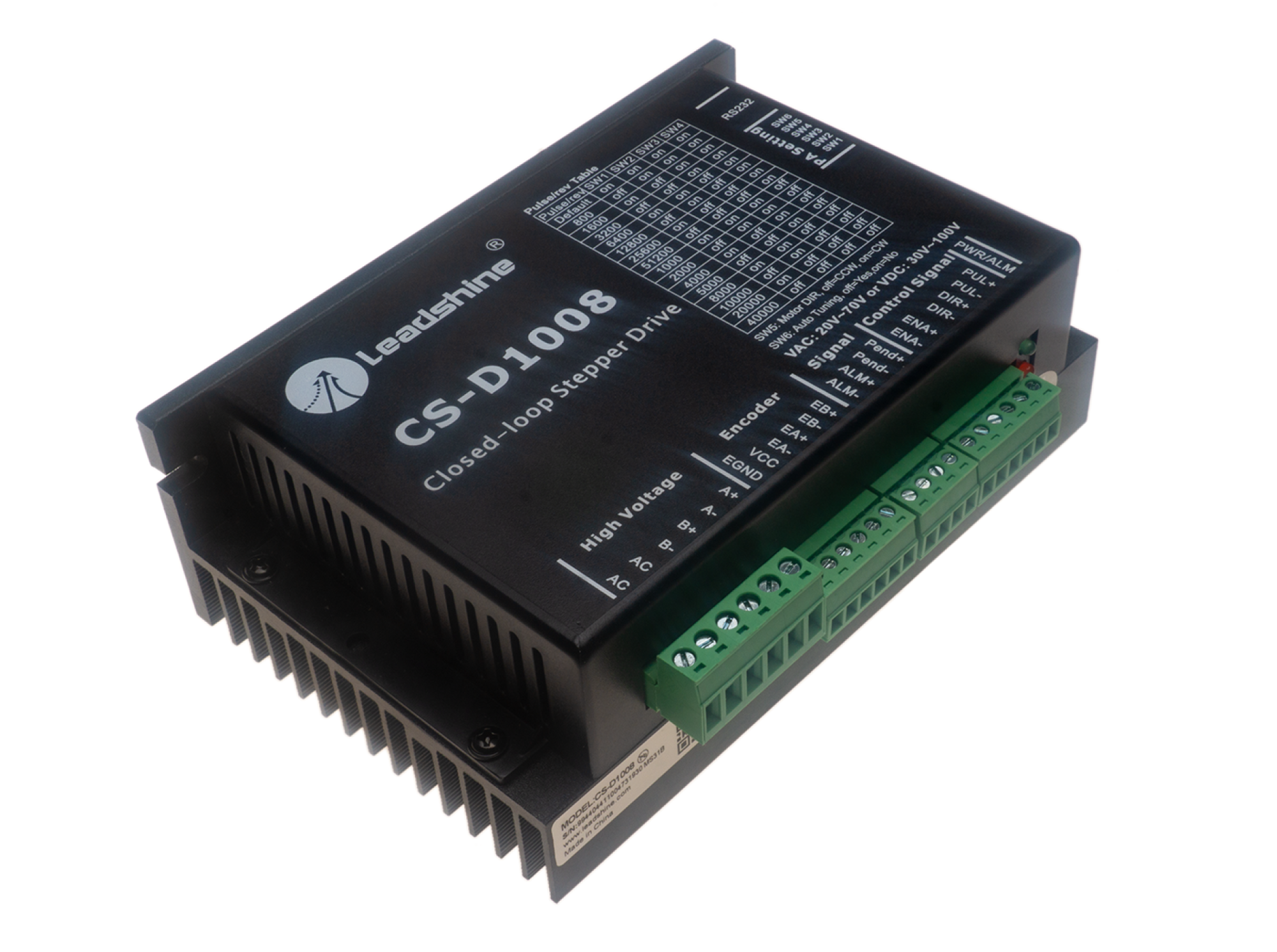

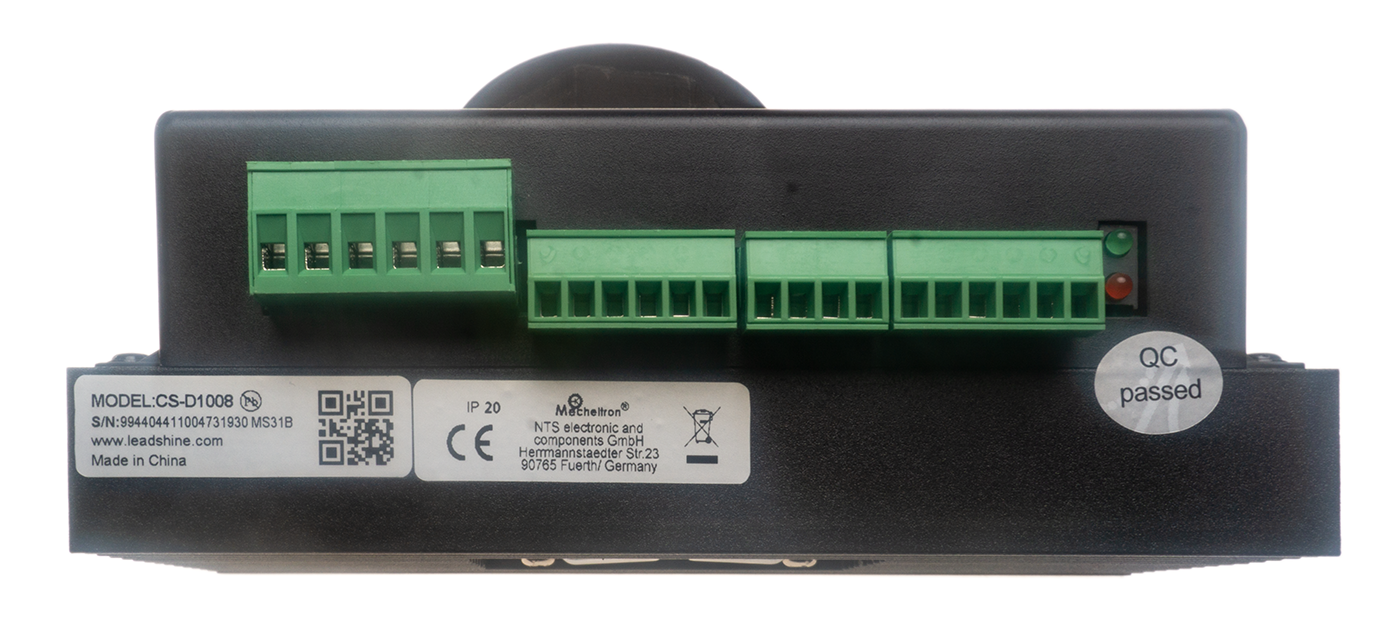

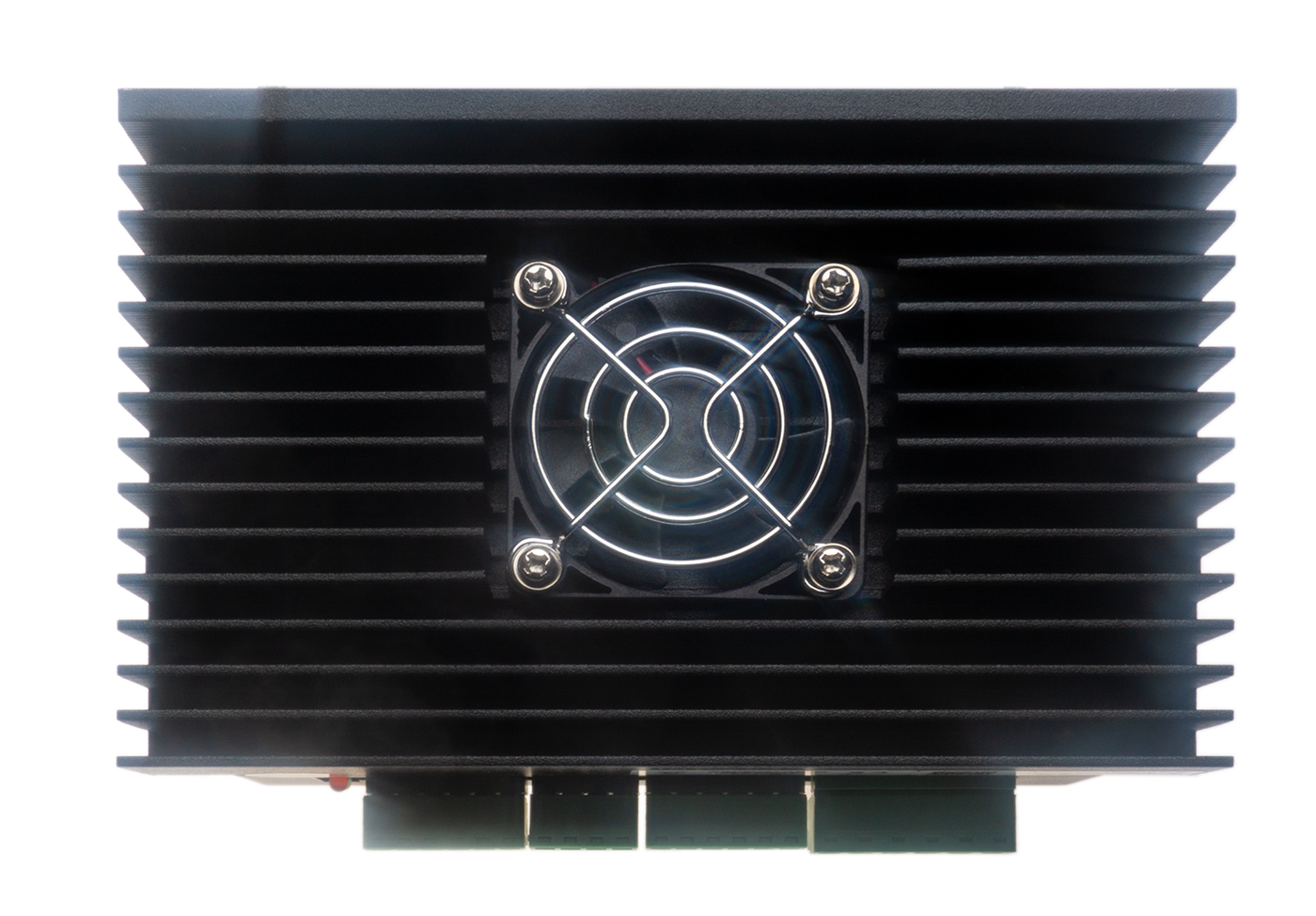

Leadshine CS-D1008

The Leadshine CS-D1008 is a closed-loop stepper motor driver that solves the step loss problem of open-loop stepper motor controllers and increases system reliability at minimal overhead. The advanced control algorithm is based on Leadshine's ten years of experience in the field of stepper motor and servo motor control. With this he operates the stepper motor with reduced heating, noise and vibration. Highly reliable and affordable, the CS-D1008 is ideal for many industrial applications such as CNC, medical, electronics, packaging.

The CS-D1008 can drive 2-phase stepper motors with incremental encoders. Compared to conventional open-loop stepper motor systems, a closed-loop CS-D1008 can eliminate possible step loss, perform real-time position error correction, and does not need to provide torque to do so.

• Closed-loop control loop without step losses
• Improved performance in low speed applications (< 60 RPM)
• No provision of torque for position error correction
• No settings required for easy commissioning
• Supply voltage CS-D808: 30 - 80 VDC, CS-D1008: 30 - 100 VDC
• Output current of max. 8 A
• Input frequency up to max. 200 kHz
• Configurable digital output for "In Target Position Range" signal or as brake command signal
• Microstep resolution (15 settings) from 800 - 51,200 via DIP switches or 200 - 51,200 via software
• (increments of 200)
• Protection functions against overvoltage, overcurrent and position error
