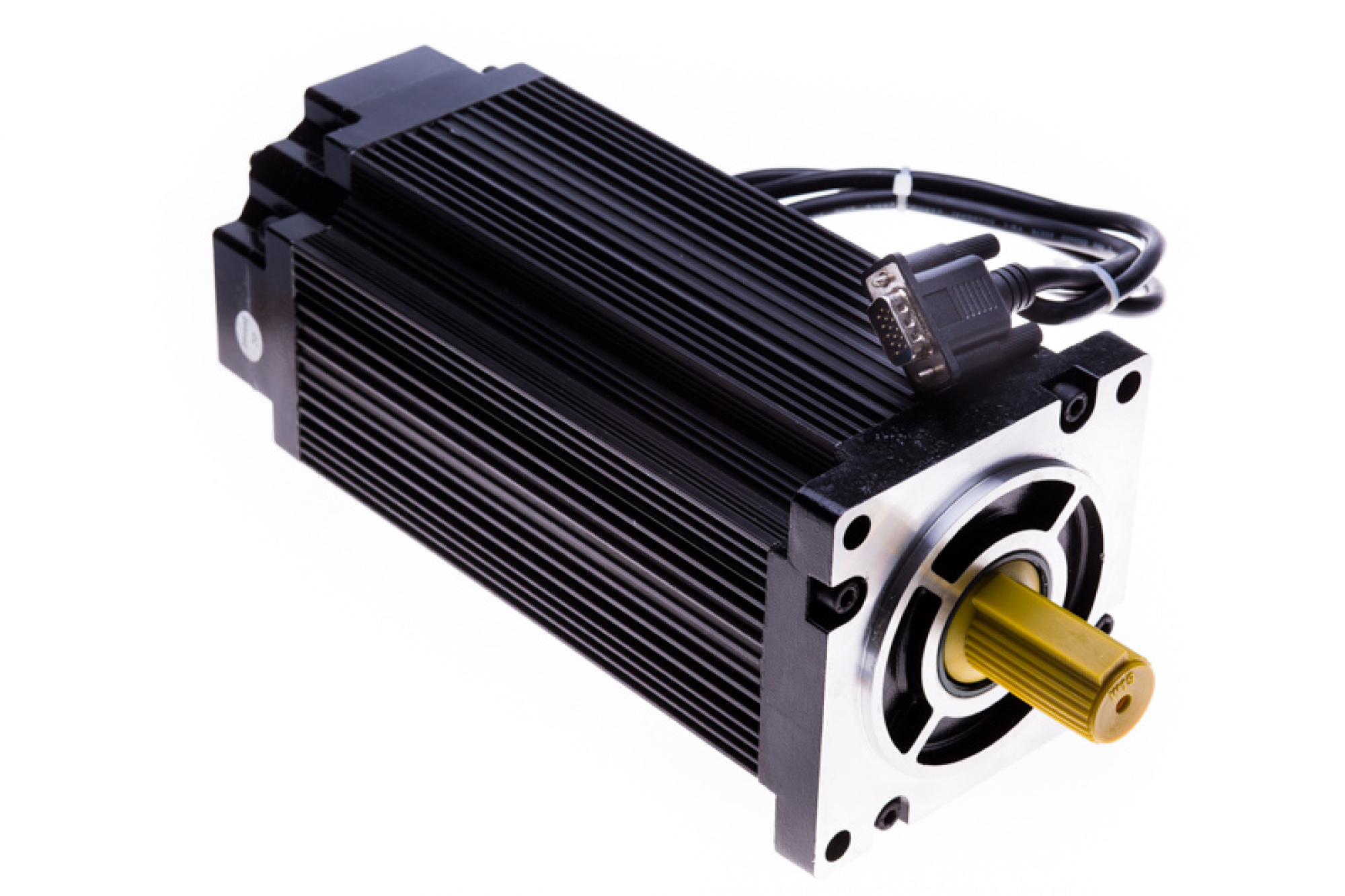

Hybrid Servo Motor 20 Nm
3-phase stepper motor with encoder
In combination with the suitable driver this motor makes up a hybrid servo closed loop system without loss of steps.
Technical Specifications:
- 3-phase hybrid stepper motor
- 1000-lines / Rev. encoder
- Standard Nema 34 dimensions
- High torque design
- Angle 1.2, 200 steps
- Size: 110 mm width & height, 245 mm length.
- Shaft: 19 mm with key
- Cable length 30 cm
- Weight: approx 12.8 kg
Data sheet germanManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
