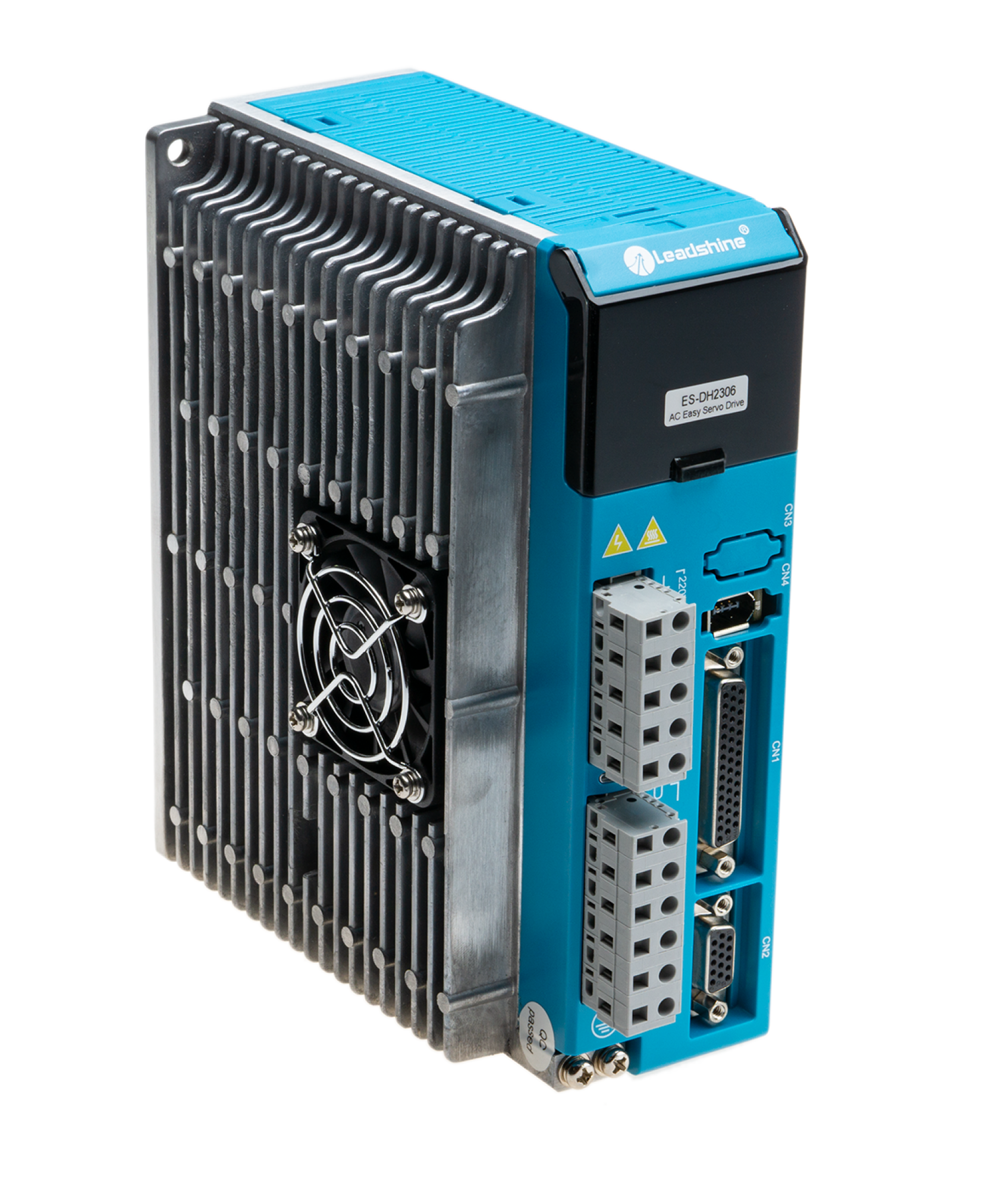

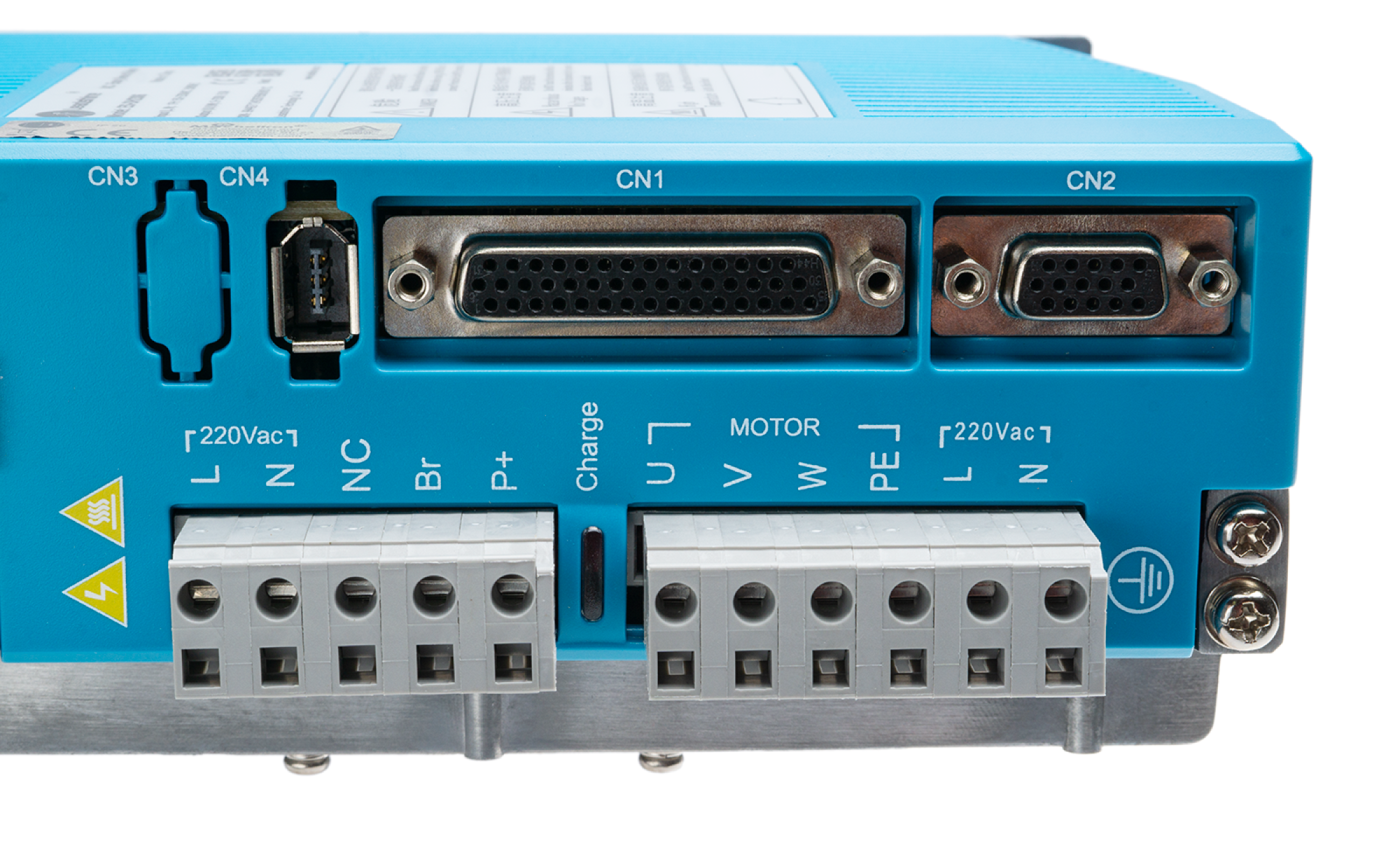

Hybrid Servo Driver ES-DH2306
ES-DH2306 Closed Loop Stepper Driver
150 (212) ... 230 (325) VAC (VDC)
Servo control for stepper motors with encoders up to NEMA 42.Specifications:
- Step & direction controls
- Closed position loop for no loss of movement synchronization
- Direct 110/120 or 220/230 AC input
- Operating voltage: 150 - 230 VAC or 212 - 325 VDC
- Load based output current of 0.5 - 6.0 A
- High torque at starting and low speed
- No torque reservation
- High stiffness at standstill
- Significantly reduced motor heating
- Smooth motor movement and extra low motor noise
- Quick response, no delay and zero settling time
- On-board LED panel for custom configuration and motion mode display
- Plug-and-play and no tuning
- Also capable of driving normal 3 phase stepper motor
Datasheet (german)
