Hybrid Stepper Motor 20 Nm
Hybrid Stepper Motor 20 Nm
Hybrid Stepper Motor 20 Nm

Hybrid Stepper Motor 20 Nm

Product No.:
ESM.110HS200.3V2
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
11.7 kg per piece
349,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

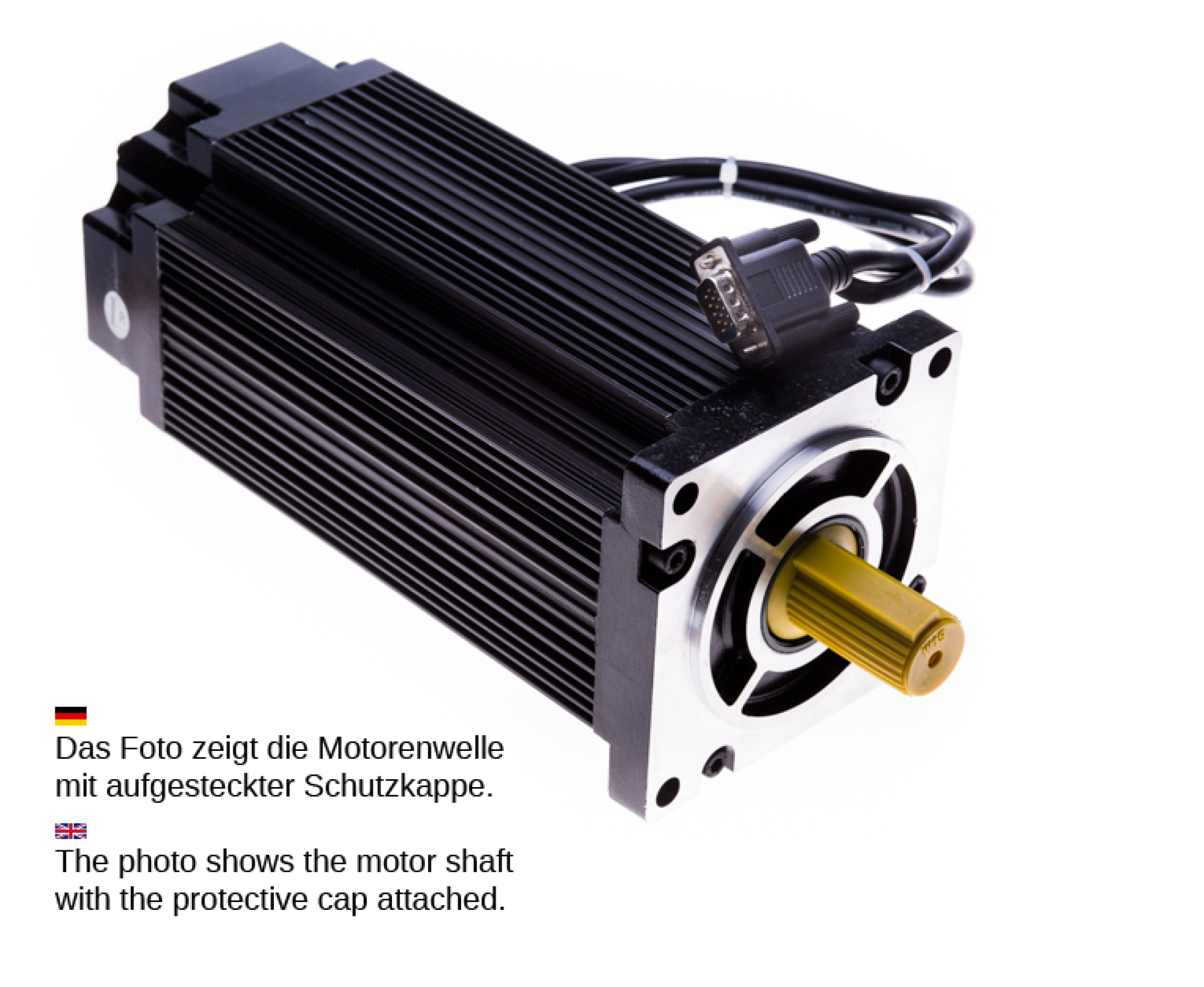

3-phase stepper motor with encoder

In combination with the suitable driver this motor makes up a hybrid servo closed loop system without loss of steps.

Technical Specifications:

  • 3-phase hybrid stepper motor
  • 1000-lines / Rev. encoder
  • Standard Nema 34 dimensions
  • High torque design
  • Angle 1.2, 200 steps
  • Size: 110 mm width & height, 245 mm length.
  • Shaft: 19 mm with key
  • Cable length 30 cm
  • Weight: approx 12.8 kg
