Handwheel for Estlcam
Handwheel for Estlcam

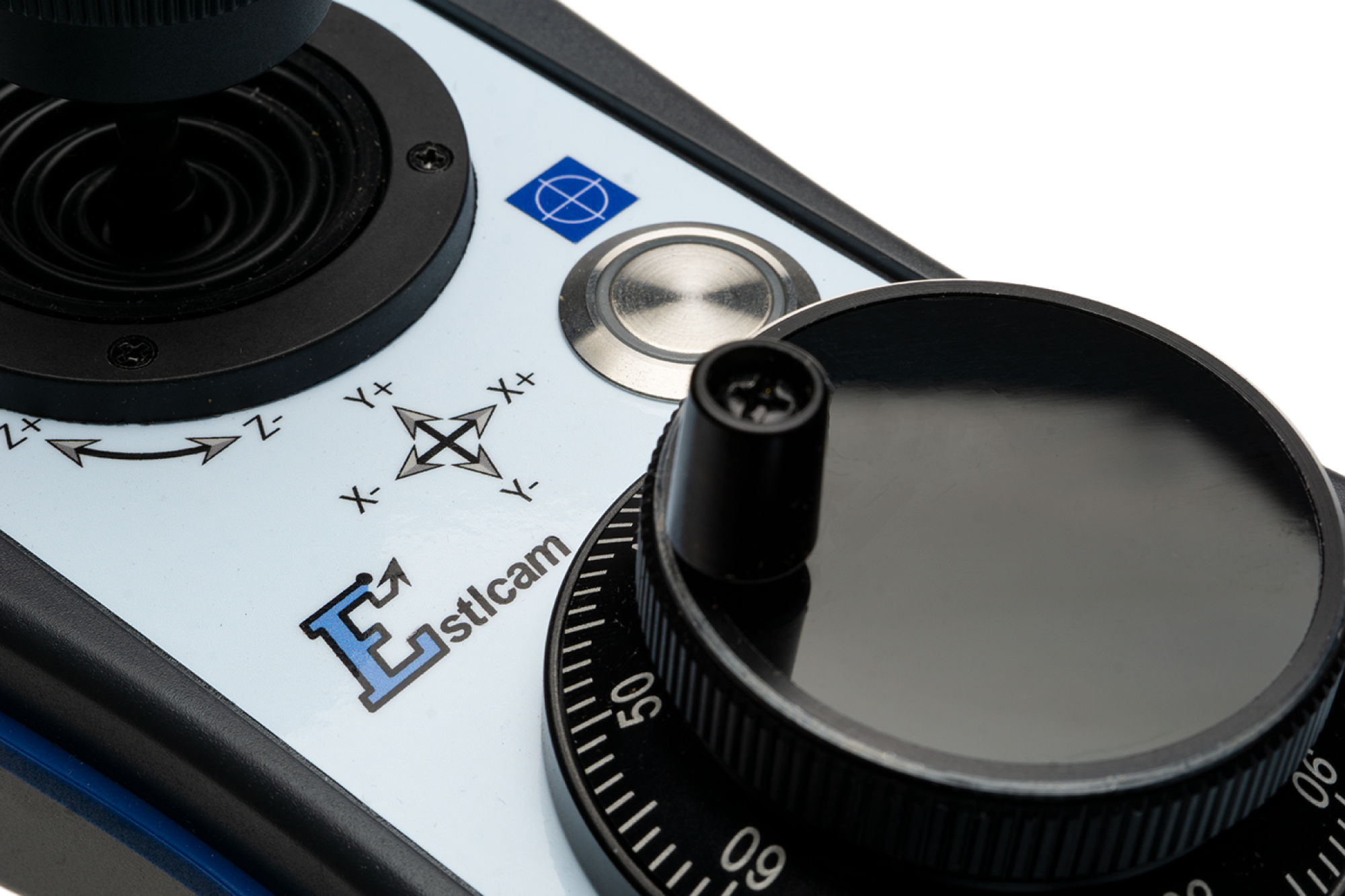

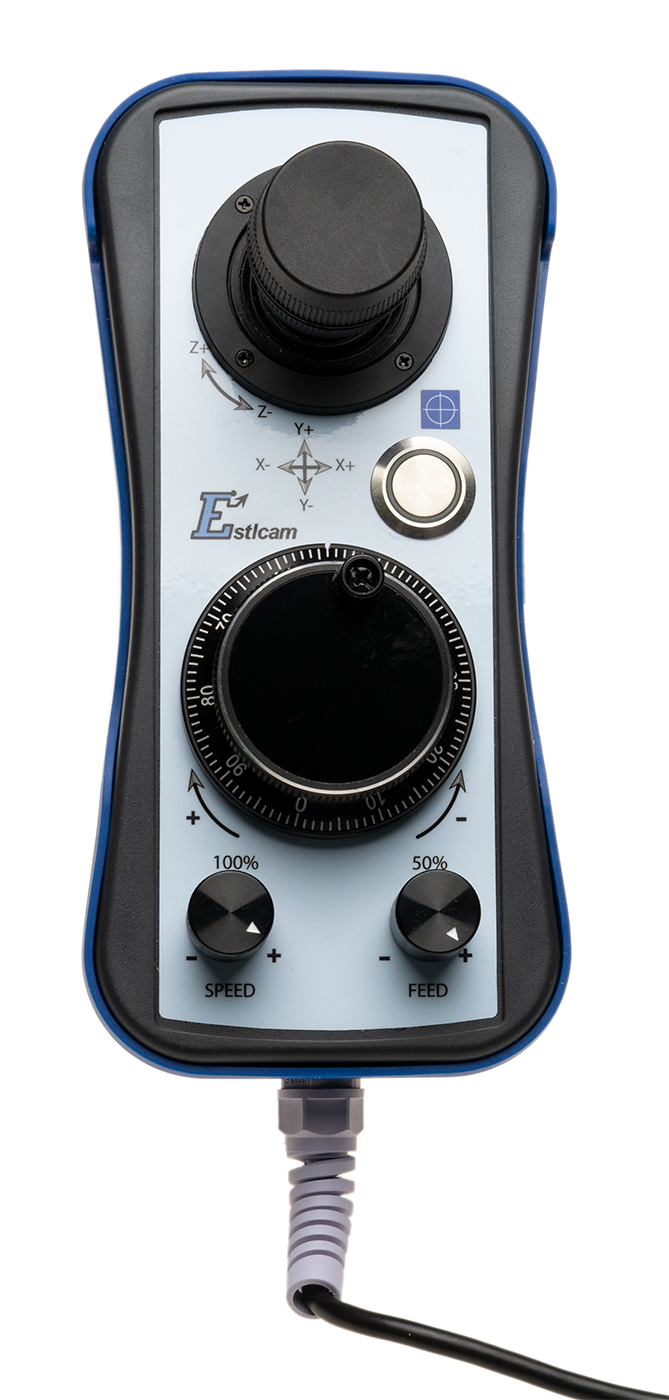

Ready-made Handwheel:- Joystick X / Y / Z:
- Simultaneous movement of all 3 axes possible (Z axis by turning the billet)
- Very sensitive from crawl to maximum speed
- Encoder:
- For precise probing to the last hundredths.
- Absolutely delay-free and direct coupling to the axle:
Never pop too fast or too deep into the workpiece. - Selection of the axis takes place automatically according to the last movement of the joystick.
Intuitively operable without having to press "buttons".

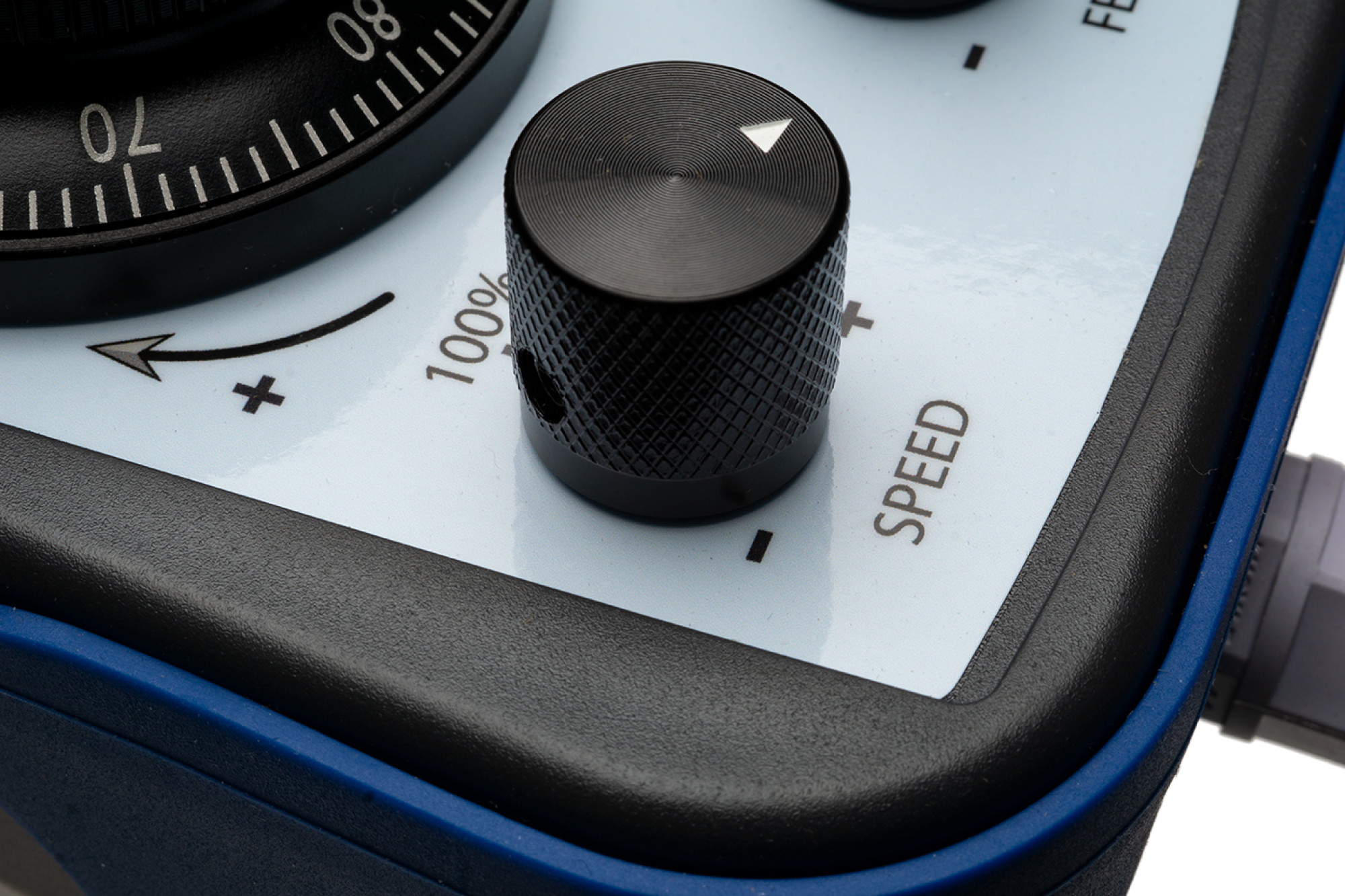

- Feed and speed control by turning the lower buttons.
- Program and Milling Motor Start / Stop by pressing the lower buttons.
- Zero axes with the button in the middle.
- Suitable for:
- Clamping adapter (old and new version)
(In the old version, input 5 to 8 can not be used after connecting the handwheel!) - LPT / parallel port adapter (only current version!
- Clamping adapter (old and new version)

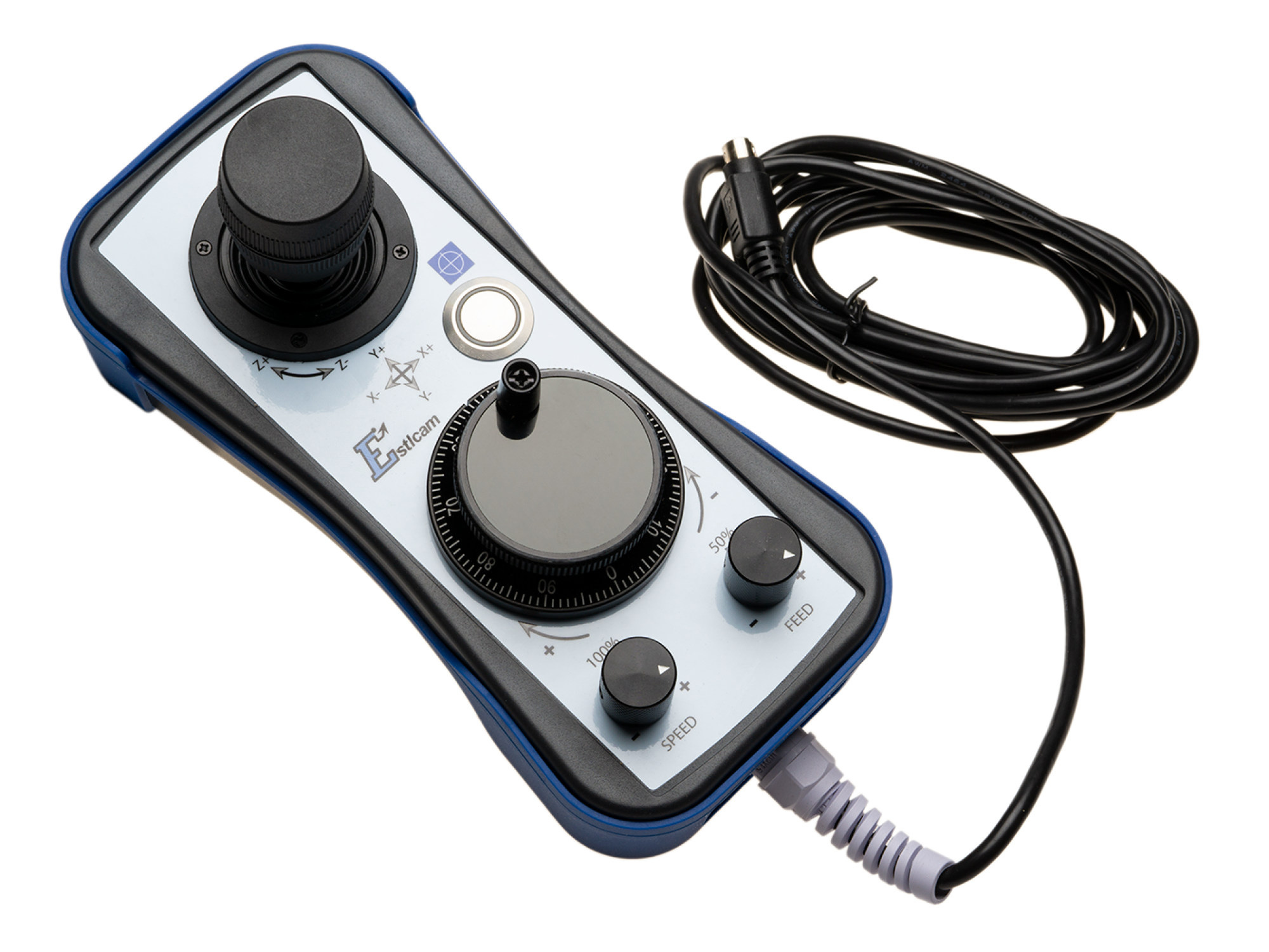

- Inclusive 3 m connection cable.

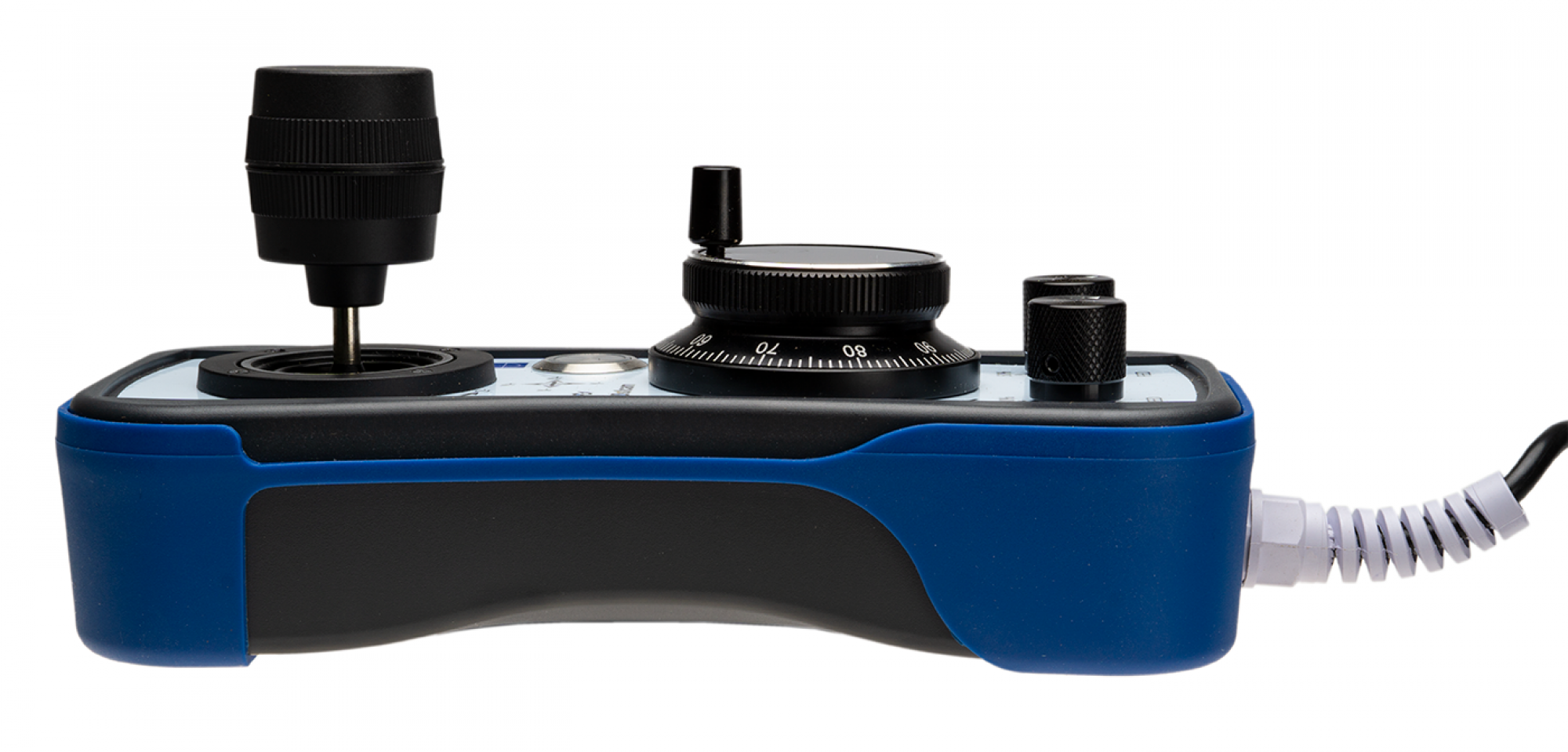

- Dimensions: approx. 185 x 100 x 95 mm
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
