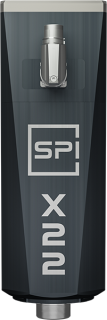

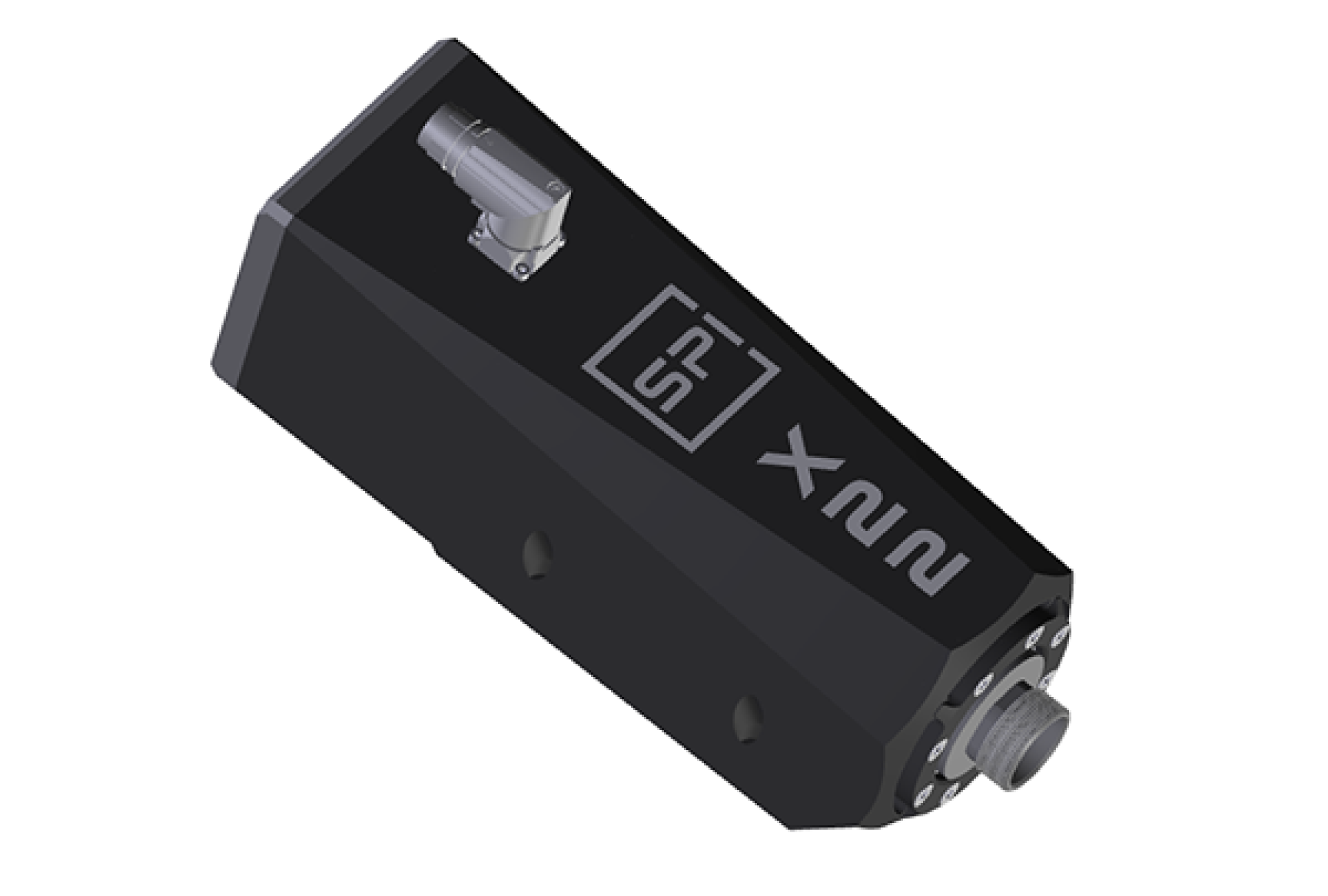

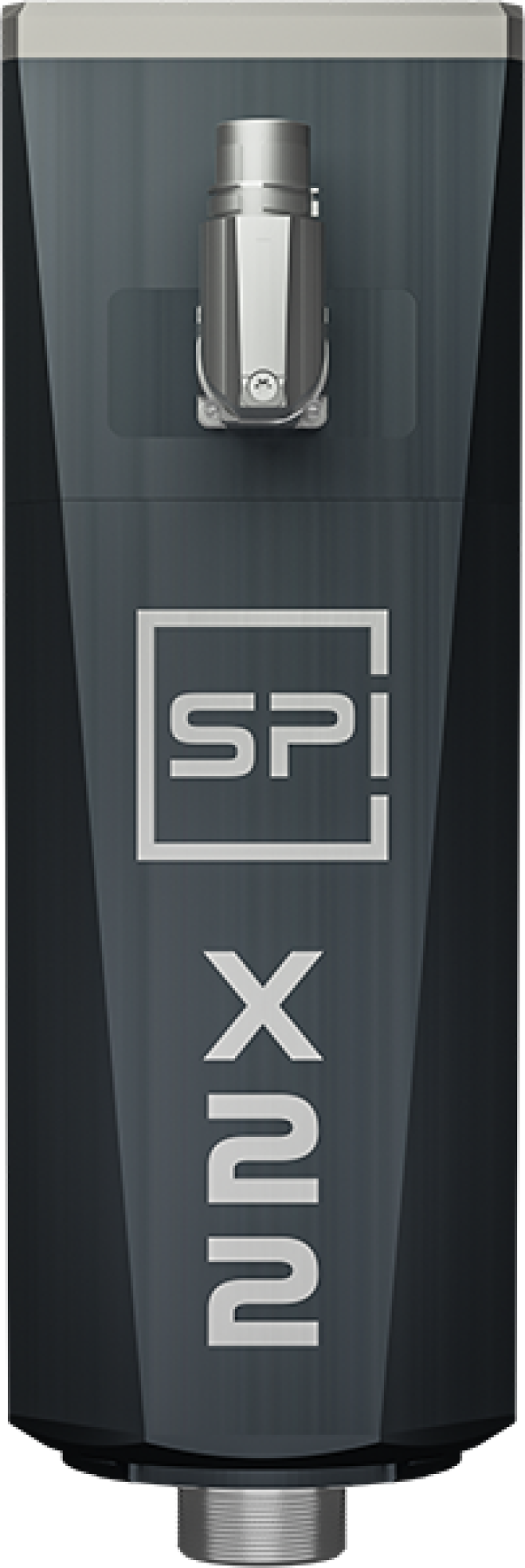

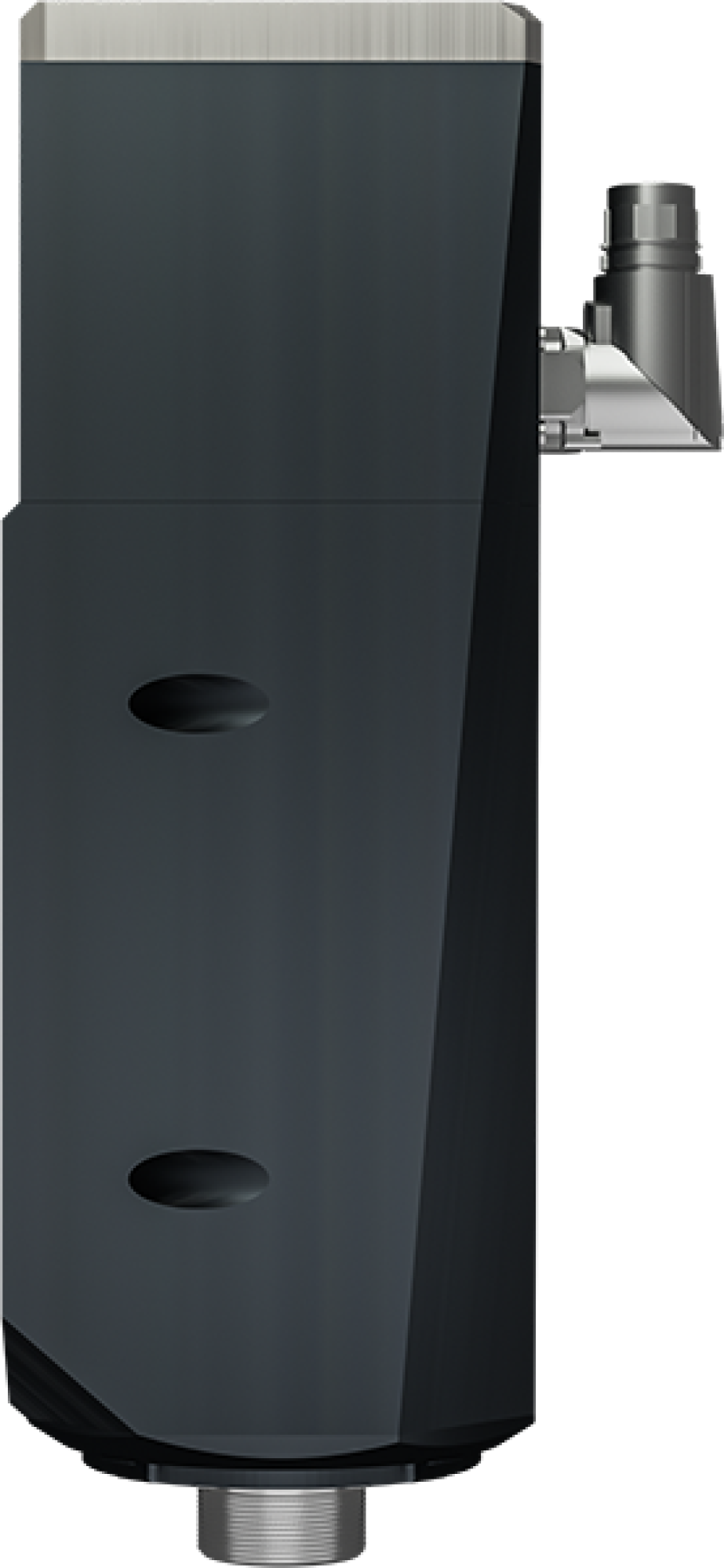

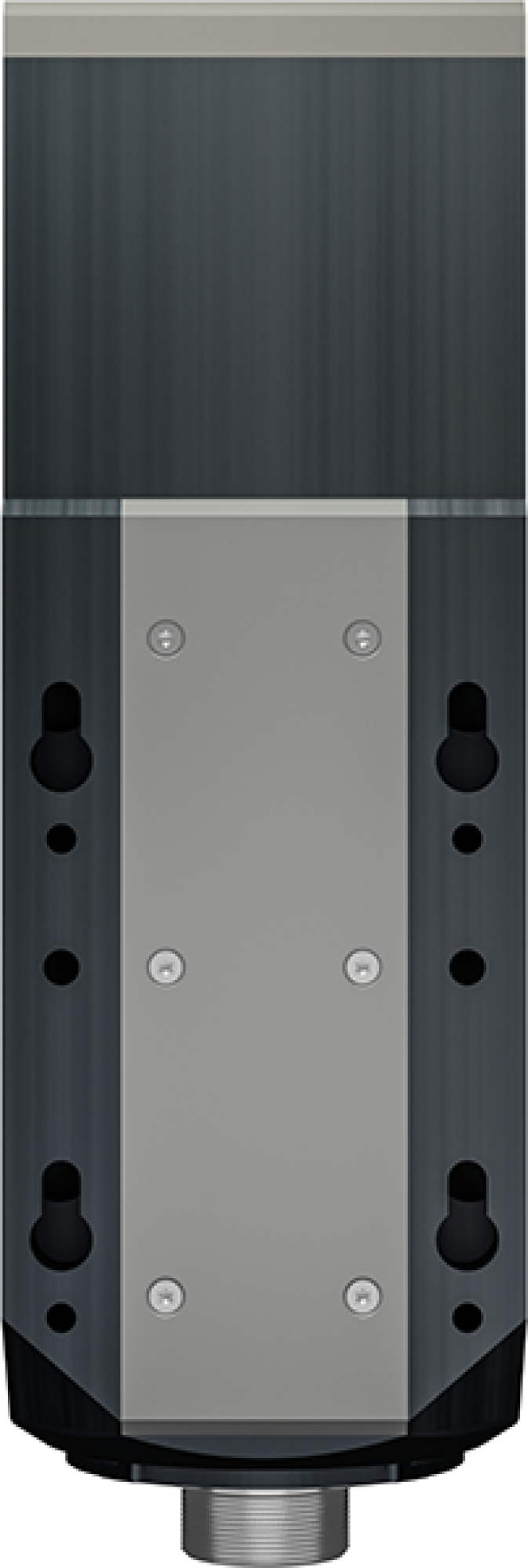

HF spindle Spinogy 2.2 kW | ER25 | 30,000 rpm

230 V

• Compact and lightweight spindle solution
• Large ER25 tool interface
• Spindle holder integrated in the housing
• Innovative 5-stage labyrinth seal
• Saving of sealing air
• Intelligent assembly system
• Made in Germany and the highest quality

• Motor: 2.2 kW, 230 V, 2-pole
• Maximum torque: 0.88 Nm
• Air cooling
• Tool interface ER25
• Speed: 30,000 rpm
• High precision spindle bearing GMN
• Motor connector 9-pin angled
• Temperature monitoring of winding head
• High quality mini clamping nut
• Powerful 24 V fan
• Weight: only 4.8 kg
• Protection class: IP30

• Spindle wrench SW 27
• Clamping wrench Clamping nut ER25
• Mini clamping nut ER25
• Screw kit (fastening screws & dowel pins)

• Motor control line (see option selection at right)

• Frequency converter 2.2 kW / 230 V
• Cone wipe
