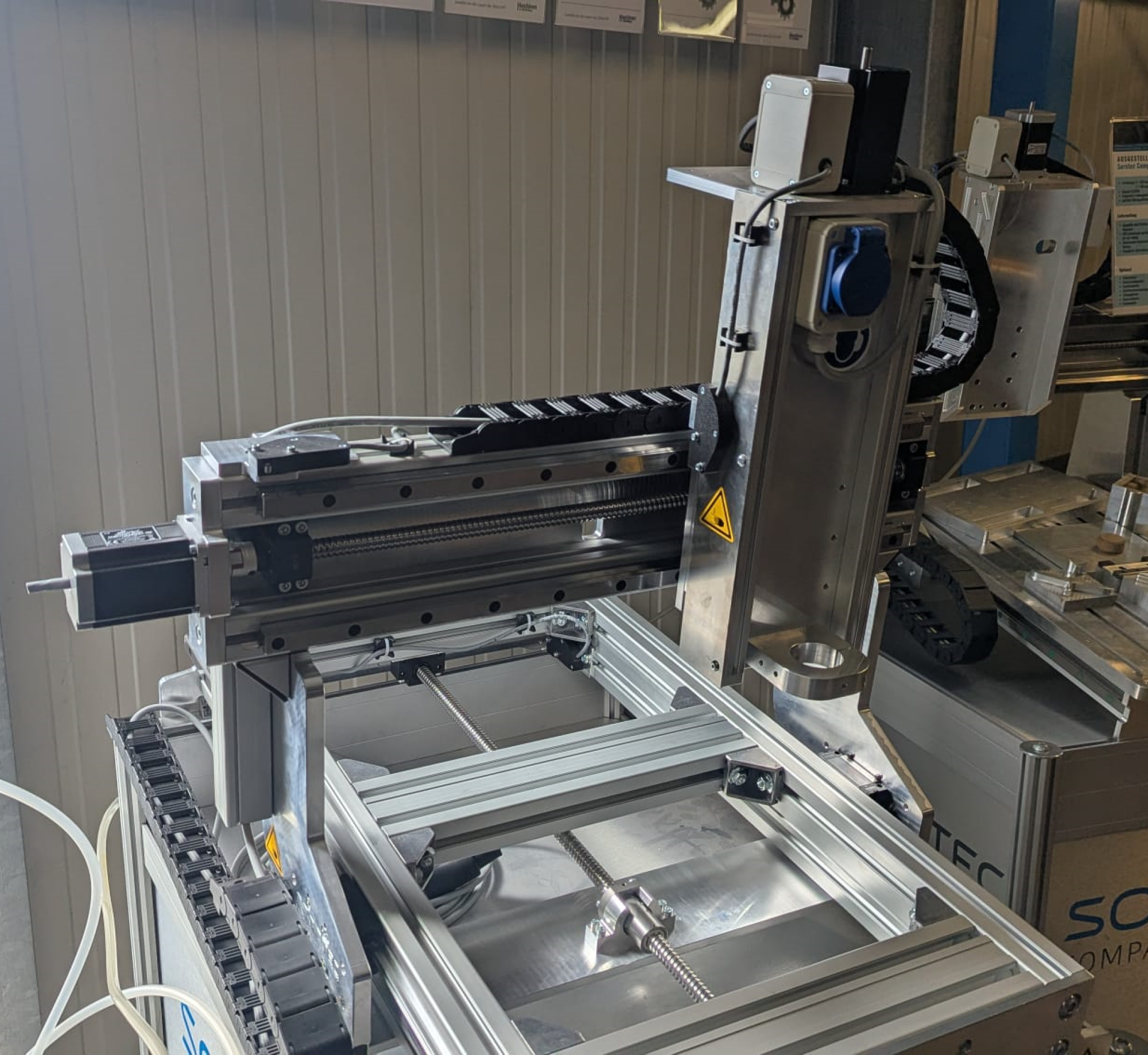

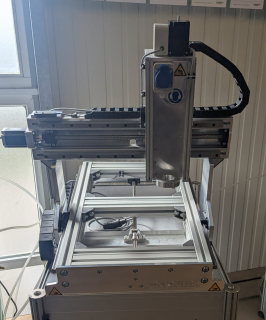

Basic-Line 0605 | exhibition machine, new
The illustrated underframe is not included in the scope of delivery.Mechanics:
- Travels:
- X: 600mm
- Y: 500mm
- Z: 140mm
- Linear Guideways 20mm
- 3x Stepping Motor 3 Nm 4,2 A DS
- Ball screw spindle 16 x 5 incl. nut length: 270 mm
- Ball screw spindle 16 x 10 incl. nut length: 650 mm
- Ball screw spindle 16 x 10 incl. nut length: 800 mm
- Power socket on Z-Axis
- Electrical installation kit incl. drag chains
- 43 mm Euro spindle mount
- Reference switches on all axes
€3600,00, incl. VAT, additional costs may apply for transport and customs duties
Price quote for a new machine with the same features
Location:
Germany, 77836 Rheinmünster at Sorotec GmbH
Viewing & sale:
If you are interested, please contact Sorotec GmbH directly by E-Mail or phone.
Notes:
The machine offered is the property of Sorotec GmbH.
