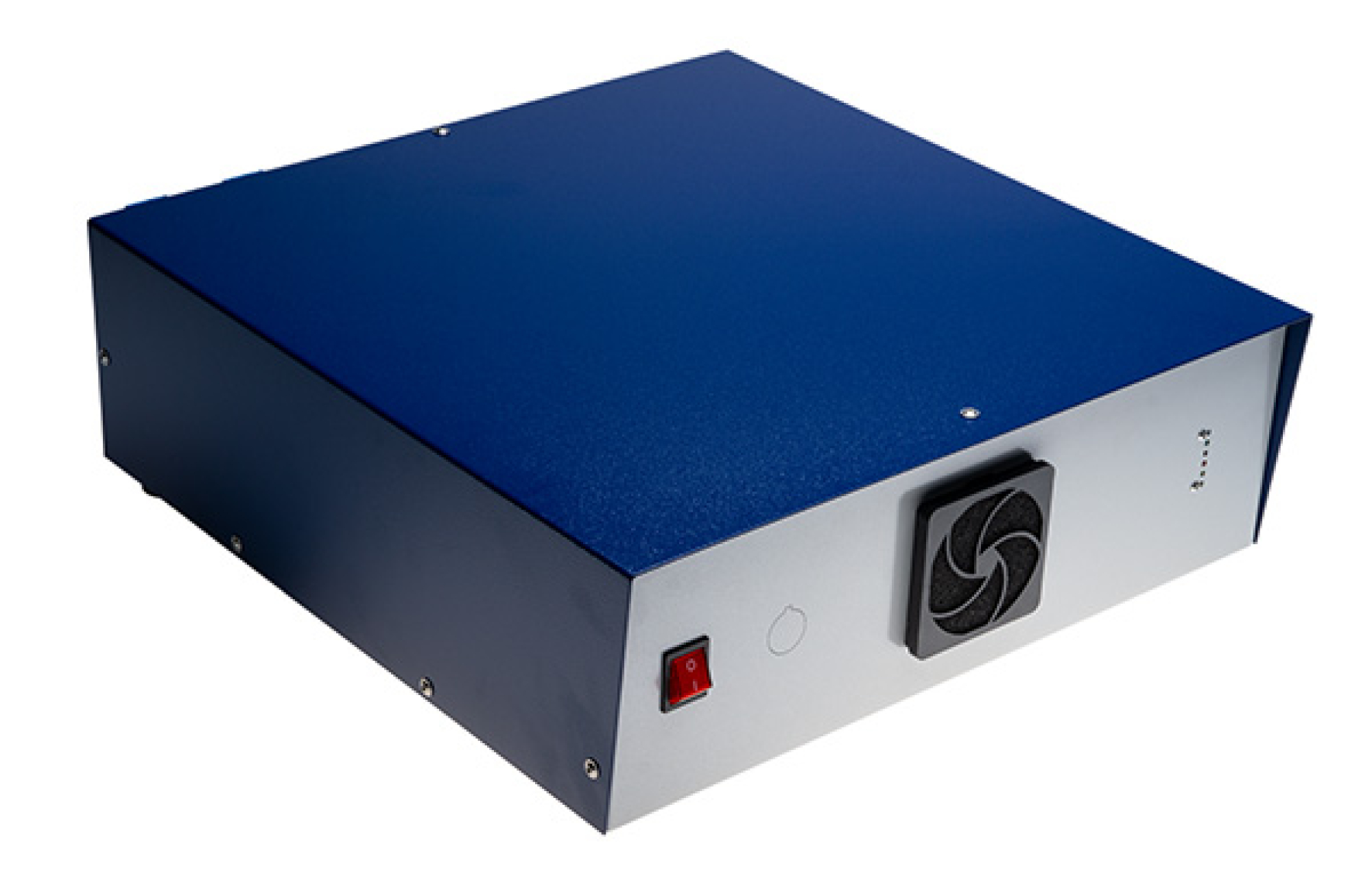

Fully assembled control unit Series C5 PRO 3-axis 5,6 A incl. EdingCNC
based on DriveSet CNC 720 3-axis 5.6 A digital, incl. EdingCNC
Pre-assembled controller for connecting three stepper motors. With 320 watts, the power supply has enough reserves if an additional fourth axis is to be added later. The Ethernet version of EdingCNC guarantees maximum connection stability.
Dimensions:
W x H x D: approx. 250 x 148 x 440 mm
Scope of delivery:
- 1 x Eding CNC Controller 720
- 1 x Interface SimpleBOB
- 3 x Driver DM556
- 1 x Power supply 48 V 320 W 6.7 A
- 1 x Power supply 24 V 1 A
- 1 x Emergency stop module
- 1 x Emergency Stop Switch PRO
- and others
- Assembly of the control unit by qualified specialists
- Test of all functions
- Testing in accordance with VDE guidelines
- Delivery of circuit diagram, acceptance report and VDE test report
Eding CNC720 Hardware Manual (english) Quick Start Eding CNC (german) Installation Manual SimpleBOB720 german Installation Manual SimpleBOB720 english Operating Instructions DM556 (german) Description LED Board (german) Datasheet switched power supply (english) Datasheet coupling relais (german) Datasheet power supply SP320 (english)
Standard_Macro_V2-1d.zip
cnc.ini
