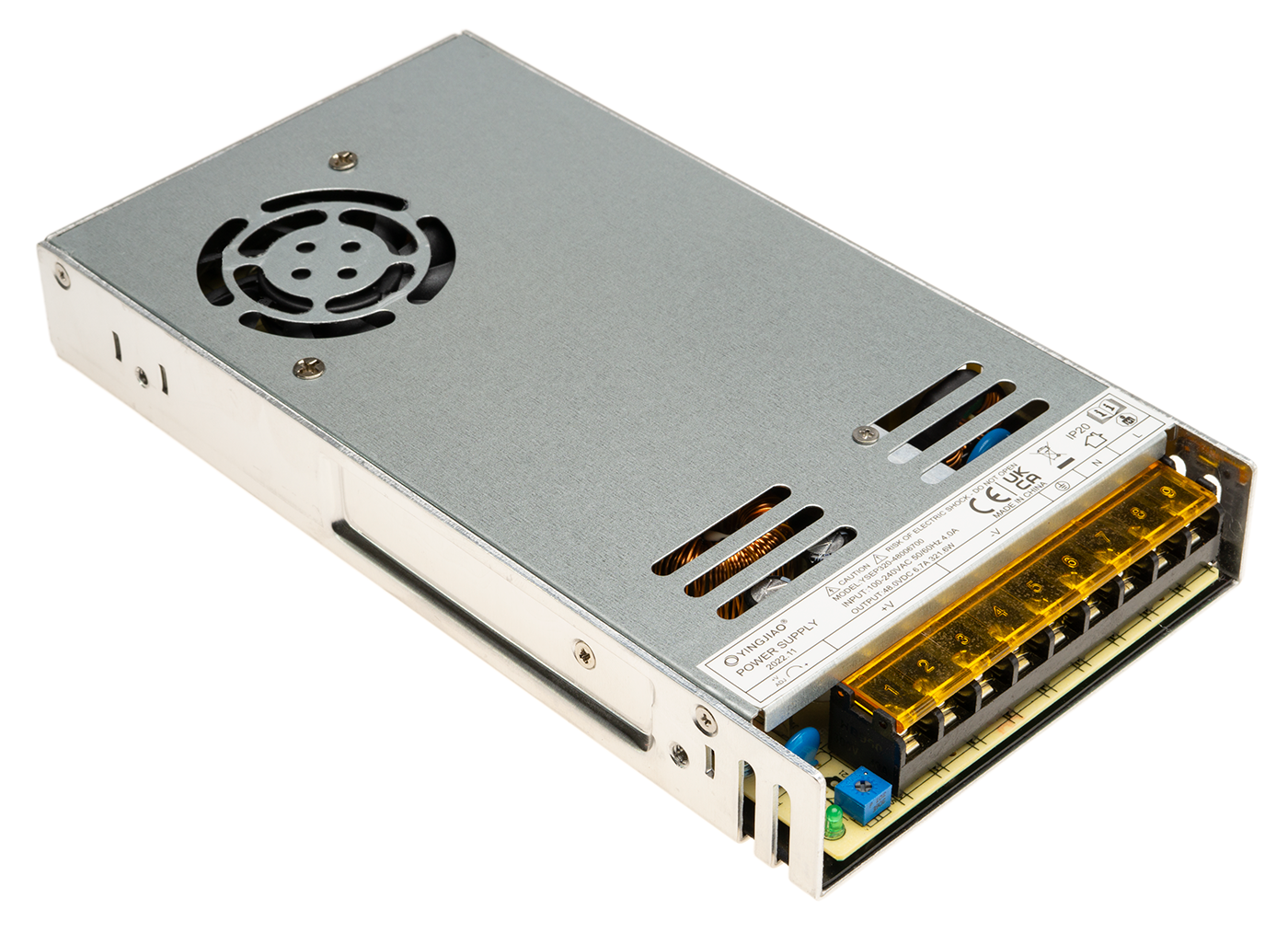

Power supply 48 V, 320 Watt, 6,7 A
Power supply 48 V 320 Watt 6.7 A
Features:
- Universal AC input / wide range
- PF > 0.98 @ 115 VAC; > 0.94 @ 230VAC
- Approvals: TÜV, CB, CE
- Protections: overload, over voltage, over temperature, short circuit
- Built-in fan speed control
- Japanese brand components for key parts
- Electrolytic capacitors all 105 °C
- Dimensions: 228 x 115 x 50 mm
Specifications:
| Input Voltage: | 85 ... 264 VAC (120 ... 370 VDC) |
| Input Current: | 5 A |
| Inrush Current: | cold start, 20 A / 115 V, 40 A / 230V |
| Input Leakage Current: | < 1 mA / 230 VAC |
| Line Regulation (full load) | ± 0.5 % |
| Voltage Adjust Range: | ± 10 % |
| Output Overload Protection: | 105 ... 150 %, current limiting, auto recovery |
| Output Over Voltage Protection: | 115 ... 150 %, shut off, re-power on to recover |
| Short Circuit Protection: | hickup mode, auto recovery |
| Rise Time: | 50 ms @ full load (typical) |
| Hold up Time: | 20 ms @ full load (typical) |
| Operating Temperature | -20 °C ... +70 °C (ref. derating curve) |
| Storage Temperature: | -20 °C ... +85 °C |
| Operating Humidity: | 20 % ... 93 % RH (non condensing) |
| Storage Humidity: | 20 % ... 95 % RH (non condensing) |
| MTBF | > 100,000 hours |
| Cooling: | by fan, speed controlled by internal temperature |
| EMC Standards: | GB9254, EN55022 Class B EN55024, EN61000-3-2, 3 EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Withstand Voltage: | I/P - O/P: 3.0 KVAC / 1 min I/P - PE: 1.5 KVAC / 1min O/P-PE: 0.5 KVAC / 1min |
| Vibration: | 10 ... 150 Hz, 2 G 10 min / 1 cycle, 30 min each along X, Y, Z axes |
| Mechanical Feature: | enclosed |
| Connection: | 9 P / 9.5 mm screw terminal block |
| Dimensions: | 228 x 115 x 50 mm (L x W x H) |
Datasheet (english)
