Control unit series C5 for Stepper drivers Configurator

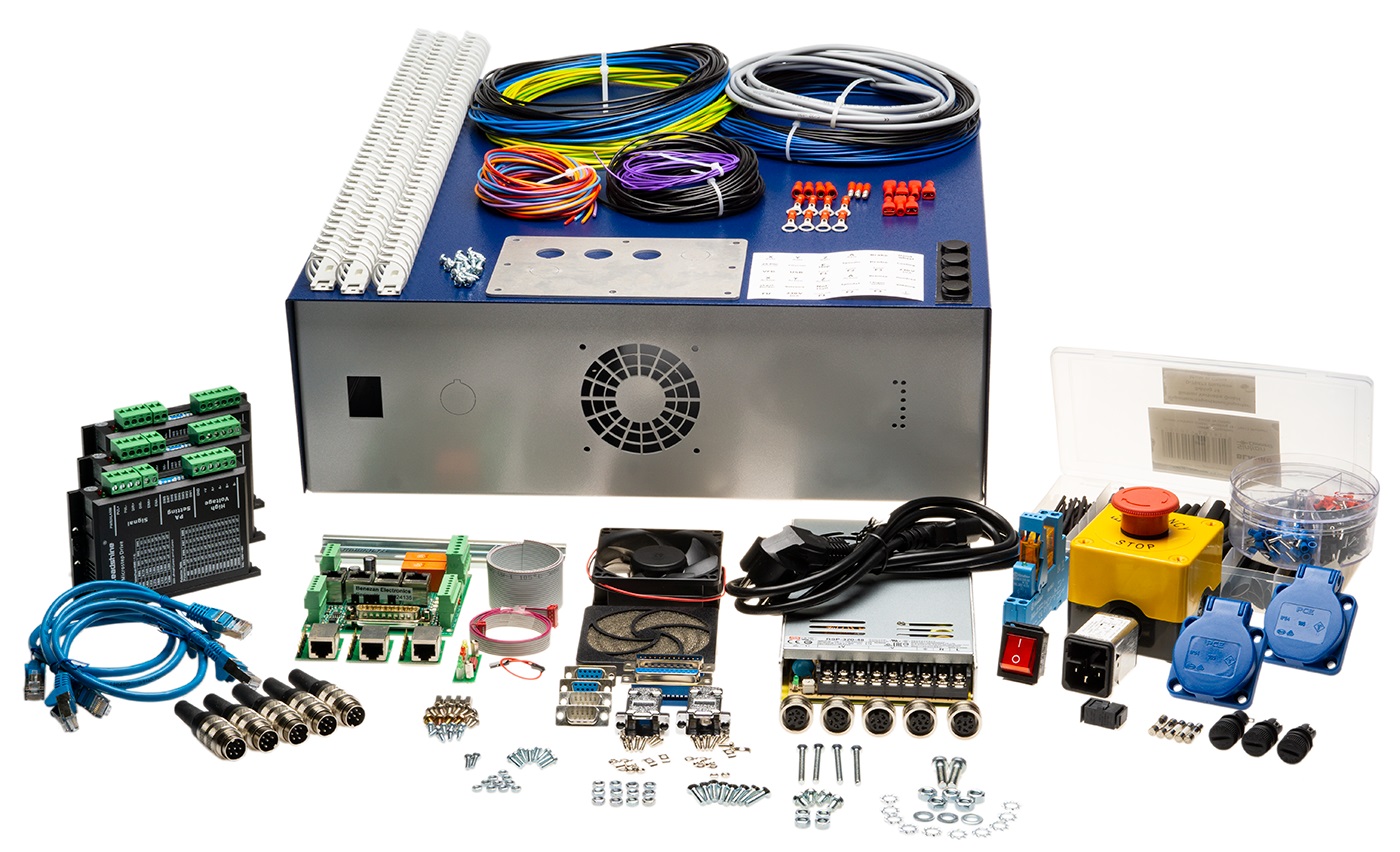

Illustration may differ from selected equipmentThis parts set contains all parts that are needed to build a controller unit with drivers for 3 motors.
Components:
- 48V, 320 W, 6,7 A Power supply for Drivers and Control
- Emergency Stop Switch
- Steel housing table version 445x440x145mm
- LED Signalboard
- 3 x Stepper Driver DM556M
- Industrial connectors (B)
- Wirering Kit
- 3 x Motor Load
- 3 x Motor control
- 3 x Reference switches
- 1 x Emergency Stop
- 1 x Control of 24 V Brake
- 1 x Control of milling spindle
- Assembly of the control unit by qualified specialists
- Test of all functions
- Testing in accordance with VDE guidelines
- Delivery of circuit diagram, acceptance report and VDE test report
 |
Attention Danger! Construction and commissioning may only be carried out by trained and qualified personnel. |
