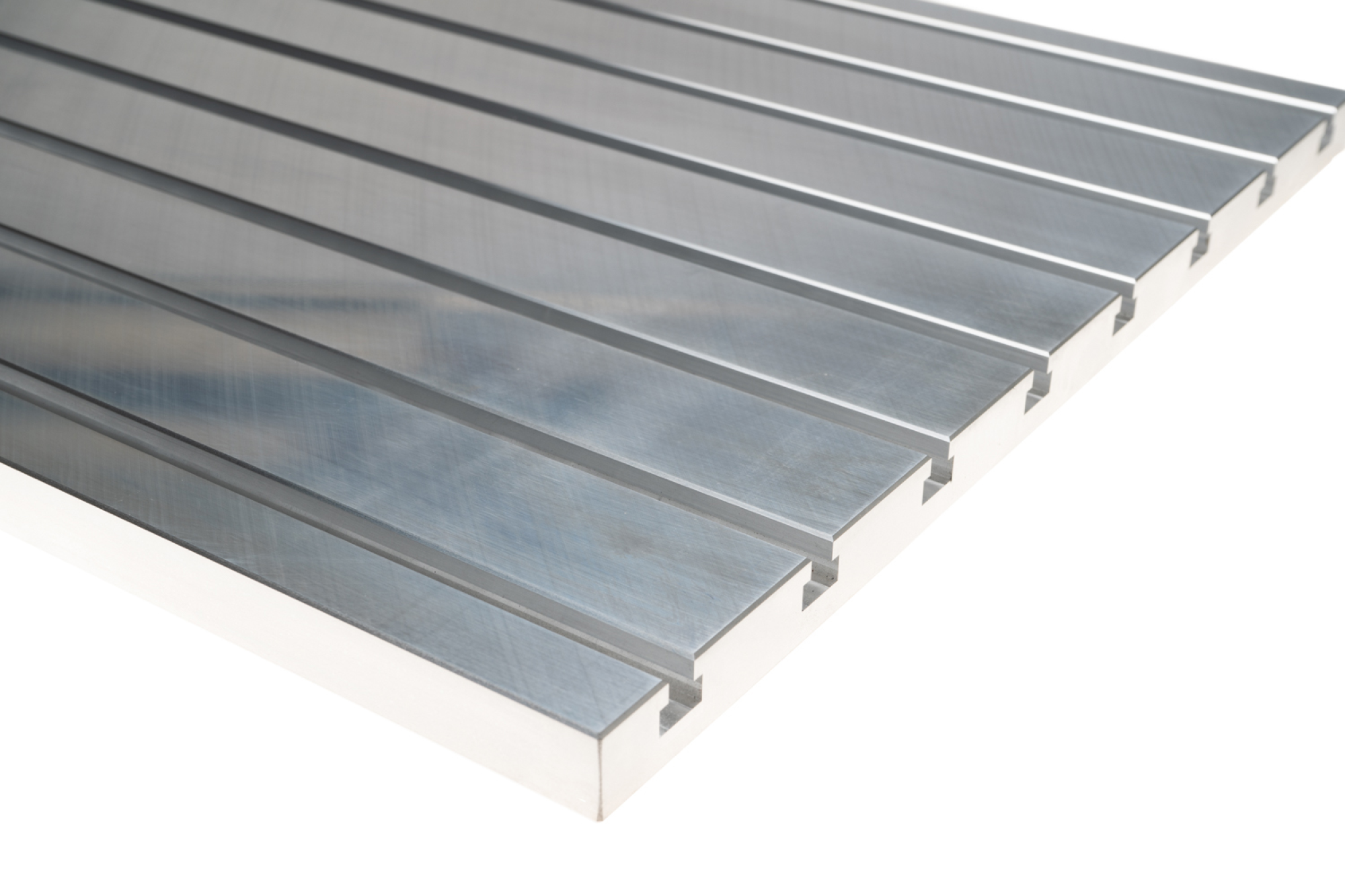

Cast aluminum T-slot plate 8040
-20%
Cast aluminum T-slot plate 8040
The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table /frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.Technical Data:
- made for T-Slot nuts according to DIN508
- Tolerance/Precision: +/- 0.01 mm /200 mm
- L = 800 mm
- B = 400 mm
- H = 20 mm
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
