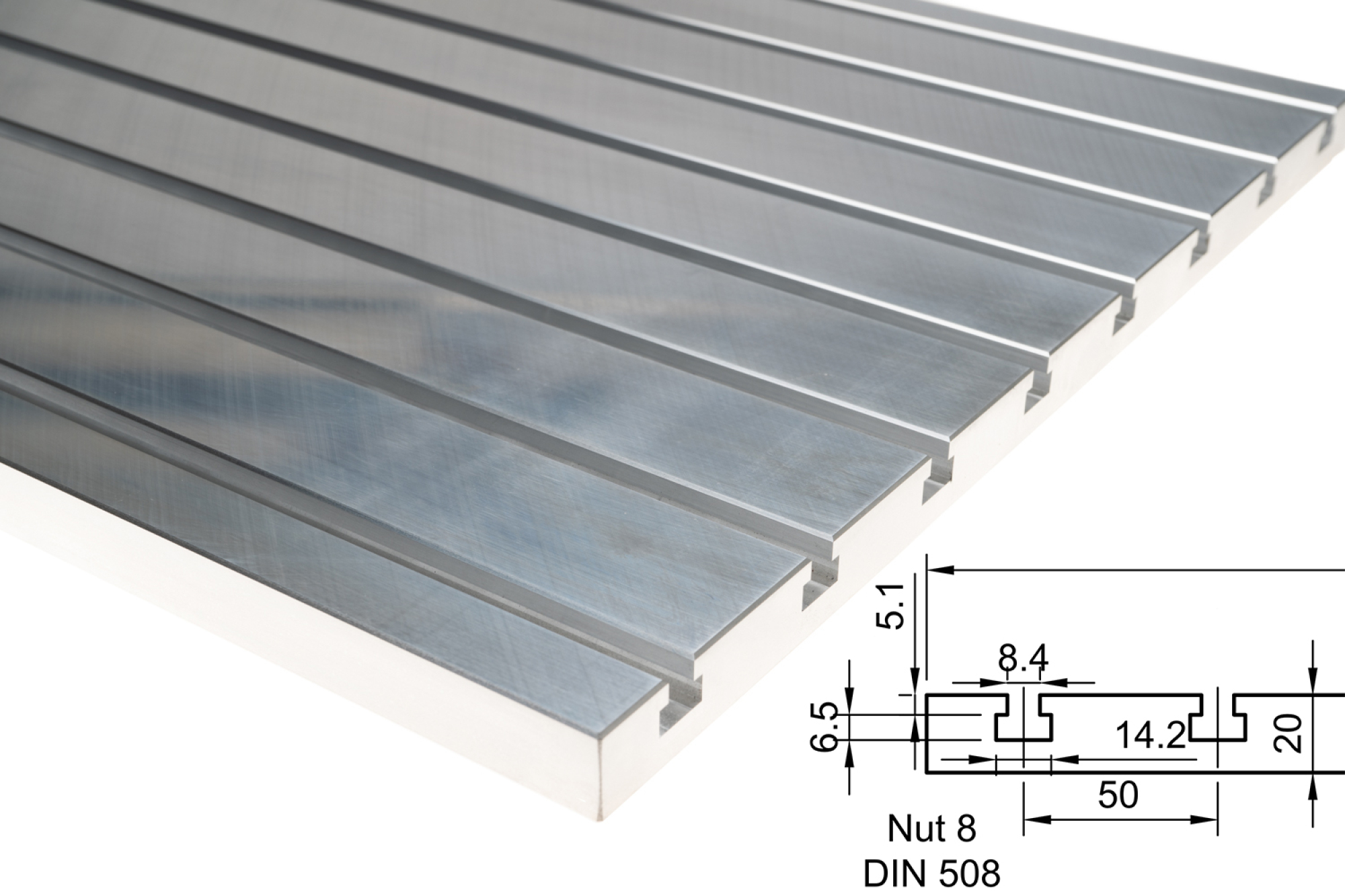

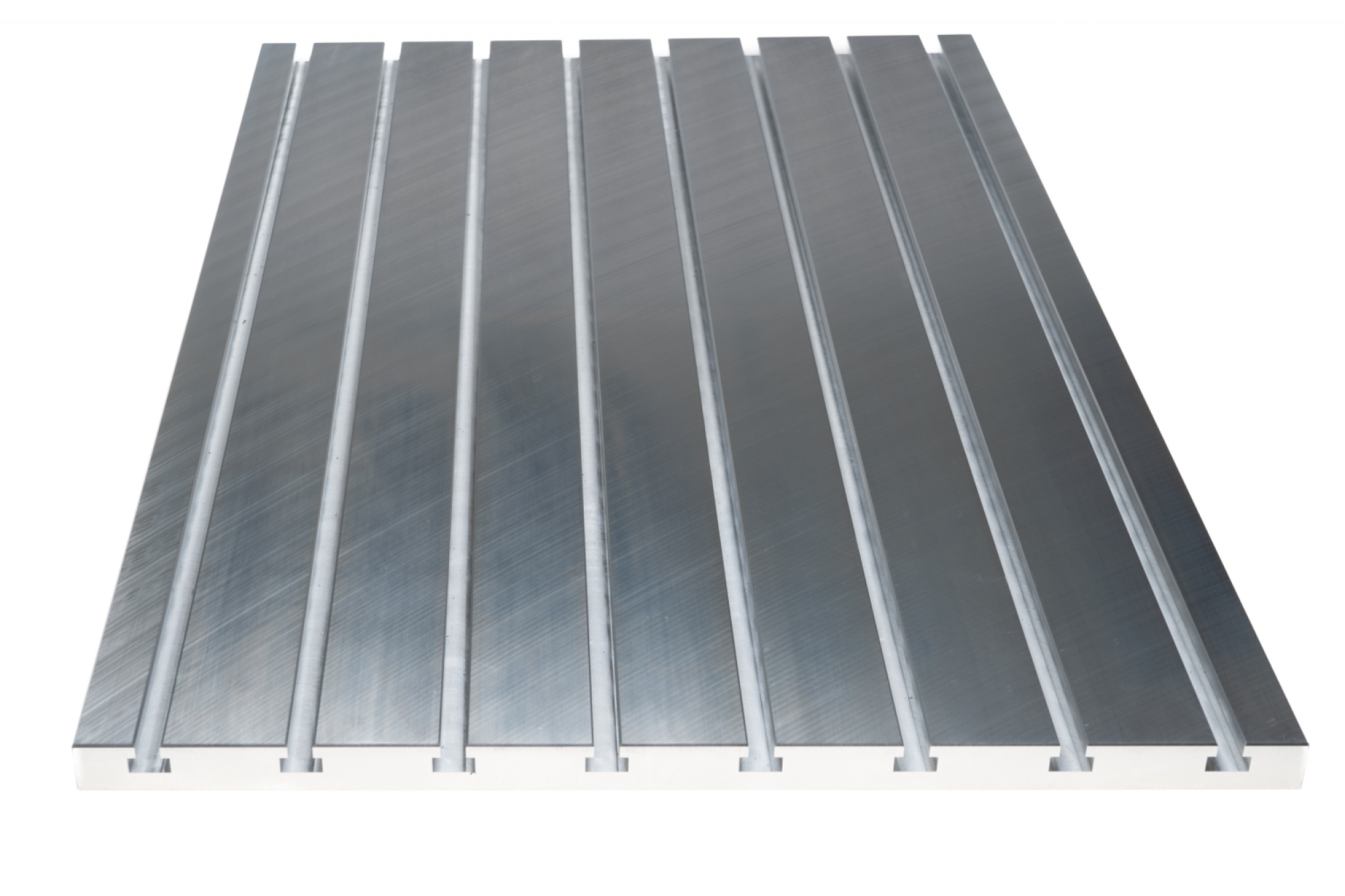

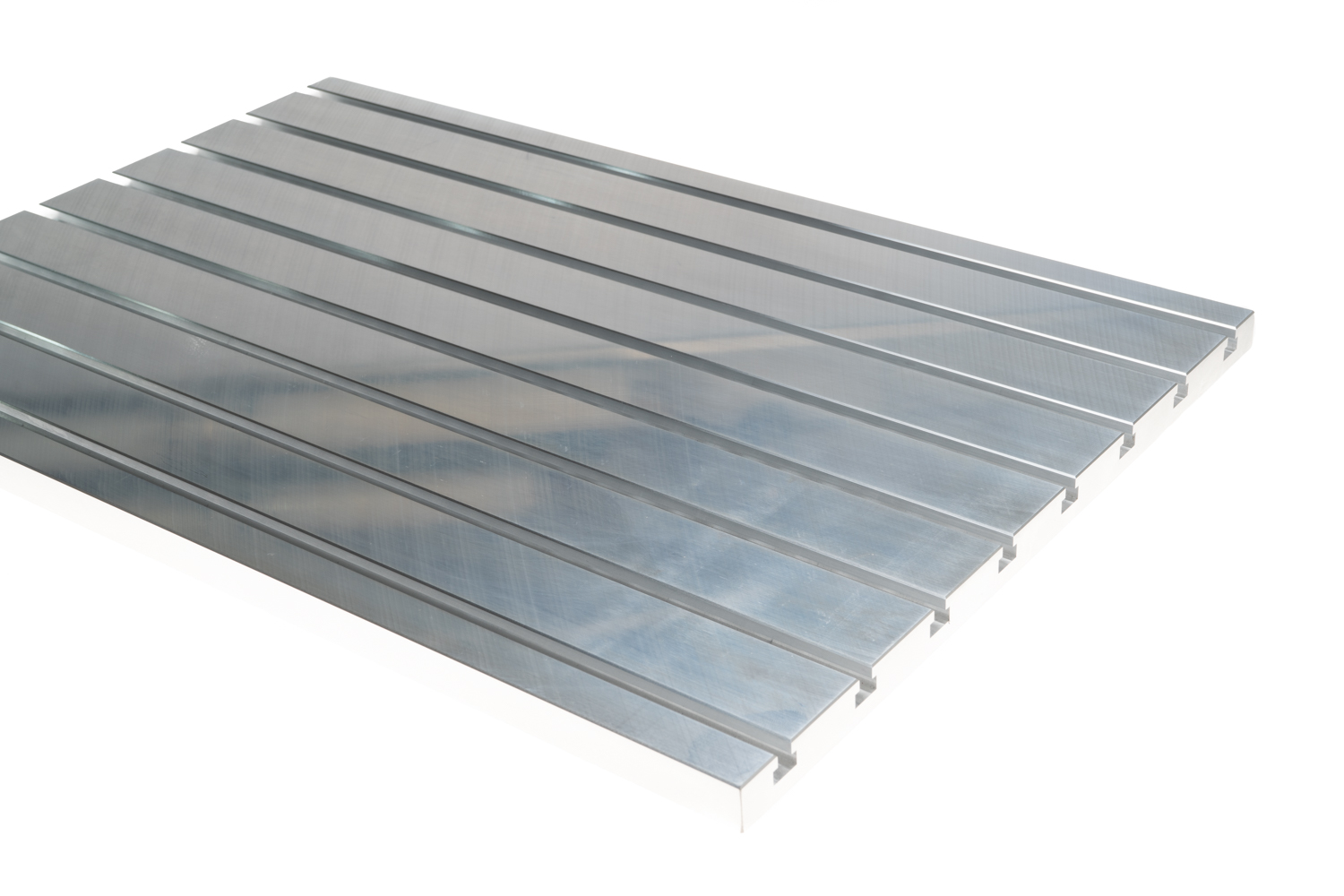

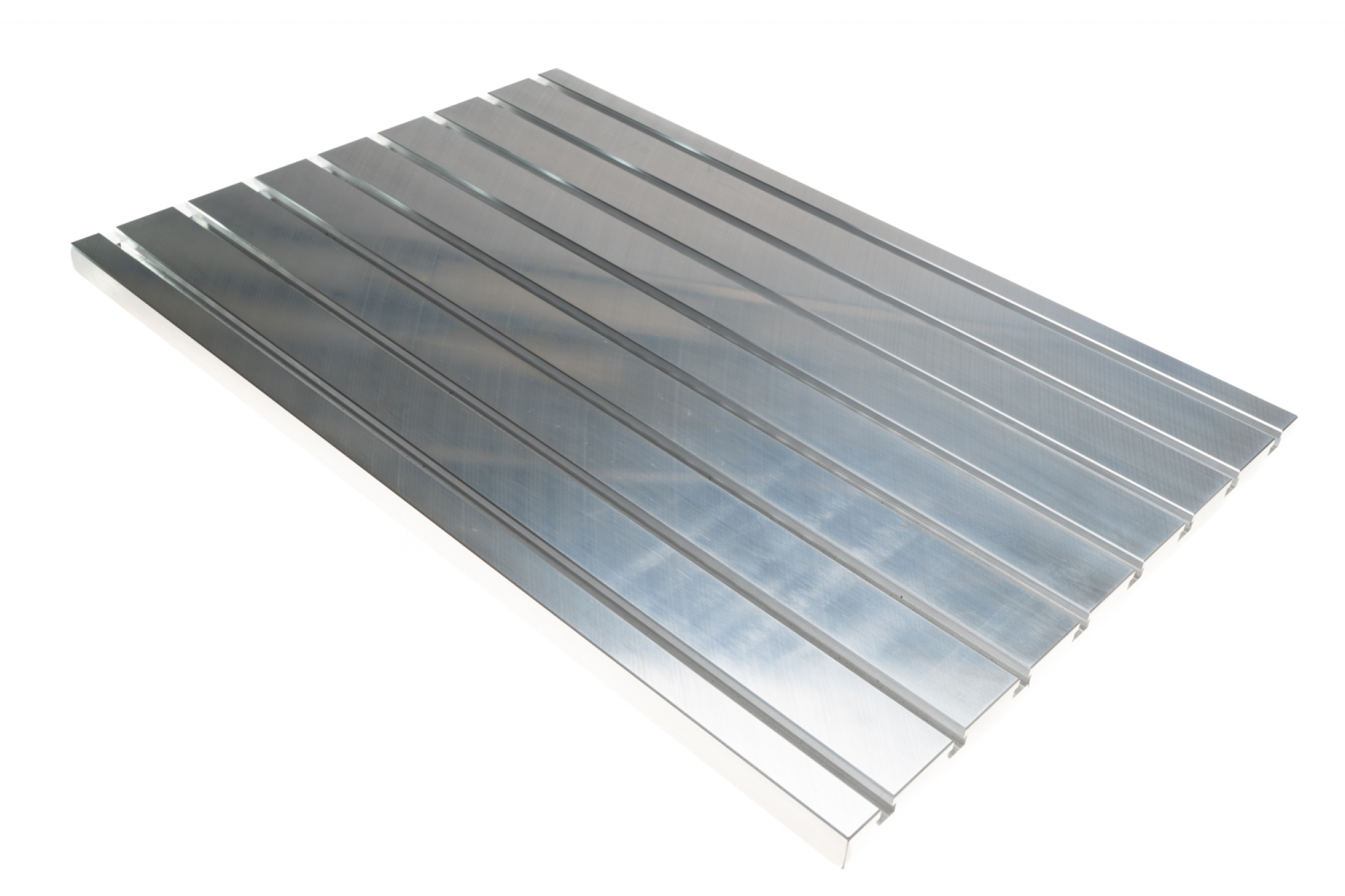

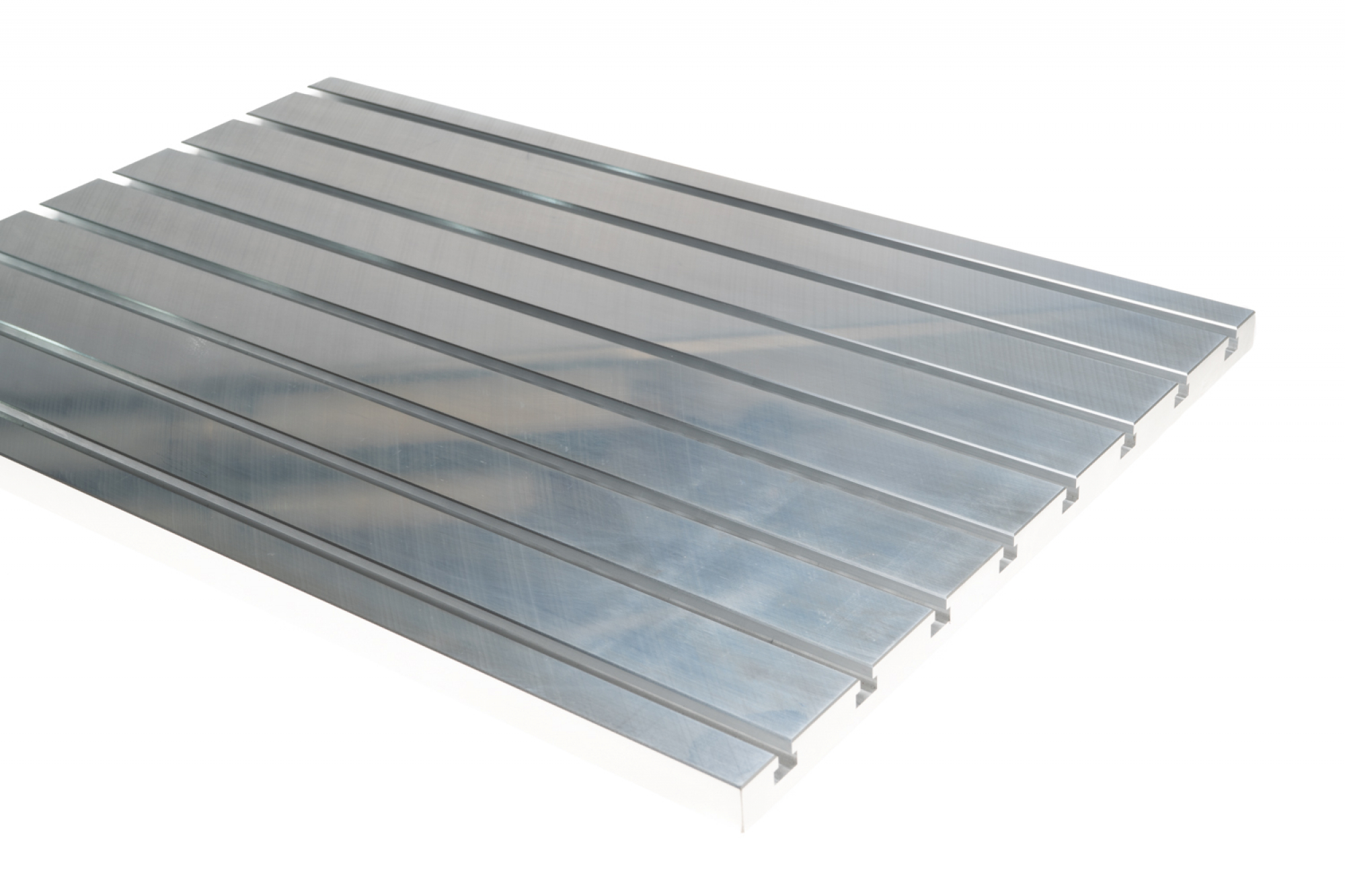

Cast aluminum T-slot plate 15060

Product No.:: MTN.GA.UNI15060
Weight:: 48 kg per piece

849,01 EUR

incl. 19% tax

Description

The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table /frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.

Technical Data:

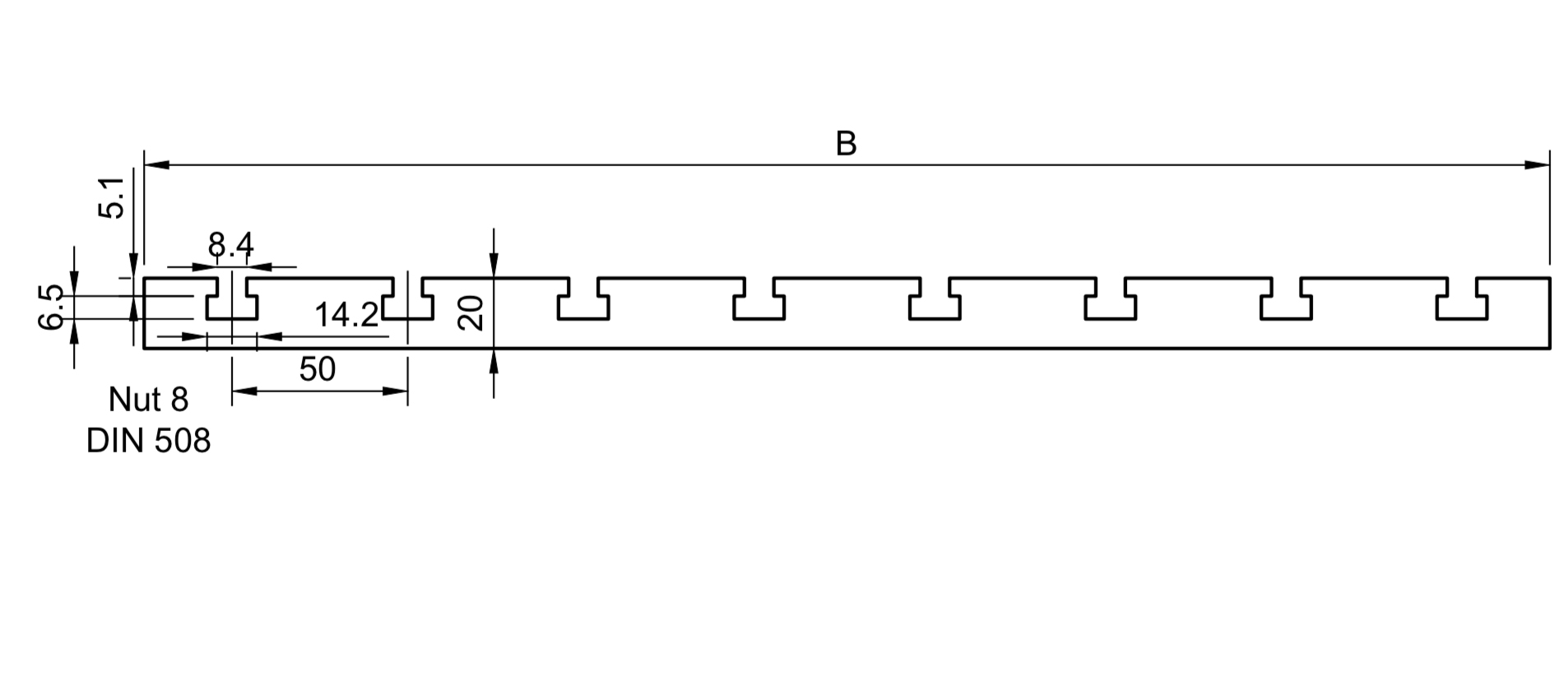

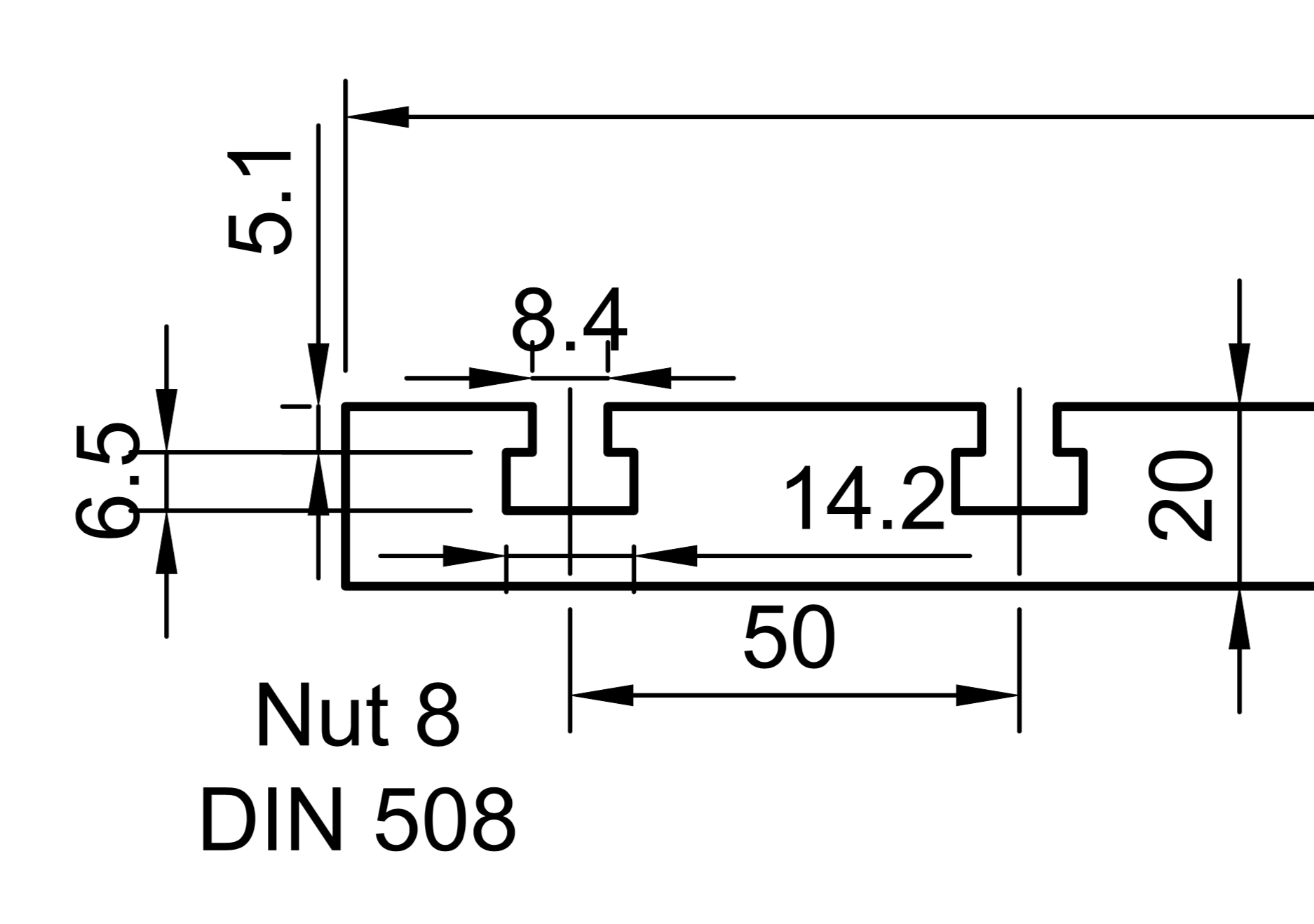

made for T-Slot nuts according to DIN508
Tolerance/Precision: +/- 0.01 mm /200 mm

L= 1500 mm
B= 600 mm
H= 20 mm

We are sorry, due to the dimensions of this plate, this article can only be shipped by freight carrier.
Please write to us. We would be glad to provide you with an individual offer including transport costs.
