NEW

Alu 2010 Heavy Gantry – Barely used machine

Product No.:
GM.SRT.MPF.AL2010.HG.2M
Shipping time:
Delivery time on request Delivery time on request (abroad may vary)
Shipping weight:
- kg per piece
18.500,00 EUR

incl. 19% tax excl. Shipping costs

info_image
Since this item must be shipped with a forwarding agent, the shipping costs must be calculated individually.
Please contact our support.
Description

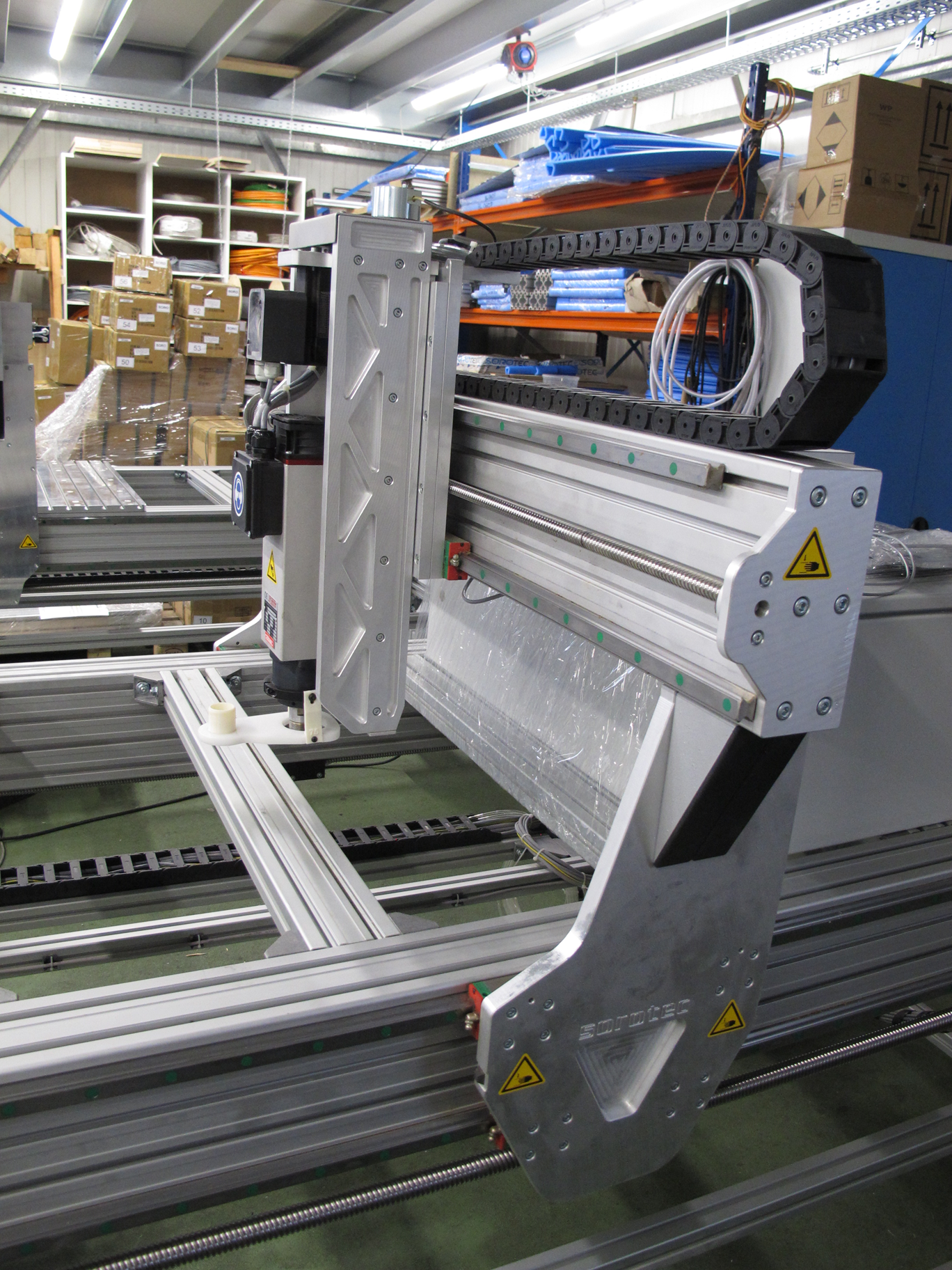

Alu 2010 Heavy Gantry – Barely used machine

Used machine with accessories, machine frame and electrical cabine with EdingCNC

Mechanics:
Technical Data
Travel

X: 2050 mm
Y: 1050 mm
Z: 220 mm
Clearance under Portal  270 mm
(without table)
Clamping area X: 2400 mm
Y: 1050 mm
Outer dimensions

L: 2450 mm
W: 1460 mm
H: 1080 mm
Guides Linear Guides
Size 20 on all Axis
Ball screw spindles
 		 X: 2x 25 x 20 mm
Y: 16 x 10 mm
Z: 16 x 5 mm
Weight approx. 220 kg

Drive:
  • 4x JMC CL Stepper Motors (2x IHSS60-36-30 Nema 24, 2x IHSS86-60-45 Nema 34)
  • Brake module AL-Line for Z-Axis electric

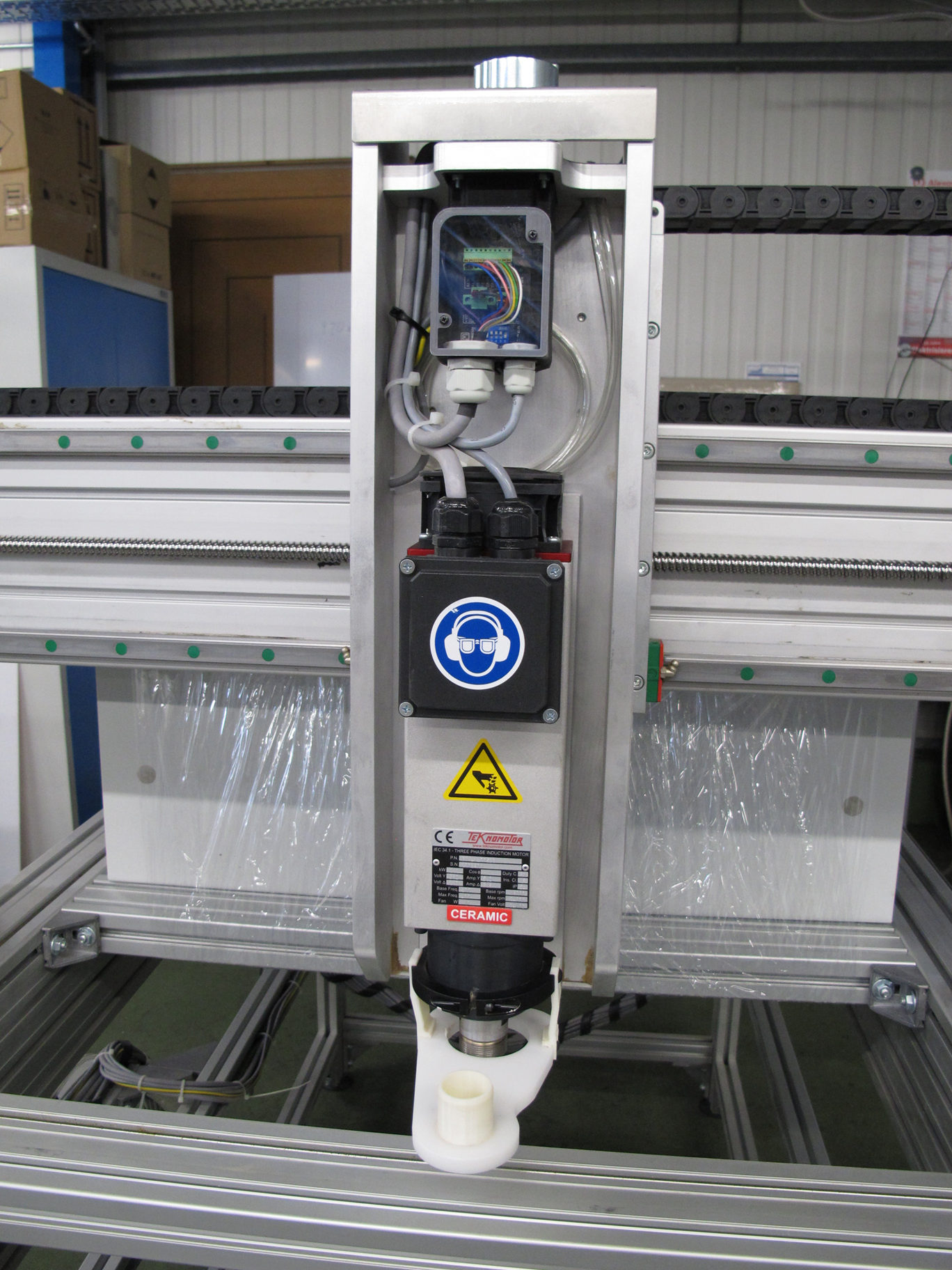

Milling spindle:
  • HF-Spindle Set Teknomotor E-FAN 2 kW | ER25 | 380 V 24,000 U/min Electric fan cooling
Other accessories:

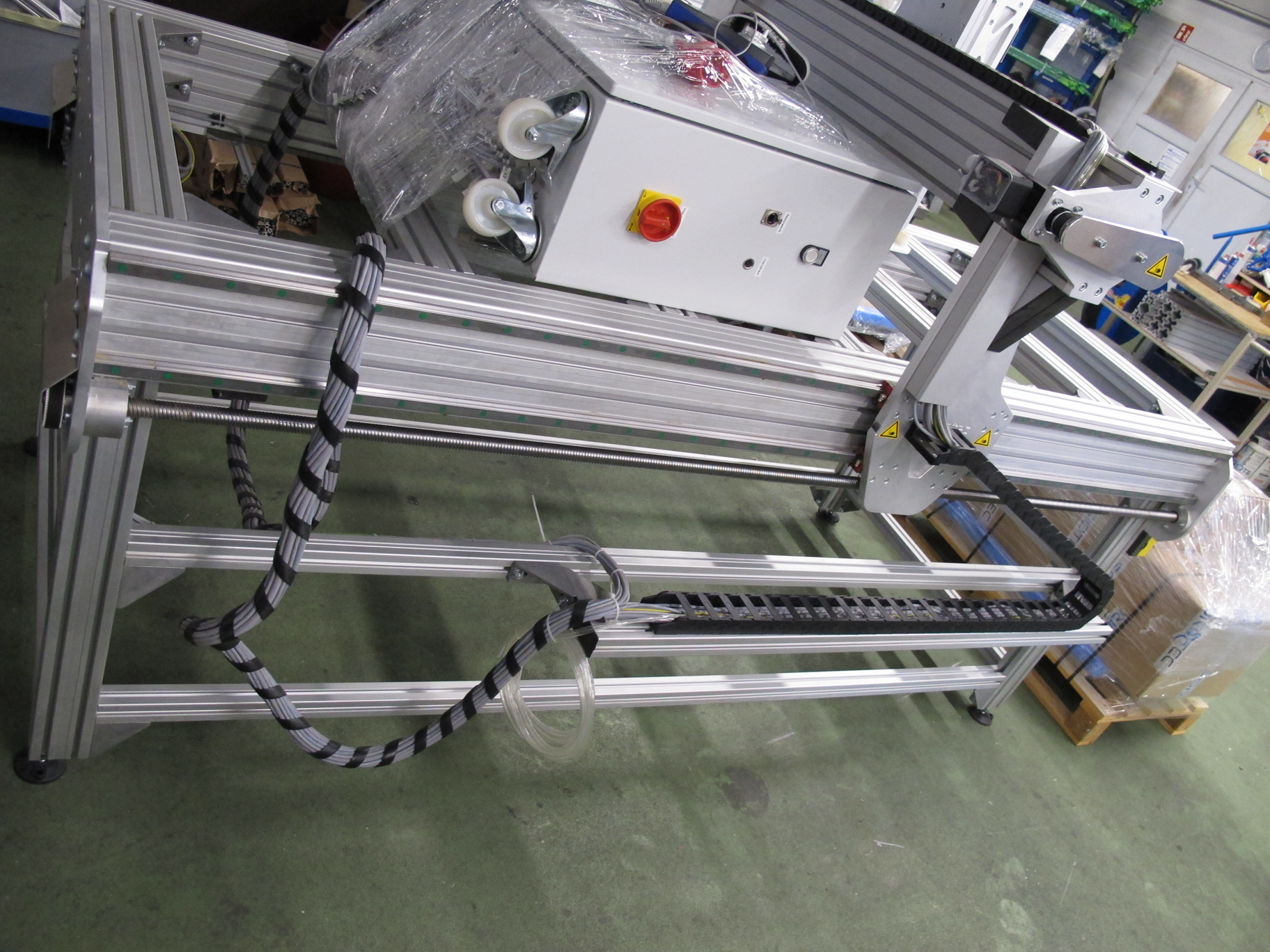

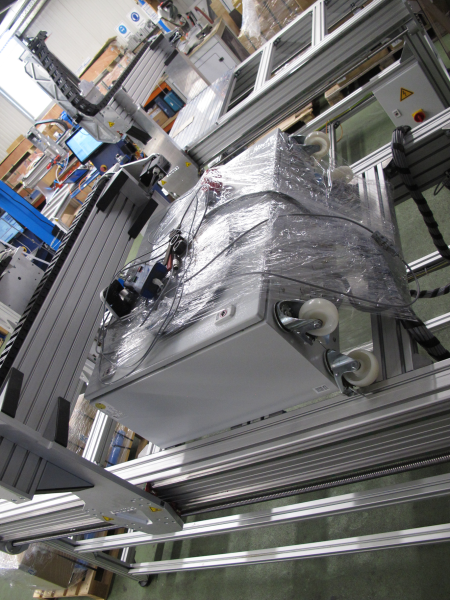

  • Switchboard 4-axis Eletrical cabine with EdingCNC
    •  CNC-Controller EdingCNC 720 with Software
    •  Breakoutboard SimpleBOB 720

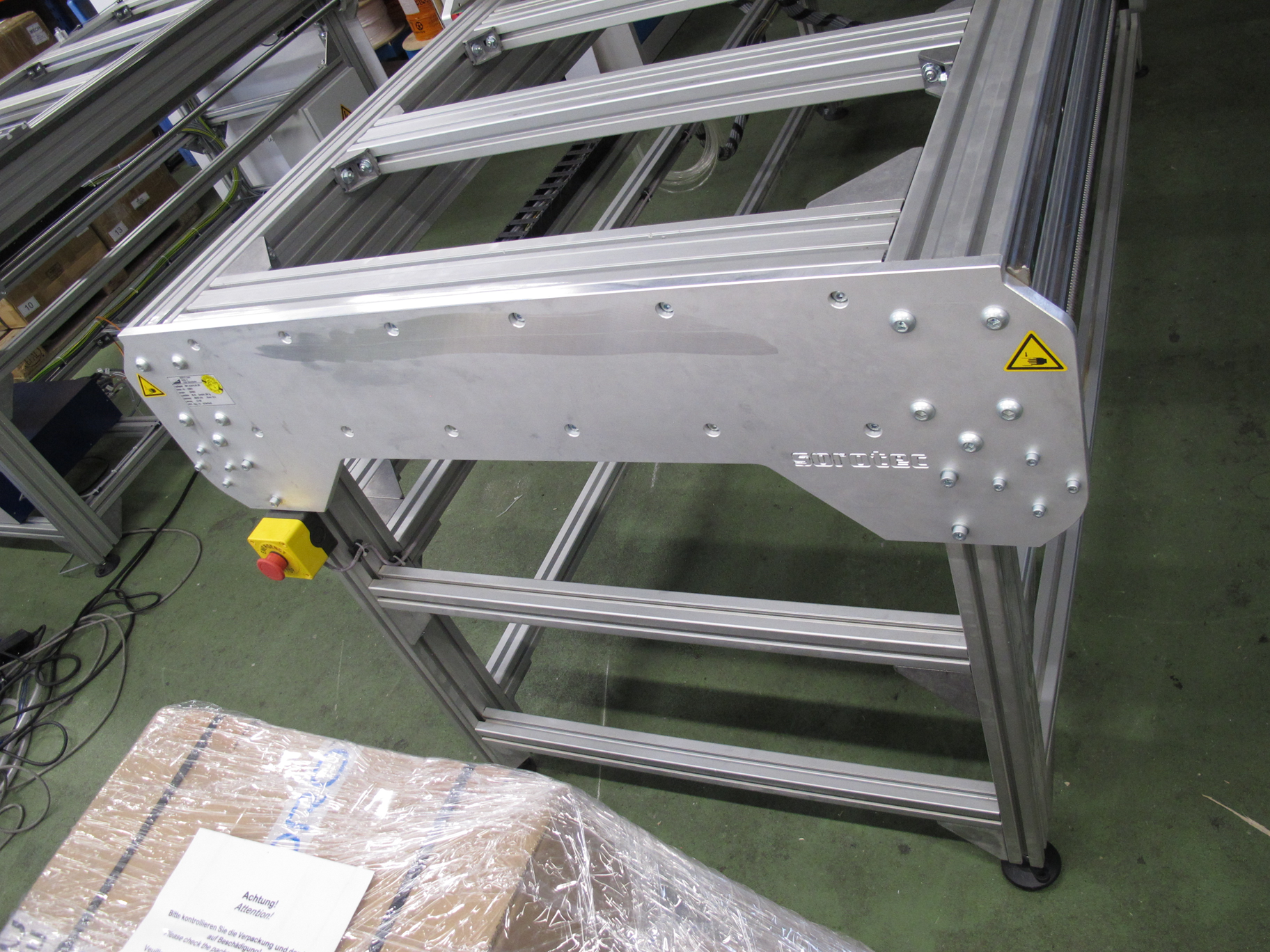

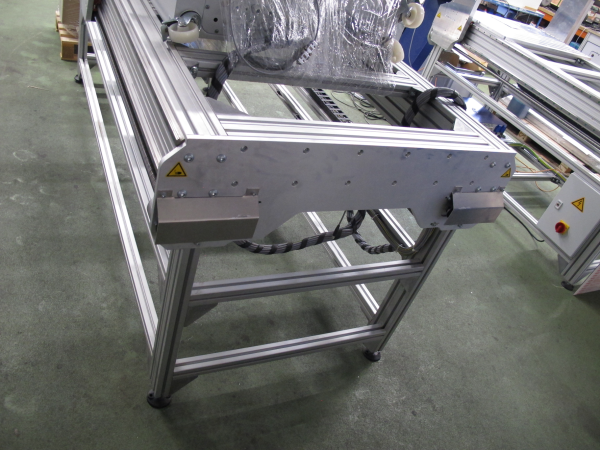

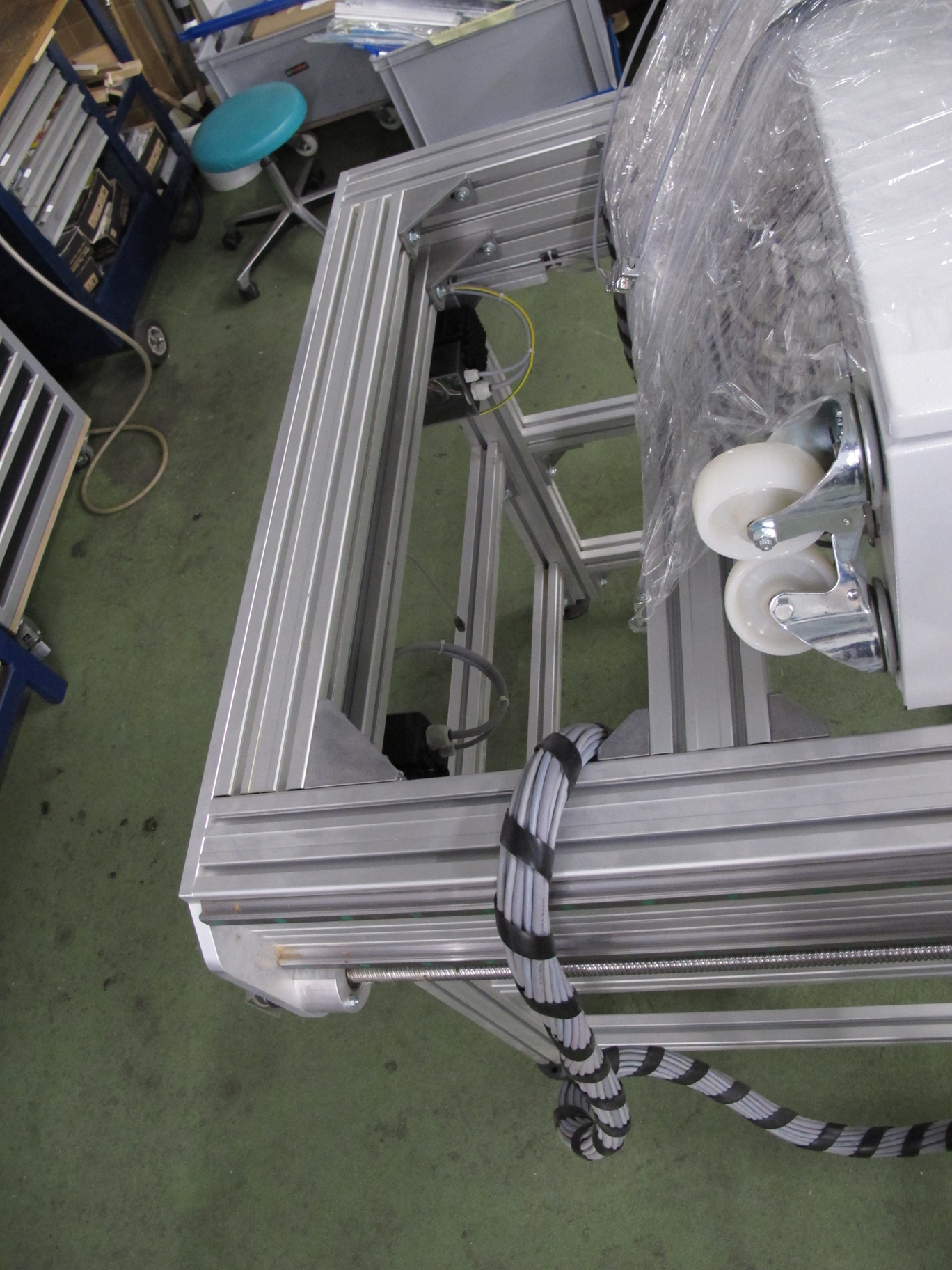

  • Machine Frame
  • HIWIN HGR20 Linear rails on all axes
  • Mounting plate ELTE 2.2 kW, Teknomotor 2.2 kW and 1.1kW (ER25)
  • Tool Length Sensor Sorotec WLS 2 (14 mm)
  • Handwheel for EdingCNC
  • Suction shoe
Price:
€18.500,00€ incl. VAT, additional costs may apply for transport and customs

Location:
Germany, 77836 Rheinmünster at Sorotec GmbH

Viewing & sale:
If you are interested, please contact Sorotec GmbH directly by E-Mail or phone.

Notes:
The machine offered is the property of Sorotec GmbH.
Product Safety

Manufacturer:
Sorotec GmbH
Withig 12
77836 Rheinmünster
Germany

Phone: +49 (0)7227-994255-0
Telefax: +49 (0)7227-994255-9
E-Mail: sorotec@sorotec.de
Website: www.sorotec.de

Responsible person:
Sorotec GmbH
Withig 12
77836 Rheinmünster
Germany

Phone: +49 (0)7227-994255-0
Telefax: +49 (0)7227-994255-9
E-Mail: sorotec@sorotec.de
Website: www.sorotec.de

Safety instructions:
safety_notice_image1.Always read and observe the safety instructions and warnings in the available documents.
2.The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully.
3.The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision.
4.The use of kits / components usually requires additional measures and additions.
