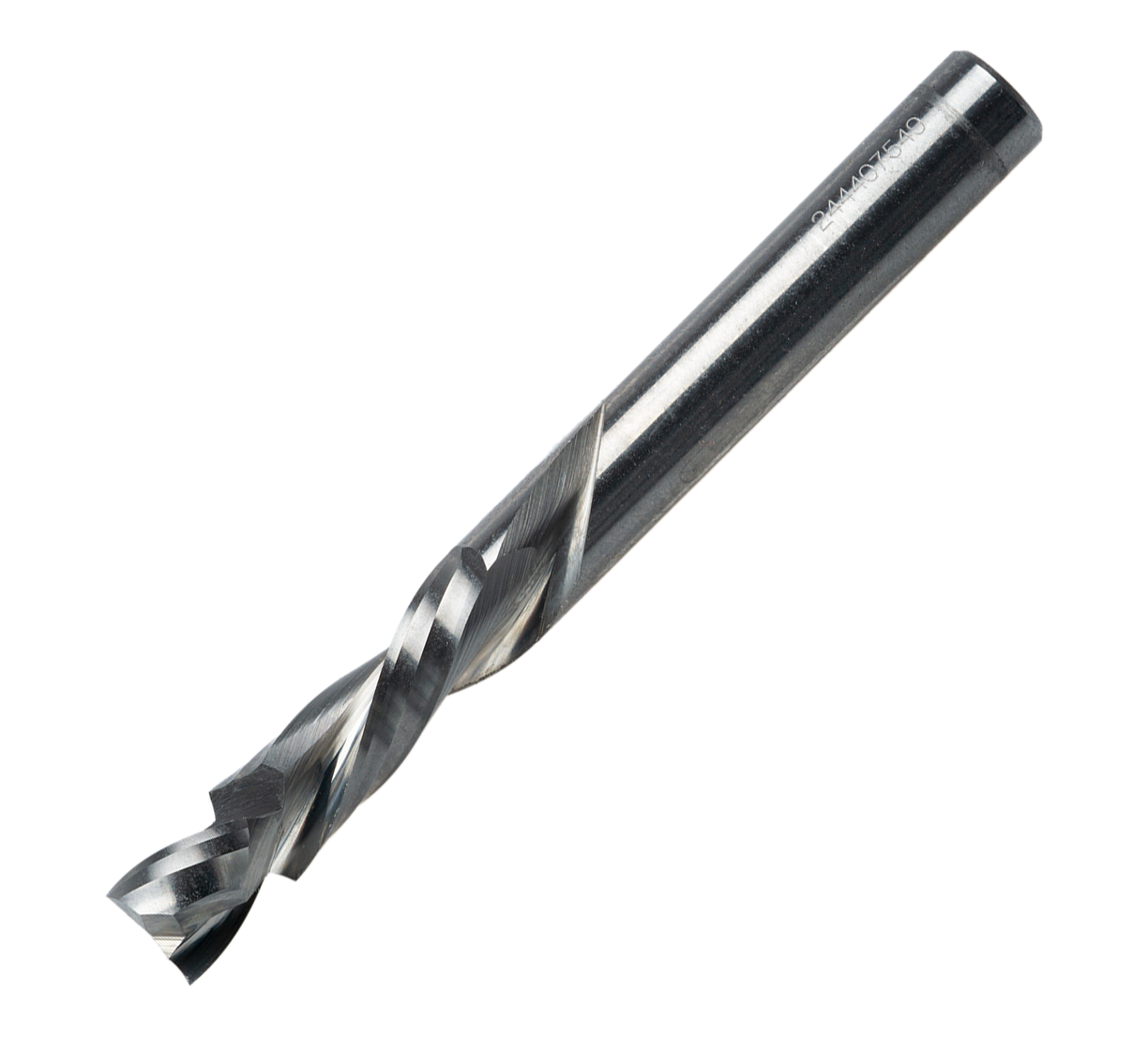

1207HO | Solid carbide end mill Z2 UP/DOWN Ø 4 mm wood
1207HO | Solid carbide end mill Z2 UP/DOWN Ø 5 mm wood
Cuts top and bottom without tearing

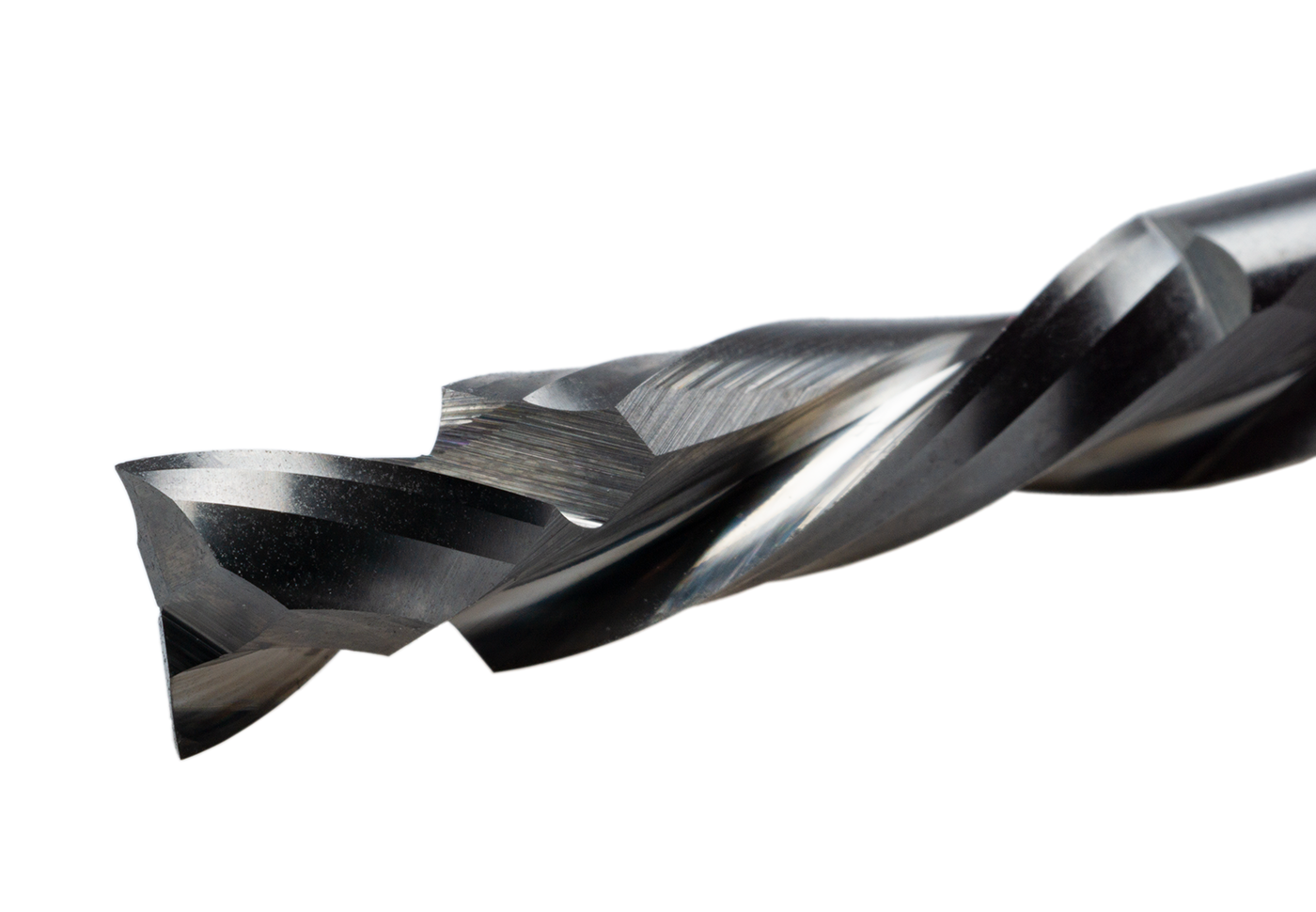

At the bottom, on the cutting edges, this cutter is spiraled to the right. In the upper part, the spiral runs anti-clockwise. This means that the thrust goes inwards on both sides of the material, and the top and bottom remain smooth and without frayed tears.

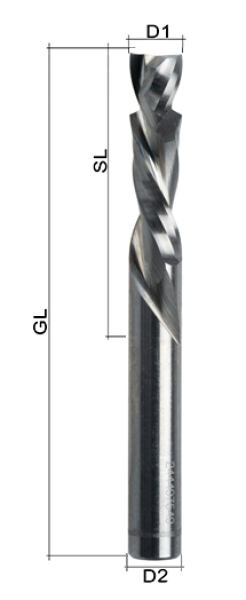

Technical Specifications:
- D2 (Shank): 5 mm
- SL (spiral lenght): 26 mm
- UL (lower spiral length): 6 mm
- GL (overall length): 60 mm
- Solid carbide two-edge cutter with clean cut
- Good chip removal thanks to wide spiral
Applications:
- very suitable for wood materials
- suitable for plastics
- Perfect for everything veneered: plywood, multiplex, blockboard ...
