1207HO | Solid carbide end mill Z2 UP/DOWN Ø 3 mm wood
NEW

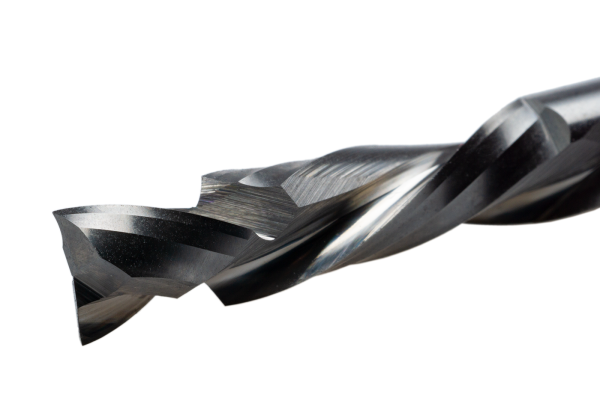

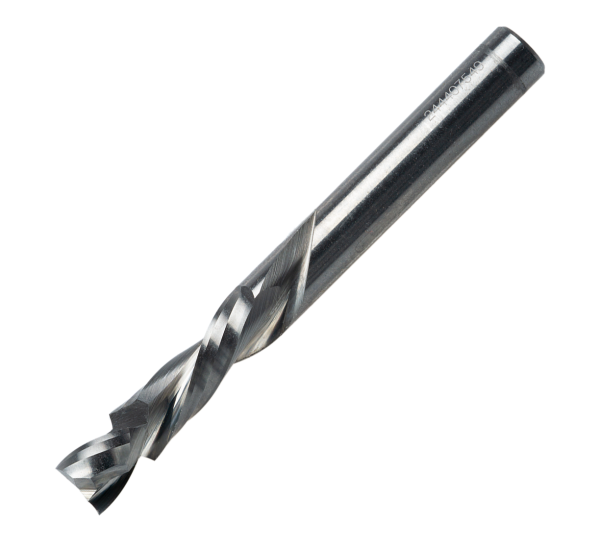

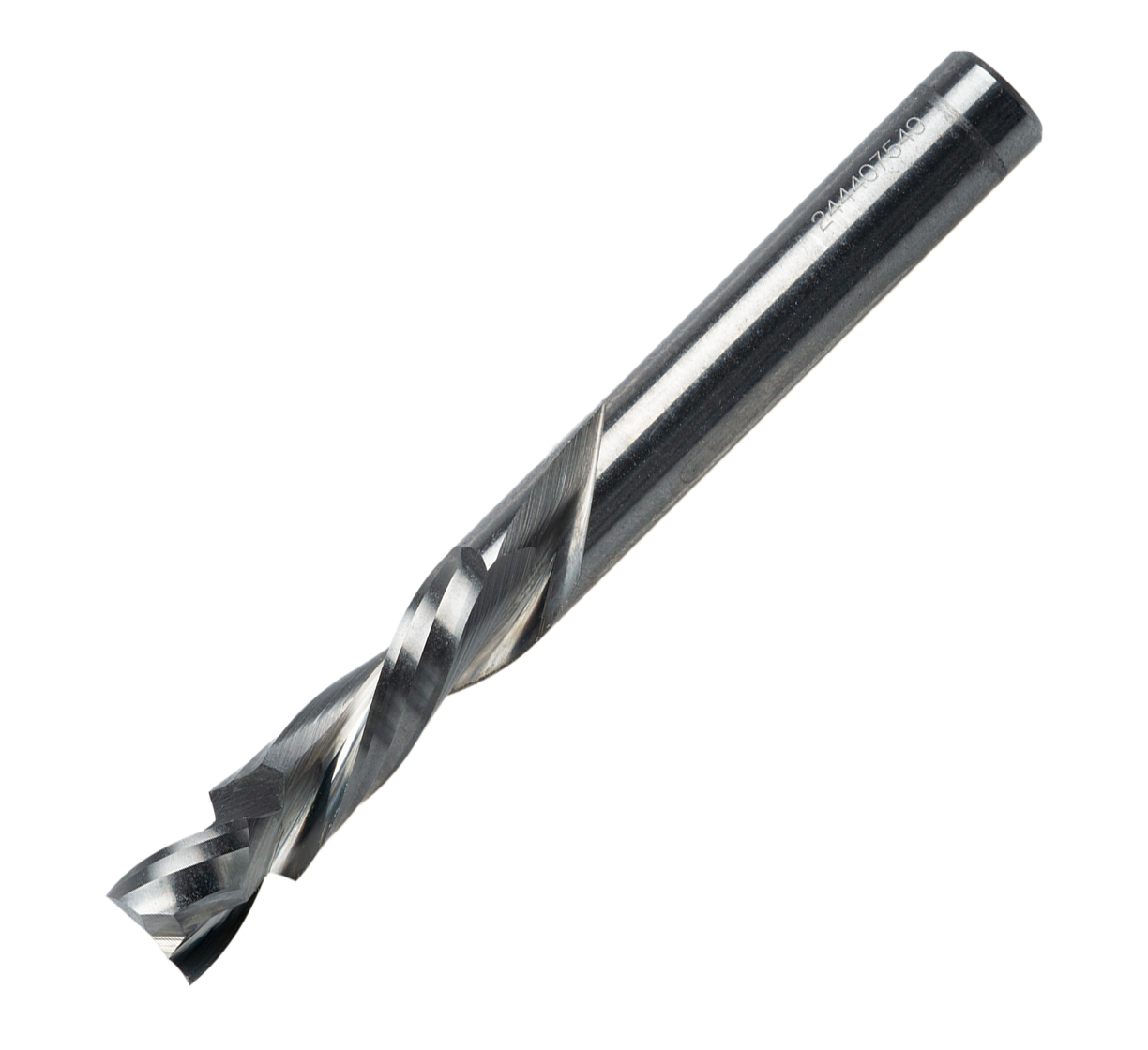

1207HO | Solid carbide end mill Z2 UP/DOWN Ø 3 mm wood
Cuts top and bottom without tearing
At the bottom, on the cutting edges, this cutter is spiraled to the right. In the upper part, the spiral runs anti-clockwise. This means that the thrust goes inwards on both sides of the material, and the top and bottom remain smooth and without frayed tears.

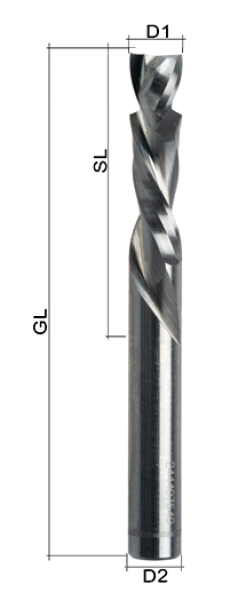

Technical Specifications:
- D2 (Shank): 3 mm
- SL (spiral lenght): 8 mm
- GL (overall length): 40 mm
- Solid carbide two-edge cutter with clean cut
- Good chip removal thanks to wide spiral
Applications:
- very suitable for wood materials
- suitable for plastics
- Perfect for everything veneered: plywood, multiplex, blockboard ...
