Tool length sensor - High precision 29mm probe - inductive PNP

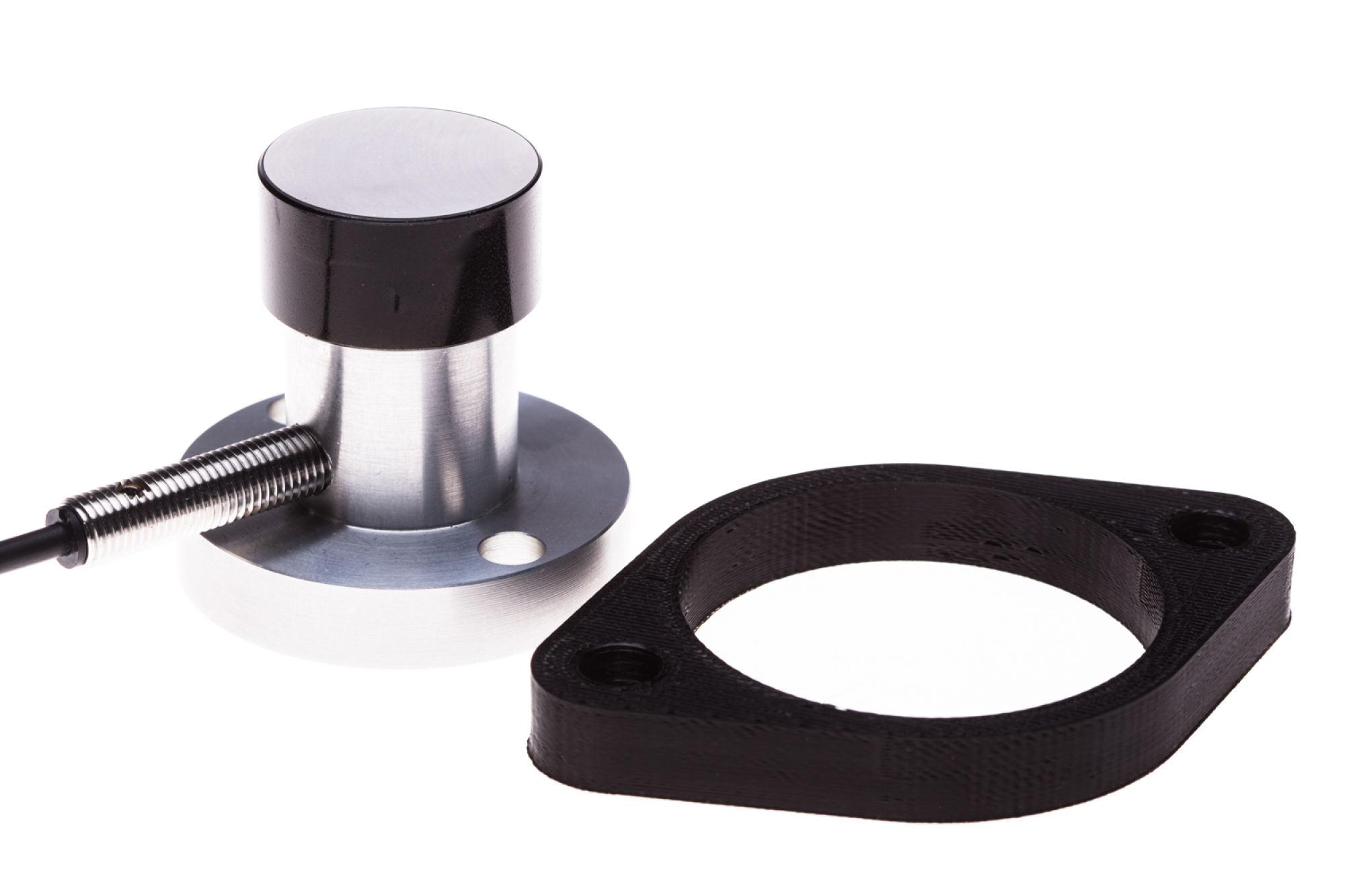

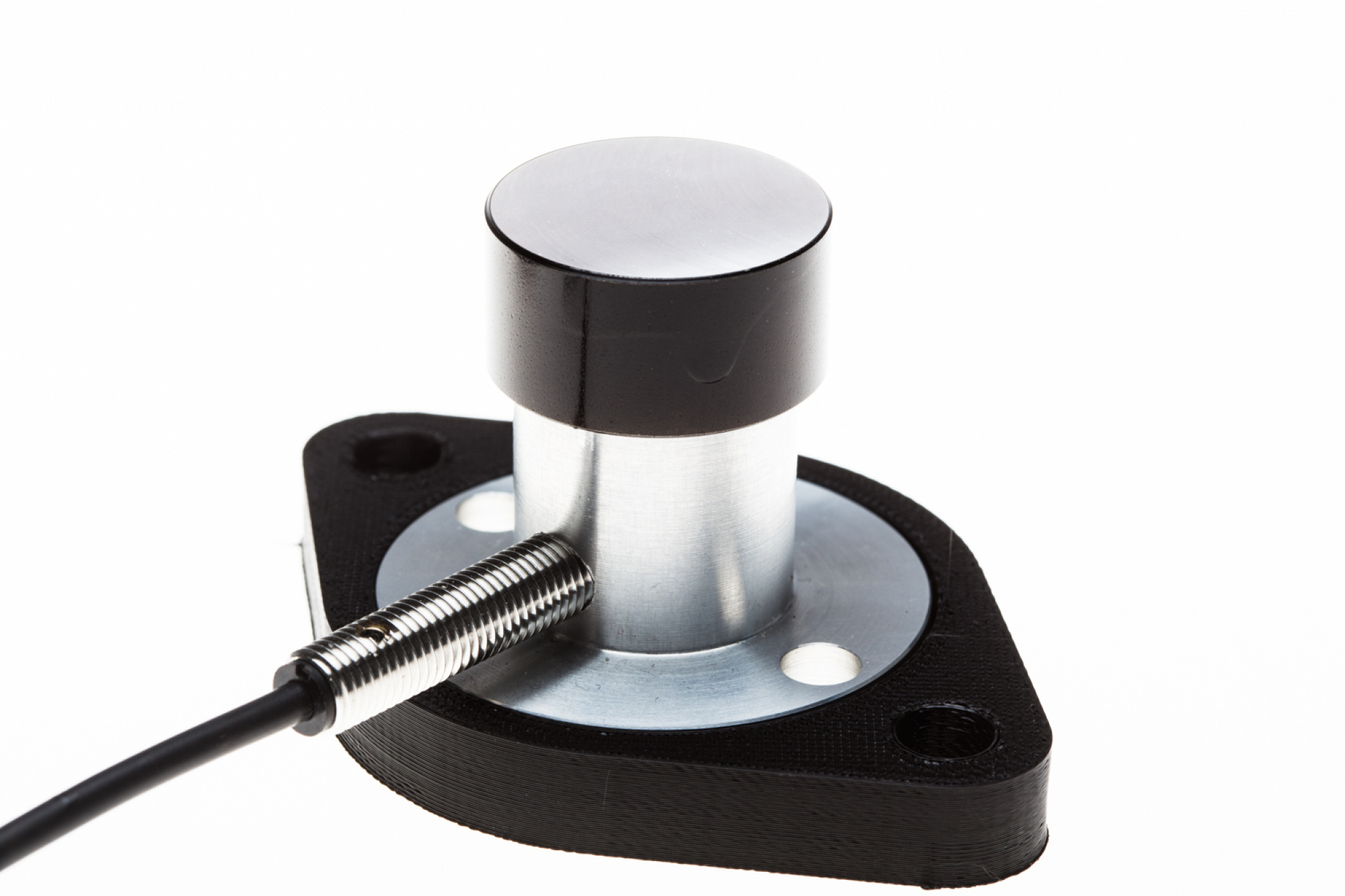

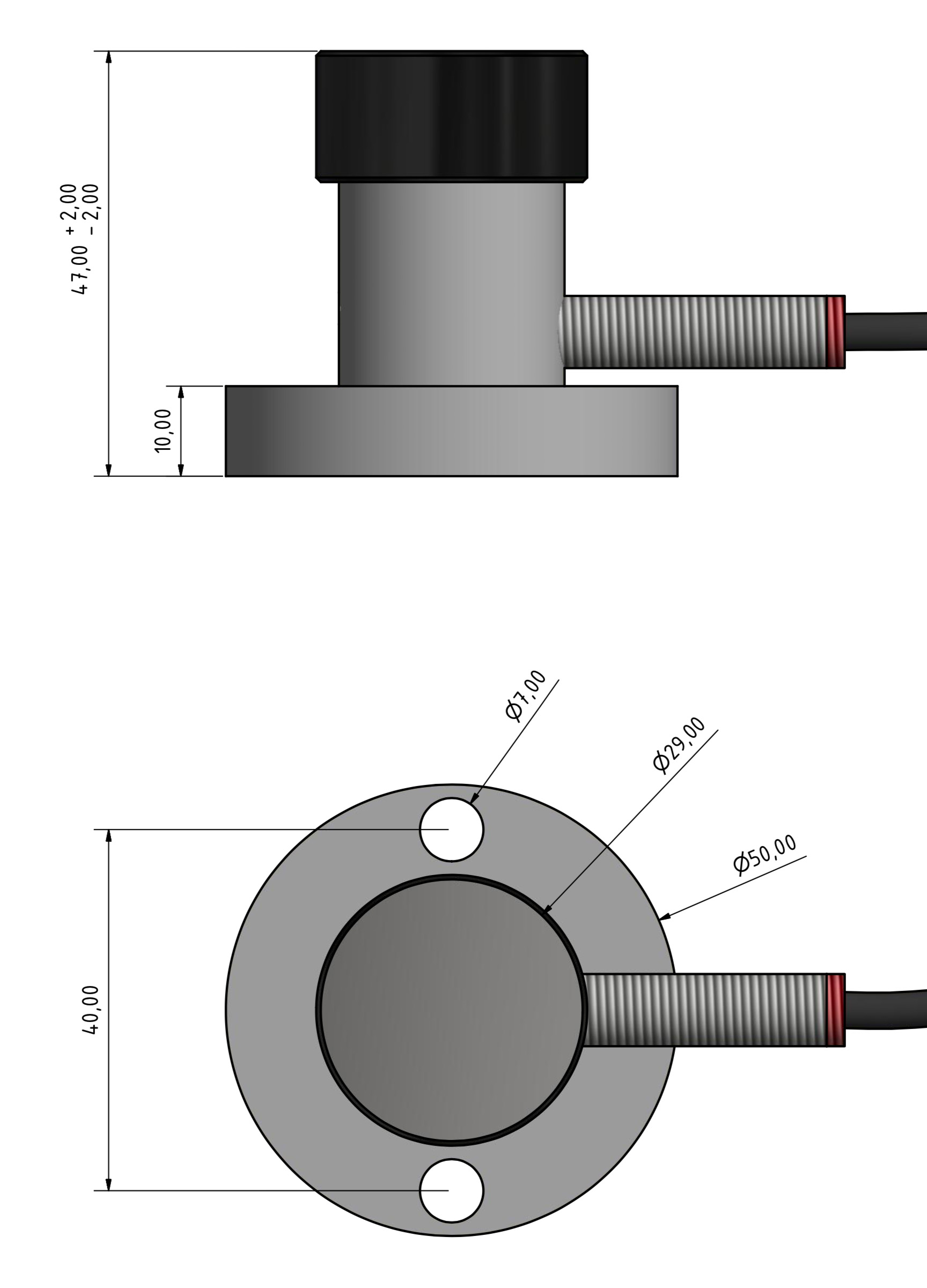

Precision tool length sensor PNP NC with 29 mm probe incl. plastic holder
| NPN or PNP sensor: How to choose the right one? |
| The tool lenght sensor build with an inductive sensor are available with either NPN or PNP logic. They all need a power supply in order to work (usaully 24V), but the type of sensor depends of your wiring and controller board. NPN : the sensor produces a negative signal during an "on" state PNP : the sensor produces a positive signal during an "on" state |
The large steel sensing surface was planned to achieve a very precise measurement. Due to the inductive sensor a very high repeatability is possible.
- inclusive plastic holder for positioning

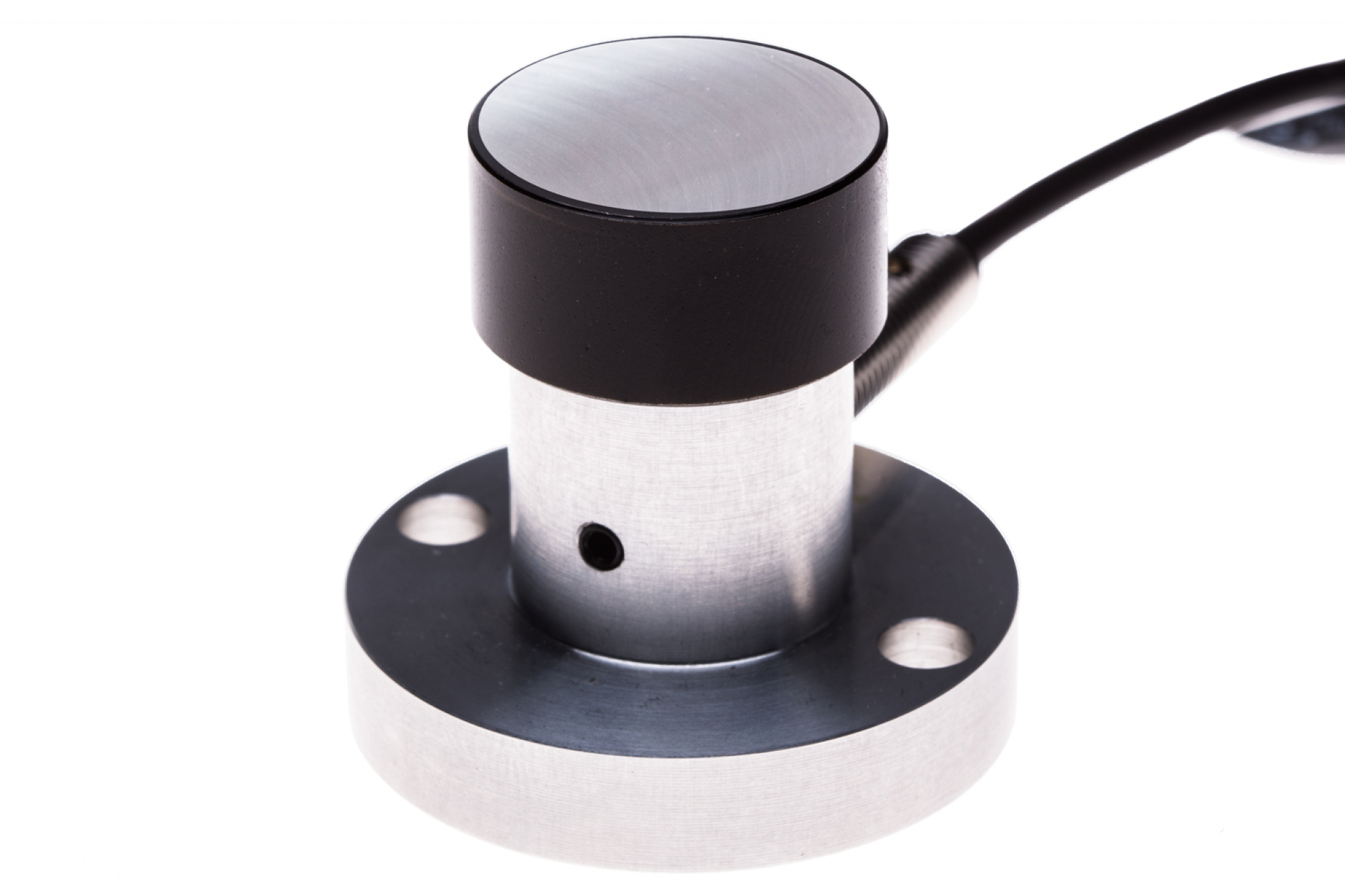

- solid aluminum housing
- high quality inductive sensor PNP NC
- High starting speeds possible through 3 mm push stroke
- Voltage: 10 ... 36 V

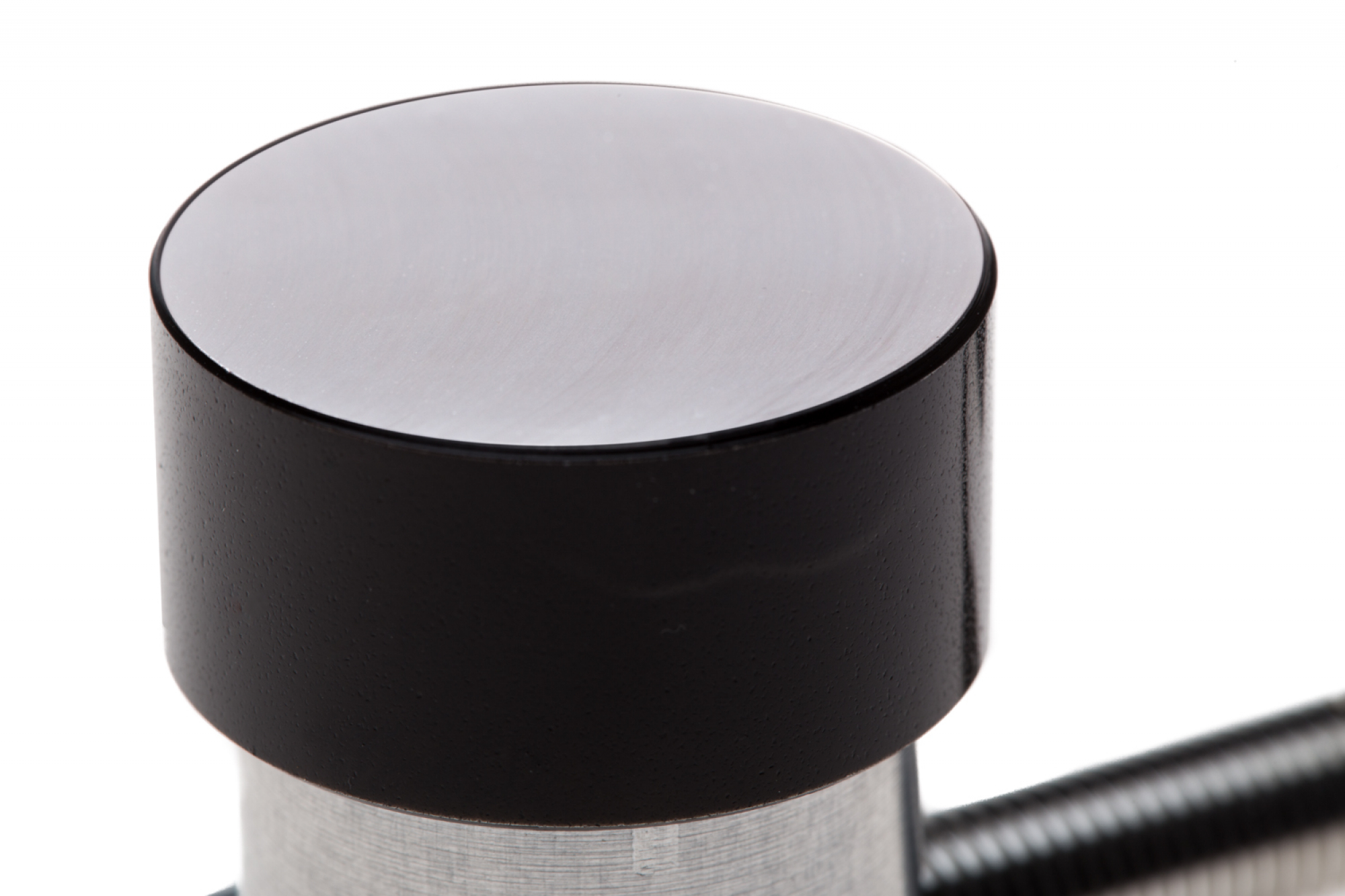

- Touch surface made of steel
- Tasting surface secured against twisting
- Length of connection cable: 2 m
Wiring diagrams
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
