Volksfräse VF1 parts set Configurator

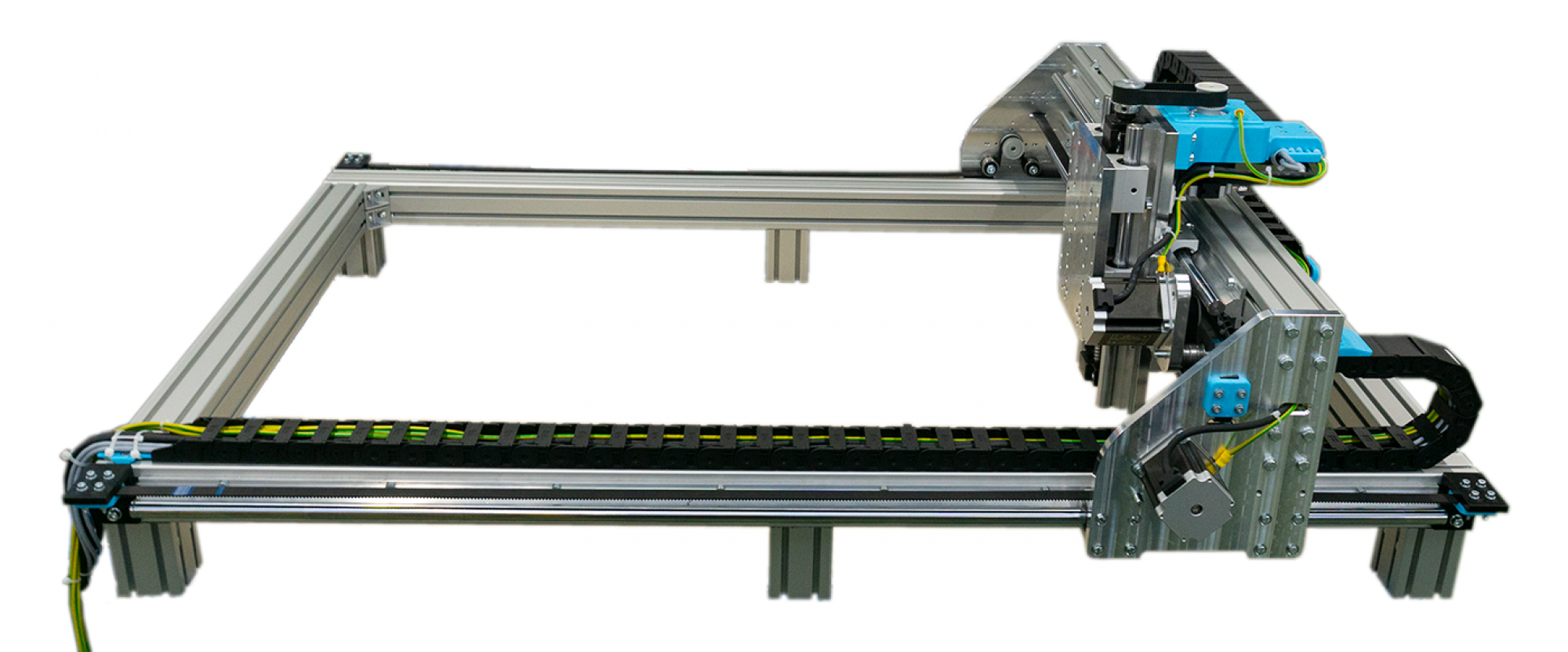

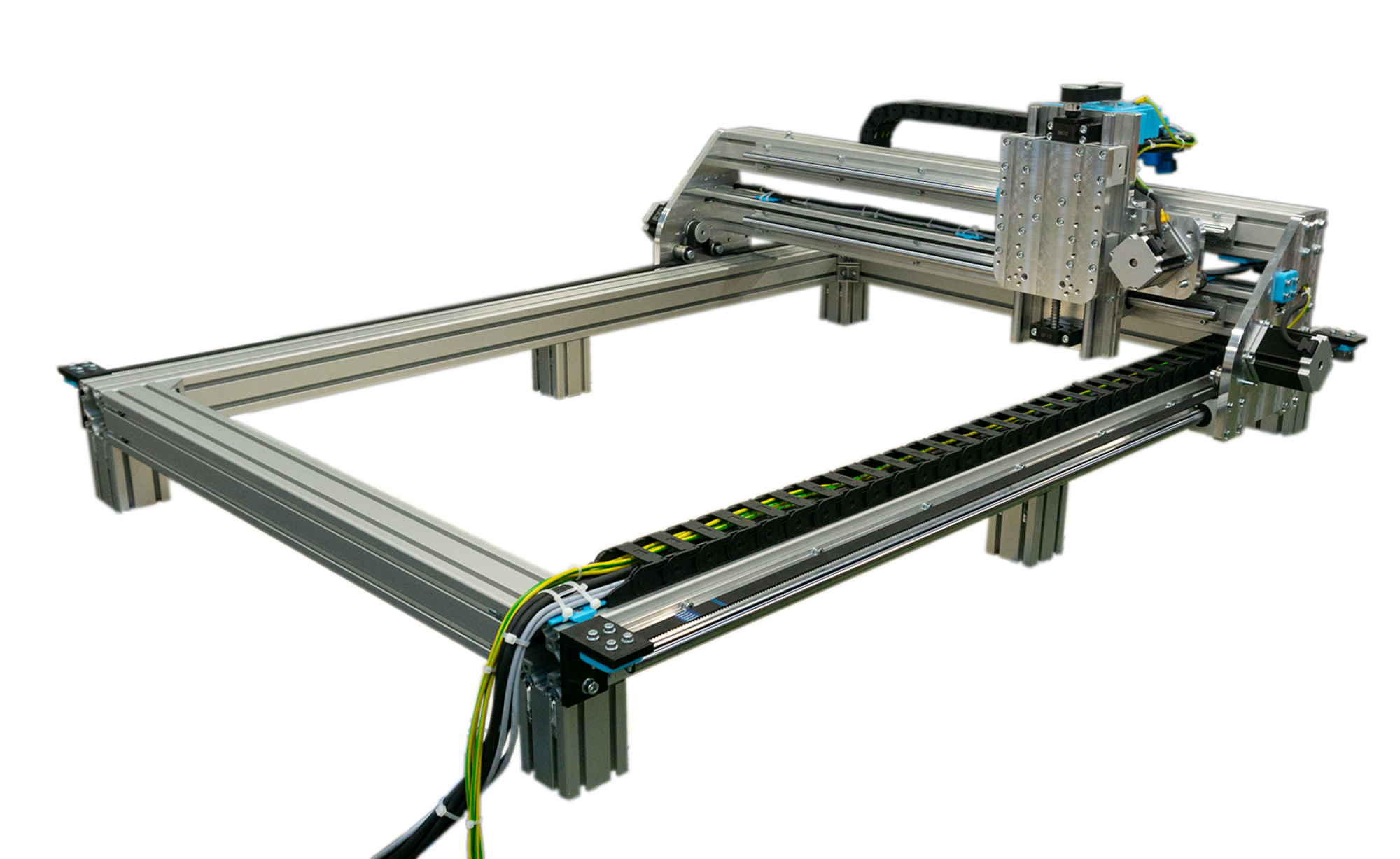

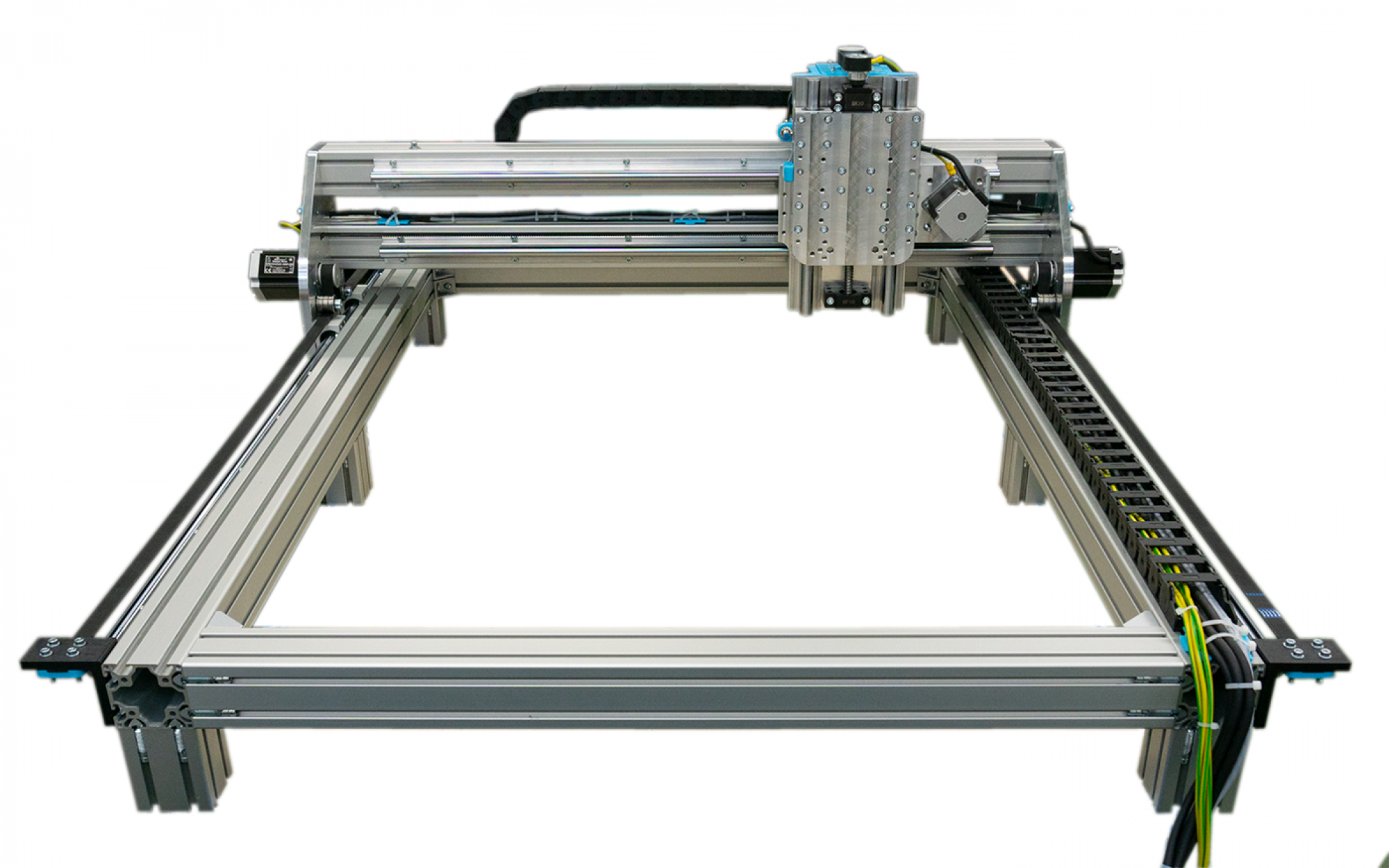

The well-known Volksfräse VF1 now at Sorotec! The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state.After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this  Information sheet |
| The data and the parts may not be sold commercially without authorisation! More Information and contact to the parts data owner |
- Parts of the standard kit from a single source!
- Upgrade kits for the standard
- Matching controls and accessories from our webshop!
- Base plate and cables are not contained in this kit
Available options
- All parts according to the VF1 standard
- Robust profile design for frame and portal beam with screw set
- All milled parts of basic configuration

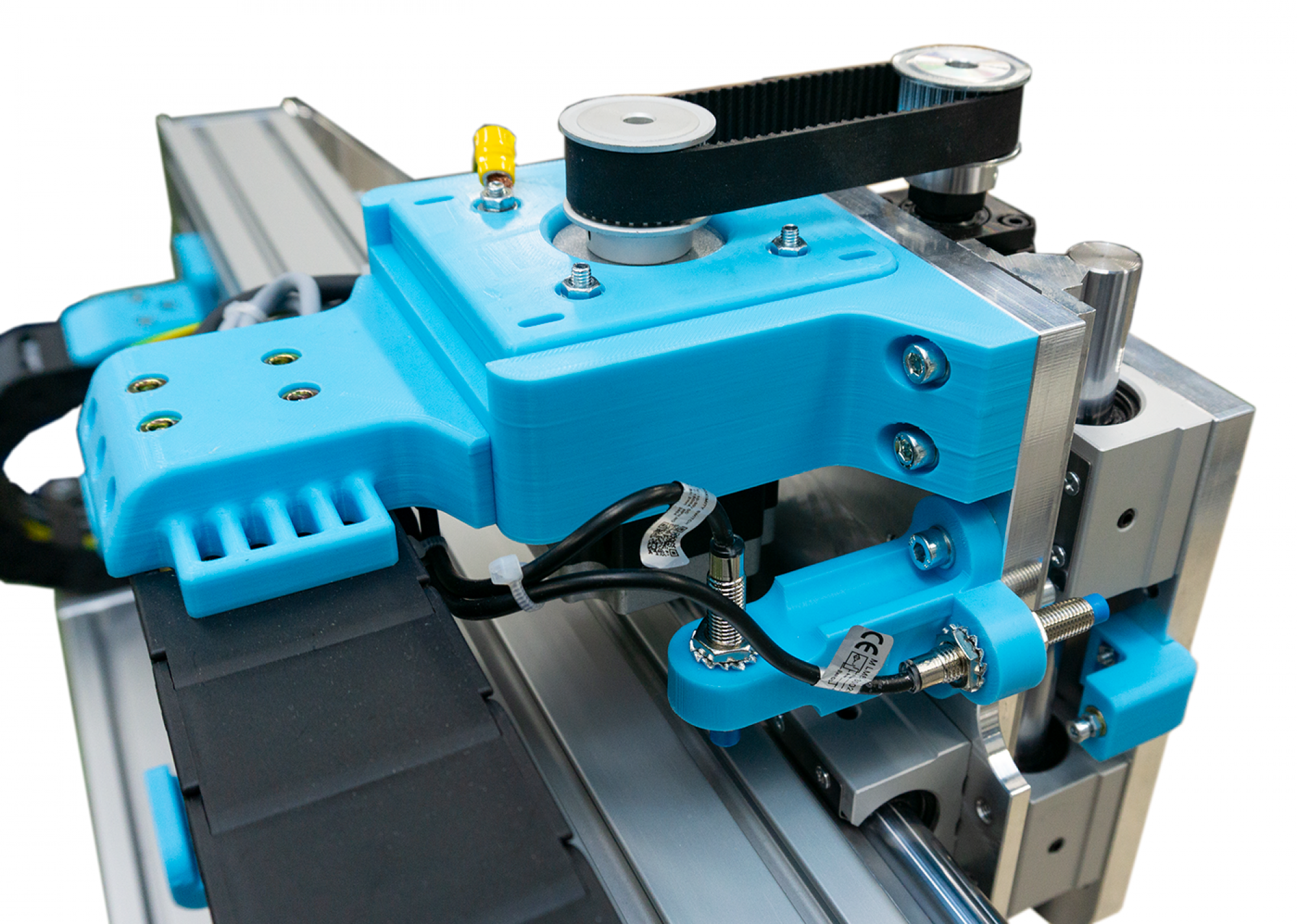

- All 3D print parts
- SBR16 rails for all axes

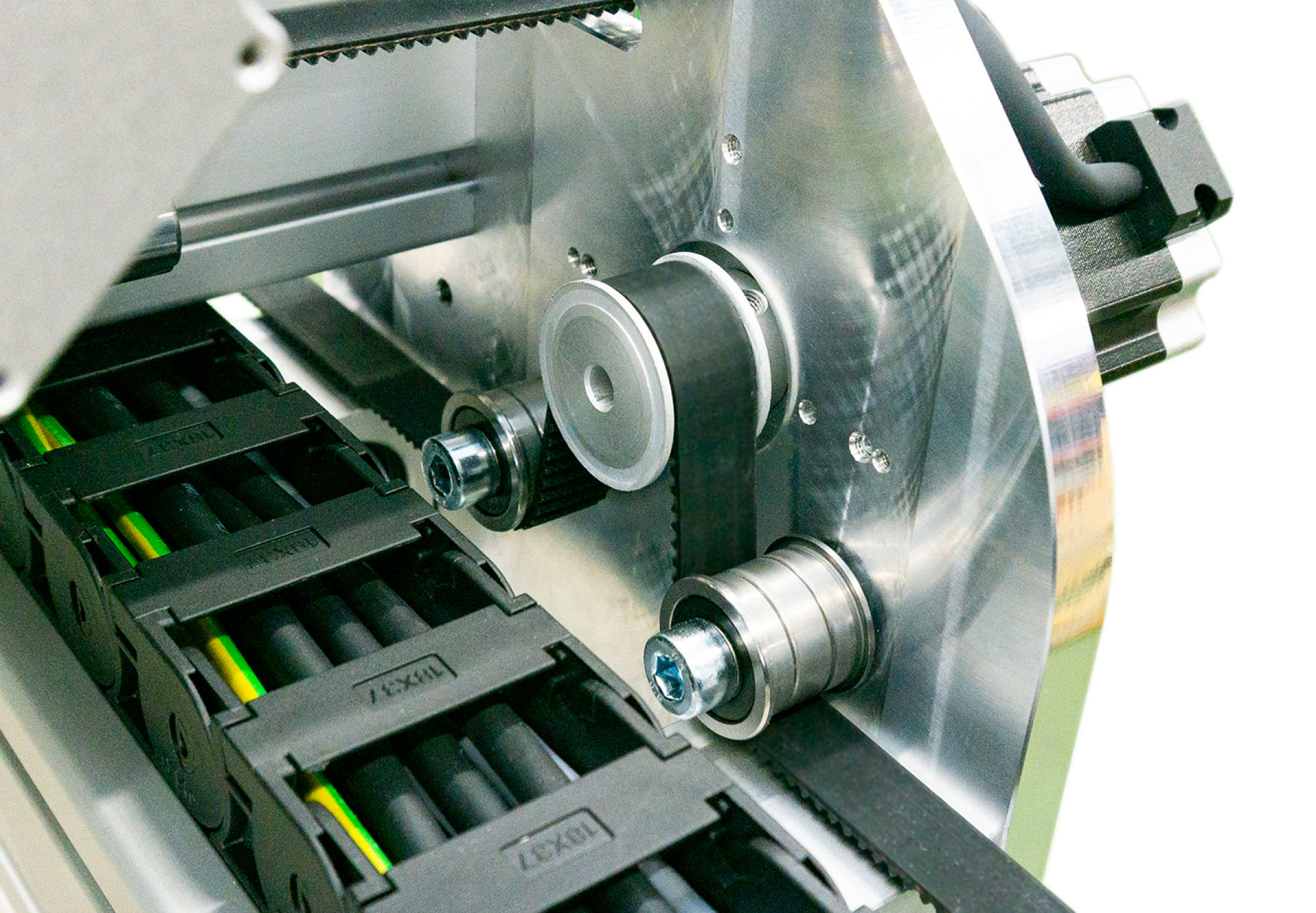

- Belt drive for X- and Y-Axis

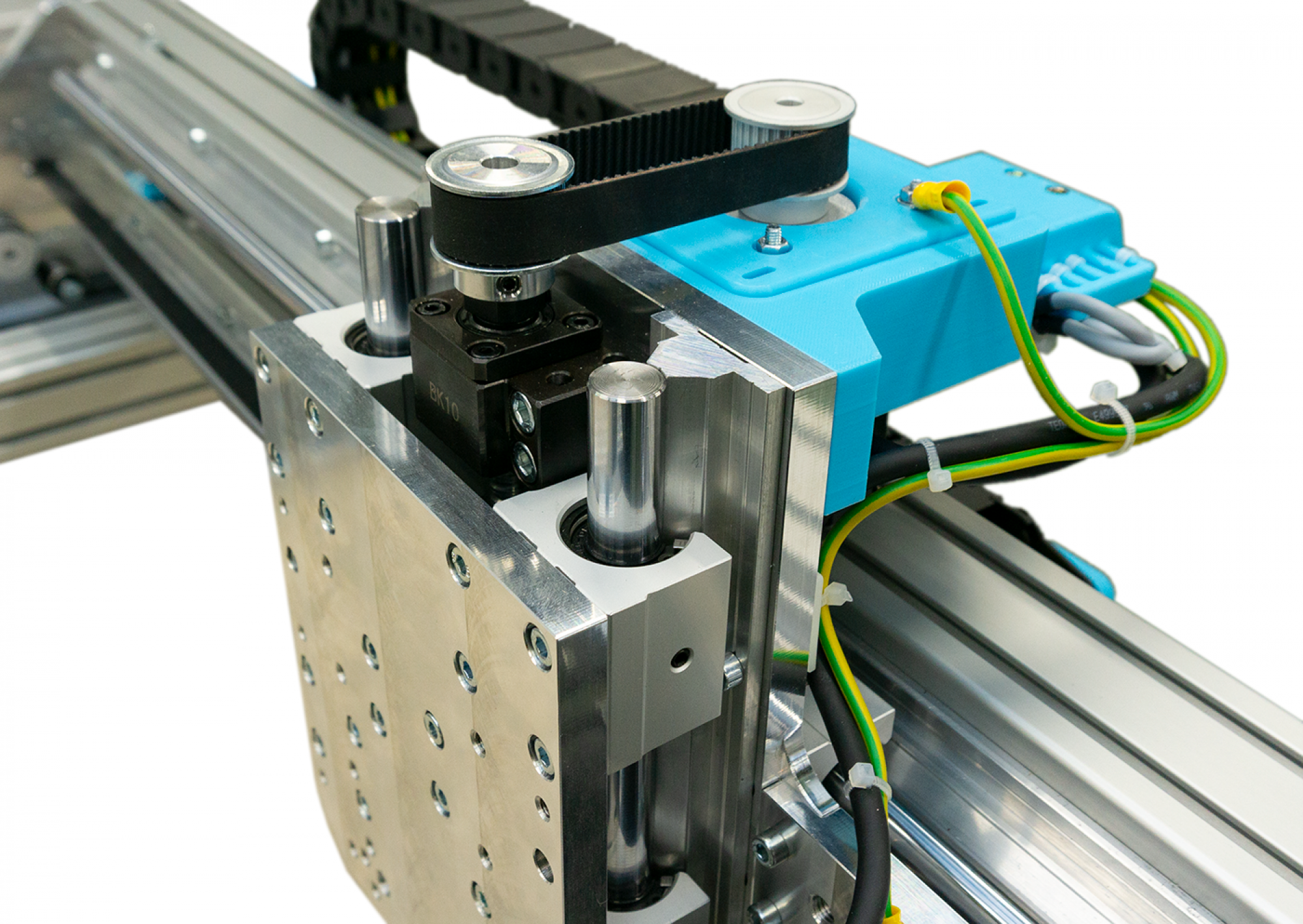

- Spindle drive for Z-Axis

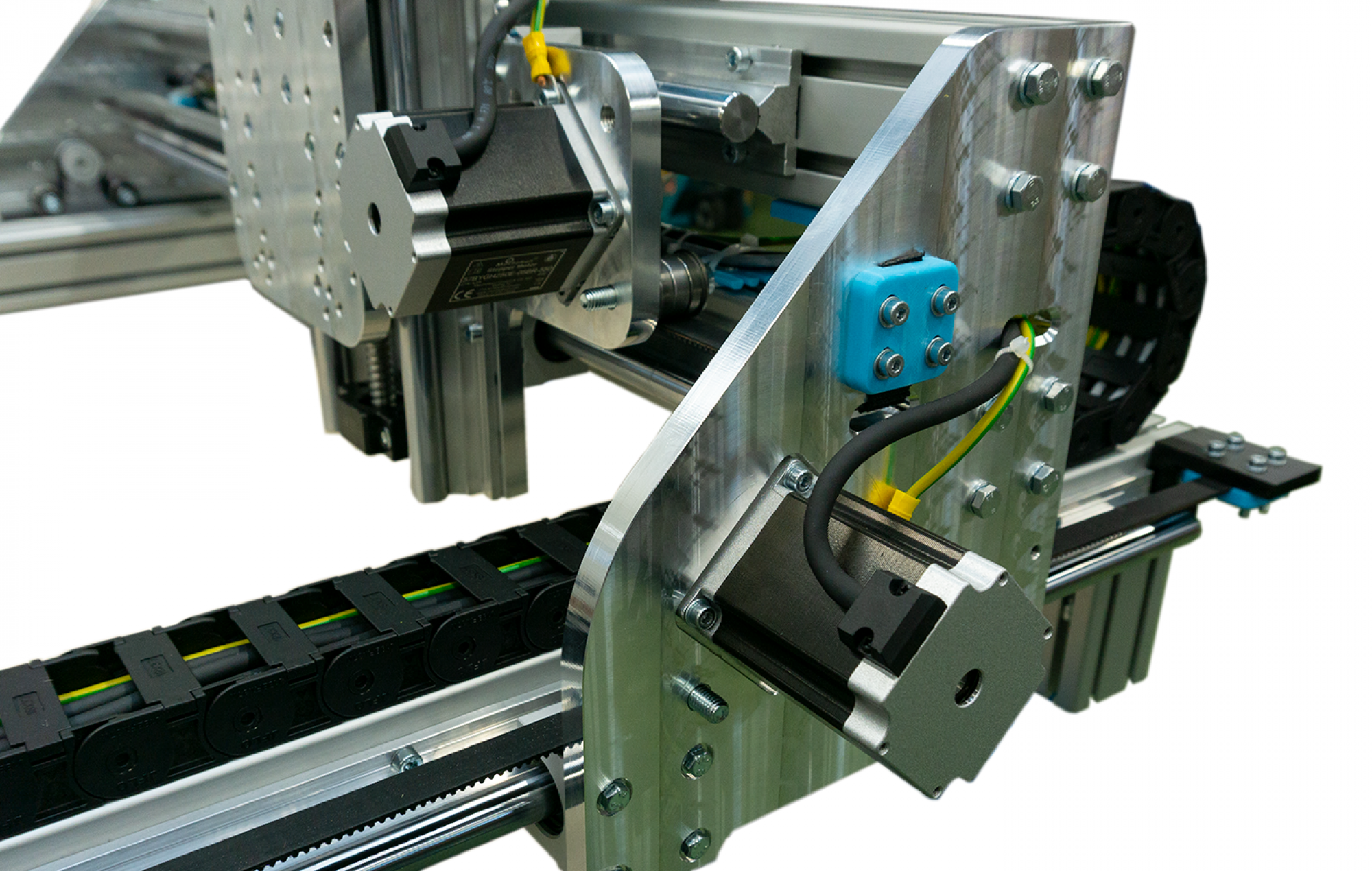

- Electric drives and reference sensors with cables
- Electrical installation kit optionally for standard sizes or oversizes
Not included
- Milling spindle
- Base plate
- Control unit
- Tools for assembly, e.g. screw tap M6
| Technische Daten | |||||||
|---|---|---|---|---|---|---|---|
| Clamping area mm | Travel mm | Outer dimensions mm | |||||
| X | Y | X | Y | Z | X | Y | Z |
| 800 | 1200 | 560 | 910 | 145 | 1120 | 1300 | 480 |
| 800 | 2000 | 560 | 1710 | 145 | 1120 | 2100 | 480 |
| 900 | 1300 | 660 | 1010 | 145 | 1220 | 1400 | 480 |
| 900 | 1600 | 660 | 1310 | 145 | 1220 | 1700 | 480 |
| 900 | 2300 | 660 | 2010 | 145 | 1220 | 2400 | 480 |
| 1000 | 1200 | 760 | 910 | 145 | 1320 | 1300 | 480 |
| 1500 | 1500 | 1260 | 1210 | 145 | 1820 | 1600 | 480 |
| 1500 | 2000 | 1260 | 1710 | 145 | 1820 | 2100 | 480 |
Have we piqued your interest? Fancy more?
Contact us, we will be happy to advise you and provide you with an offer that meets your requirements.
You can reach us at
sorotec@sorotec.de+49(0)7227 994255-0
StuecklisteVF1.pdf 00810001_Rev00_Fraese_komplett_00810001_Rev00.pdf 00820001_Rev00_Grundgestell_00820001_Rev00.pdf 00820002_Rev00_Portalbruecke_00820002_Blatt_2_Rev00.pdf 00820002_Rev00_Portalbruecke_komplett_00820002_Blatt_1_Rev00.pdf 00820003_Rev00_Z-Achse_00820003_Blatt_2_Rev00.pdf 00820003_Rev00_Z-Achse_komplett_00820003_Blatt_1_Rev00.pdf 00820005_Rev00_Riementraeger_00820005_Rev00.pdf 00820006_Rev00_Motorhalter_00820006_Rev00.pdf 00820007_Rev00_Haltebock_Kabelschlepp_00820007_Rev00.pdf 00820008_Rev00_Doppel_Sensorhalter_00820008_Rev00.pdf 00820009_Rev00_Ausloeser_00820009_Rev00.pdf 00820010_Rev00_Halteplatte_fuer_Kabelschlepp_00820010_Rev00.pdf 00820011_Rev00_Halteplatte_Kabelschlepp_nr2_00820011_Rev00.pdf 00820012_Rev00_Fuehrung_fuer_Kabelschlepp_00820012_Rev00.pdf 00820013_Rev00_Kammplatte_komplett_00820013_Rev00.pdf 00820014_Rev00_Endstopp_Sensor_komplett_00820014_Rev00.pdf 00820015_Rev00_Ausloeser_00820015_Rev00.pdf 00820016_Rev00_Antrieb_Z-Achse_00820016_Rev00.pdf 00820021_Rev00_X-Motorhalter_links_00820021_Rev00.pdf 00820022_Rev00_X-Motorhalter_rechts_00820022_Rev00.pdf 00820030_Rev00_Kammplatte_klein_komplett_00820030_Rev00.pdf 00850001_Rev00_Portalwange_links_00850001_Rev00.pdf 00850002_Rev00_Portalwange_rechts_00850002_Rev00.pdf 00850004_Rev00_Spindelplatte_00850004_Rev00.pdf 00850005_Rev00_Zwischenplatte_00850005_Rev00.pdf 00850007_Rev00_Grundplatte_Z-Achse_00850007_Rev00.pdf 00850008_Rev00_Motorhalteplatte_00850008_Rev00.pdf 00880001_Rev00_Grundplatte_Holz_00880001_Rev00.pdf 00880008_Rev00_Linearfuehrung_00880008_Rev00.pdf 00880011_Rev00_Winkelprofil_00880011_Rev00.pdf 00880020_Rev00_Linearfuehrung_Z-Achse_00880020_Rev00.pdf 00880036_Rev00_Linearfuehrung_Portal_00880036_Rev00.pdf
