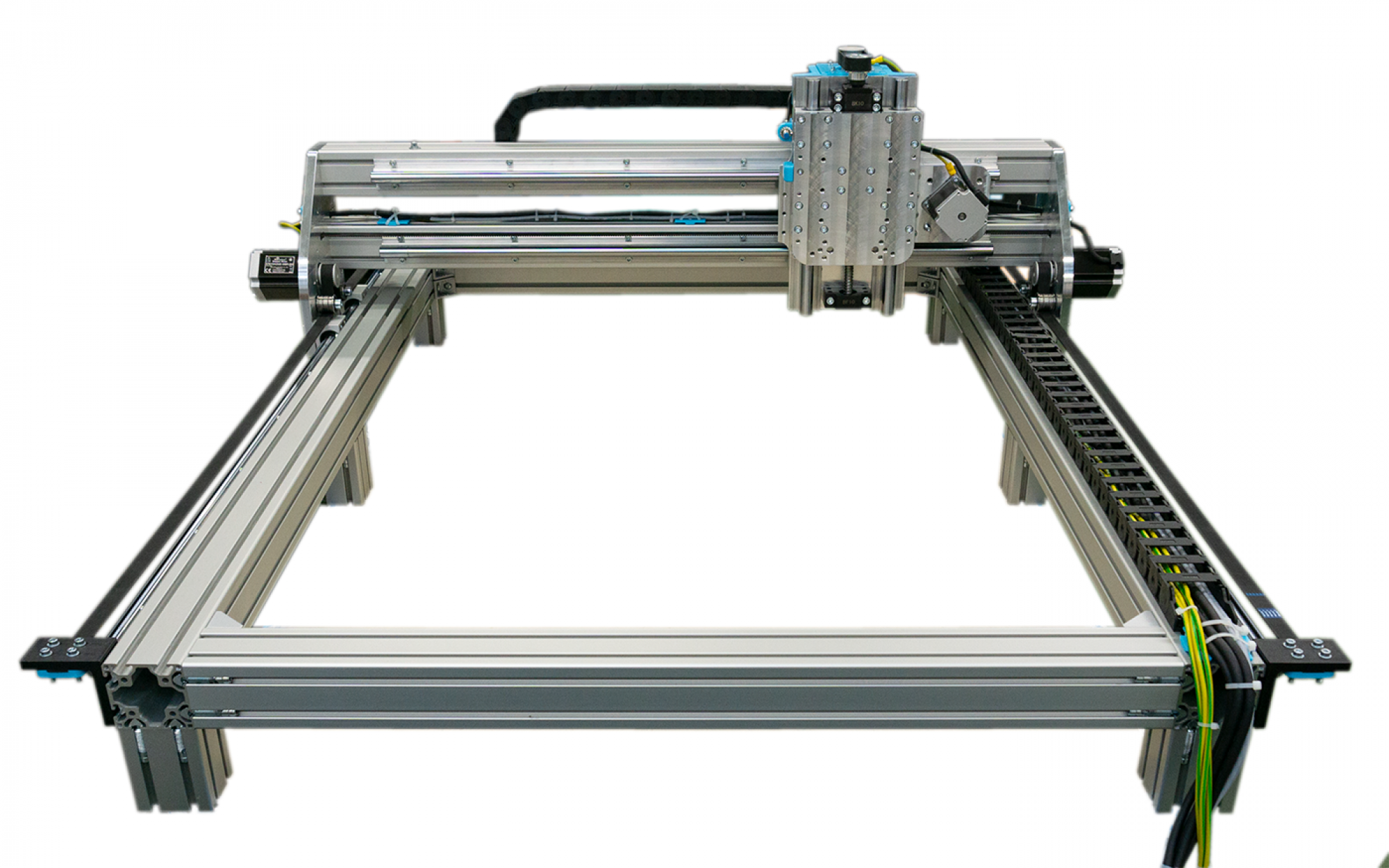

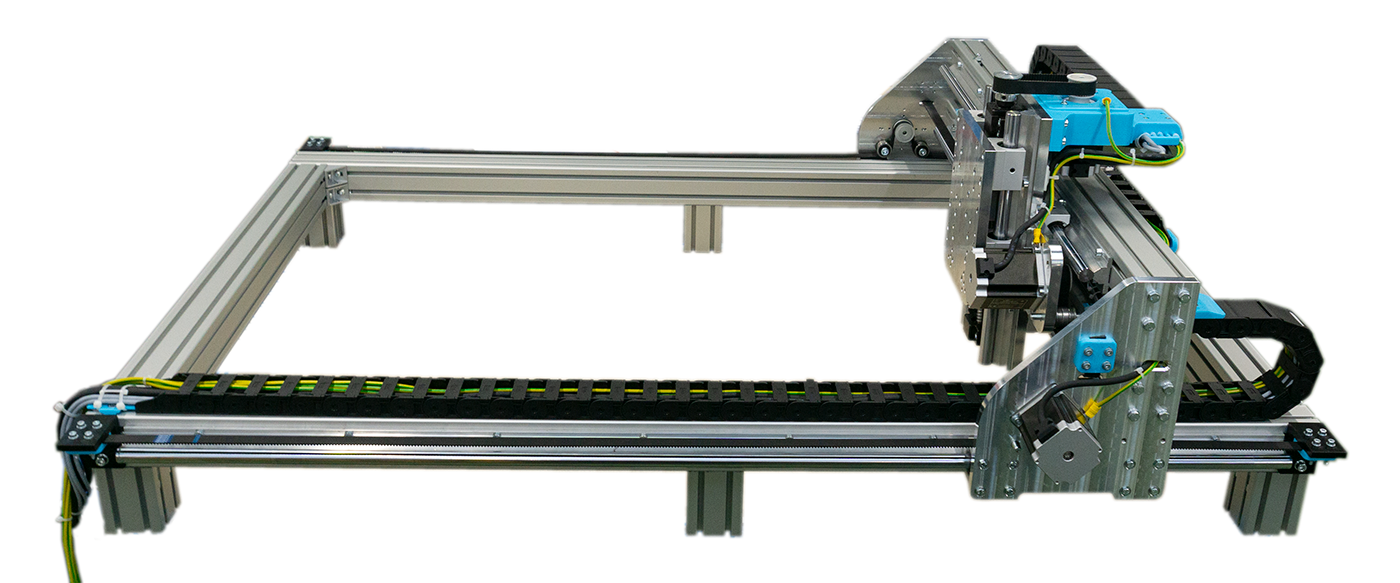

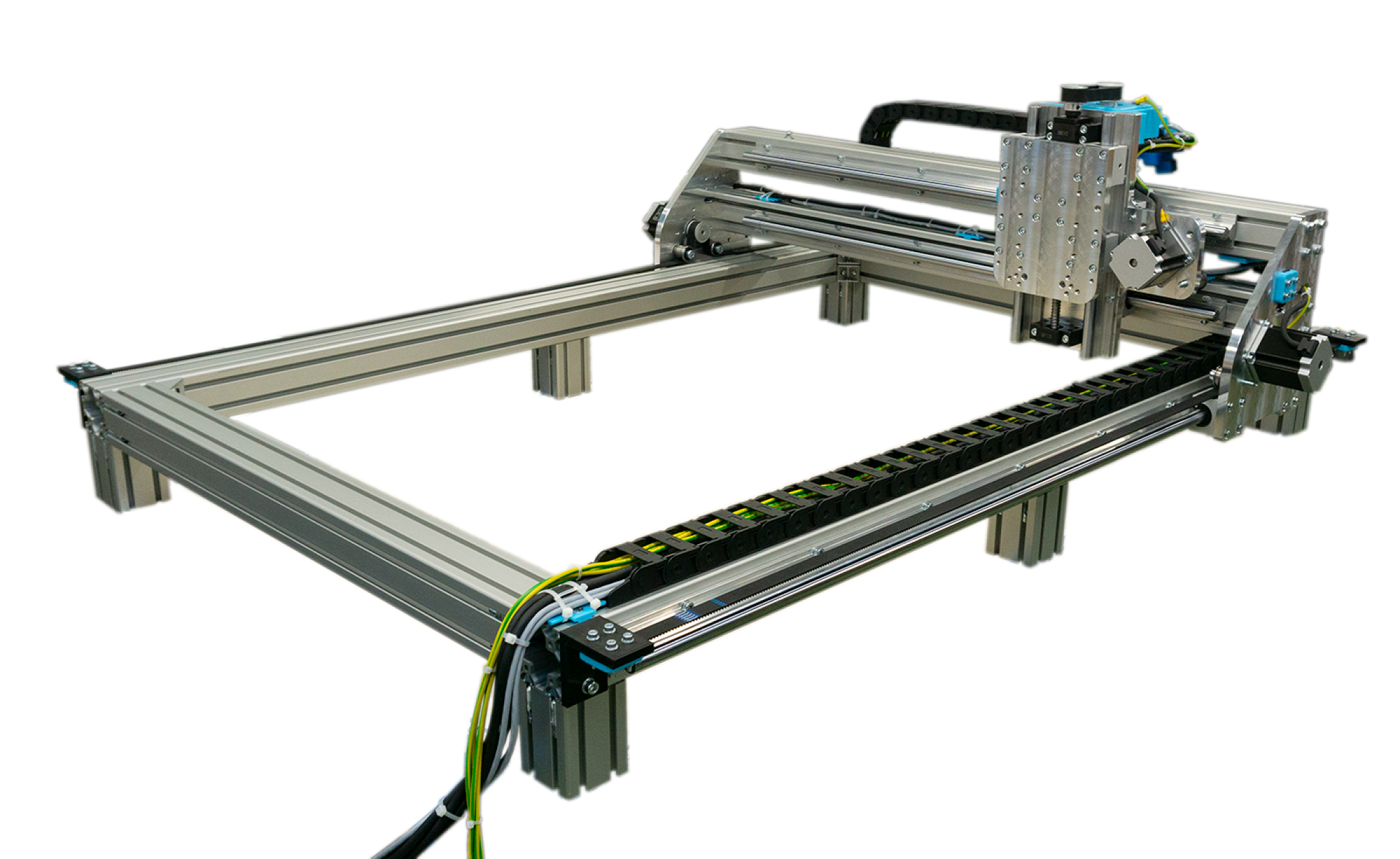

Volksfräse VF1 parts set
 The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state.After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this  Information sheet |
| The data and the parts may not be sold commercially without authorisation! More Information and contact to the parts data owner |
- Parts of the standard kit from a single source!
- Upgrade kits for the standard
- Matching controls and accessories from our webshop!
- Base plate and cables are not contained in this kit
Available options
- All parts according to the VF1 standard
- Robust profile design for frame and portal beam
- All milled parts of basic configuration

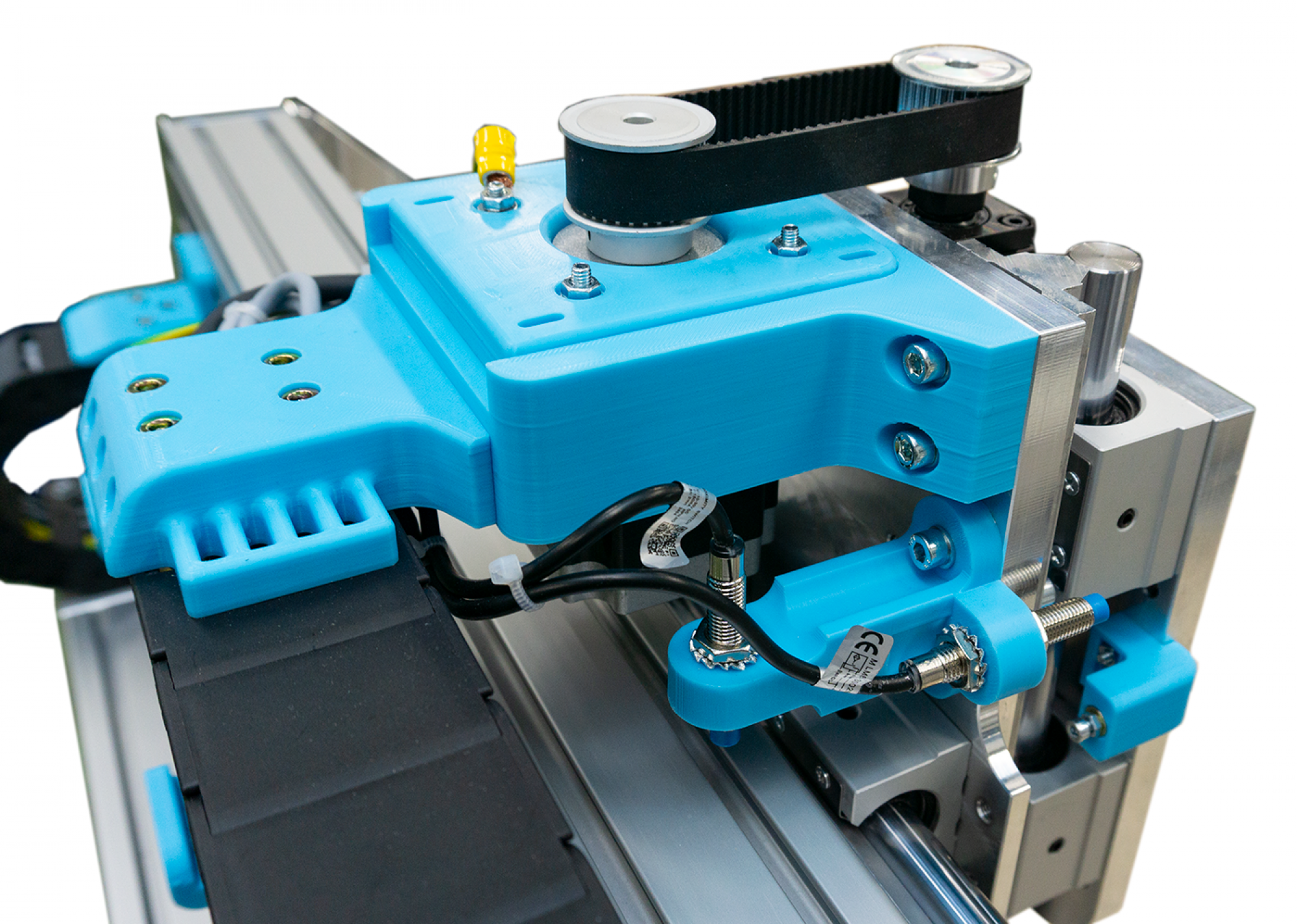

- All 3D print parts
- Complete set of screws
- Linear rails for all axes
- Belt drive for X- und Y-Axis
- Spindle drive for Z-Axis
- Milling spindle
- Base plate
- Control unit
- Electric drives and reference sensors with cables
- Drag chains
- Tools for assembly, e.g. screw tap M6
| Technische Daten | |||||||
|---|---|---|---|---|---|---|---|
| Clamping area mm | Travel mm | Outer dimensions mm | |||||
| X | Y | X | Y | Z | X | Y | Z |
| 800 | 1200 | 560 | 910 | 145 | 1120 | 1300 | 480 |
