Vise with Pull-down jaws BG88
-20%

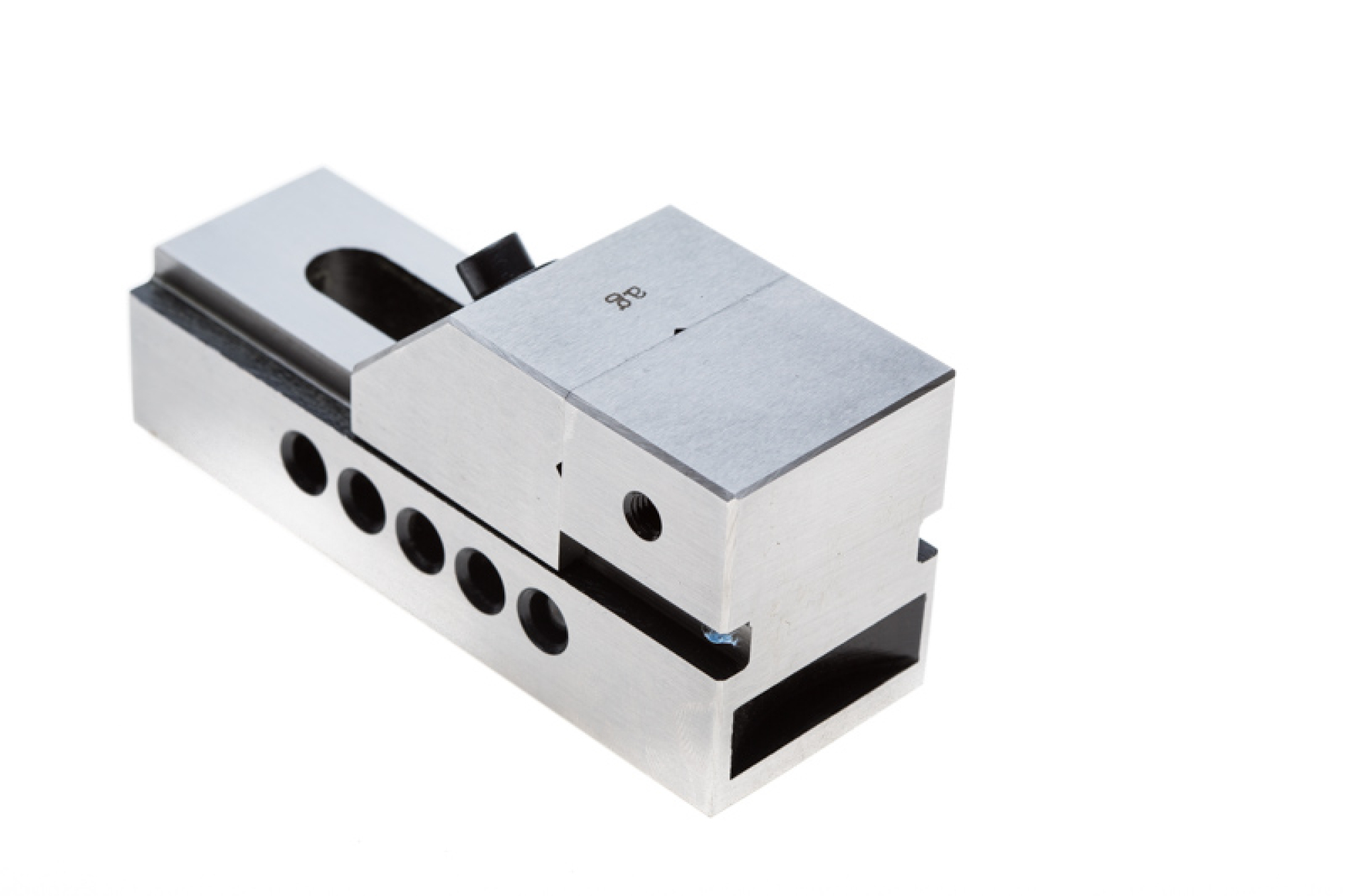

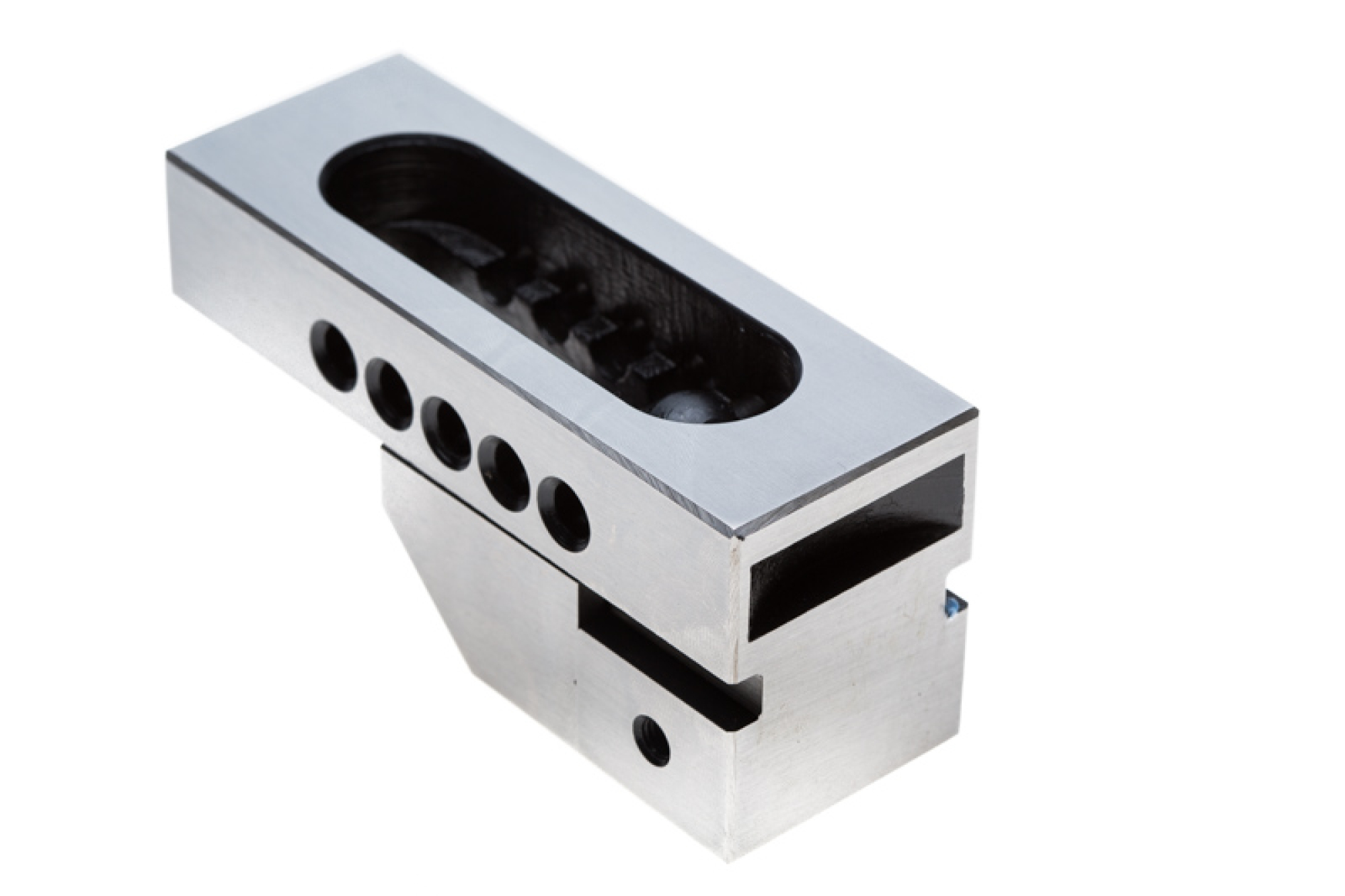

Vise with Pull-down jaws BG88
Technical characteristics:
- Industry quality
- Hardened to HRC58-62
- Grinded
- Parallelism 0.05 mm / 100 mm
- Squareness 0.05 mm

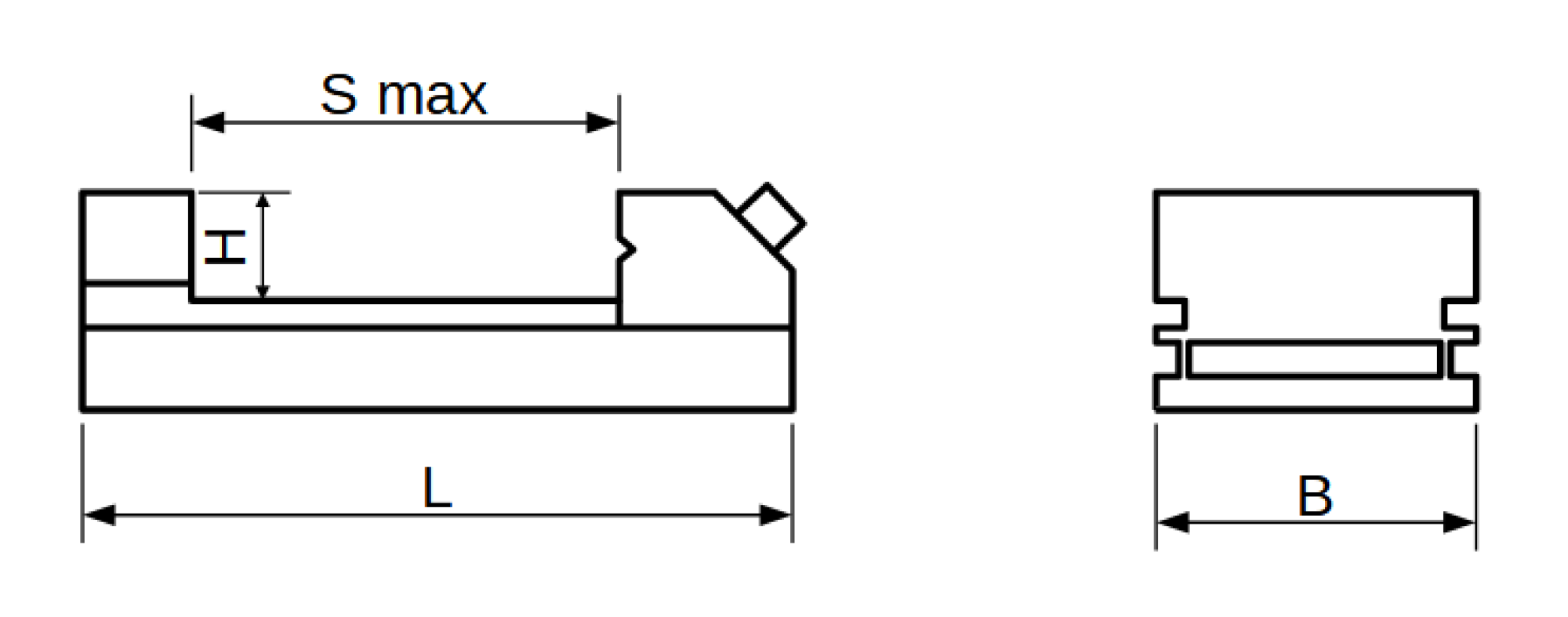

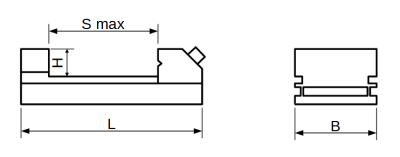

Measurements:
- Jaw width B: 88 mm
- Jaw height H: 40 mm
- Jaw span Smax: 125 mm
- Length L: 235 mm
- Height: 85 mm
- Weight: 7.3 kg
