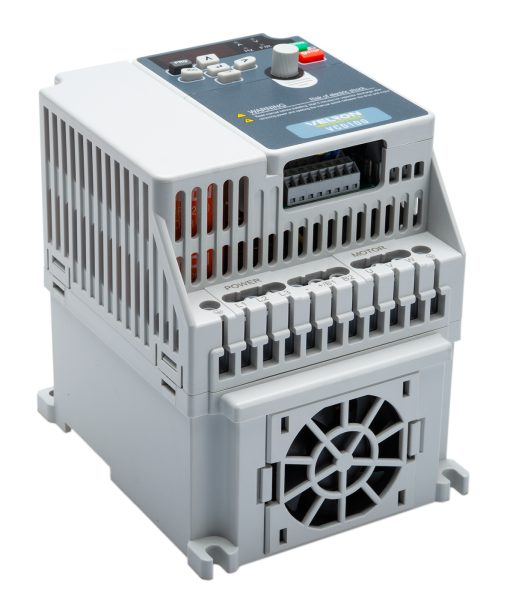

Frequency inverter Velron VCD100-122 | 2.2 kW | 230 VAC | 1-phase | max. 599 Hz
NEW
TOP

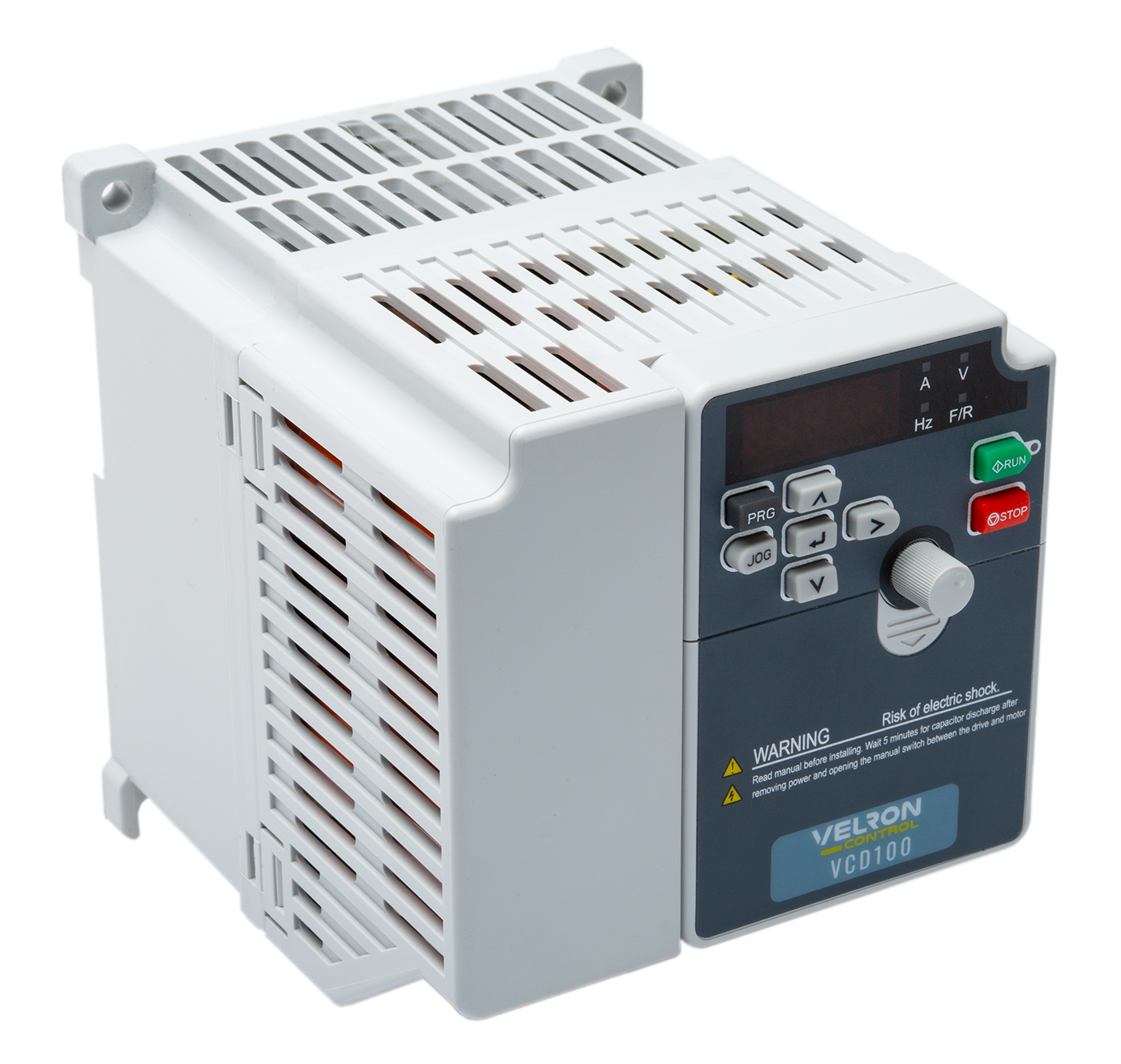

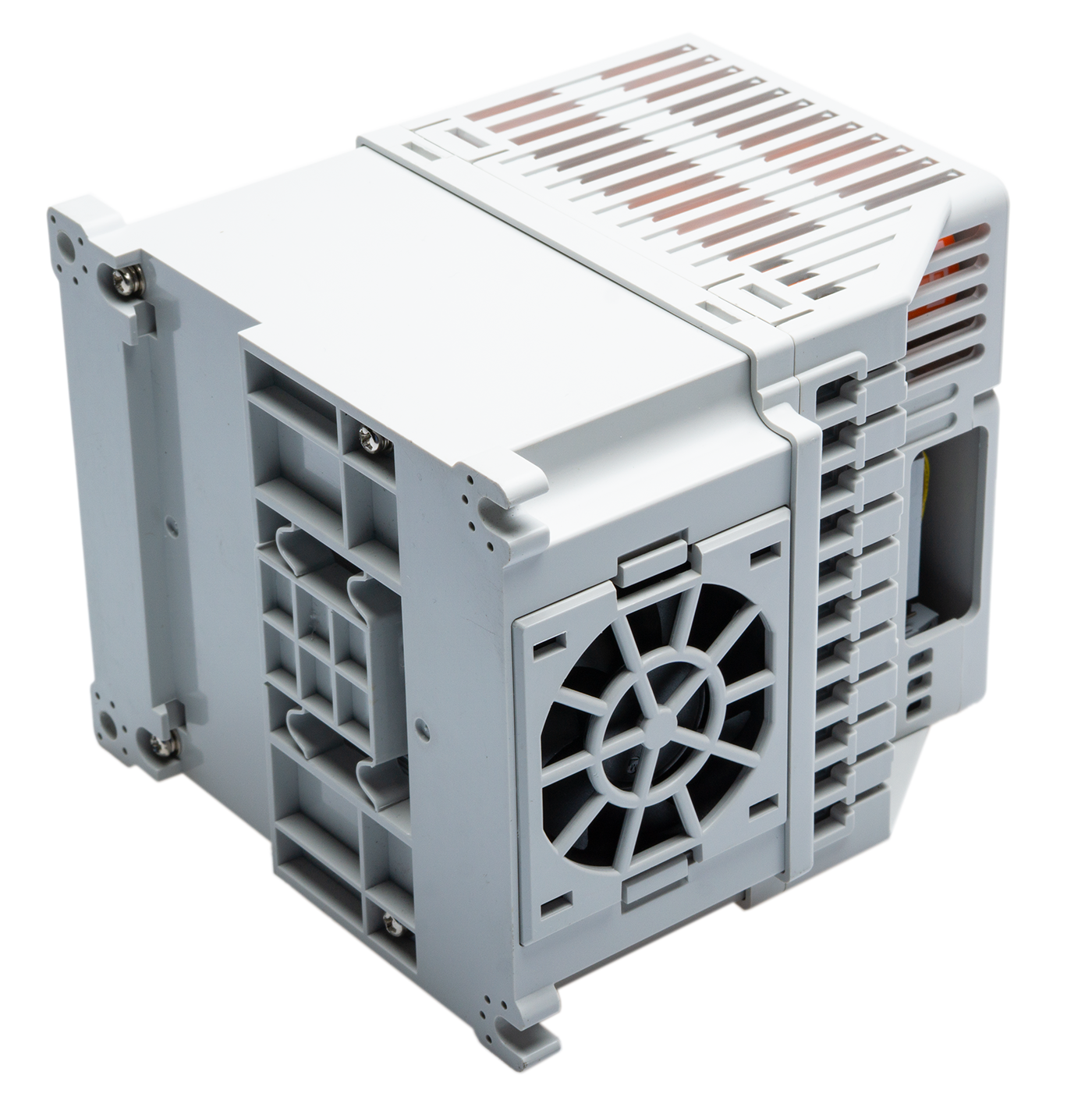

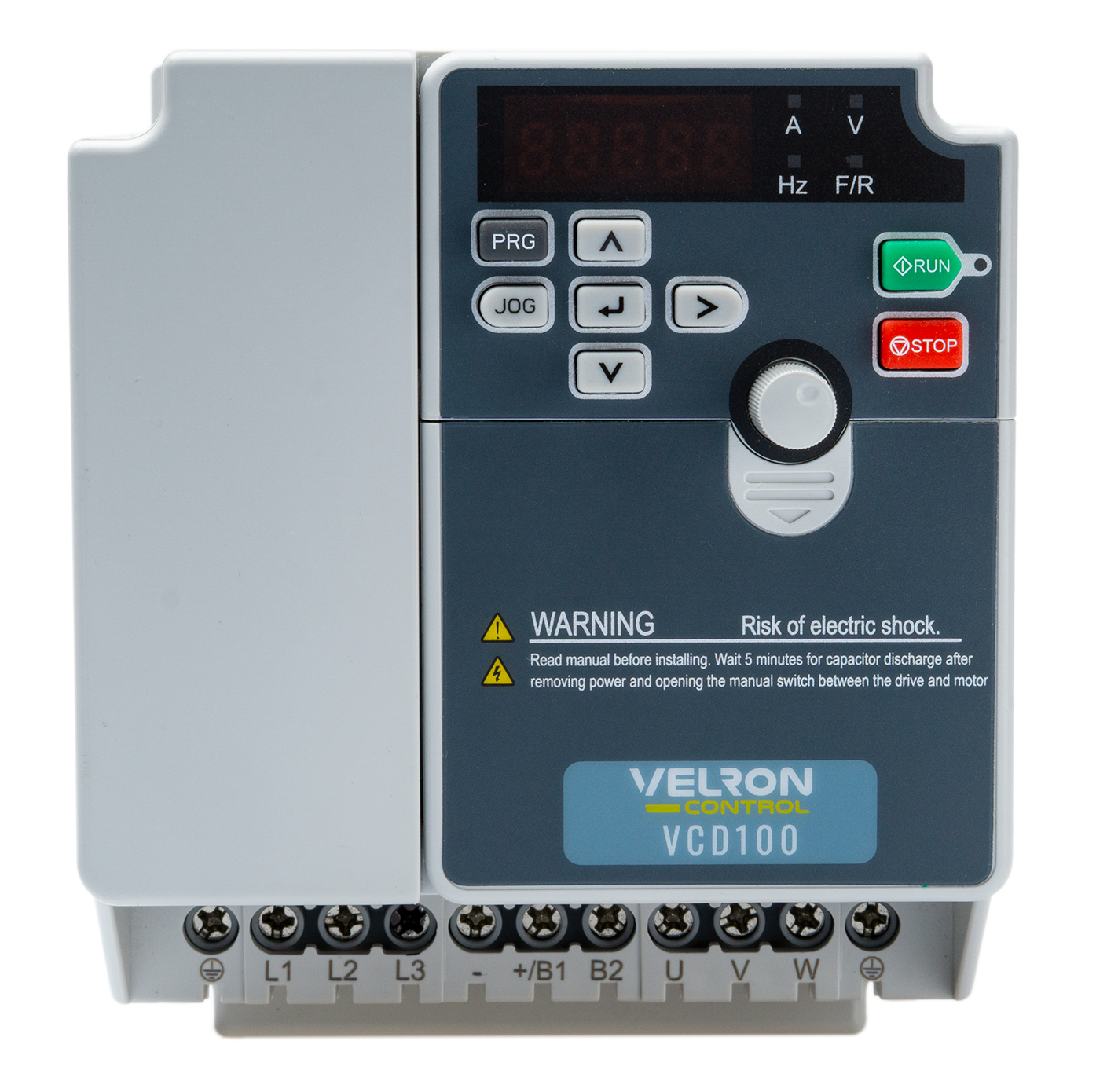

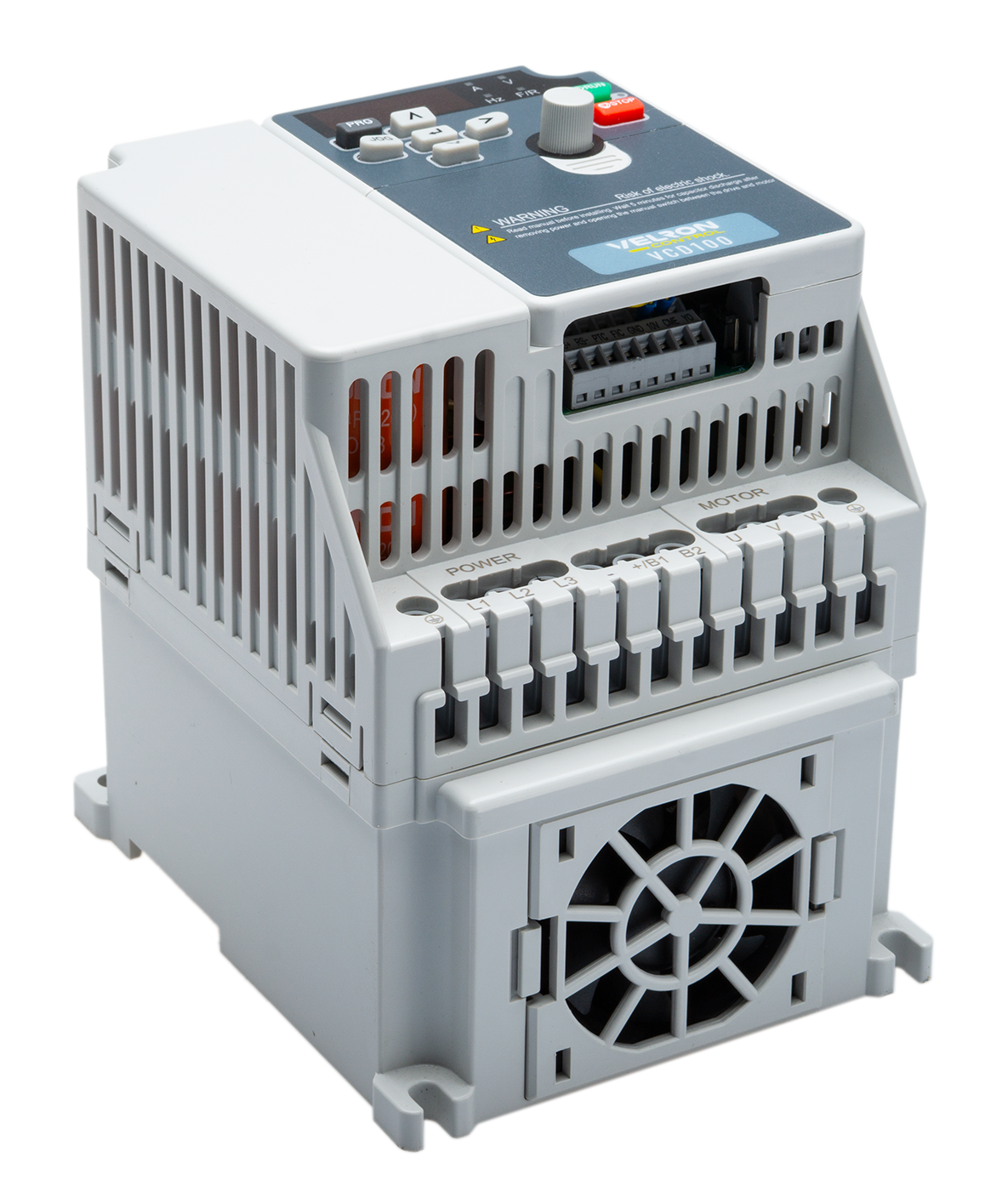

Frequency Inverter Velron VCD100-122 | 2.2 kW | 230 VAC | 1-phase
Frequency inverters of the series VCD100 are developed for versatile tasks of drive specially suited for applications with a high priority on cost efficiency. By its vector regulation it is very well suitable to operate with HF-spindles, since it offers a high starting torque of up to 180 %.Technical Data:
- Frequency inverter Velron VCD100 2.2 kW
- Single-phase 200 ... 240 VAC, 50 ... 60 Hz
- 0.5 ... 599 Hz
- Protection class: IP20
- Control modes: Voltage / Frequency control (V/F), Sensorless vector control (SVC), Closed loop vector control (CLV)
- Maximum starting torque: 150 % (SVC) / 180 % (CLV)
- Control of asynchronous motors (ASM / IM) and permanent magnet motors (PM)
- Sensorless vector control
- Integrated EMC-Filter
- Integrated brake chopper
- Safe stop according to ISO 13849-1 (STO Cat. 3 / PLe)
- Two safety inputs + EDM output
- Communication ports: RS-485, MODBUS
- Dimensions (H x W x D): 129 x 109 x 143 mm
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
