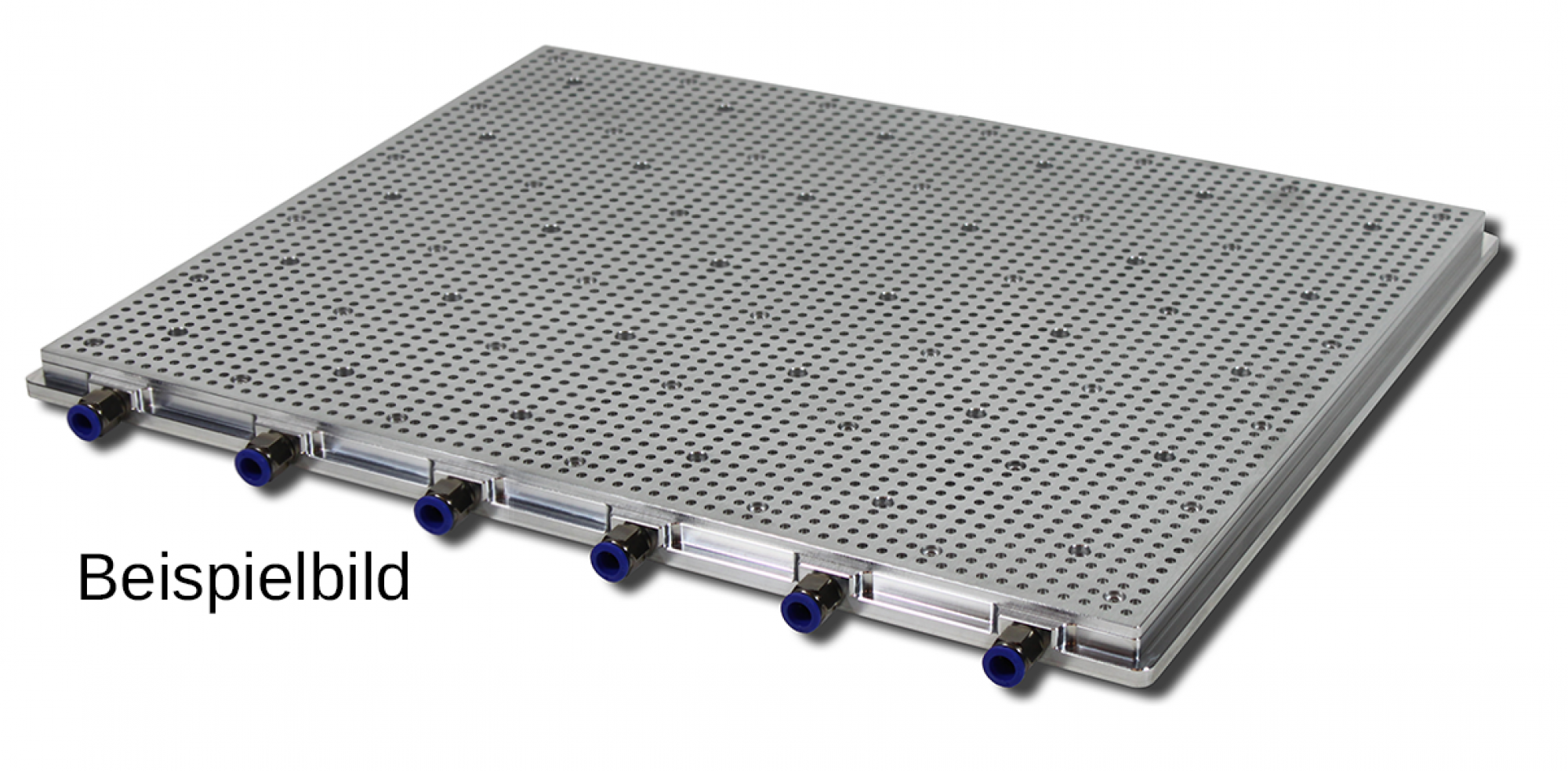

Vacuum table 6060 GAL
Completely made of solid cast aluminum, GAL vacuum tables offer the best prerequisites for heavy machining of light metals and steels. The solid construction has a vibration-damping effect. Since GAL vacuum tables are made entirely of aluminum, they are also coolant compatible. In addition, an M6 threaded grid at a distance of 100 x 100 mm is incorporated into the surface and thus enables the attachment of parts such as clamps, vises or stops.
Technical data:
- Material: Aluminium
- Measure: 616 x 616 mm
- Clamping area: 600 x 600
- Height: 26 mm
- Drillings: 0,3 mm
- Grid: 10 x 10 mm
- M6 Thread grid: 100 x 100 mm
- Connections: 12 mm
- Vacuum chambers: 6

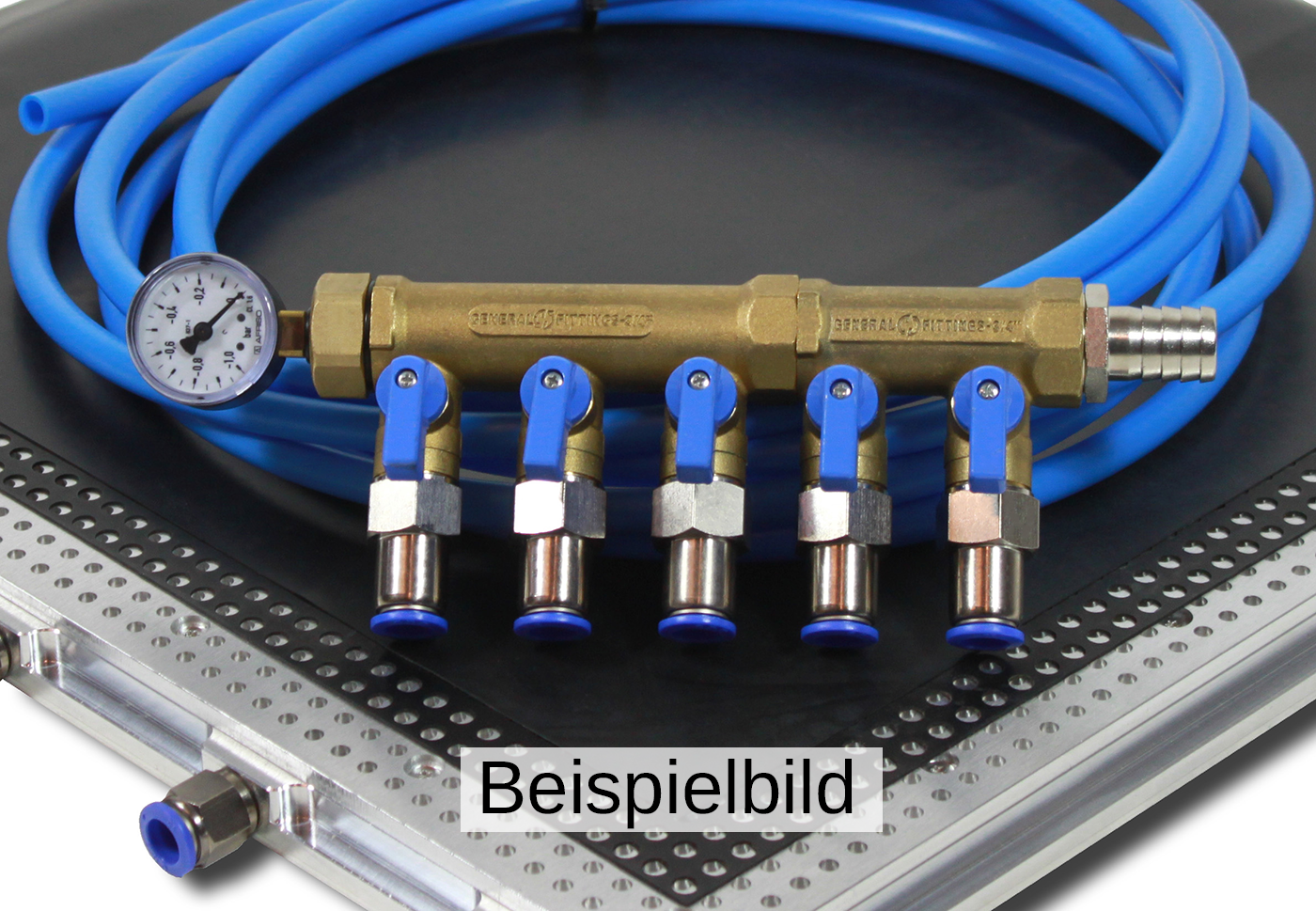

Included in delivery:
- 1 pcs Vacuum table VT6060 GAL
- 1 pcs Manifold
- 1 pcs hole rubber mat
- 1 pcs cover mat
- 1 pcs conection hose
