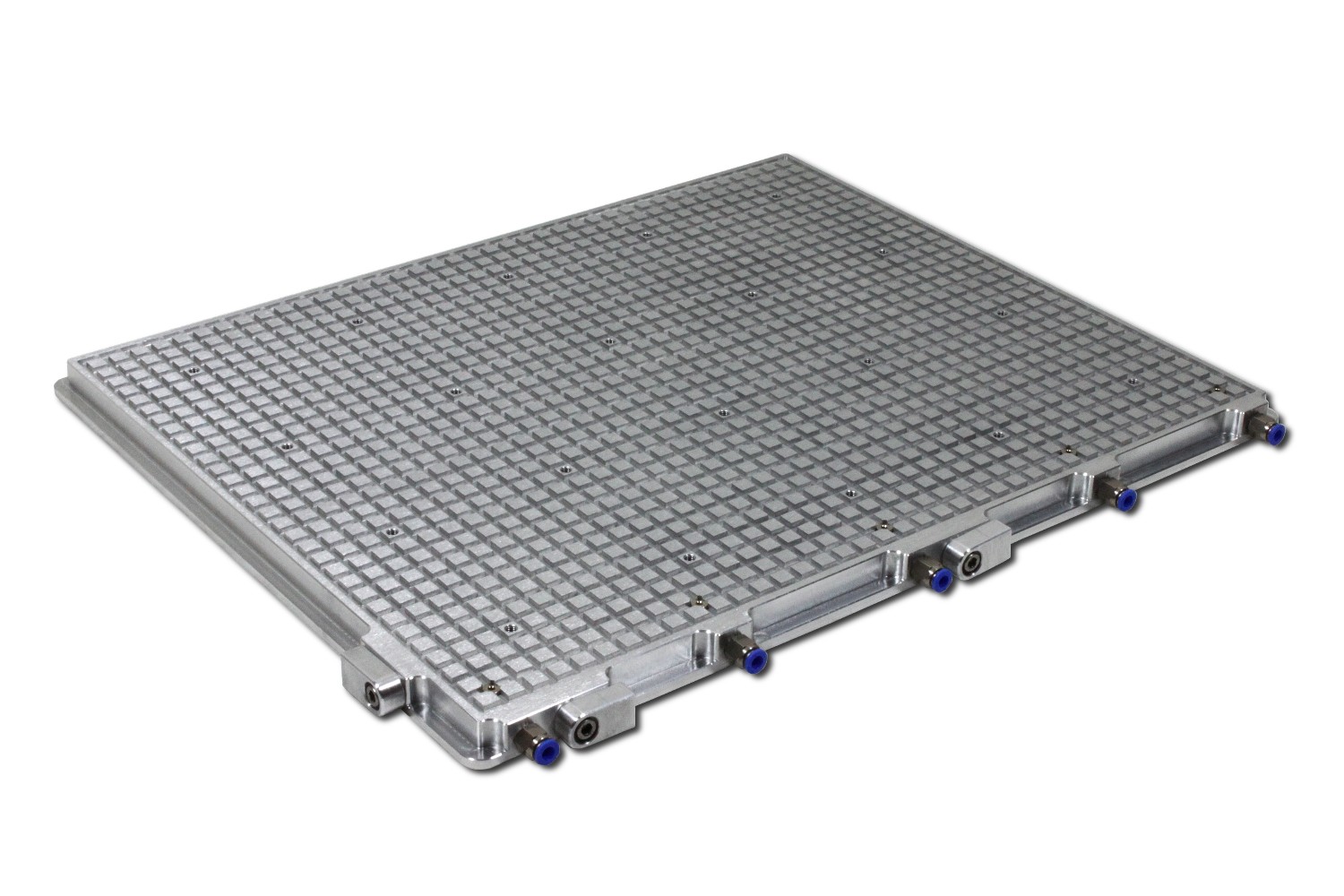

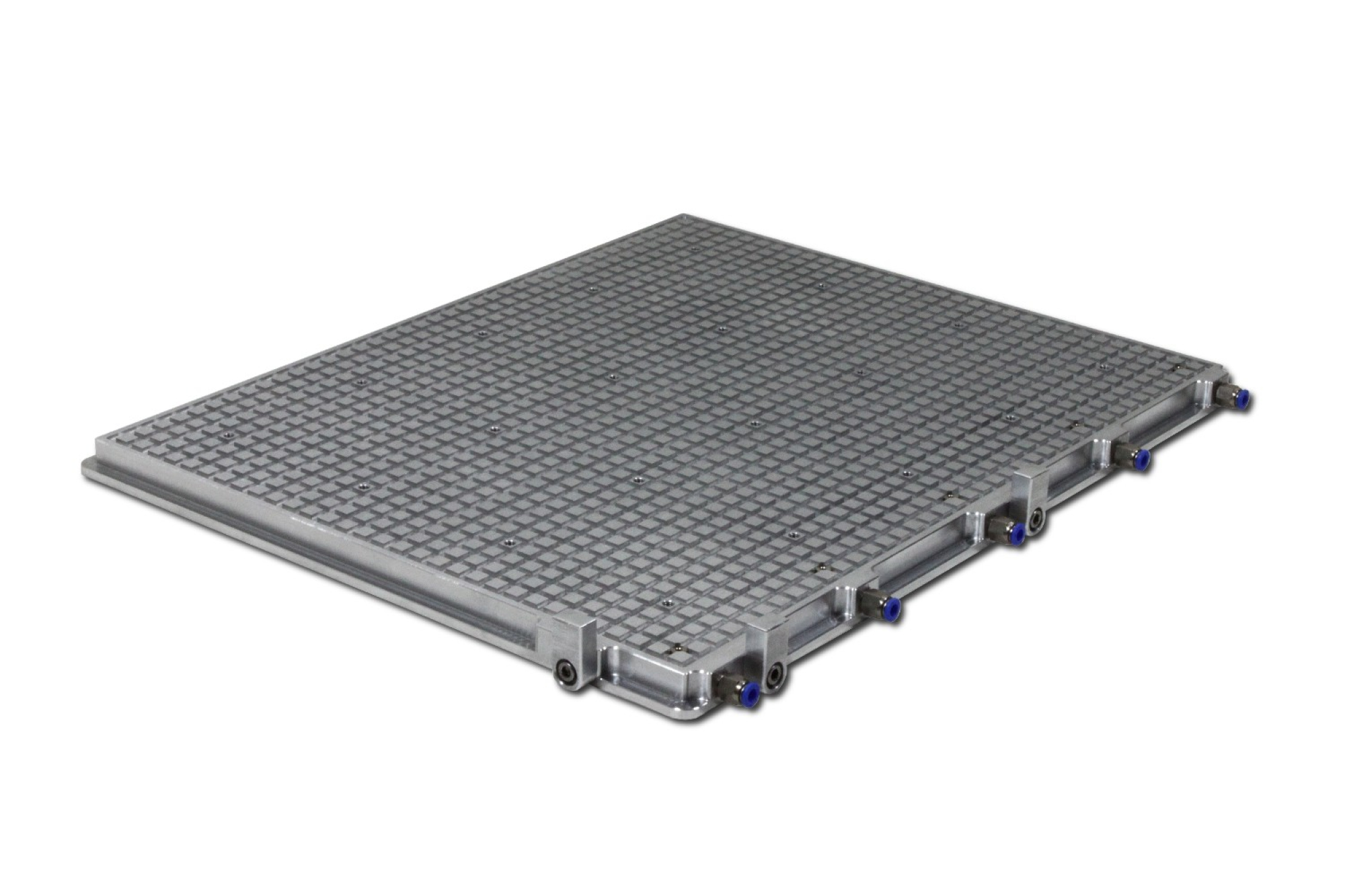

Vacuum table 5040 RAL 2
Vacuum table 5040 RAL 2
The atributes in survey:- Clamp and mill workpieces fast and easy
- Workpiece stop collars
- 100 x 100 mm M6-thread grid
- Face milled from both sides
- Ready to use. Just mount, conect vacuum and ready
- Fit for coolant
- Easy to use
- Measure: 516 x 416 x 20 mm
- Clamping area: 500 x 400 mm
- Grid: 12.5 mm
- Vacuum points: 5
- Material: Aluminium
- 8 mm surrounding clamping base
- 1 pcs vacuum tabe VT5040 RAL 2
- 1 pcs vacuum manifold
- 1 set conection hose
- 1 set foam rubber cord
- 1 pcs PVC adapter mat
Decision help vacuum pumpManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
