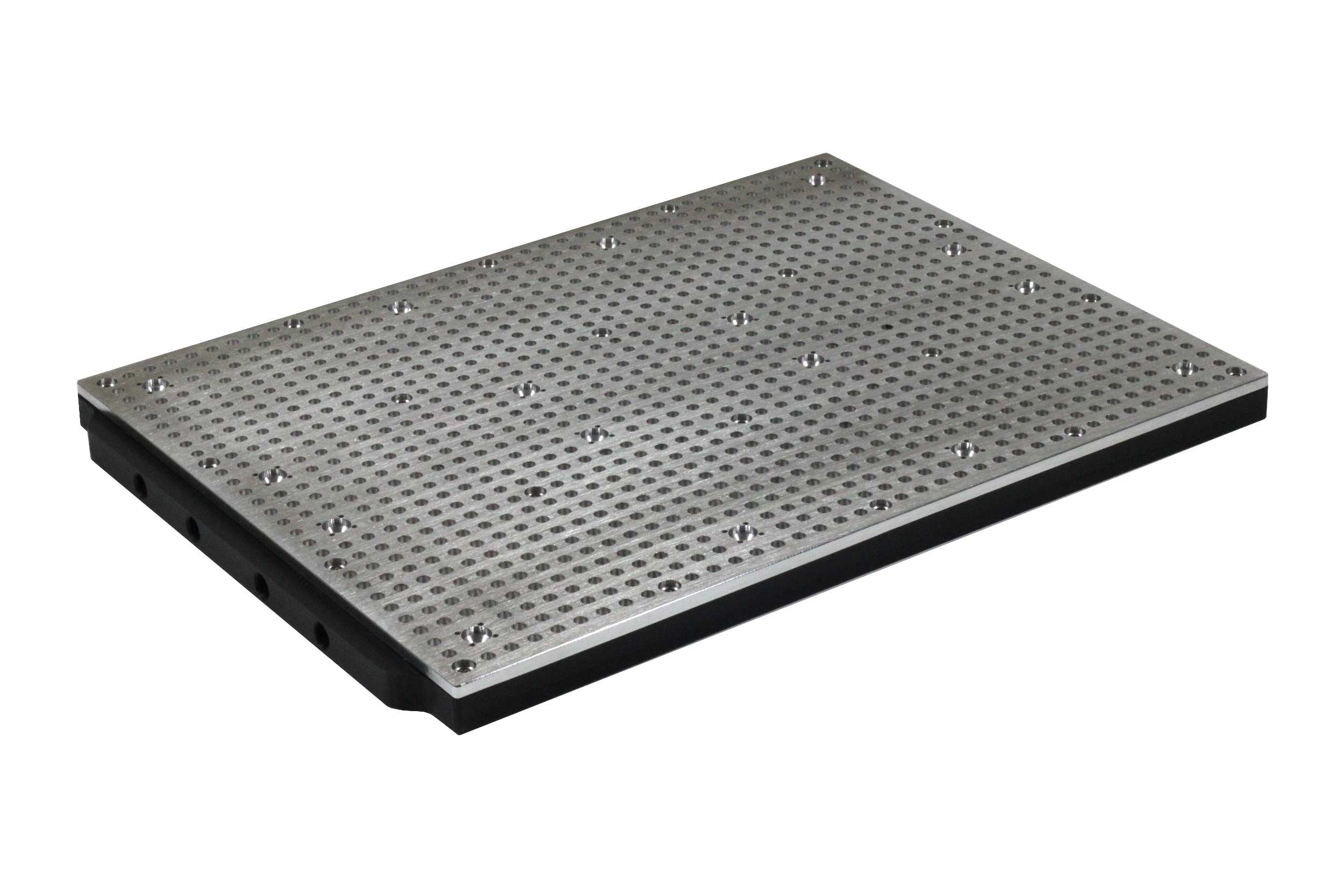

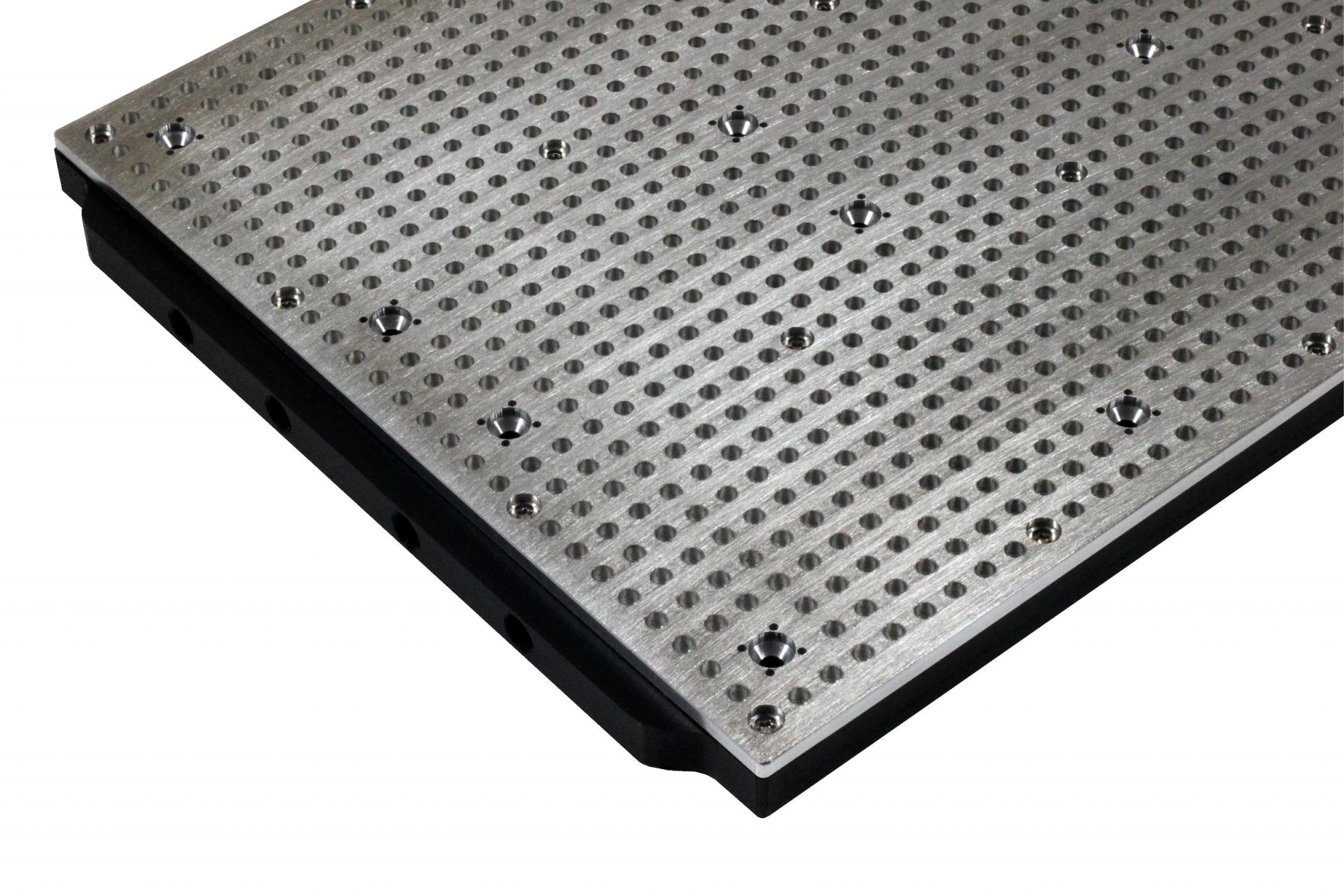

Vacuum table 4530 ST
Vacuum table 4530 ST
Technical Data:- Material: polyethylene, aluminium
- Measure: 460 x 300 mm
- Clamping area: 450 x 300 mm
- Height: 21 mm
- Drillings: 0,6 mm
- Grid: 10 x 10 mm
- Trimming spare: 3 mm
- Hose conections: 10 mm
- Adapter mat: hole rubber mat
Included in delivery:
- 1 pcs Vakuumtable VT4530 ST
- 1 pcs conection adaptor
- 1 pcs hole rubber mat
- 1 pcs cover rubber mat
- 1 set conection hose
The vacuum tables of the SRT, ST and Seal series can have a curved surface. Therefore, the vacuum table should be screwed in place and planed before first use.
If necessary, the vacuum table can also be mounted on a plate.
If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
