Vacuum table 4020 Seal 2 ALU
Technical data:
- Material: Aluminium, Polyethylen
- Measure: 410 x 200 mm
- Clamping area: 400 x 200 mm
- Hight: 29 mm
- Drillings: 0.3 mm
- Holegrid: 10 x 10 mm
- Hose conections: 10 mm
- Adaptermat: hole rubber mat
Included in delivery:
- 1 x Vacuum table VT4020 SEAL
- 1 x Vaccum conector
- 1 x cover rubber mat
- 1 x hole rubber mat
- 1 x set connection hose
The vacuum tables of the SRT, ST and Seal series can have a curved surface. Therefore, the vacuum table should be screwed in place and planed before first use.

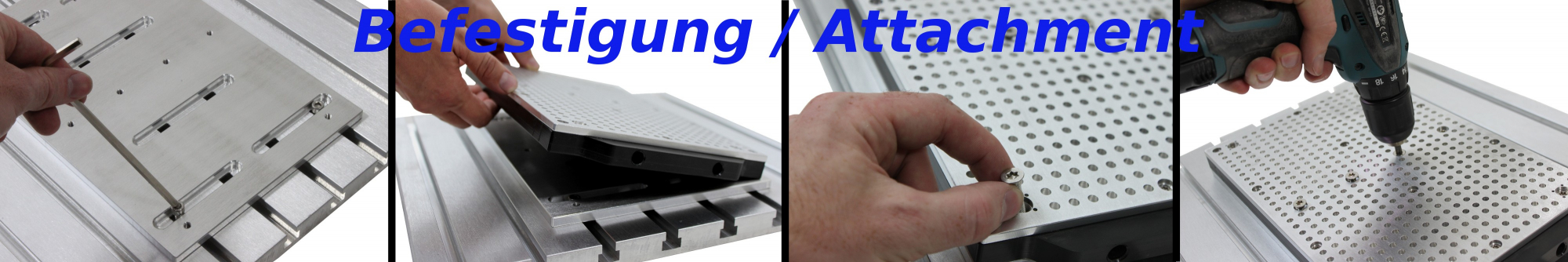

If necessary, the vacuum table can also be mounted on a plate.
If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
