Vacuum table 4020 ST
Vacuum table 4020 ST
Preview: Vacuum table 4020 ST
Preview: Vacuum table 4020 ST
Vacuum table 4020 ST
Vacuum table 4020 ST
Vacuum table 4020 ST
Mobile Preview: Vacuum table 4020 ST
Mobile Preview: Vacuum table 4020 ST

Vacuum table 4020 ST

Product No.:
VTI.4020ST
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
2.2 kg per piece
283,80 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

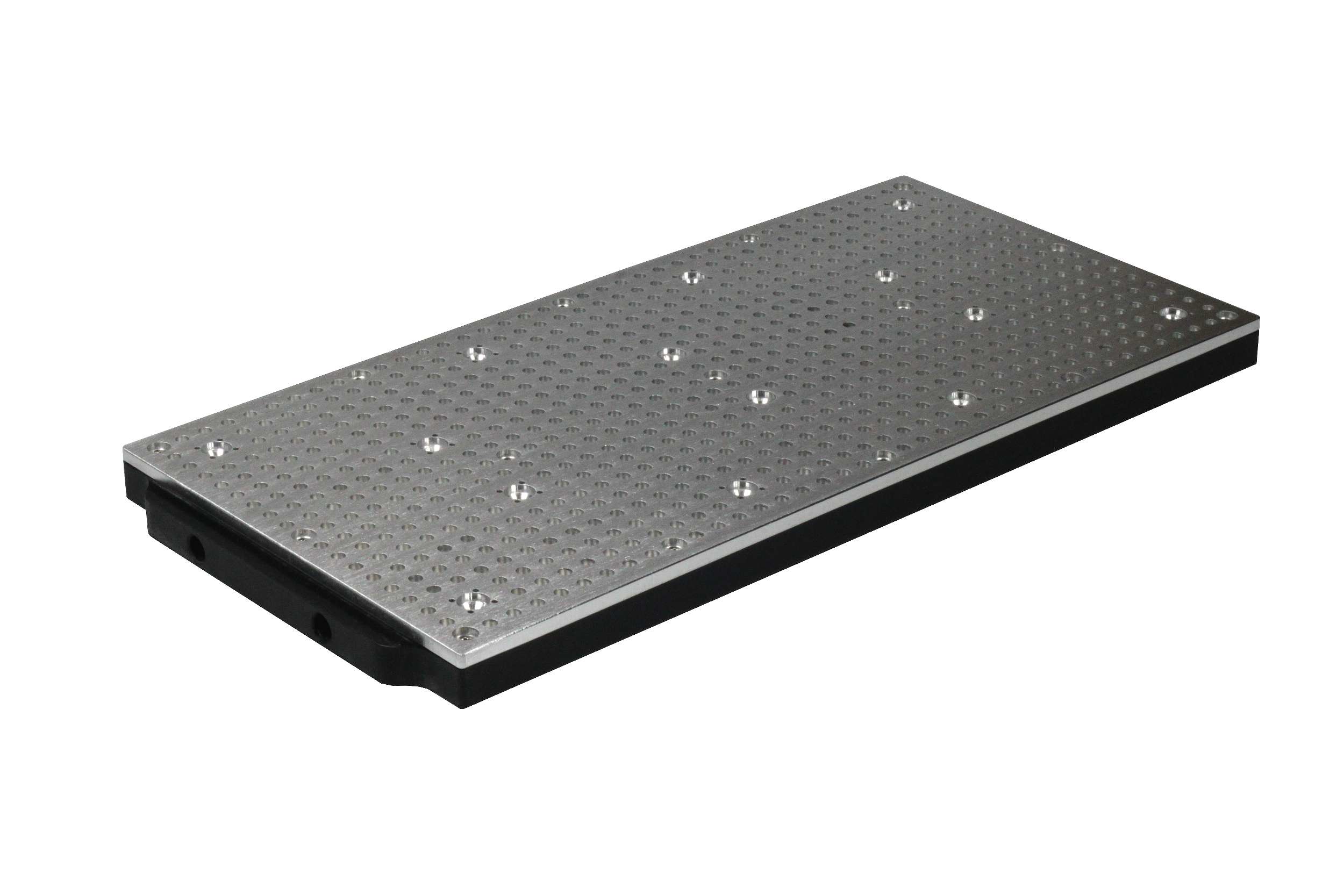

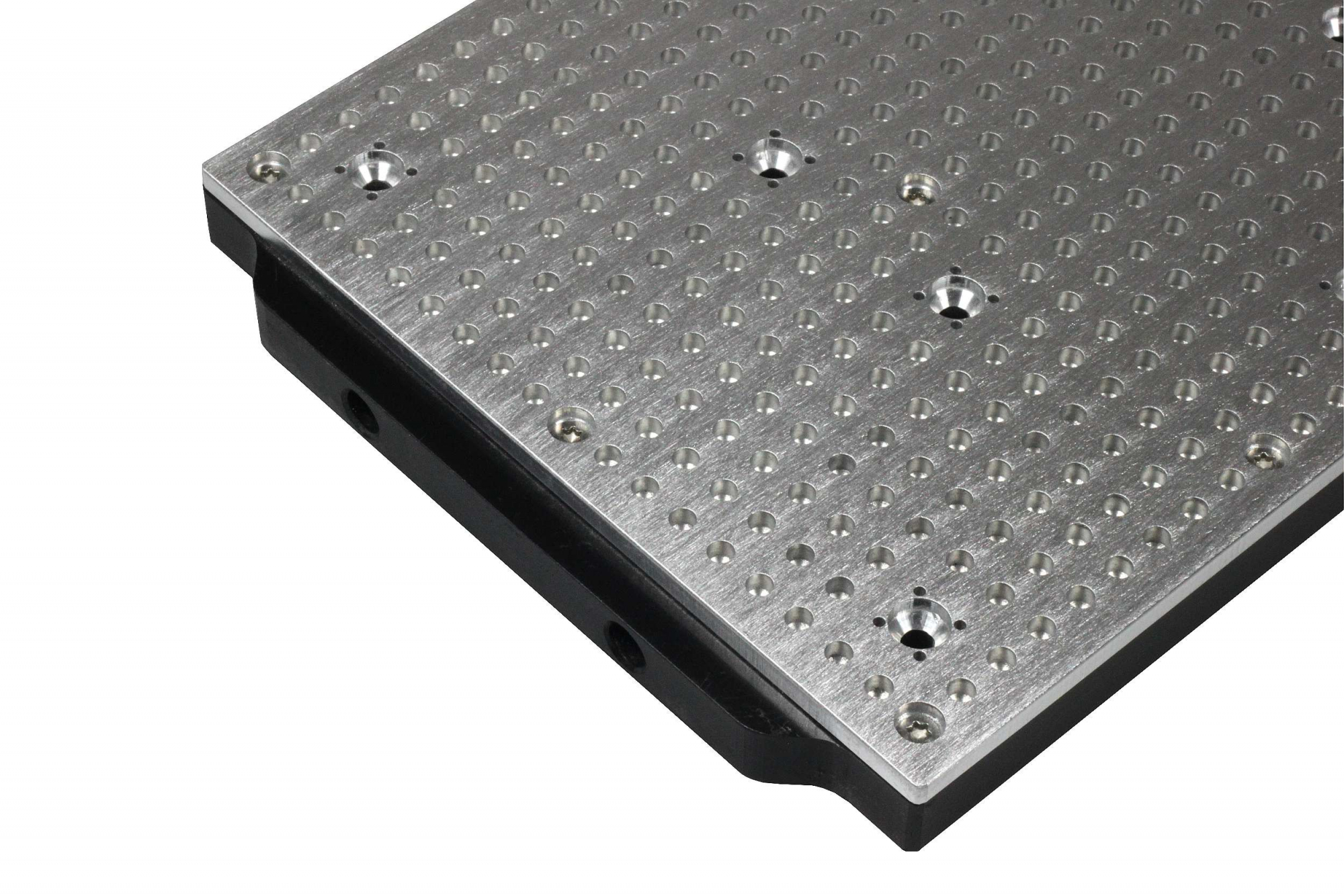

Vacuum table 4020 ST

Technical Data:
  • Material: polyethylene, aluminium
  • Measure: 410 x 200 mm
  • Clamping area: 400 x 200 mm
  • Height: 21 mm
  • Drillings: 0.6 mm
  • Grid: 10 x 10 mm
  • Trimming spare: 3 mm
  • Hose conections: 10 mm
  • Adapter mat: hole rubber mat

Included in delivery:

  • 1 pcs Vakuumtable VT4020 ST
  • 1 pcs conection adaptor
  • 1 pcs hole rubber mat
  • 1 pcs cover rubber mat
  • 1 set conection hose
The vacuum tables of the SRT, ST and Seal series can have a curved surface. Therefore, the vacuum table should be screwed in place and planed before first use.

If necessary, the vacuum table can also be mounted on a plate.

If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
