Vacuum table 320 x 240 mm Sorotec Edition

With this vacuum table series, manufactured exclusively for us, attention was paid to an optimal price-performance ratio right from the design stage. The hole sizes, channels and connection hoses have been consistently designed for the use of side channel compressors or vacuum cleaners. .

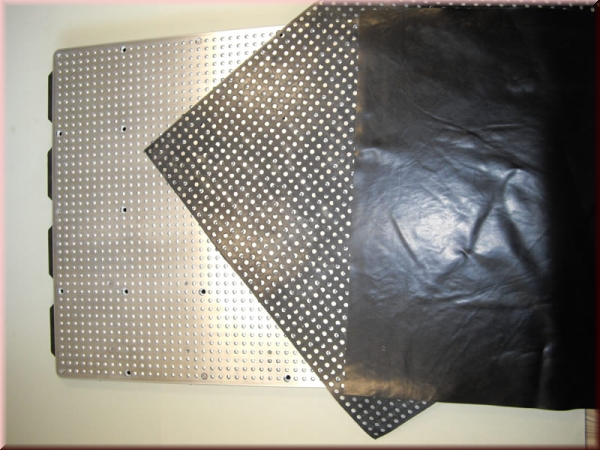

A connection adapter adjustable between approx. 1 "and 1.75" is already included in the scope of delivery. With this, a vacuum hose of a side channel blower or any commercially available vacuum cleaner nozzle can be stretched. A perforated rubber mat is included to increase the coefficient of friction. This also serves as protection for the vacuum plate when workpieces are milled through. .

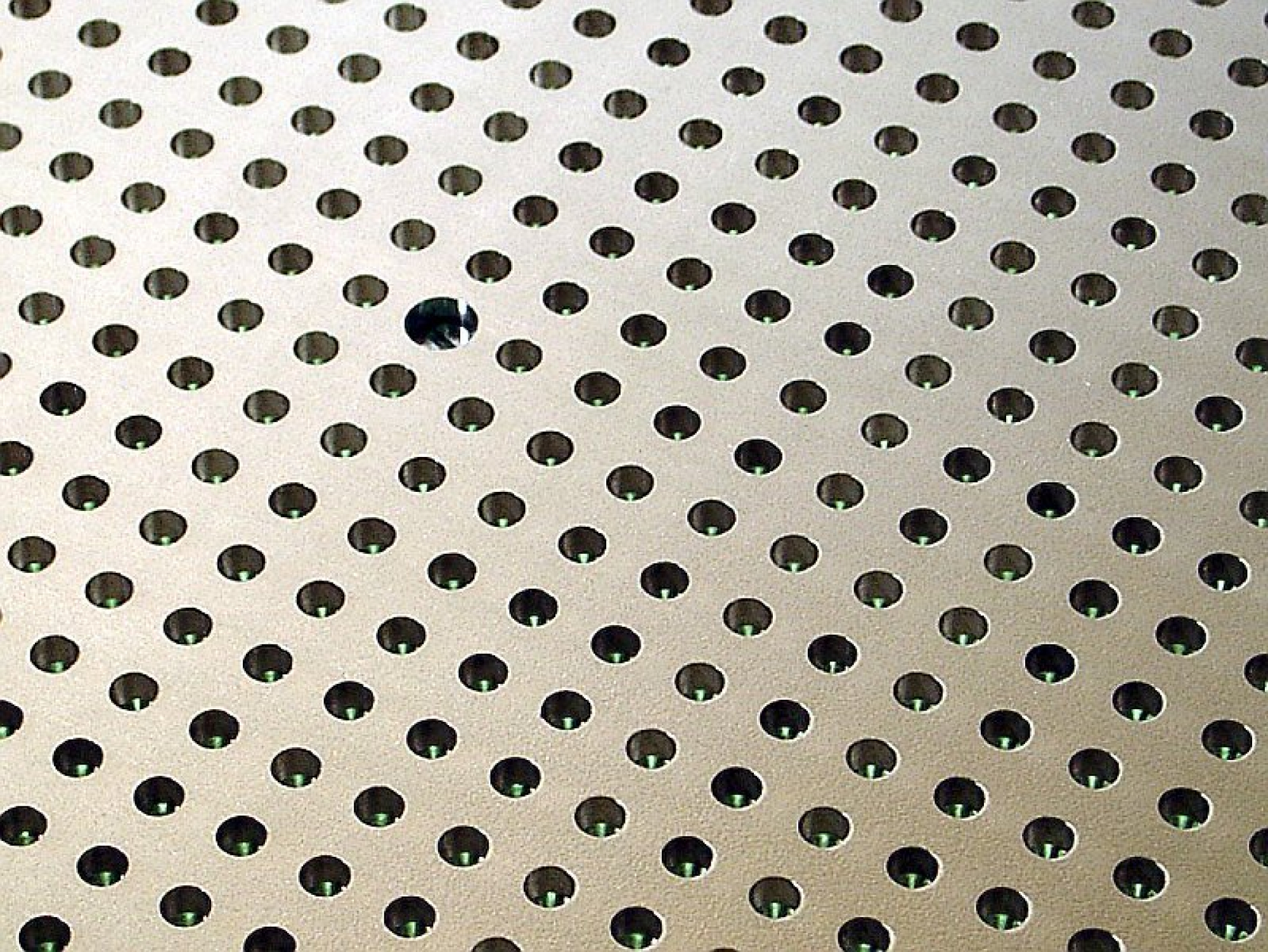

Another special feature of this series are the clamping threads. These additional clamping threads allow workpieces to be clamped that otherwise could not be clamped with a vacuum table. To do this, remove the plastic closure from the clamping bore and then have an M6 thread at your disposal. After the work is done, the plastic cap can be screwed in again and the hole is airtight again. .

If necessary, clamping threads can also be introduced in other areas, e.g. Screw vices or other things.

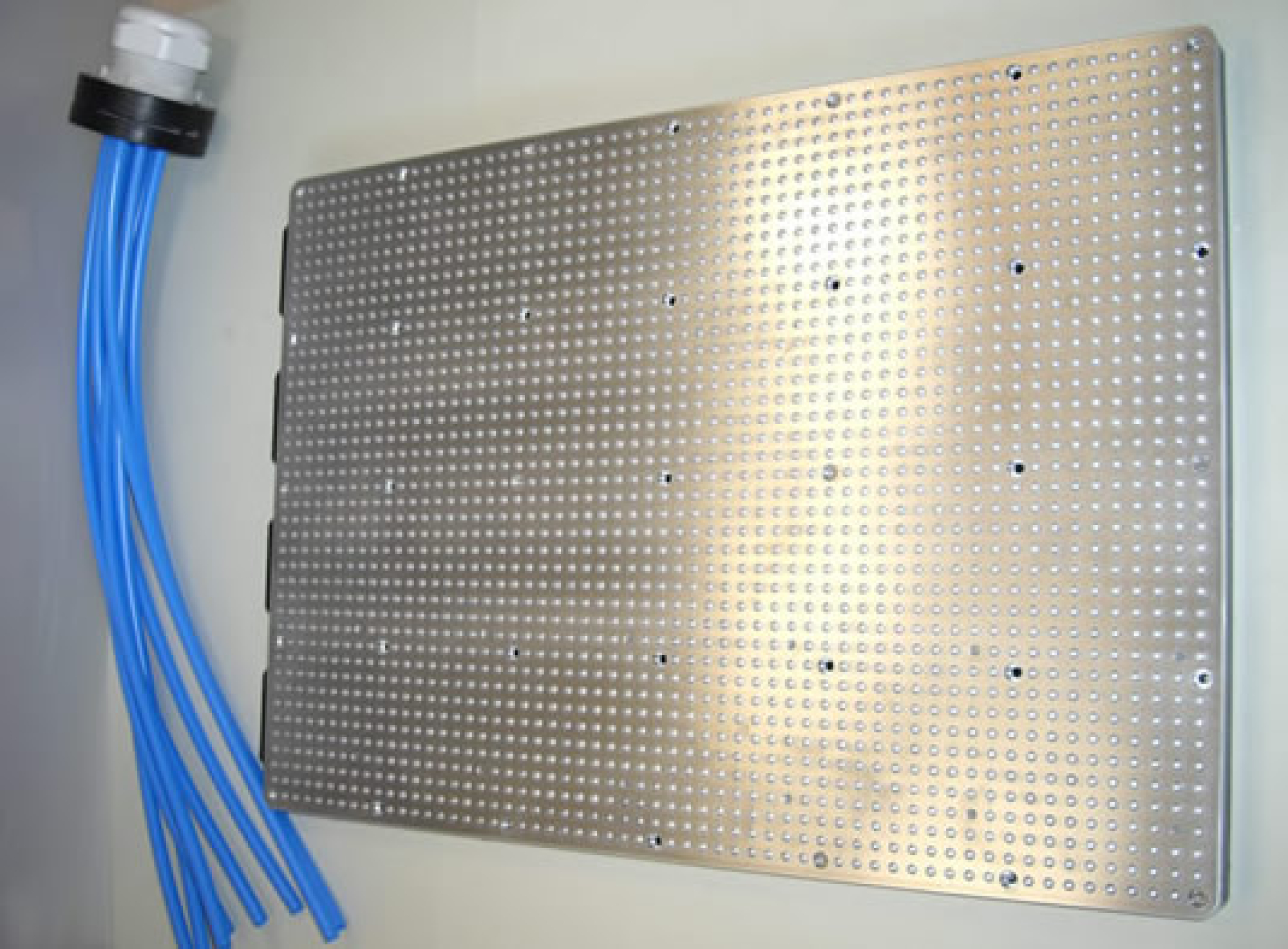

Included in delivery:

• 1pc vacuum table  320 x 240 mm
• Connection-adaptor and hoses
• Rubber grid mat
• Rubber cover mat (for covering unused holes)

Technical data:

• Top plate material: Aluminum
• Bottom material: Rigid PVC
• Exterior dimensions: 330 x 240 mm
• Clamping area: 320 x 240 mm
• Height: 21 mm
• Pitch: 10 x 10 mm
• Trimming spare: 4 mm
• Connection Diameter: D = 32 - 42 mm
• Can be used togeher with coolant
