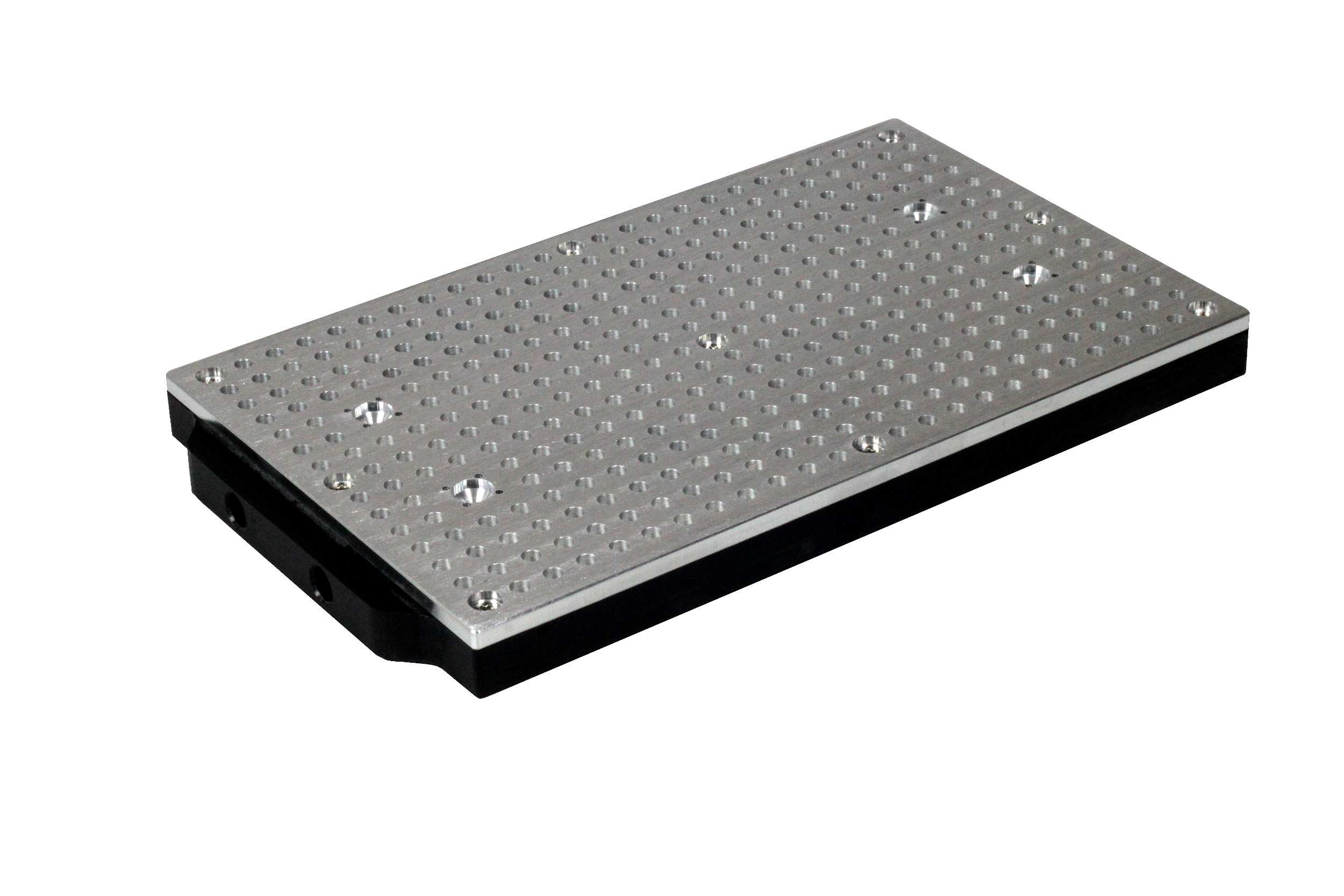

Vacuum table 2921 - ST
Vacuum table 2921 - ST
Included in delivery:- 1 pc vacuum table 290 x 210 mm
- Connection-adaptor and hoses
- Rubber grid mat
- Rubber cover mat (for covering unused holes)
- Top plate material: Aluminum
- Bottom material: Rigid PVC
- Exterior dimensions: 300 x 210 mm
- Clamping area: 290 x 210 mm
- Height: 21 mm
- Pitch: 10 x 10 mm
- Trimming spare: 4 mm
- Connection Diameter: D = 32 - 42 mm
- Can be used togeher with coolant
The vacuum tables of the SRT, ST and Seal series can have a curved surface. Therefore, the vacuum table should be screwed in place and planed before first use.
If necessary, the vacuum table can also be mounted on a plate.
If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
Decision help vacuum pumpManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
