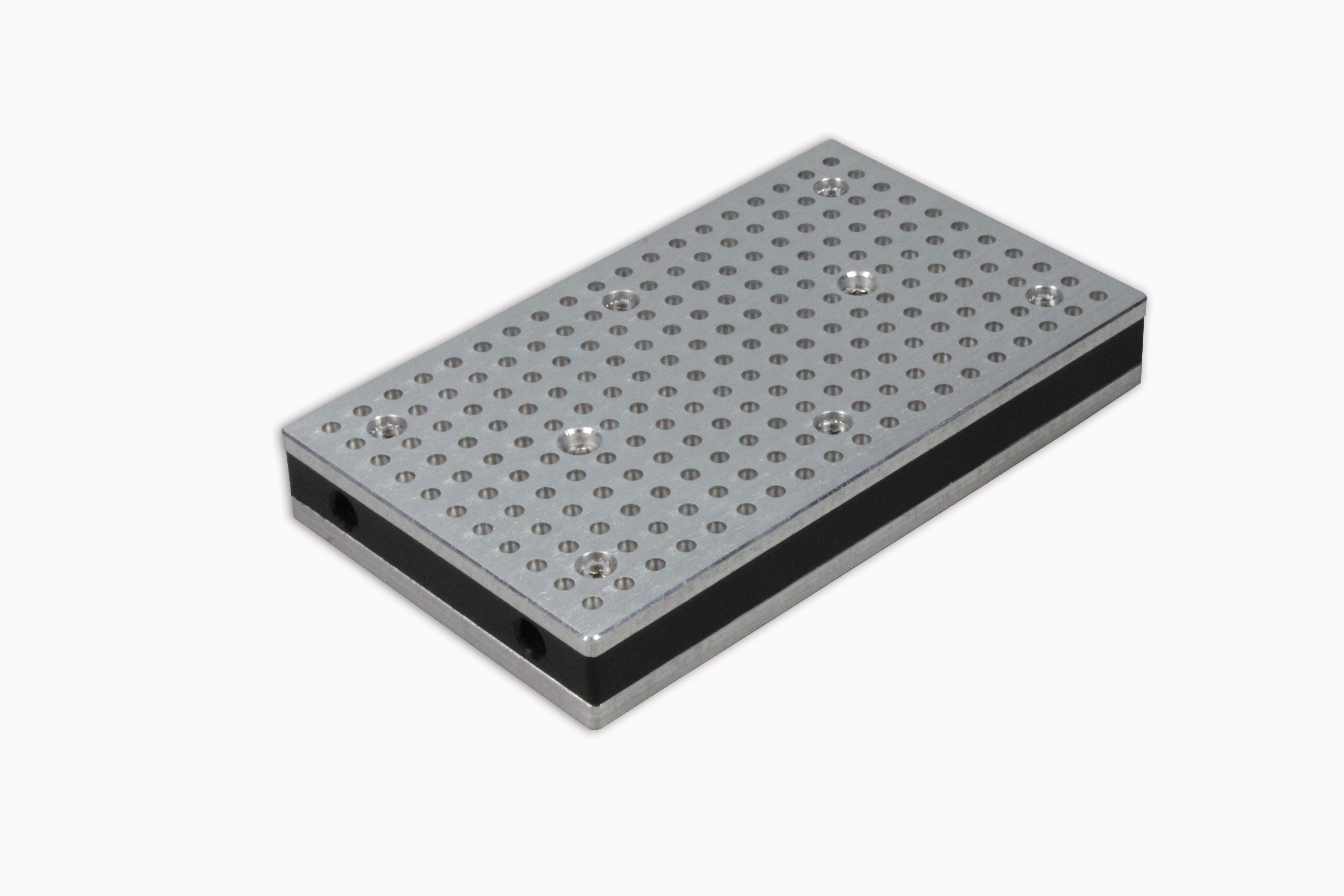

Vacuum table 2012 SEAL

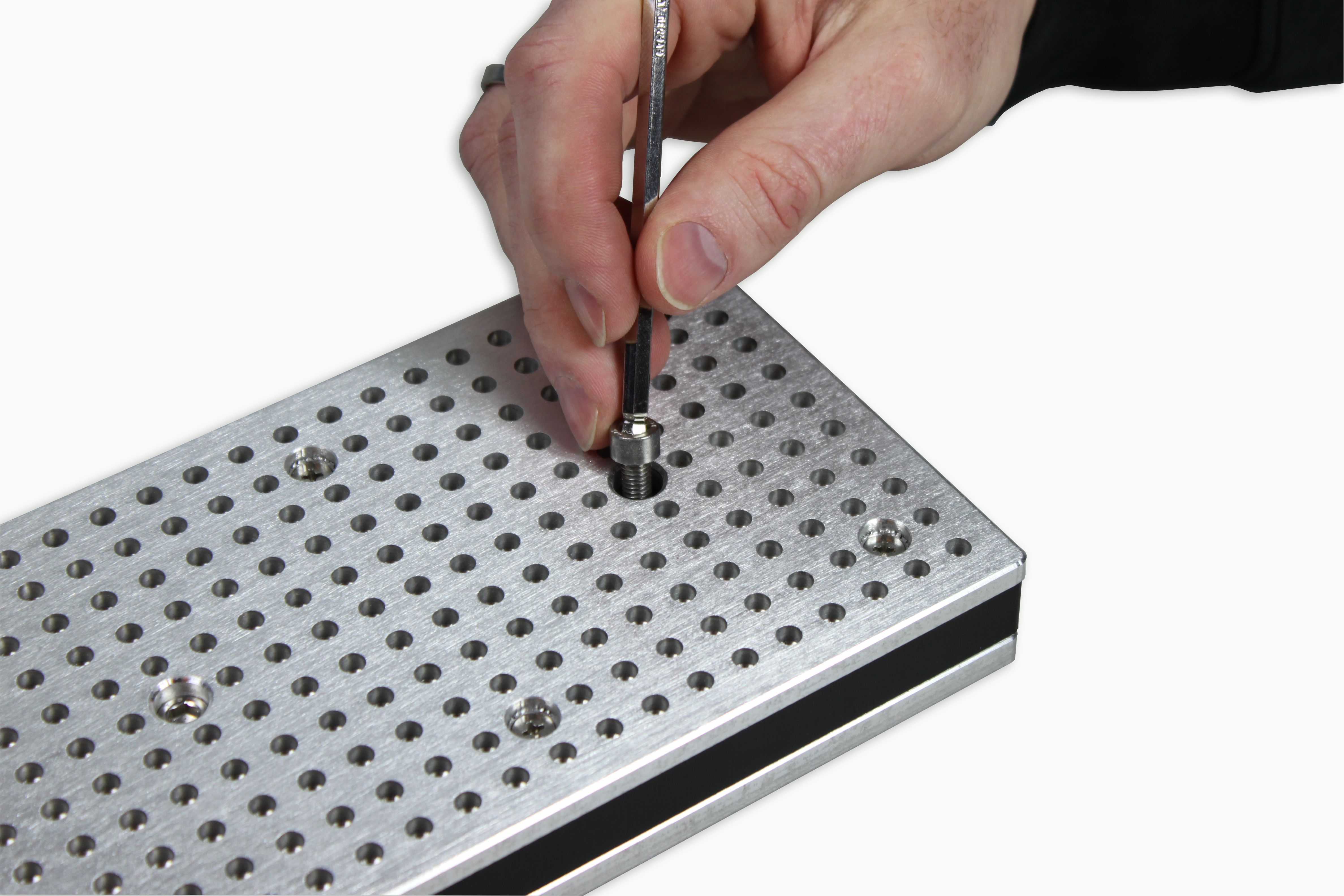

SEAL vacuum tables are an extension of the ST vacuum tables. An 8mm cast aluminum base plate rounds out the 15mm polyethylene base and 6mm cast aluminum lid structure. This has a vibration dampening effect and provides more rigidity. To attach the vacuum table, first attach the base plate to the base, then attach the top of the vacuum table to the base plate. to the base plate. They are well suited for light machining of wood, plastic and thin light metal plates with minimum quantity lubrication. Heavy machining and the use of coolant are not recommended.

Technical data:

• Material: Aluminium, Polyethylen
• Measure: 200 x 120 mm
• Clamping area: 200 x 120 mm
• Hight: 29 mm
• Drillings: 0.3 mm
• Holegrid: 10 x 10 mm
• Hose conections: 10 mm

Included in delivery:

• 1 pcs Vacuum table VT2012 SEAL
• 1 pcs Vaccum conector
• 1 pcs cover rubber mat
• 1 pcs hole rubber mat
• 1 pcs set conection hose

The vacuum tables of the SRT, ST and Seal series can have a curved surface. Therefore, the vacuum table should be screwed in place and planed before first use.

If necessary, the vacuum table can also be mounted on a plate.

If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
