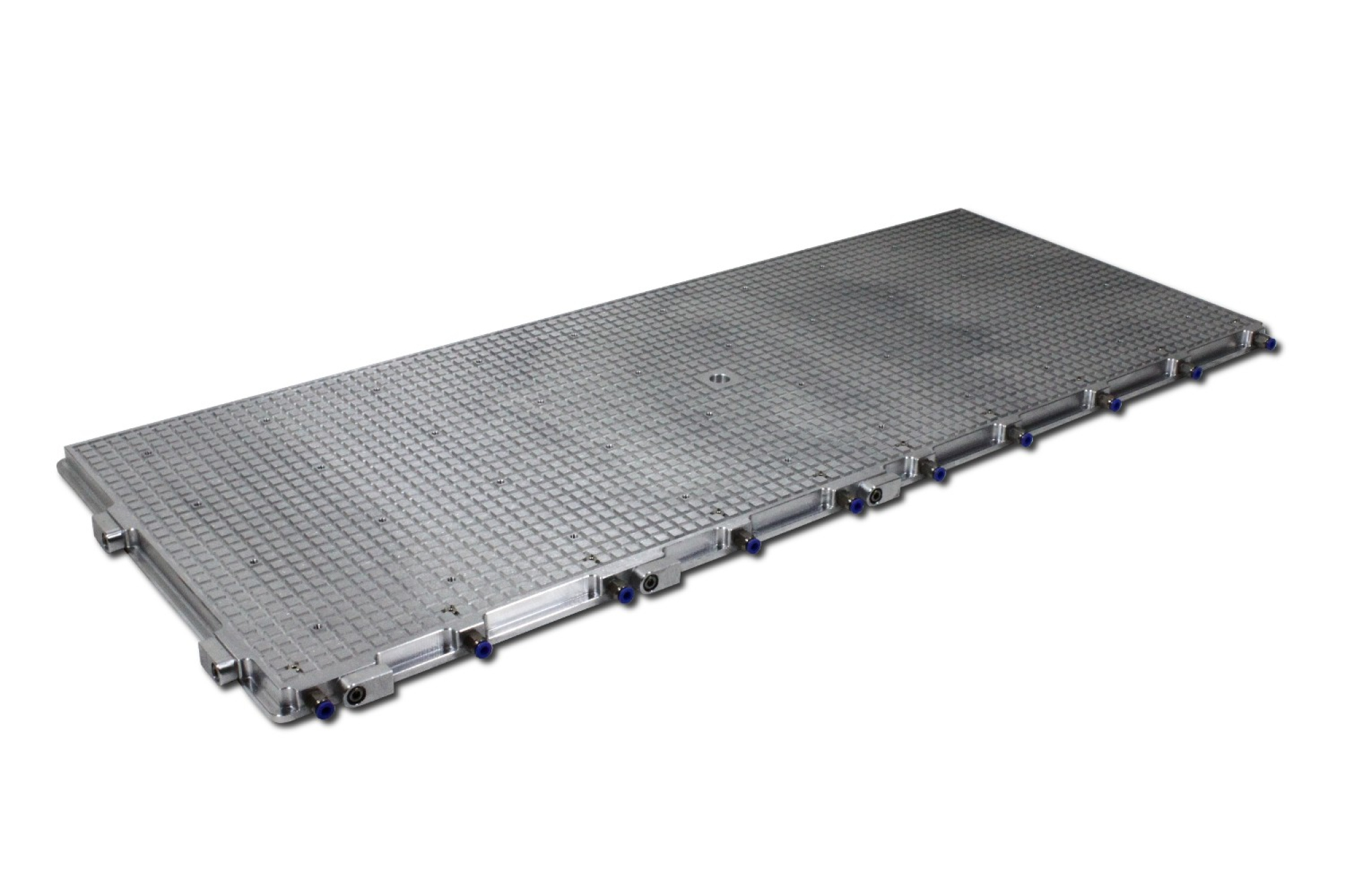

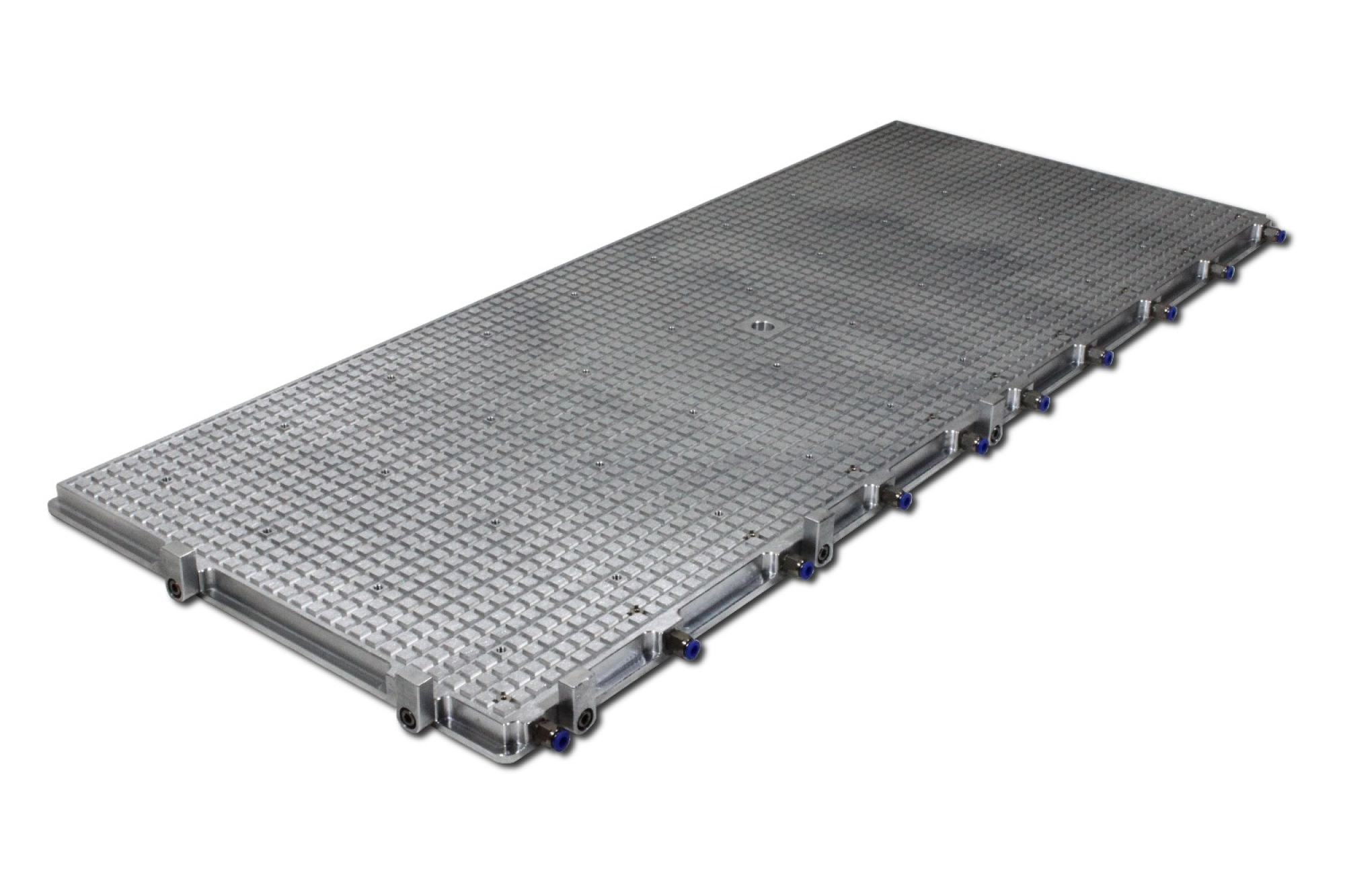

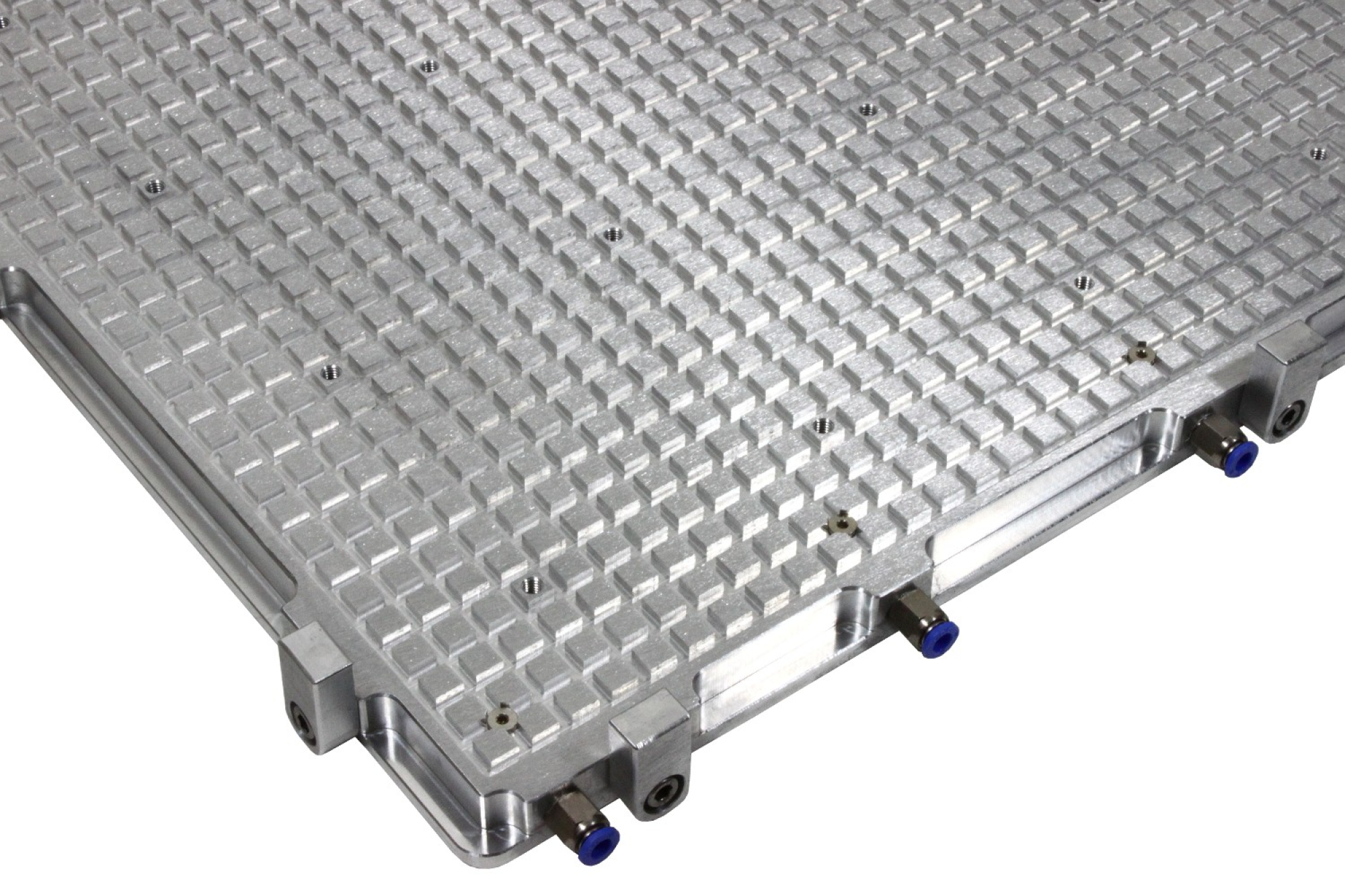

Vacuum table 10040 RAL 2
Vacuum table 10040 RAL 2
The atributes in survey:- Clamp and mill workpieces fast and easy
- Workpiece stop collars
- 100 x 100 mm M6-thread grid
- Face milled from both sides
- Ready to use. Just mount, conect vacuum and ready
- Fit for coolant
- Easy to use
- Measure: 1016 x 416 x 20 mm
- Clamping area: 1000 x 400 mm
- Grid: 12.5 mm
- Vacuum points: 10
- Material: Aluminium
- 8 mm surrounding clamping base
- 1 pcs vacuum tabe VT10040 RAL 2
- 1 pcs vacuum manifold
- 1 set conection hose
- 1 set foam rubber cord
- 1 pcs PVC adapter mat
Decision help vacuum pump
